Vestil Laminated Dock Bumpers

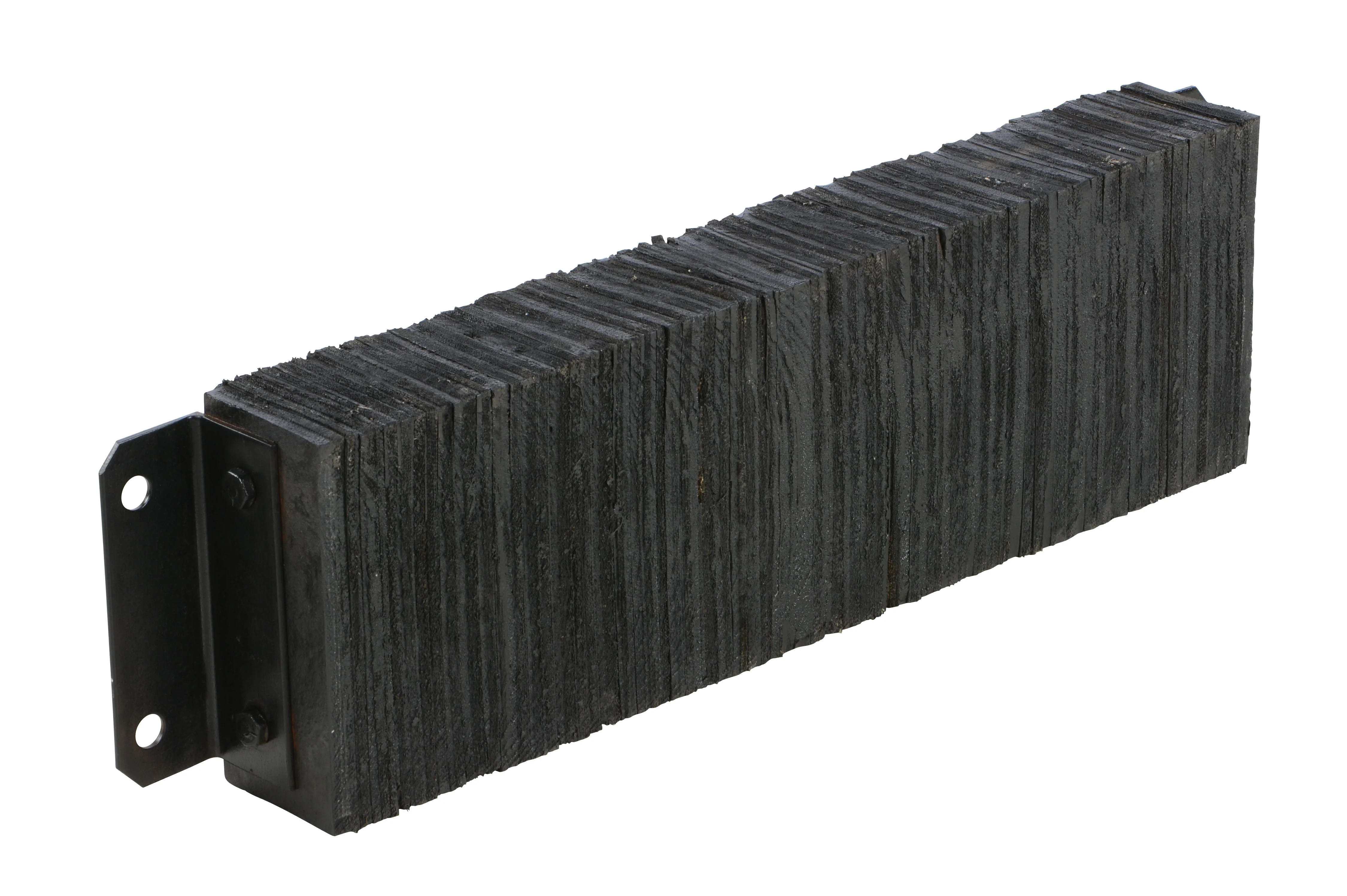

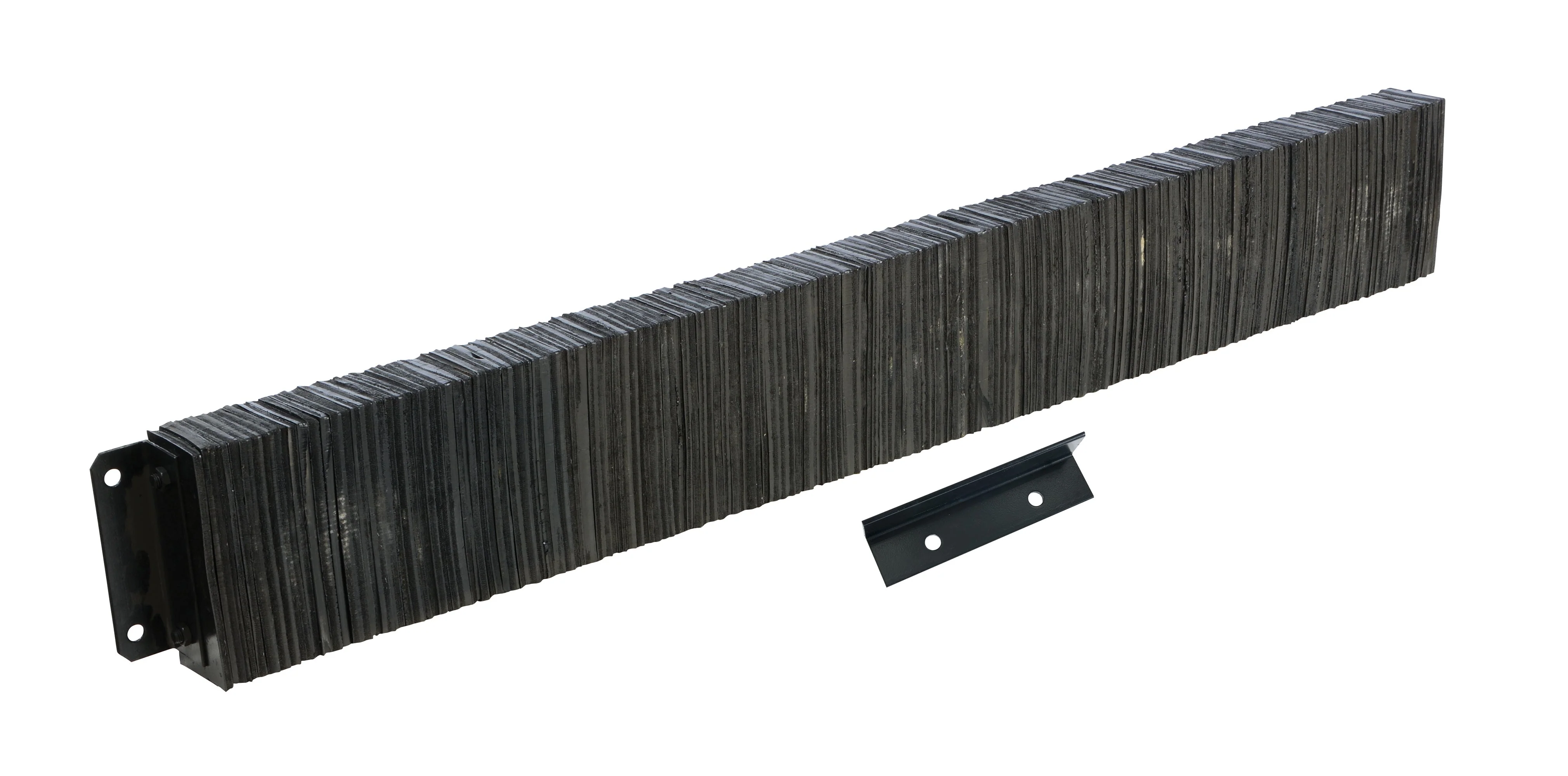

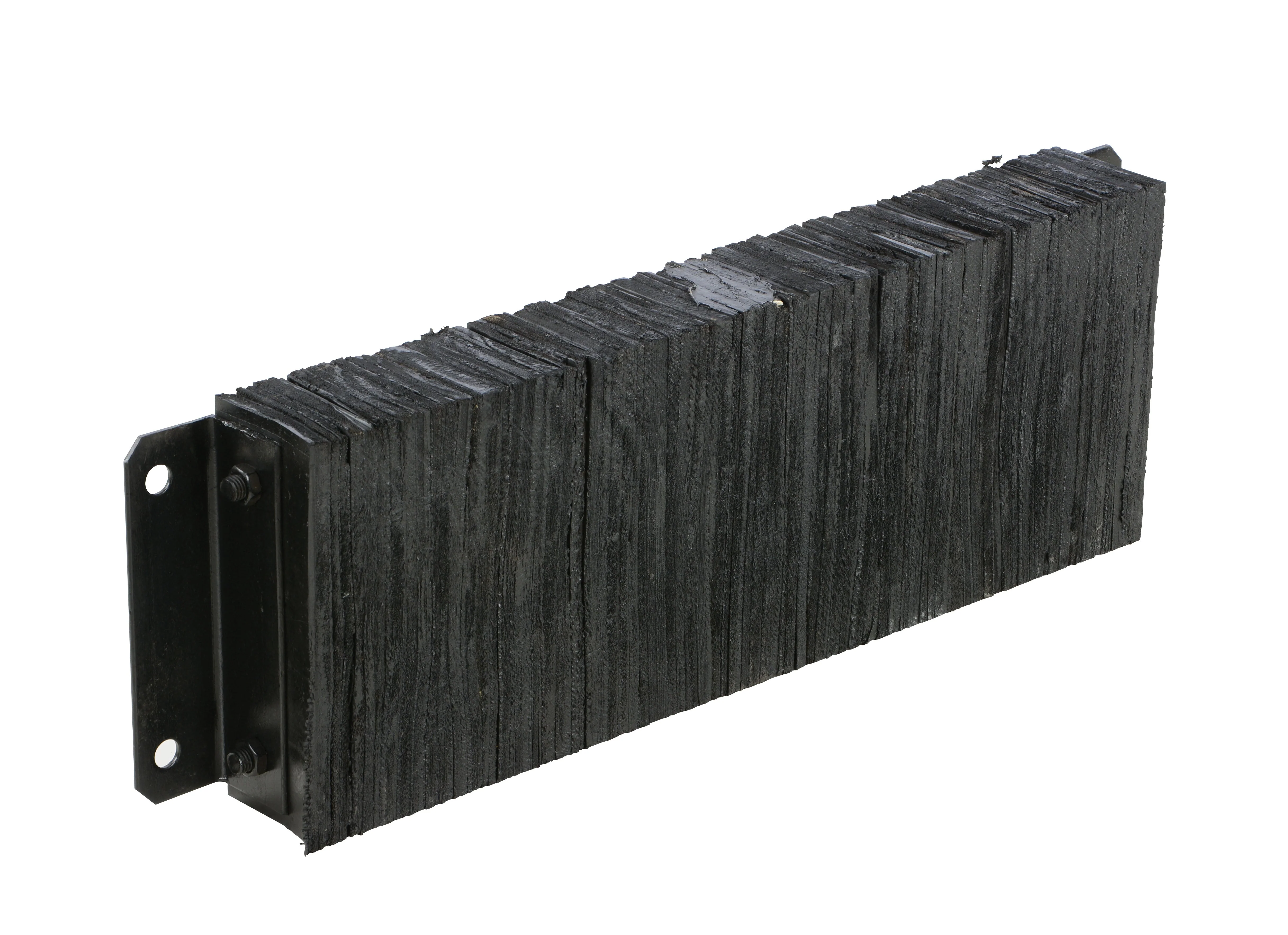

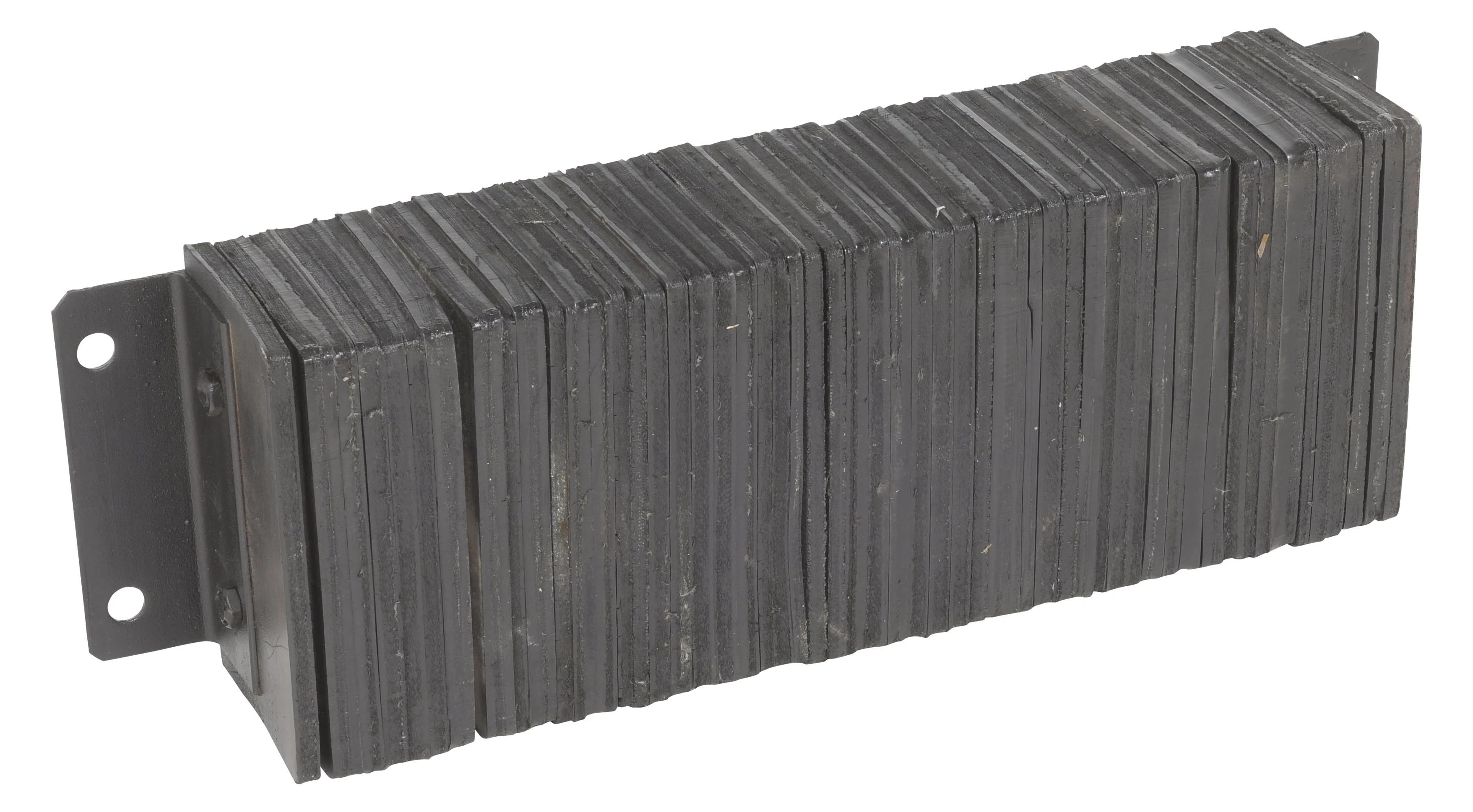

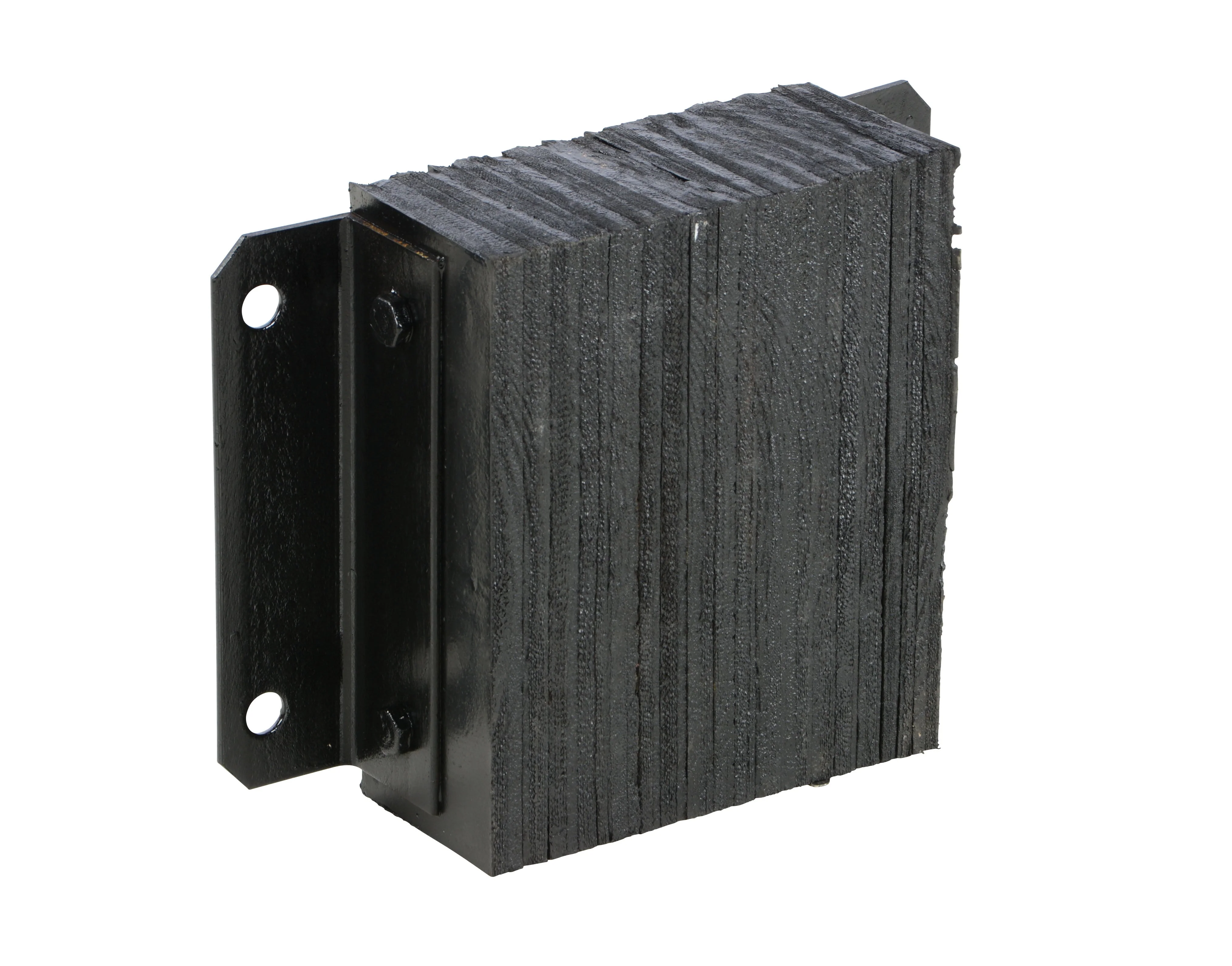

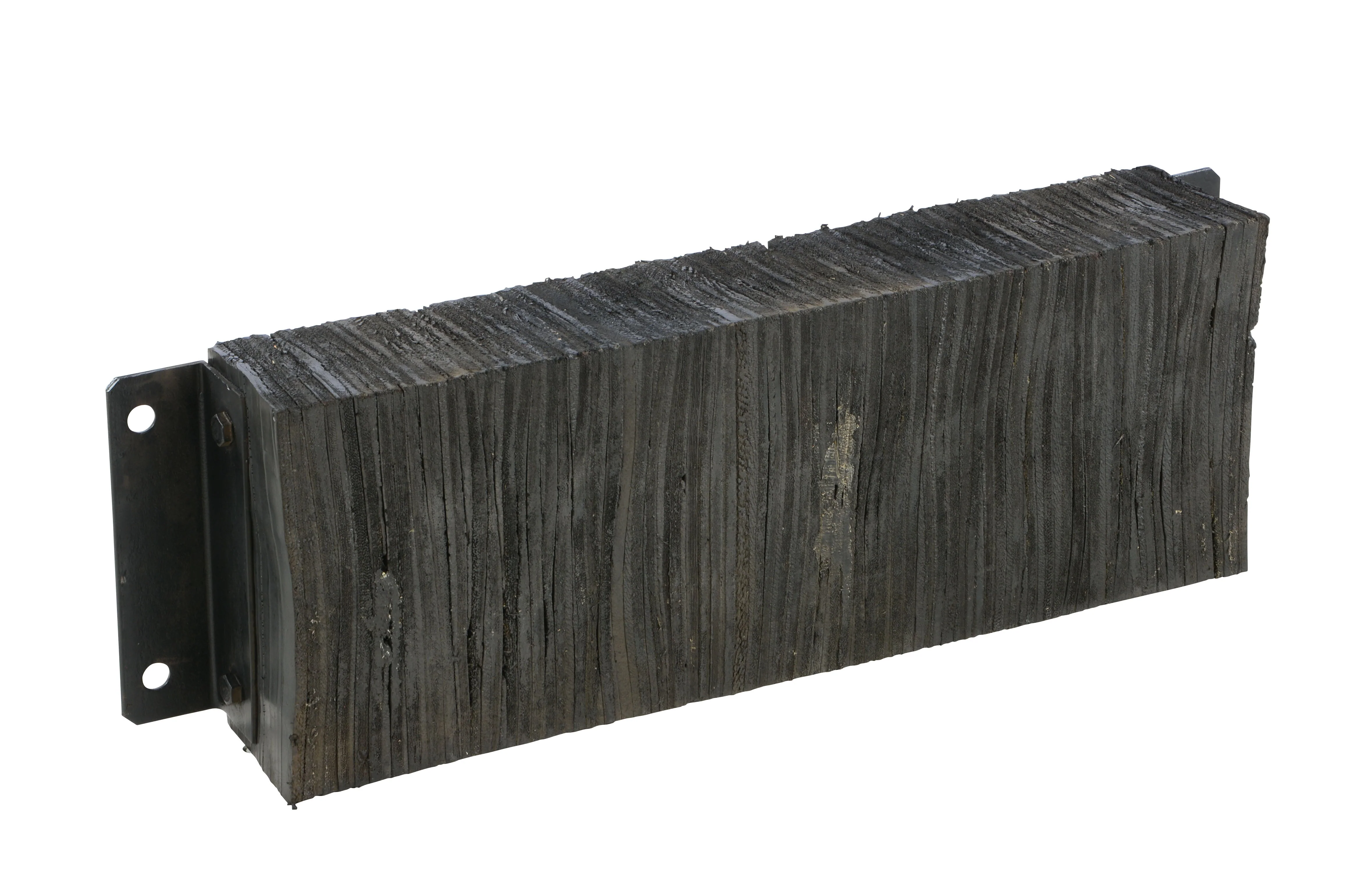

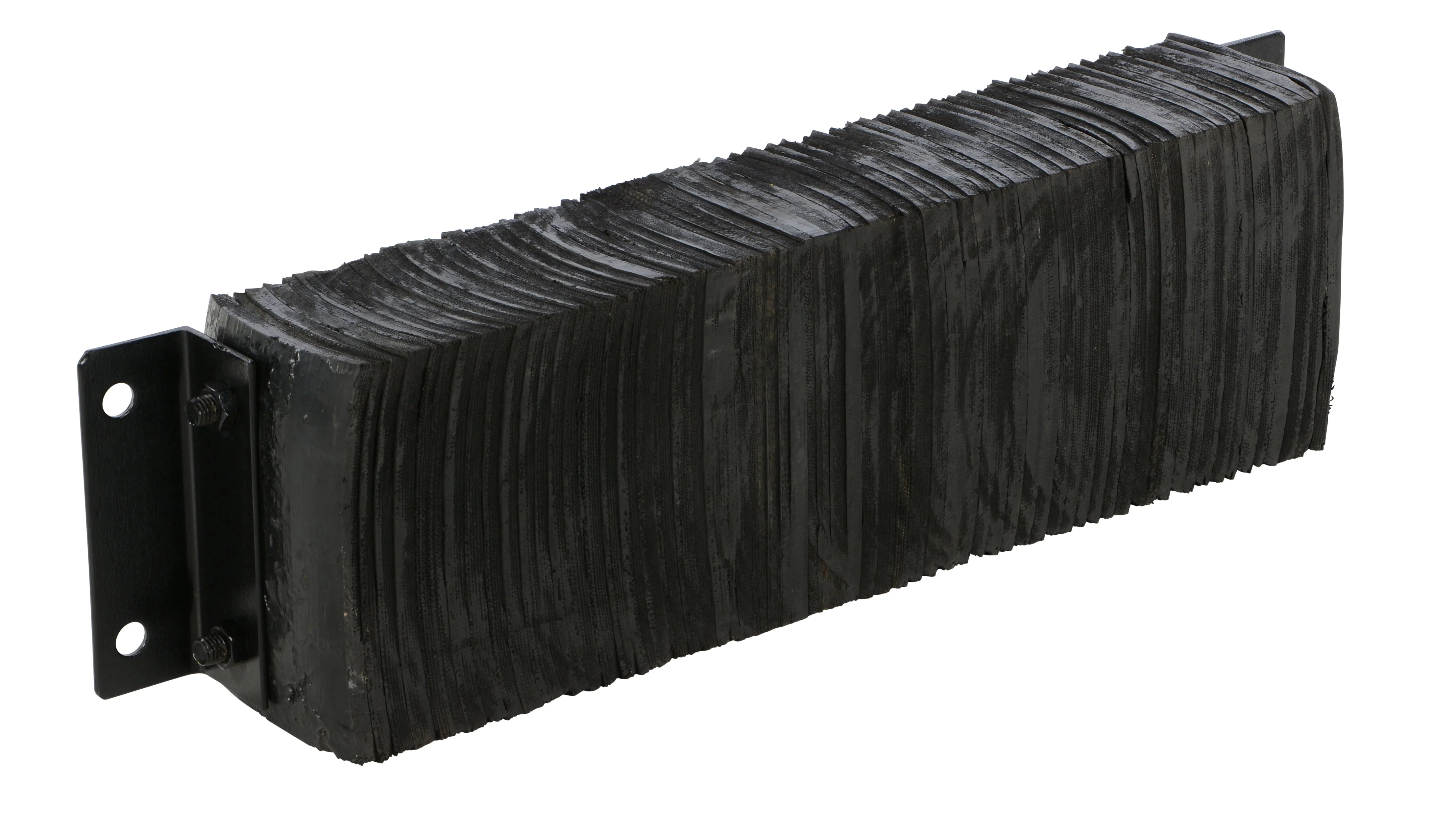

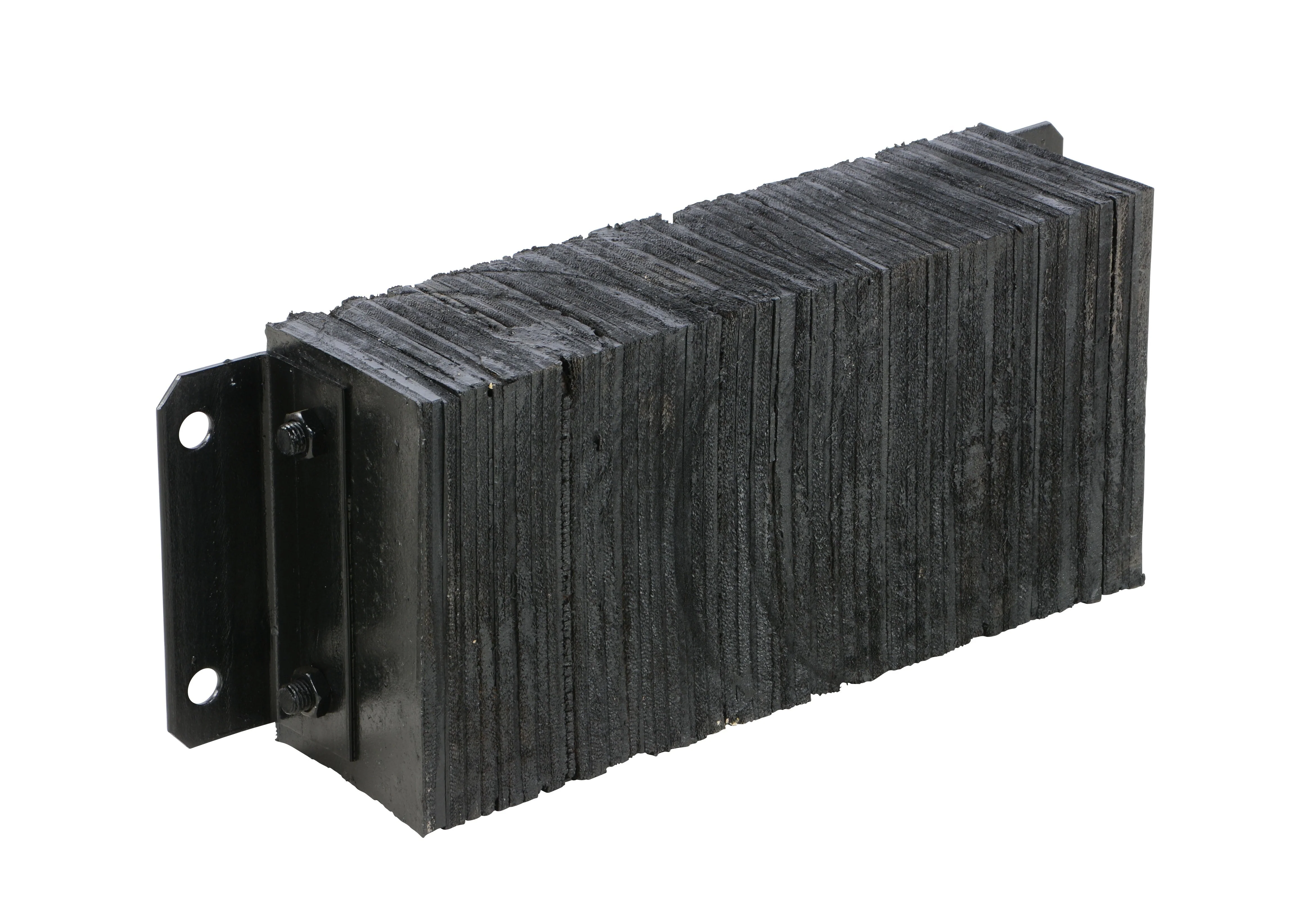

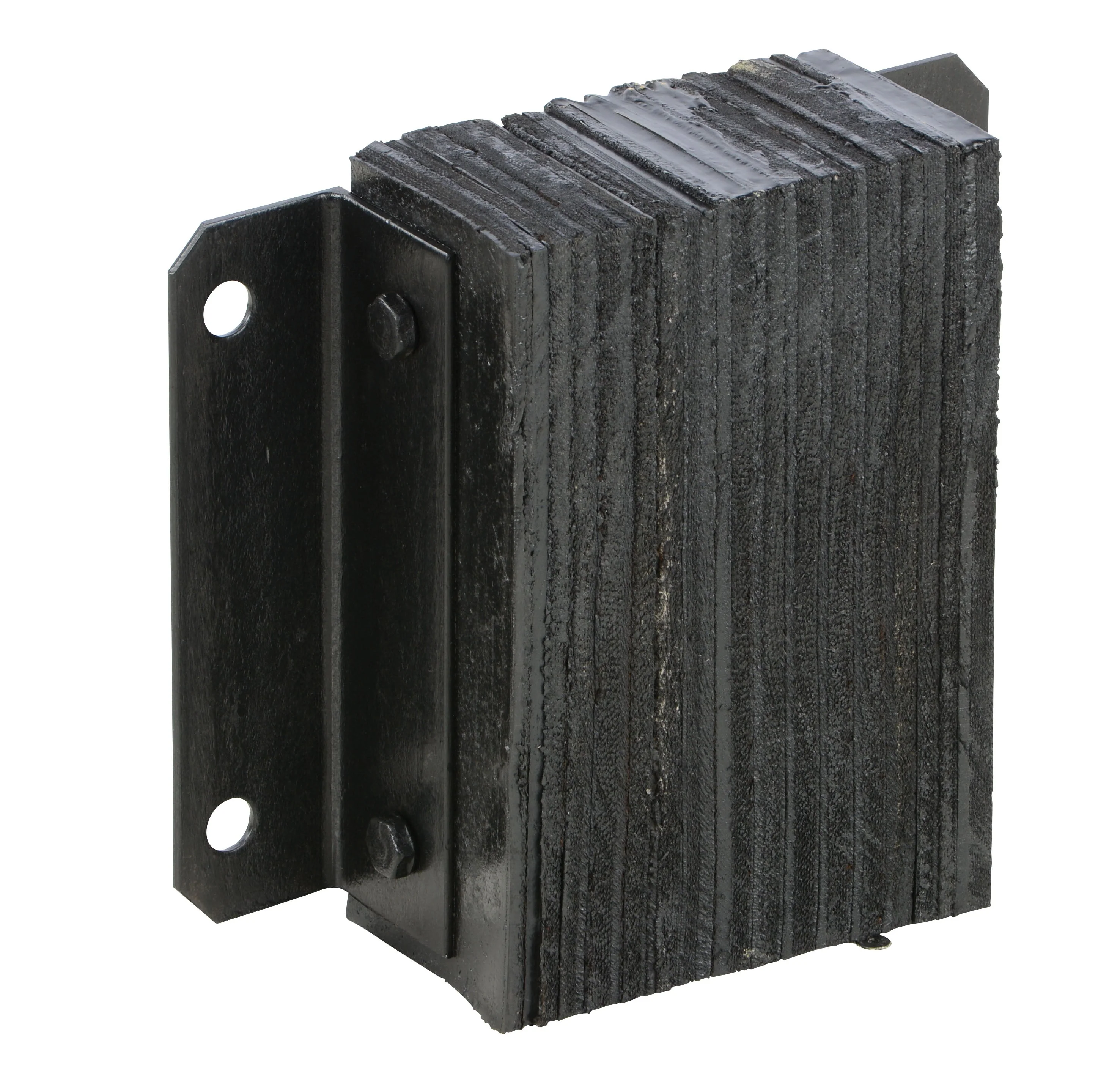

Laminated style dock bumpers provide durable, economical protection for your loading dock and trailers. Units are constructed of fabric reinforced rubber from recycled truck tires. Pads are laminated between painted structural angles and held together with 3/4" steel tie rods. A 12" long center support bracket is included with the 96" wide bumpers. Installation is quick and easy by bolting or welding units to the dock. Width is measured bolt hole center to bolt hole center, except Type C. Width is actual bolt hole center 1014-4.5F is 6", 1214-4.5F is 6-7/8". Bolt holes are 13/16" diameter on type A & C bumpers and 7/8" diameter on type B bumpers.

4.5" Projection Laminated Dock Bumpers
TYPE	Model	Description		Wt. (lbs)
A	1012-4.5	10"H x 12"W x 4.5" Projection		22
A	1014-4.5	10"H x 14"W x 4.5" Projection		25
A	1018-4.5	10"H x 18"W x 4.5" Projection		36
A	1024-4.5	10"H x 24"W x 4.5" Projection		45
A	1030-4.5	10"H x 30"W x 4.5" Projection		60
A	1036-4.5	10"H x 36"W x 4.5" Projection		68
A	1096-4.5	10"H x 96"W x 4.5" Projection		191
A	1212-4.5	12"H x 12"W x 4.5" Projection		26
A	1214-4.5	12"H x 14"W x 4.5" Projection		31
A	1218-4.5	12"H x 18"W x 4.5" Projection		41
A	1224-4.5	12"H x 24"W x 4.5" Projection		56
A	1230-4.5	12"H x 30"W x 4.5" Projection		69
A	1236-4.5	12"H x 36"W x 4.5" Projection		88
A	1296-4.5	12"H x 96"W x 4.5" Projection		215
A	624-4.5	6"H x 24"W x 4.5" Projection		30
A	636-4.5	6"H x 36"W x 4.5" Projection		45

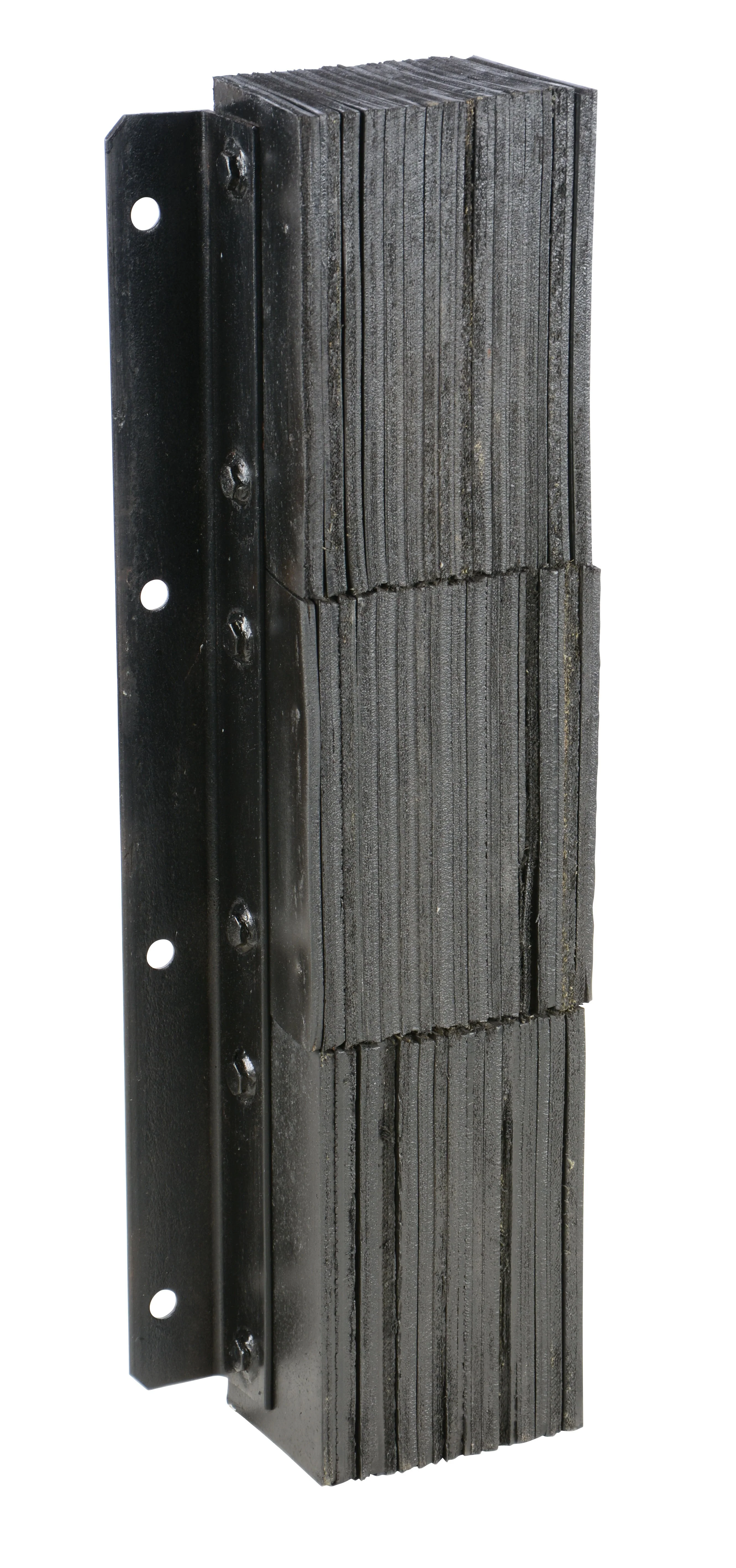

B	V-1120-4.5	20"H x 11"W x 4.5" Projection - Vertical Style		41
B	V-1124-4.5	24"H x 11"W x 4.5" Projection - Vertical Style		47
B	V-1130-4.5	30"H x 11"W x 4.5" Projection - Vertical Style		92
B	V-1136-4.5	36"H x 11"W x 4.5" Projection - Vertical Style		123

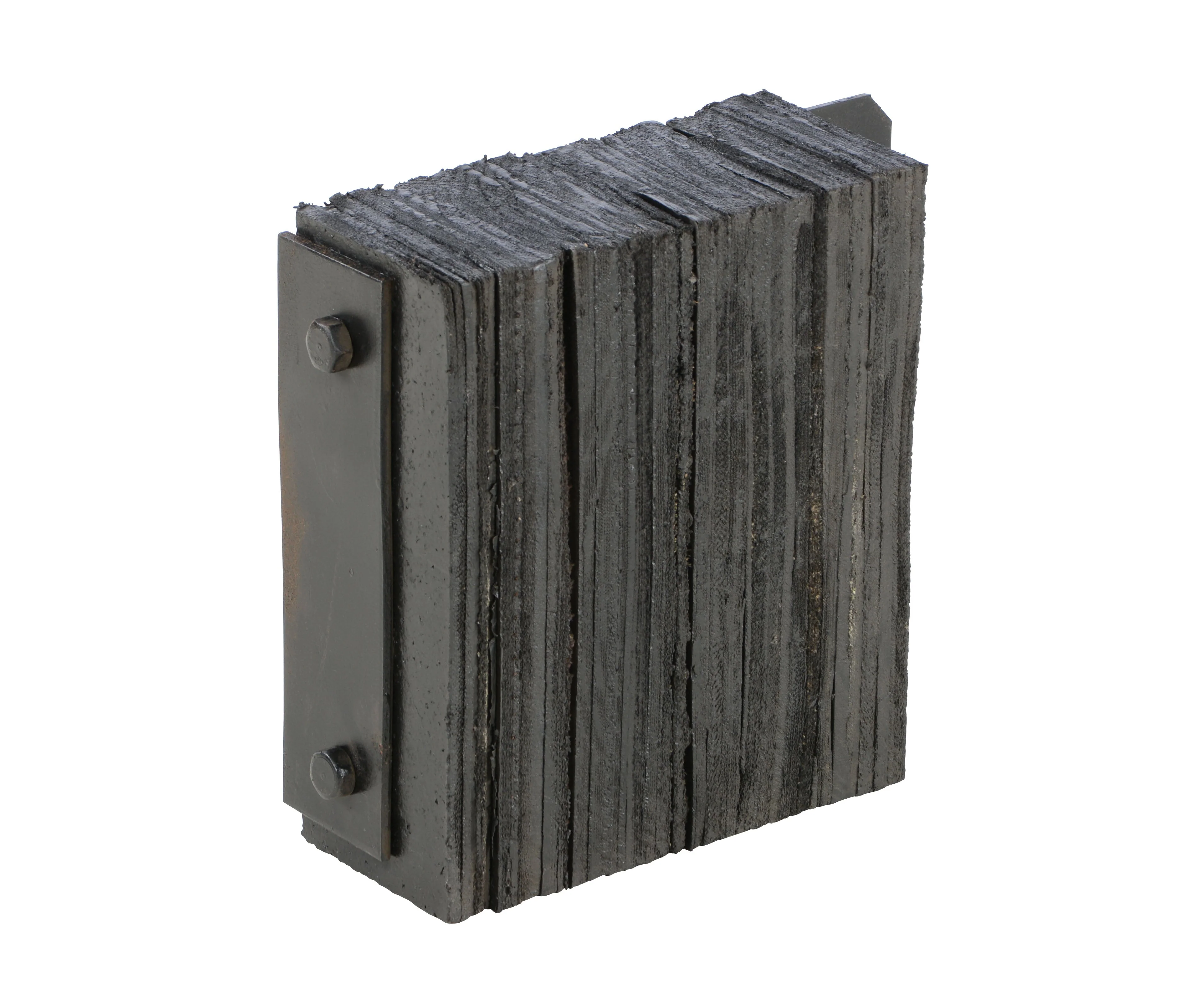

4.5" Angle Flat Bumper
Type	Model	Description	Bolt Hole Center	Wt. (lbs)
C	1014-4.5F	10"H x 14-1/8"W x 4-1/2" Projection - Flat one side	6"	32
C	1214-4.5F	12"H x 14-1/8"W x 4-1/2" Projection - Flat one side	6-7/8"	32
6" Projection Laminated Dock Bumpers
Type	Model	Description		Wt. (lbs)
A	1012-6	10"H x 12"W x 6" Projection		27
A	1014-6	10"H x 14"W x 6" Projection		34
A	1018-6	10"H x 18"W x 6" Projection		43
A	1024-6	10"H x 24"W x 6" Projection		58
A	1030-6	10"H x 30"W x 6" Projection		75
A	1036-6	10"H x 36"W x 6" Projection		89
A	1212-6	12"H x 12"W x 6" Projection		31
A	1214-6	12"H x 14"W x 6" Projection		39
A	1218-6	12"H x 18"W x 6" Projection		51
A	1224-6	12"H x 24"W x 6" Projection		67
A	1230-6	12"H x 30"W x 6" Projection		77
A	1236-6	12"H x 36"W x 6" Projection		110
A	1296-6	12"H x 96"W x 6" Projection		316
B	V-1120-6	20"H x 11"W x 6" Projection - Vertical Style		50
B	V-1124-6	24"H x 11"W x 6" Projection - Vertical Style		61
B	V-1130-6	30"H x 11"W x 6" Projection - Vertical Style		113
B	V-1136-6	36"H x 11"W x 6" Projection - Vertical Style		134
