Vestil Extruded Bumpers

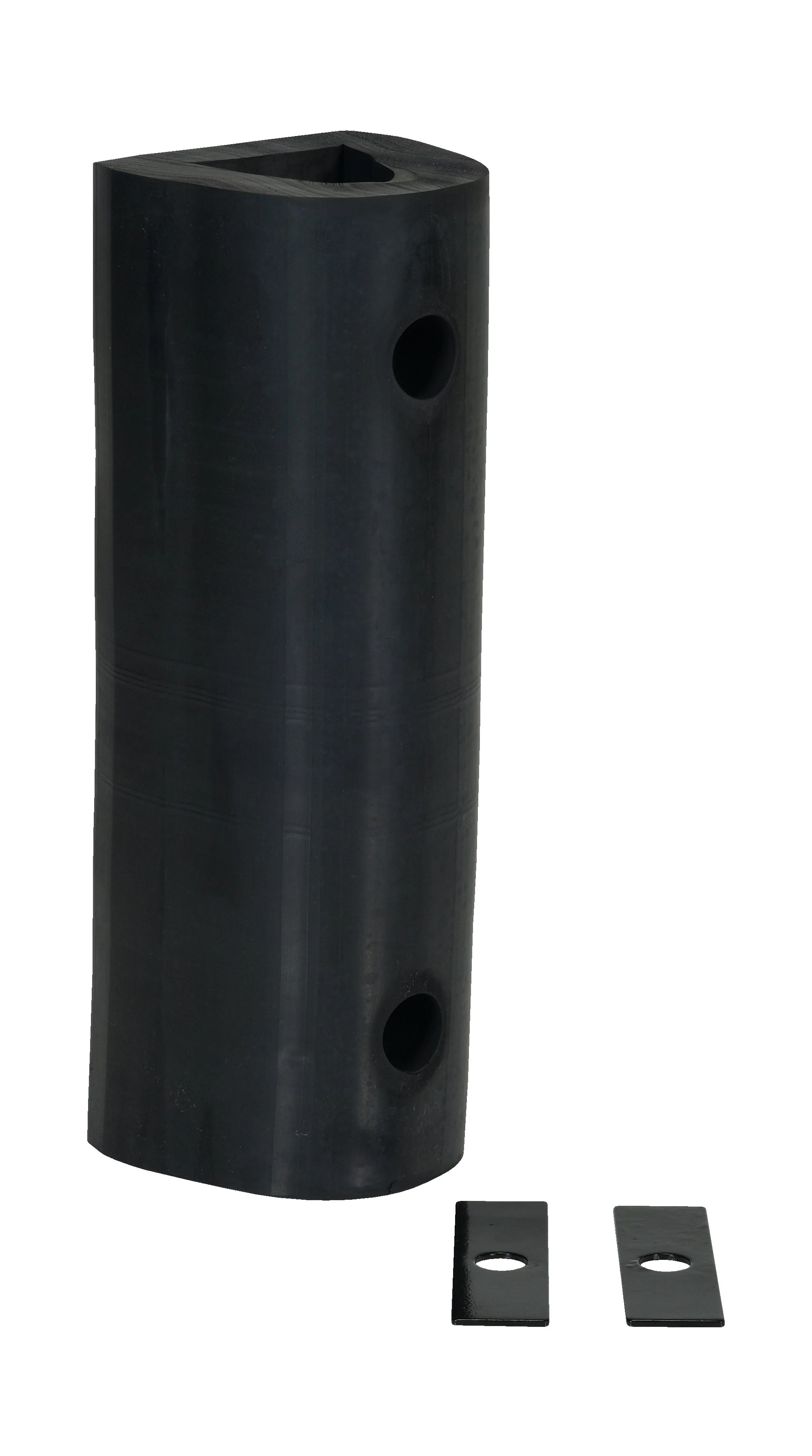

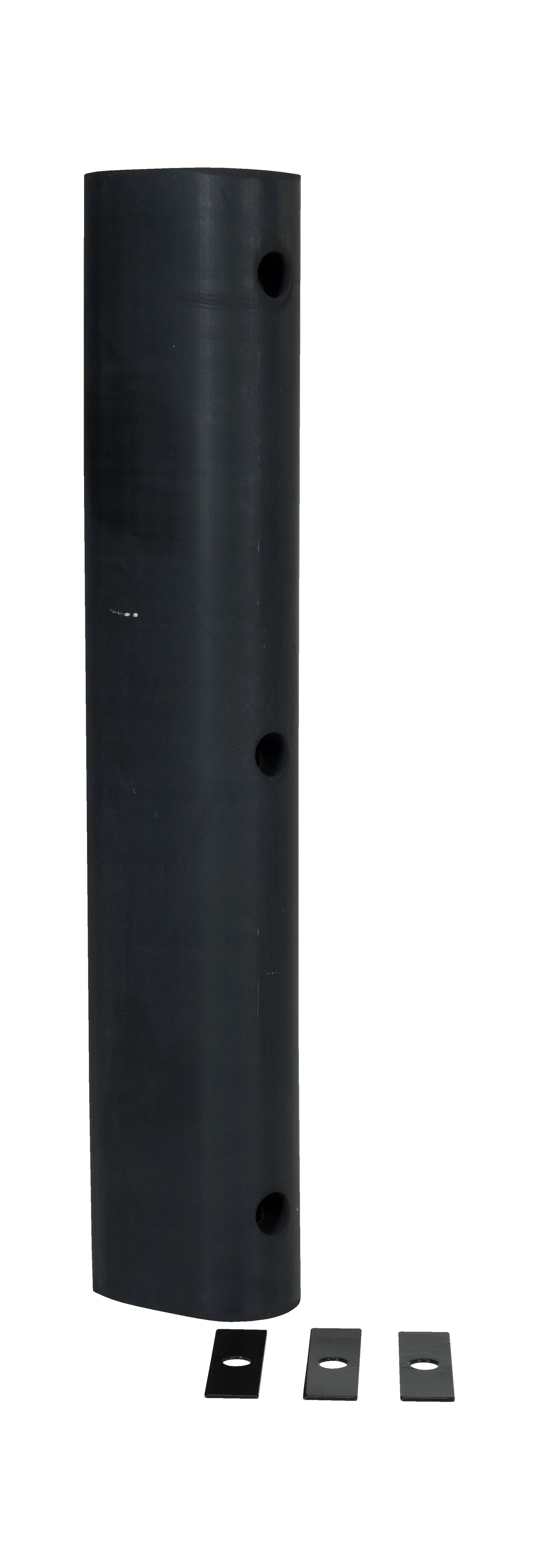

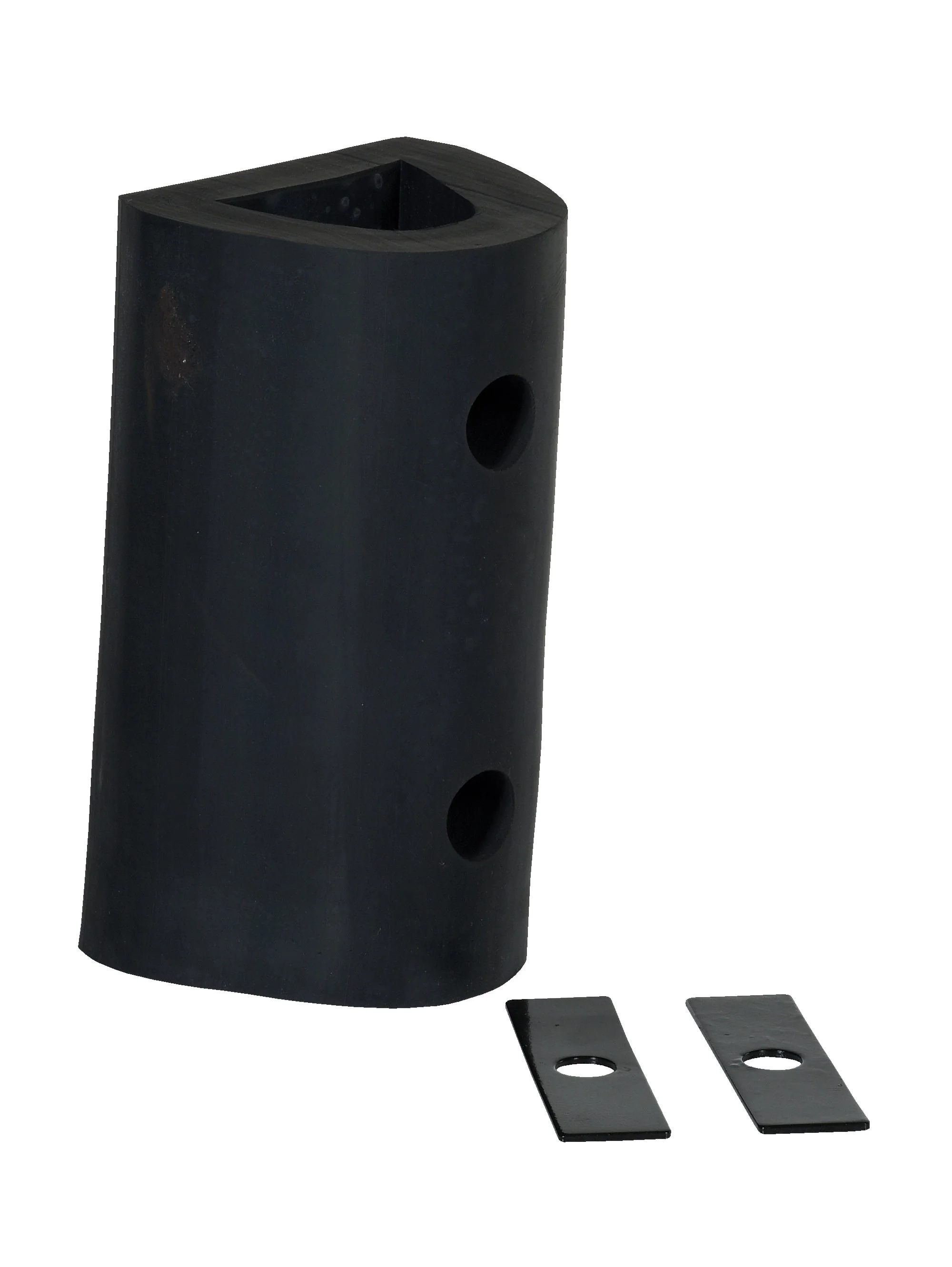

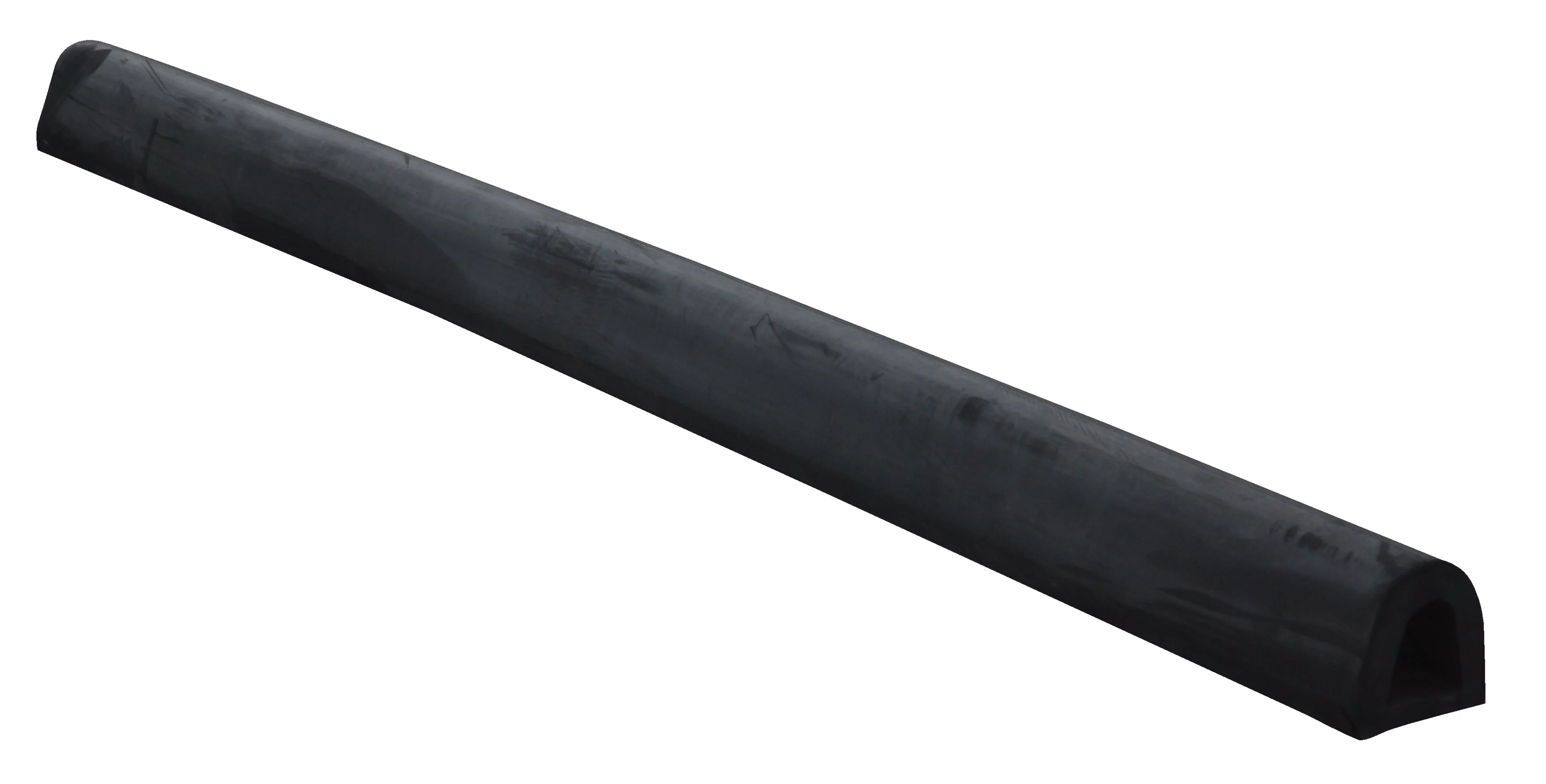

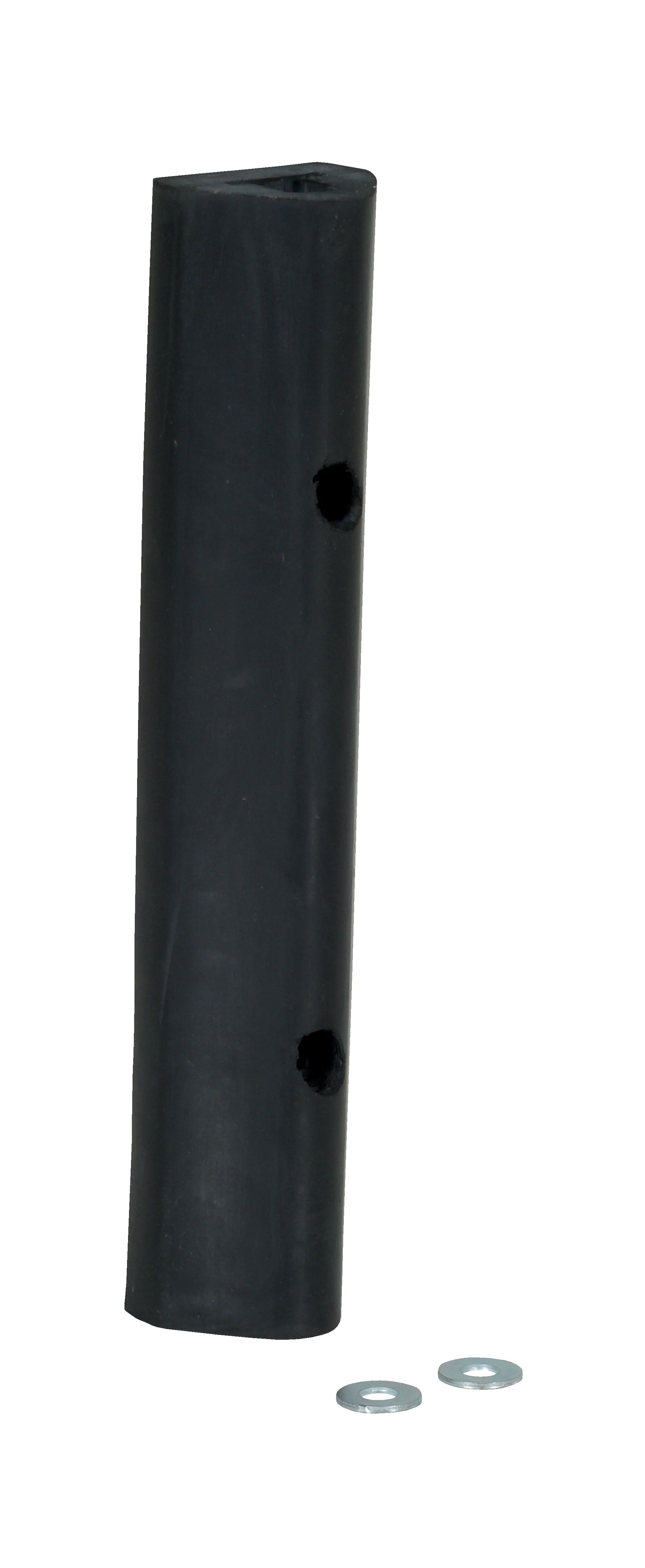

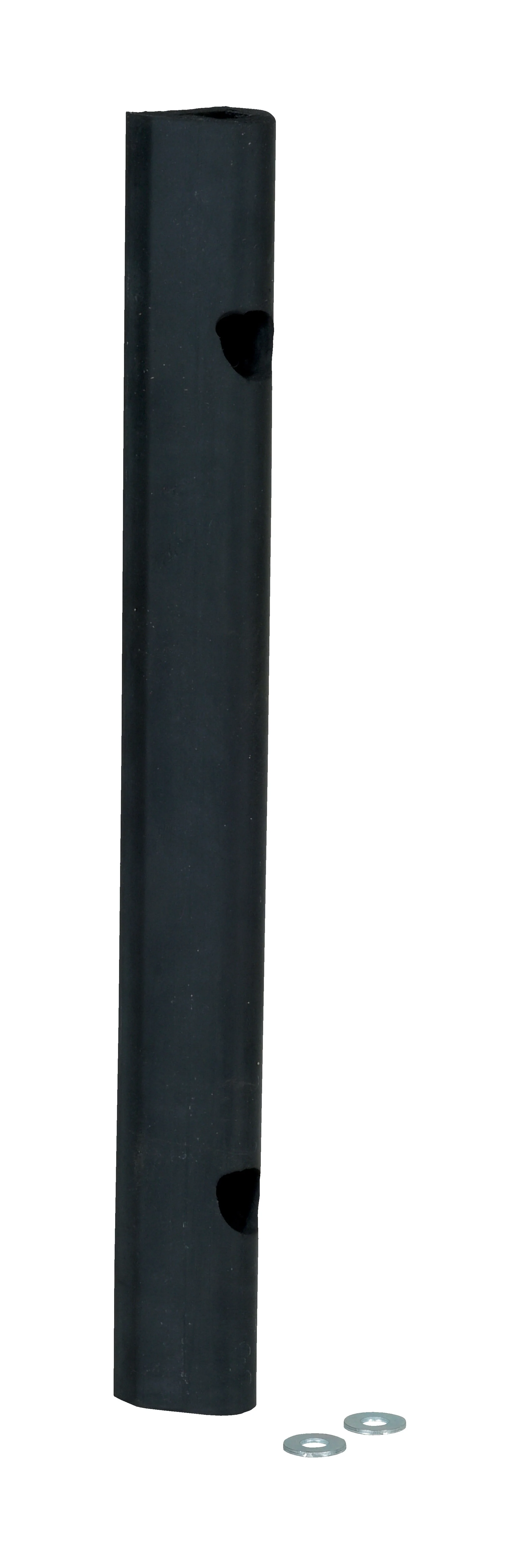

Made of all weather and abrasion resistant rubber. The half-oval shape allows for effective fendering action over a wide radius. A metal plate is located inside 4" and 6" projection bumpers for support while the 2" unit comes with one washer per hole. 120" models do not include holes or support material. 120" long bumpers run longer in order to be cut to final length. Custom lengths available up to 10 feet. Installation hardware sold separately. The Extruded Triangular Bumper protects against heavy impact and damaging results of daily contact. This Bumper is made of resistant rubber that allows for effective protection over a wide radius. Lightweight and simple to install. The installation hardware is not included, but it is available separately.

Extruded Rubber Bumpers
Model	Description	# of Holes & Size	Wt. (lbs)
M-2-12	2"Wx12"Lx1.75"H	2,1/2"	2
M-2-18	2"Wx18"Lx1.75"H	2,1/2"	2
M-2-24	2"Wx24"Lx1.75"H	2,1/2"	3
M-2-36	2"Wx36"Lx1.75"H	3,1/2"	8
M-2-120	2"Wx120"Lx1.75"H	-	12
M-4-12	4.25"Wx12"Lx4"H	2, 7/8"	8
M-4-18	4.25"Wx18"Lx4"H	2, 7/8"	10
M-4-24	4.25"Wx24"Lx4"H	2, 7/8"	14
M-4-36	4.25"Wx36"Lx4"H	3, 7/8"	18
M-4-120	4.25"Wx120"Lx4"H	-	61
M-6-12	6"Wx12"Lx6"H	2, 7/8"	14
M-6-18	6"Wx18"Lx6"H	2, 7/8"	18
M-6-24	6"Wx24"Lx6"H	2, 7/8"	24
M-6-36	6"Wx36"Lx6"H	3, 7/8"	34
M-6-120	6"Wx120"Lx6"	-	137
Extruded Triangular Bumpers
Model	Description	# of Holes & Size	Wt. (lbs)
M-ET-2-12	3-5/8"Wx12"Lx3-3/4"H	-	3
M-ET-2-18	3-5/8"Wx18"Lx3-3/4"H	-	4
M-ET-2-24	3-5/8"Wx24"Lx3-3/4"H	-	5
M-ET-2-36	3-5/8"Wx36"Lx3-3/4"H	-	7
M-ET-2-48	3-5/8"Wx48"Lx3-3/4"H	-	9
M-ET-2-120	3-5/8"Wx120"Lx3-3/4"H	-	20
