Original: $1,825.13
-65%$1,825.13
$638.80The Story

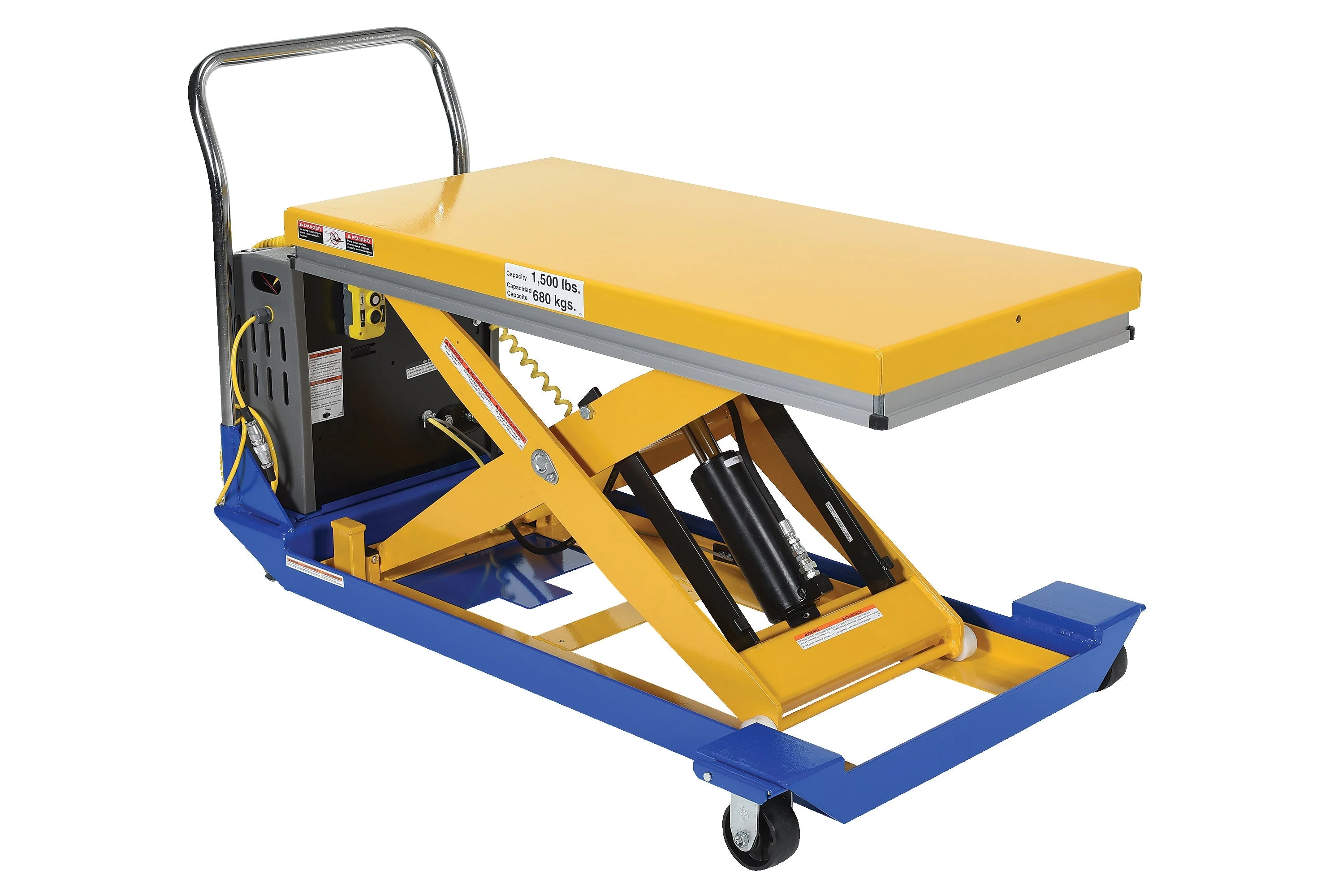

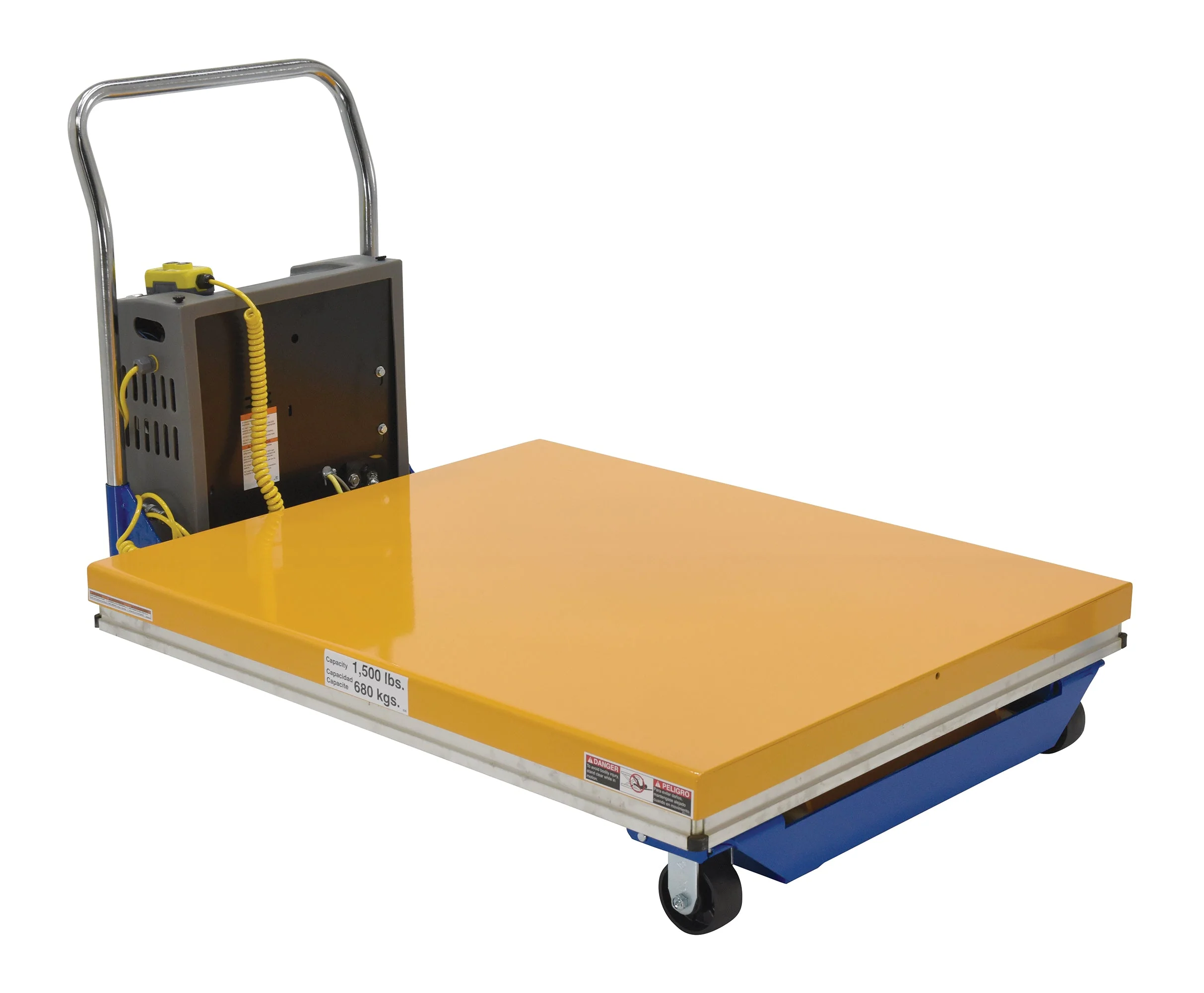

Tables provide unparalleled ergonomic support in lifting, palletizing, loading, and unloading applications. Carts are raised or lowered with either a 12V DC powered motor or a manual two-speed auto-shift foot pump. Units roll smoothly with (2) rigid and (2) swivel 4" x 2" phenolic casters with brakes. Push handle is removable. Internal DC powered electric motor and 12V battery is included on DC units. Electric motor is rated at 1600 watts. Includes battery charger (operated on 115V AC power). Push buttons to raise and lower lift are located on power unit. Detachable hand control on coil cord is standard. Platform is equipped with perimeter pinch-point guard for OSHA compliance. Baked-in powder-coat finish for added toughness.
| DC & Manual Scissor Carts | |||||
| Model | Platform Size (WxL) |
Capacity (lbs) |
Service Range |
Lift Speed | Wt. (lbs) |
|
12V DC Power |
|||||
| CART-23-10-DC | 24"x36" | 1,000 | 11"to33-1/2" | 14 sec. | 578 |
| CART-23-10-DC-PSS* | 24"x36" | 1,000 | 11" to 33-1/2" | 14 sec. | 578 |
| CART-23-15-DC | 24"x36" | 1,500 | 11" to 33-1/2" | 16 sec. | 583 |
| CART-23-15-DC-PSS* | 24"x36" | 1,500 | 11" to 33-1/2" | 16 sec. | 583 |
| CART-24-10-DC | 24"x48" | 1,000 | 9" to 42-1/2" | 15 sec. | 584 |
| CART-24-10-DC-PSS* | 24"x48" | 1,000 | 9" to 42-1/2" | 15 sec. | 584 |
| CART-24-15-DC | 24"x48" | 1,500 | 9" to 42-1/2" | 17 sec. | 602 |
| CART-24-15-DC-PSS* | 24"x48" | 1,500 | 9" to 42-1/2" | 17 sec. | 602 |
| CART-32-10-DC | 32"x48" | 1,000 | 10-1/2" to 42-1/2" | 15 sec. | 670 |
| CART-32-15-DC | 32"x48" | 1,500 | 10-1/2" to 42-1/2" | 17 sec. | 670 |
| CART-40-10-DC | 40"x48" | 1,000 | 10-1/2" to 42-1/2" | 15 sec | 1005 |
| CART-40-10-DC-PSS* | 40"x48" | 1,000 | 10-1/2" to 42-1/2" | 15 sec | 1005 |
| CART-40-15-DC | 40"x48" | 1,500 | 10-1/2" to 42-1/2" | 17 sec. | 1005 |
| CART-40-15-DC-PSS* | 40"x48" | 1,500 | 10-1/2" to 42-1/2" | 17 sec. | 1005 |
| Two-Speed Foot Pump | Foot Pump Speed | ||||
| CART-23-10-M | 24"x36" | 1,000 | 11" to 33-1/2" | Two | 424 |
| CART-23-10-M-PSS* | 24"x36" | 1,000 | 11" x 33-1/2" | Two | 424 |
| CART-23-15-M | 24"x36" | 1,500 | 11" to 33-1/2" | Two | 427 |
| CART-23-15-M-PSS* | 24"x36" | 1,500 | 11" x 33-1/2" | Two | 427 |
| CART-24-10-M | 24"x48" | 1,000 | 9" to 42-1/2" | Two | 433 |
| CART-24-10-M-PSS* | 24"x48" | 1,000 | 9" to 42-1/2" | Two | 433 |
| CART-24-15-M | 24"x48" | 1,500 | 9" to 42-1/2" | Two | 447 |
| CART-24-15-M-PSS* | 24"x48" | 1,500 | 9" to 42-1/2" | Two | 447 |
| CART-32-10-M | 32" x 48" | 1,000 | 10-1/2" to 42-1/2" | Two | 565 |
| CART-32-15-M | 32" x 48" | 1,500 | 10-1/2" to 42-1/2" | Two | 565 |
| CART-40-10-M | 40"x48" | 1,000 | 10-1/2" to 42-1/2" | Two | 706 |
| CART-40-10-M-PSS* | 40"x48" | 1,000 | 10-1/2" to 42-1/2" | Two | 706 |
| CART-40-15-M | 40"x48" | 1,500 | 10-1/2" to 42-1/2" | Two | 706 |
| CART-40-15-M-PSS* | 40"x48" | 1,500 | 10-1/2" to 42-1/2" | Two | 706 |
|
* Partially Stainless Steel Finish |
|||||
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Tables provide unparalleled ergonomic support in lifting, palletizing, loading, and unloading applications. Carts are raised or lowered with either a 12V DC powered motor or a manual two-speed auto-shift foot pump. Units roll smoothly with (2) rigid and (2) swivel 4" x 2" phenolic casters with brakes. Push handle is removable. Internal DC powered electric motor and 12V battery is included on DC units. Electric motor is rated at 1600 watts. Includes battery charger (operated on 115V AC power). Push buttons to raise and lower lift are located on power unit. Detachable hand control on coil cord is standard. Platform is equipped with perimeter pinch-point guard for OSHA compliance. Baked-in powder-coat finish for added toughness.
| DC & Manual Scissor Carts | |||||
| Model | Platform Size (WxL) |
Capacity (lbs) |
Service Range |
Lift Speed | Wt. (lbs) |
|
12V DC Power |
|||||
| CART-23-10-DC | 24"x36" | 1,000 | 11"to33-1/2" | 14 sec. | 578 |
| CART-23-10-DC-PSS* | 24"x36" | 1,000 | 11" to 33-1/2" | 14 sec. | 578 |
| CART-23-15-DC | 24"x36" | 1,500 | 11" to 33-1/2" | 16 sec. | 583 |
| CART-23-15-DC-PSS* | 24"x36" | 1,500 | 11" to 33-1/2" | 16 sec. | 583 |
| CART-24-10-DC | 24"x48" | 1,000 | 9" to 42-1/2" | 15 sec. | 584 |
| CART-24-10-DC-PSS* | 24"x48" | 1,000 | 9" to 42-1/2" | 15 sec. | 584 |
| CART-24-15-DC | 24"x48" | 1,500 | 9" to 42-1/2" | 17 sec. | 602 |
| CART-24-15-DC-PSS* | 24"x48" | 1,500 | 9" to 42-1/2" | 17 sec. | 602 |
| CART-32-10-DC | 32"x48" | 1,000 | 10-1/2" to 42-1/2" | 15 sec. | 670 |
| CART-32-15-DC | 32"x48" | 1,500 | 10-1/2" to 42-1/2" | 17 sec. | 670 |
| CART-40-10-DC | 40"x48" | 1,000 | 10-1/2" to 42-1/2" | 15 sec | 1005 |
| CART-40-10-DC-PSS* | 40"x48" | 1,000 | 10-1/2" to 42-1/2" | 15 sec | 1005 |
| CART-40-15-DC | 40"x48" | 1,500 | 10-1/2" to 42-1/2" | 17 sec. | 1005 |
| CART-40-15-DC-PSS* | 40"x48" | 1,500 | 10-1/2" to 42-1/2" | 17 sec. | 1005 |
| Two-Speed Foot Pump | Foot Pump Speed | ||||
| CART-23-10-M | 24"x36" | 1,000 | 11" to 33-1/2" | Two | 424 |
| CART-23-10-M-PSS* | 24"x36" | 1,000 | 11" x 33-1/2" | Two | 424 |
| CART-23-15-M | 24"x36" | 1,500 | 11" to 33-1/2" | Two | 427 |
| CART-23-15-M-PSS* | 24"x36" | 1,500 | 11" x 33-1/2" | Two | 427 |
| CART-24-10-M | 24"x48" | 1,000 | 9" to 42-1/2" | Two | 433 |
| CART-24-10-M-PSS* | 24"x48" | 1,000 | 9" to 42-1/2" | Two | 433 |
| CART-24-15-M | 24"x48" | 1,500 | 9" to 42-1/2" | Two | 447 |
| CART-24-15-M-PSS* | 24"x48" | 1,500 | 9" to 42-1/2" | Two | 447 |
| CART-32-10-M | 32" x 48" | 1,000 | 10-1/2" to 42-1/2" | Two | 565 |
| CART-32-15-M | 32" x 48" | 1,500 | 10-1/2" to 42-1/2" | Two | 565 |
| CART-40-10-M | 40"x48" | 1,000 | 10-1/2" to 42-1/2" | Two | 706 |
| CART-40-10-M-PSS* | 40"x48" | 1,000 | 10-1/2" to 42-1/2" | Two | 706 |
| CART-40-15-M | 40"x48" | 1,500 | 10-1/2" to 42-1/2" | Two | 706 |
| CART-40-15-M-PSS* | 40"x48" | 1,500 | 10-1/2" to 42-1/2" | Two | 706 |
|
* Partially Stainless Steel Finish |
|||||
