Original: $516.00
-65%$516.00
$180.60The Story

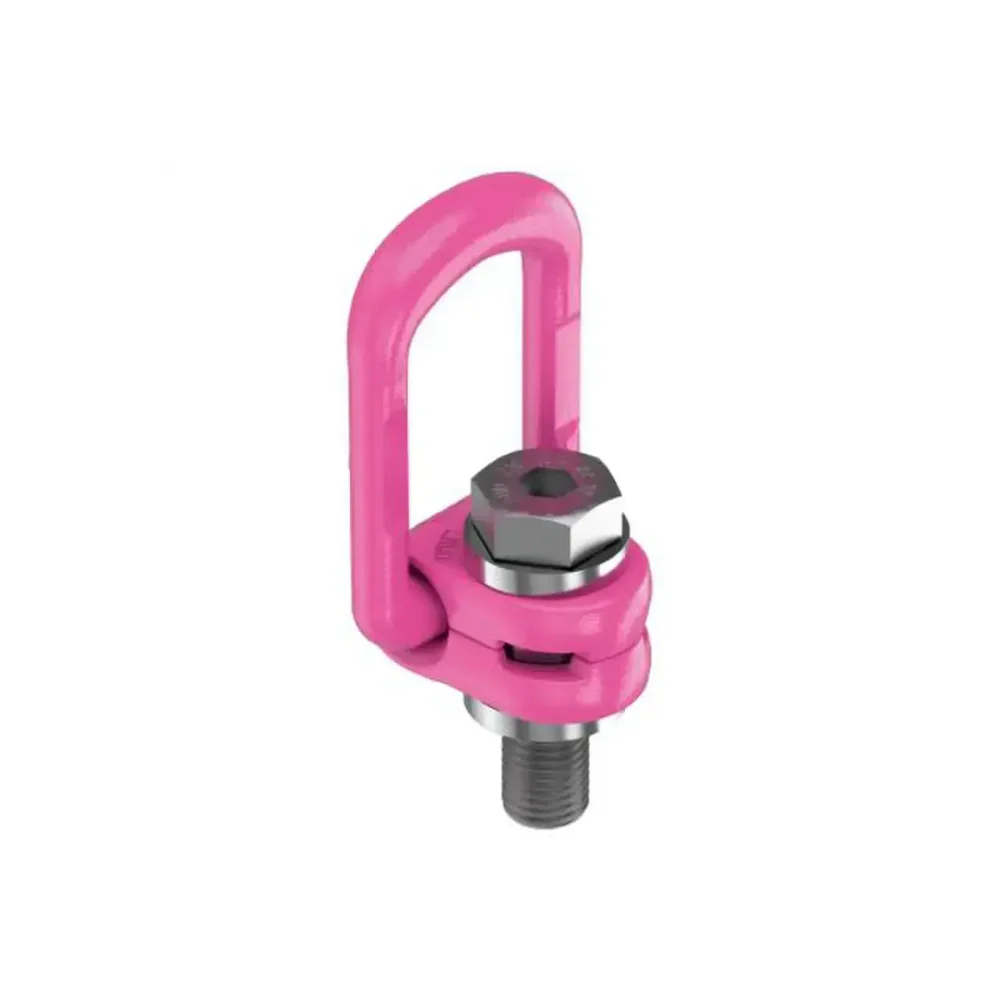

A time tried and tested lifting solution, RUD's VLBG Ring Bolt (Fine Metric Thread with Max Length) is available in working load limits of 1.2t - 2t, with full WLL achievable in all directions.
Featuring a captive but exchangeable RUD-Bolt with special Corrud-DT corrosion protection, this lifting bolt swivels 360-degrees and pivots 180-degrees.
Additionally, the clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state.
|
SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H Max (mm) |
H Min (mm) |
I (mm) |
K (mm) |
L Max (mm) |
M |
N (mm) |
T (mm) |
|
8600399 |
1.2 |
33 |
56 |
36 |
30 |
39 |
13.5 |
36 |
34 |
14 |
86 |
47 |
70 |
M14x1.5 |
38 |
85 |
|
8600383 |
1.5 |
33 |
56 |
36 |
30 |
39 |
13.5 |
36 |
39 |
16 |
86 |
47 |
52 |
M16x1.5 |
38 |
85 |
| 8600384 |
2 |
50 |
82 |
54 |
45 |
55 |
16.5 |
43 |
47 |
18 |
113 |
64 |
90 |
M18x1.5 |
48 |
110 |
