Original: $136.00
-65%$136.00
$47.60The Story
Available in working load limits from 0.3 to 12t, RUD's VRS-F Starpoint UNC/UN Thread Eyebolt is the solution to many lifting problems.
With ingenious installation, and super simple alignment, the VRS-F is comes in a wide range of thread sizes, and features a non-exchangeable RUD-bolt, eliminating the risks of improper standard bolt usage.
Minimum working load limits for all directions are marked on each unit for easy identification, giving total peace of mind that you are using the correct lifting point for the job.
|

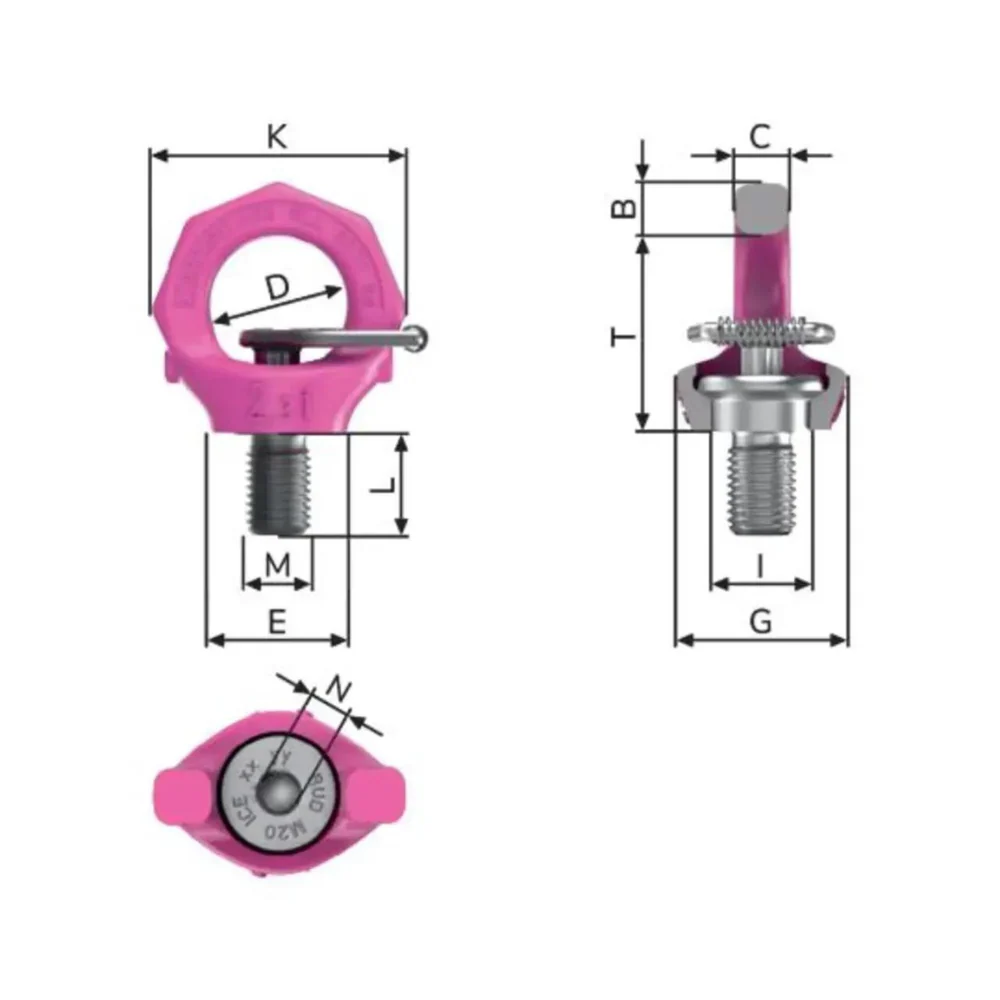

SKU |
WLL (lbs) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (in.) |
T (mm) |
|
7999106 |
520 |
11 |
9 |
25 |
25 |
30 |
16.3 |
47 |
12 |
5/16"-18UNC |
0.25 |
35 |
|
7104480 |
700 |
11 |
9 |
25 |
25 |
30 |
16.3 |
47 |
15 |
3/8"-16UNC |
0.5 |
35 |
|
7904195 |
700 |
11 |
9 |
25 |
25 |
30 |
16.3 |
47 |
15 |
7/16"-14UNC |
0.25 |
35 |
|
7104481 |
1320 |
13 |
10 |
30 |
30 |
34 |
19.8 |
56 |
18 |
1/2"-13UNC |
0.31 |
42 |
|
7104482 |
2640 |
15 |
13 |
35 |
36 |
40 |
23.5 |
65 |
24 |
5/8"-11UNC |
0.37 |
49 |
|
7104483 |
4050 |
17 |
16 |
40 |
41 |
50 |
29.3 |
76 |
29 |
3/4"-10UNC |
0.5 |
58 |
|
7104484 |
4050 |
17 |
16 |
40 |
41 |
50 |
29.3 |
76 |
32 |
7/8"-9UNC |
0.5 |
58 |
|
7104485 |
5640 |
20 |
19 |
49 |
51 |
60 |
35 |
92 |
36 |
1"-8UNC |
0.56 |
70 |
|
7903383 |
7050 |
20 |
19 |
49 |
51 |
60 |
35 |
92 |
36 |
1 1/8"-7UNC |
0.5625 |
70 |
|
7903386 |
5640 |
20 |
19 |
49 |
51 |
60 |
35 |
92 |
36 |
1 1/8"-8UN |
0.56 |
70 |
|
7104486 |
7930 |
26 |
24 |
60 |
66 |
75 |
44 |
114 |
45 |
0.62 |
87 |
|
|
7104487 |
12340 |
32 |
29 |
73 |
76 |
98 |
53 |
135 |
54 |
1 1/2"-6UNC |
0.88 |
104 |
|
7104488 |
15870 |
36 |
34 |
85 |
86 |
109 |
62 |
157 |
63 |
1 3/4"-5UNC |
1 |
122 |
|
7104489 |
21160 |
42 |
38 |
96 |
101 |
128 |
70 |
179 |
72 |
2"-4,5UNC |
1.12 |
138 |
