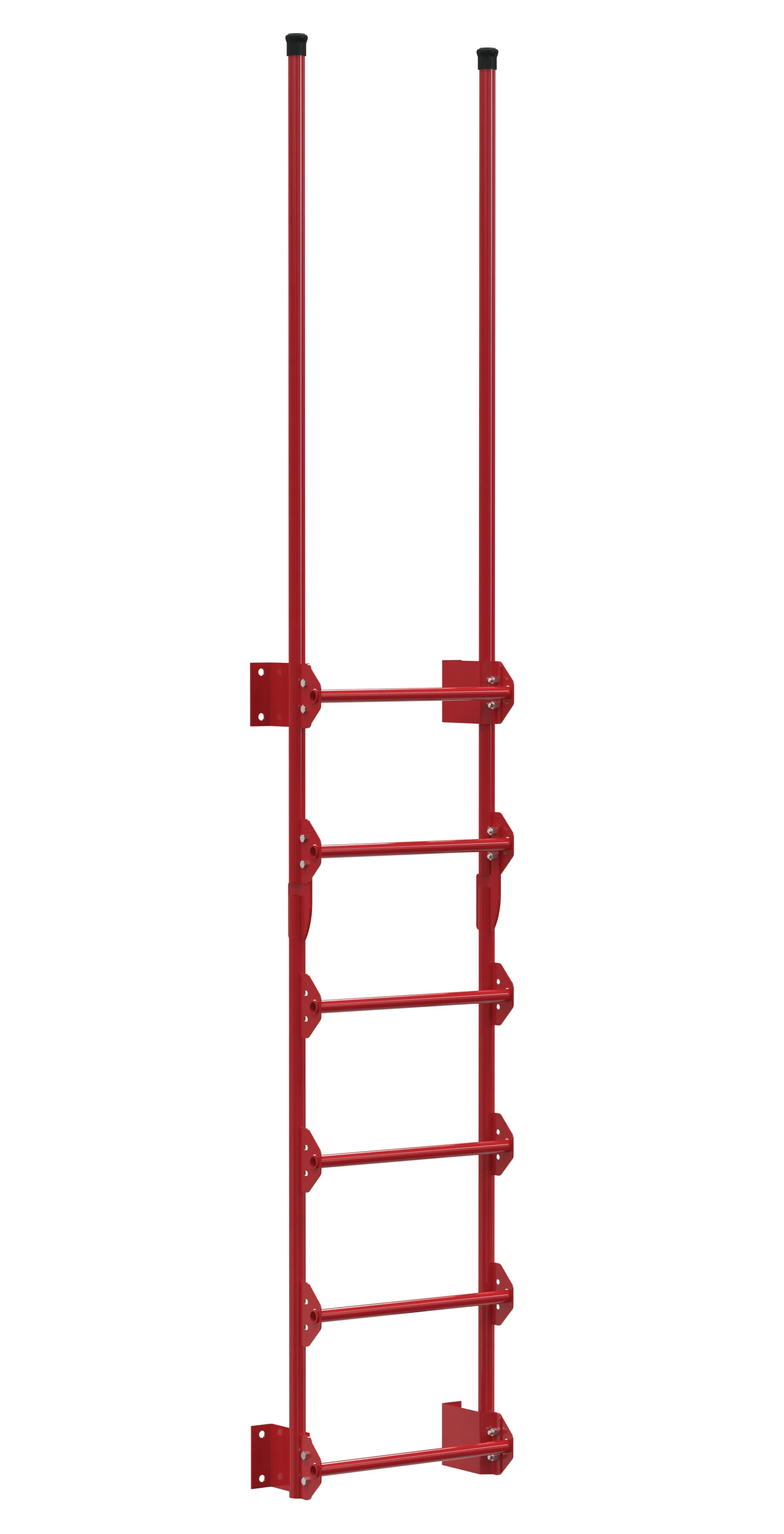

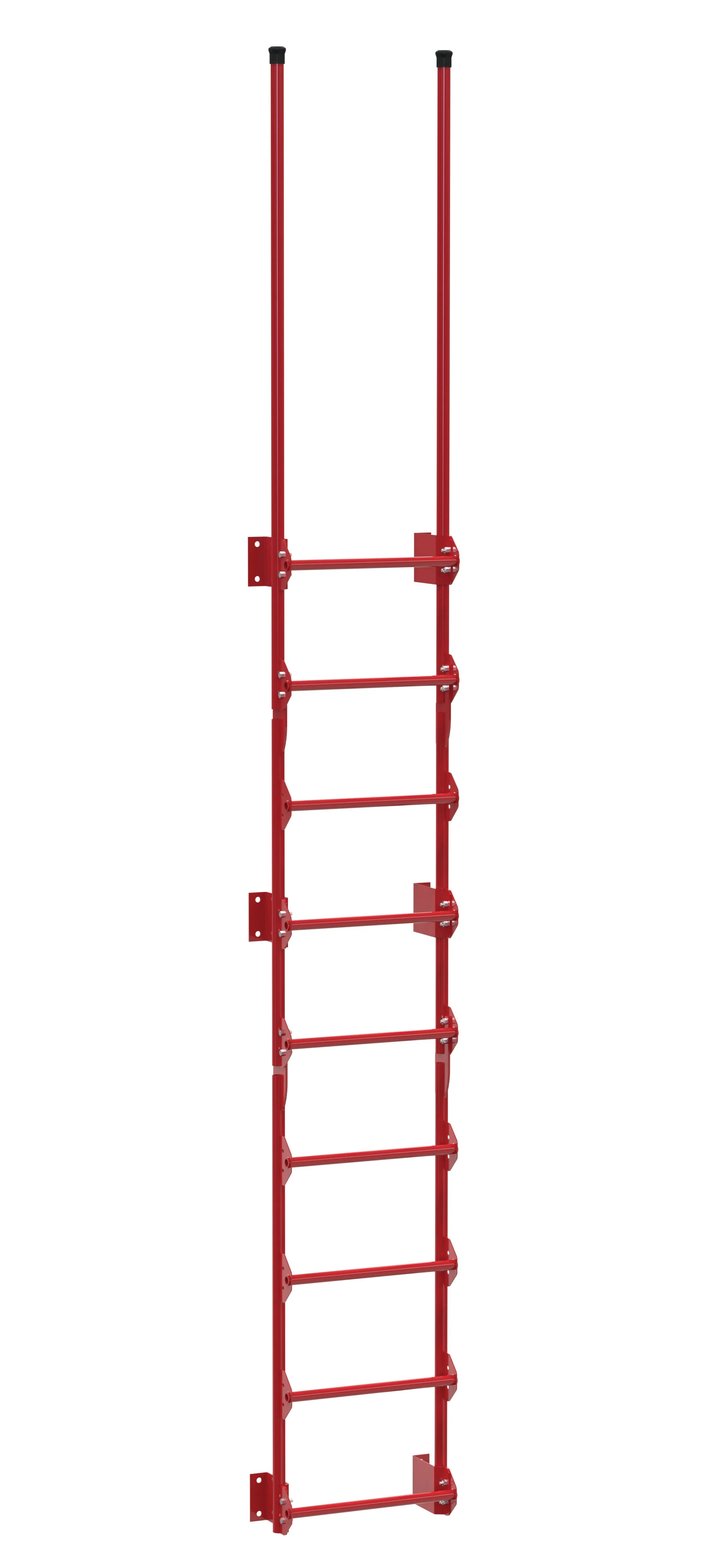

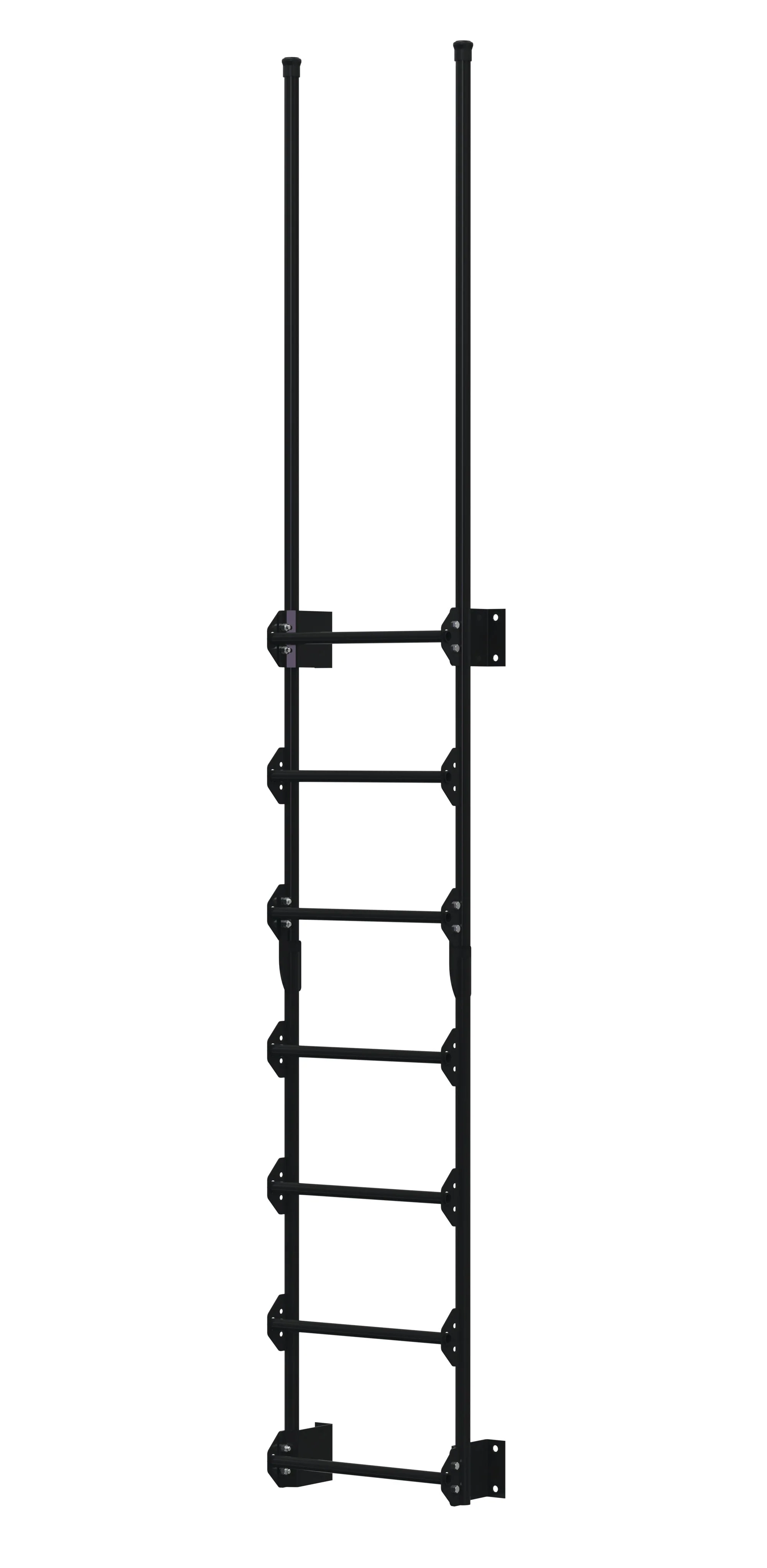

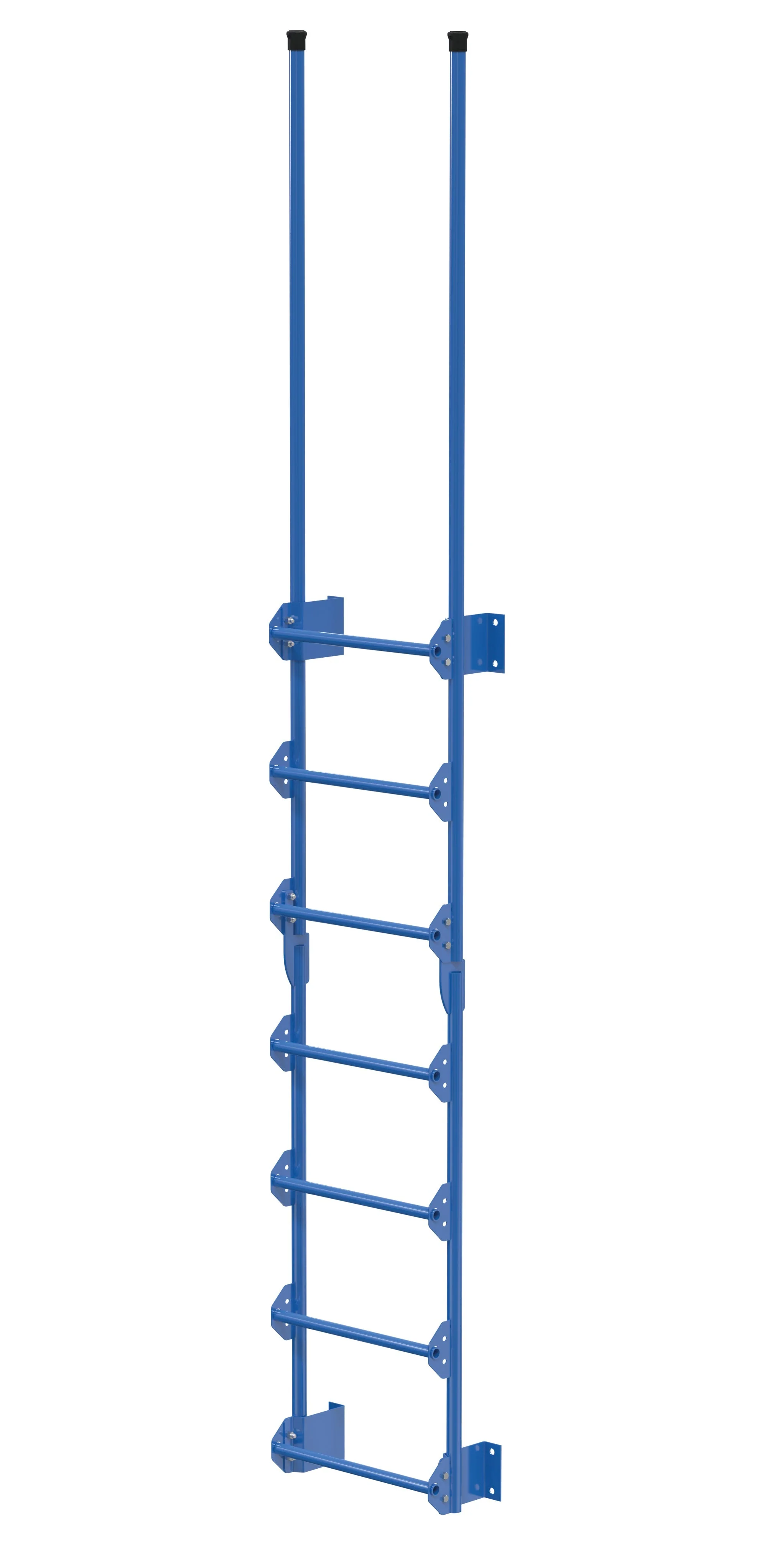

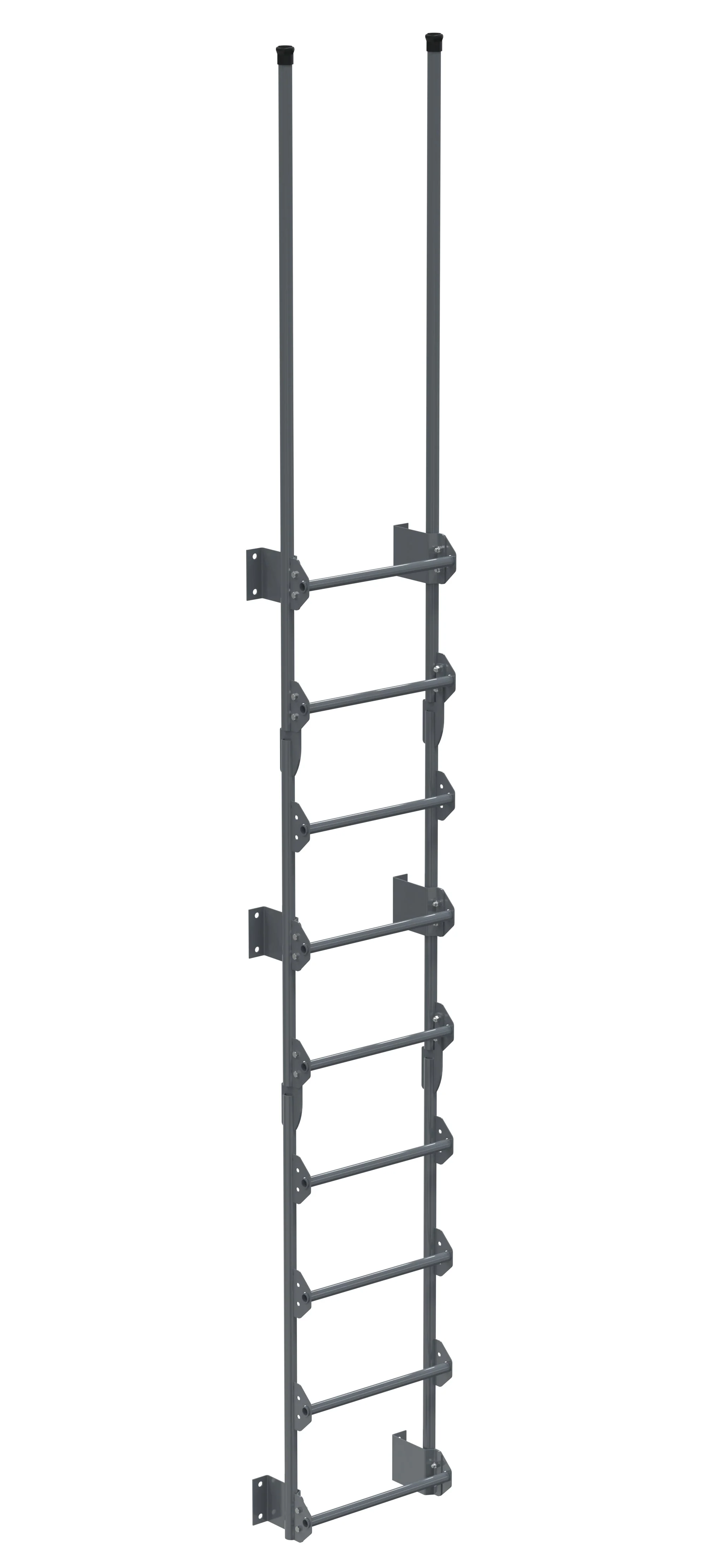

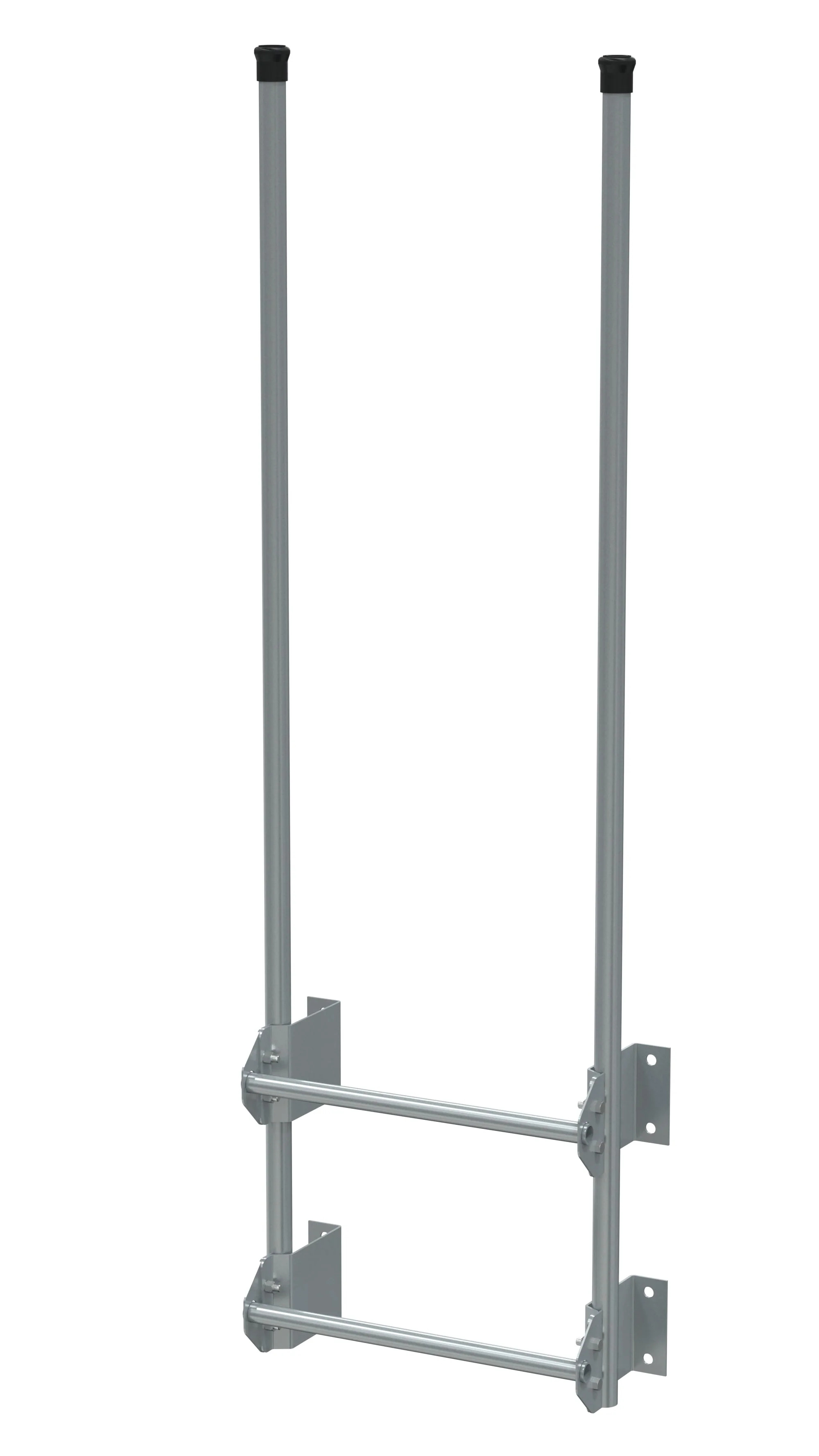

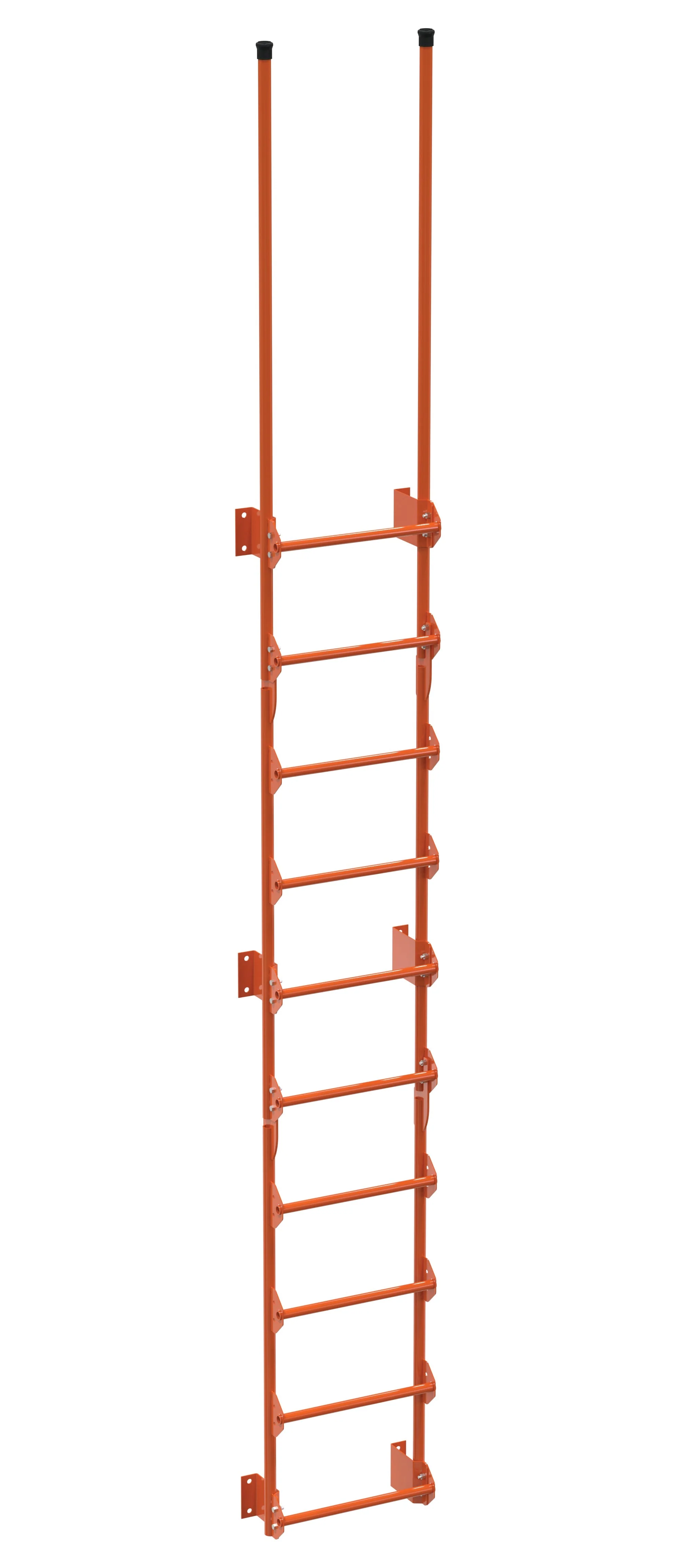

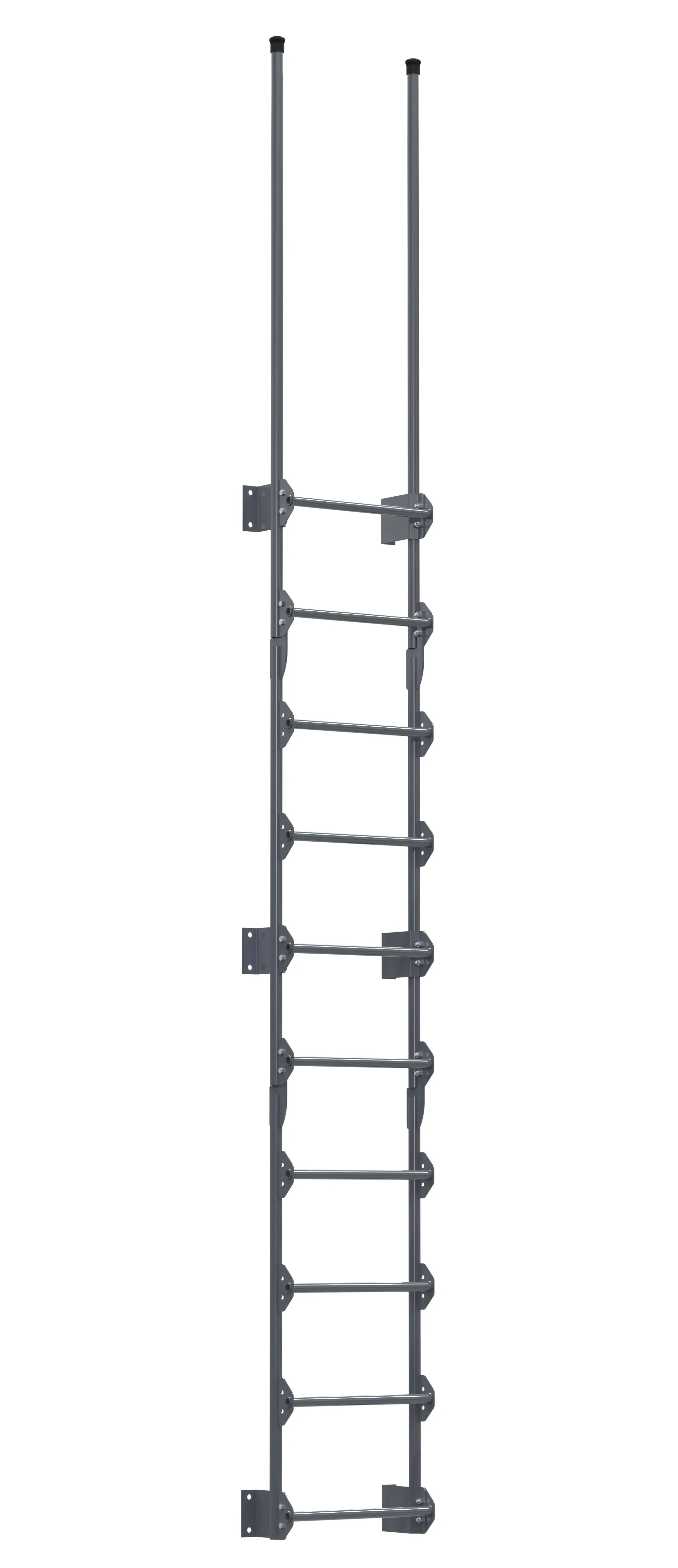

Vestil Walk-Thru Style Dock Ladders

Prevent needless dock injuries with Walk-Thru Style Dock Ladders. Constructed of steel pipe. Mount ladder directly to the dock face by either welding or bolting on. The extra high handrail provides maximum assistance and safety. The top half of each step is covered with a slip resistant material for extra safety during climbing and descending of the ladder. All ladders project out 8-3/8" from face of dock. Uniform capacity is 300 pounds. DKL-5, -6, -7, & -8 consist of 2 ladder sections (i.e. upper and lower ladder portions). DKL-9 & -10 have 3 sections (i.e. upper, middle, and lower portions). Some assembly is required. Baked-in powder-coated toughness.

Walk-Through Style Dock Ladders
Specialty Colors (add suffix): Blue -BL, Black -BK, Red -RD, White -WT, Gray -GYSG, Orange -OR, Silver -SL
Model Number	Step Width	Overall Size (WxH)	Number Of Rungs	Top Step Height	Distance Between Rungs	# Sections For Assembly	Wt. lbs.
DKL-2	18"	20-7/16"x65-1/2"	2	15"	12"	1	82
DKL-3	18"	20-7/16"x77-1/2"	3	27"	12"	1	92
DKL-4	18"	20-7/16"x89-1/2"	4	39"	12"	1	104
DKL-5	18"	20-7/16"x101-1/2"	5	51"	12"	2	108
DKL-6	18"	20-7/16"x113-1/2"	6	63"	12"	2	112
DKL-7	18"	20-7/16"x125-1/2"	7	75"	12"	2	110
DKL-8	18"	20-7/16"x137-1/2"	8	87"	12"	2	126
DKL-9	18"	20-7/16"x149-1/2"	9	99"	12"	3	116
DKL-10	18"	20-7/16"x161-1/2"	10	111"	12"	3	118
