Original: $446.00
-65%$446.00
$156.10The Story

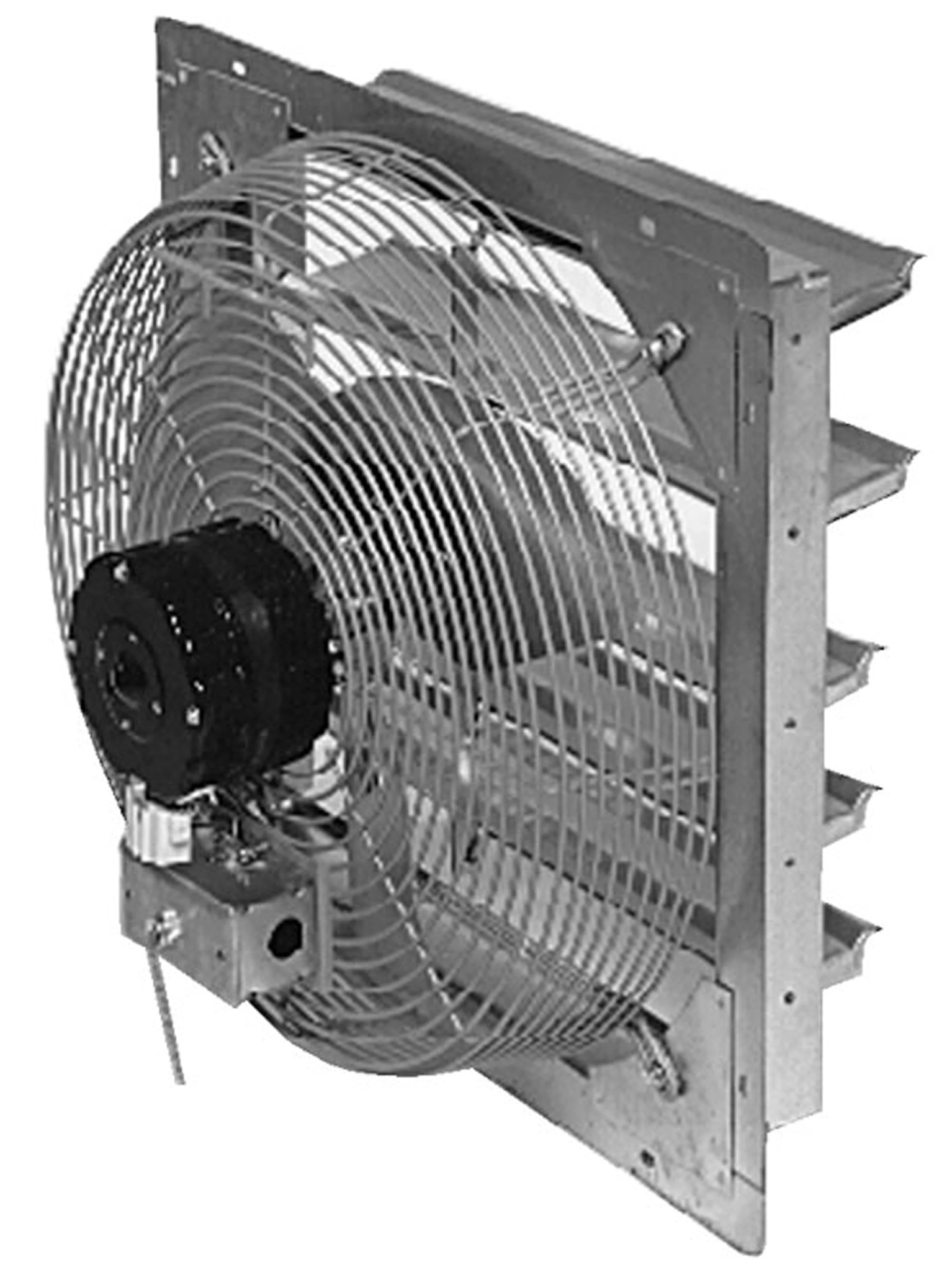

Inside-building installation only with vents outside. Eliminate need for external framing and shutter. Ideally suited for thin wall buildings. Units are 115V, 1 phase totally enclosed and permanently lubricated. Pull chain switch. No cord. Junction box provided for direct wiring. Meets OSHA standards.
| Shutter Mounted Exhaust Fans | |||||||
| Model | Blade Size | Hp of Motor | AMPS High | CFM High | CFM MED | CFM Low |
Wt. (lbs) |
| SME-12 | 12" | 1/12 | 1.1 | 825 | 710 | 560 | 16 |
| SME-18 | 18" | 1/8 | 2.2 | 2300 | 2100 | 1850 | 25 |
| SME-24 | 24" | 1/4 | 2.5 | 3400 | -- | 2770 | 41 |
| SME-30 | 30" | 1/4 | 2.7 | 3950 | -- | 3080 | 50 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Inside-building installation only with vents outside. Eliminate need for external framing and shutter. Ideally suited for thin wall buildings. Units are 115V, 1 phase totally enclosed and permanently lubricated. Pull chain switch. No cord. Junction box provided for direct wiring. Meets OSHA standards.
| Shutter Mounted Exhaust Fans | |||||||
| Model | Blade Size | Hp of Motor | AMPS High | CFM High | CFM MED | CFM Low |
Wt. (lbs) |
| SME-12 | 12" | 1/12 | 1.1 | 825 | 710 | 560 | 16 |
| SME-18 | 18" | 1/8 | 2.2 | 2300 | 2100 | 1850 | 25 |
| SME-24 | 24" | 1/4 | 2.5 | 3400 | -- | 2770 | 41 |
| SME-30 | 30" | 1/4 | 2.7 | 3950 | -- | 3080 | 50 |
