Vestil Lightweight Winch Stacker Truck

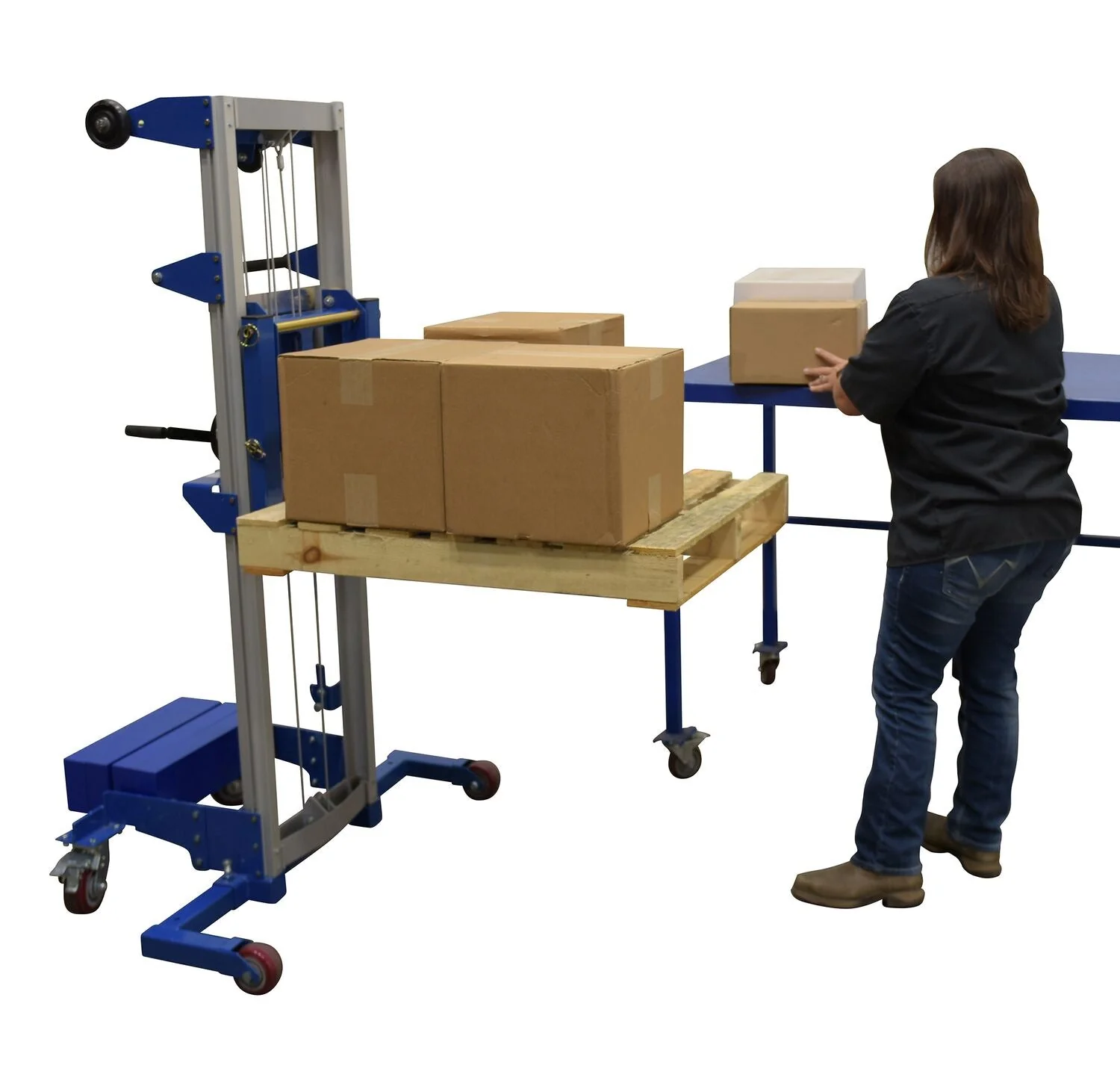

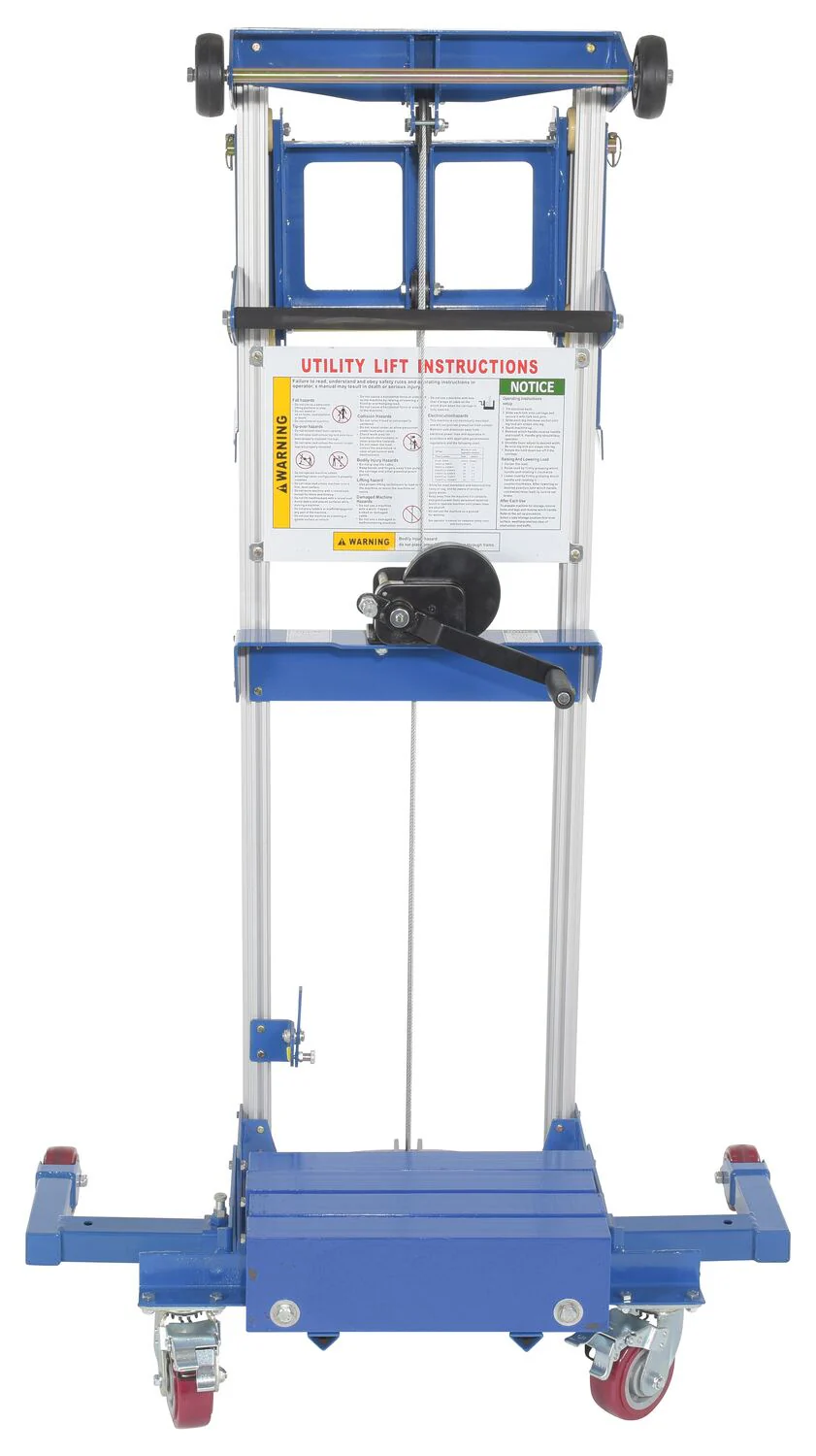

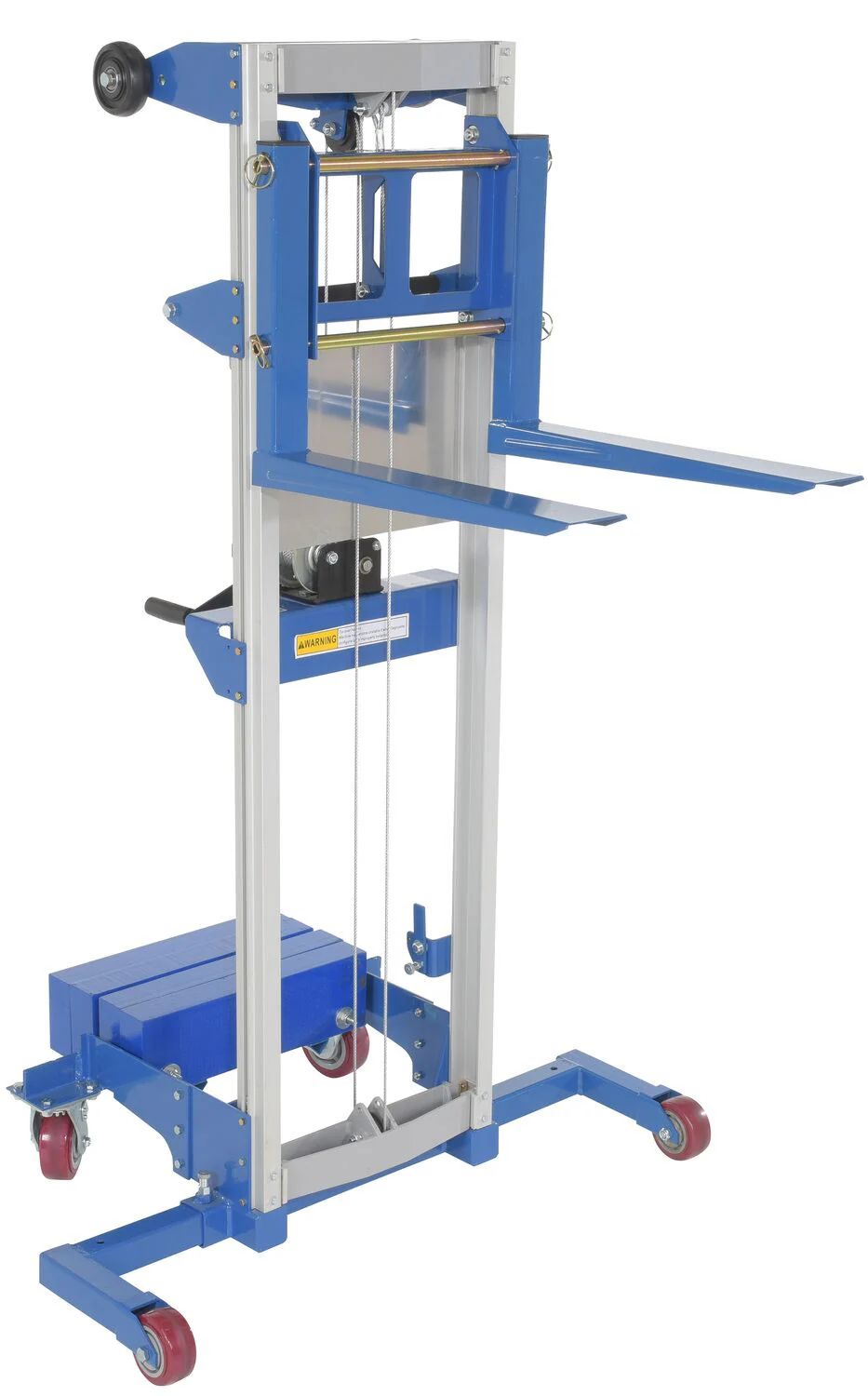

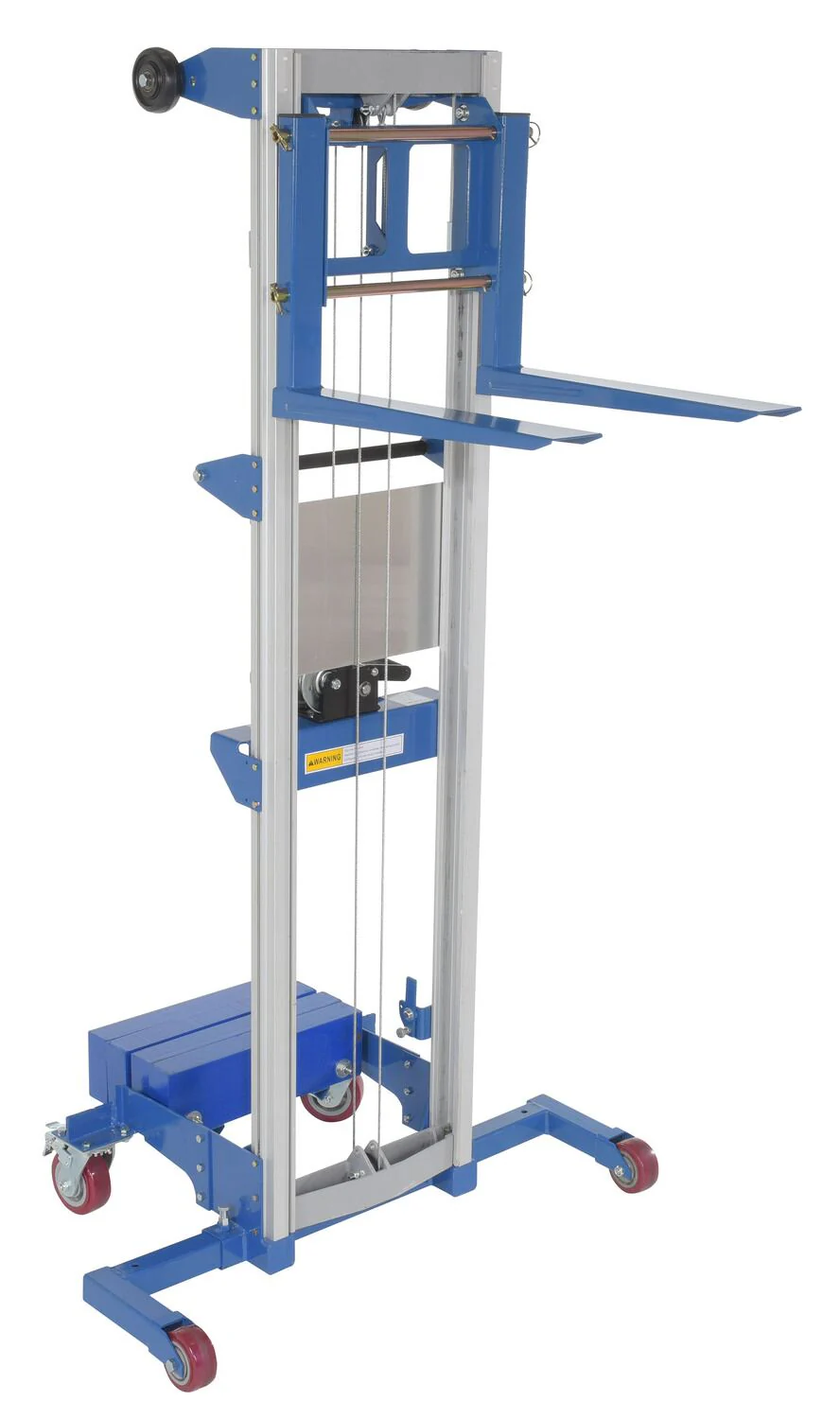

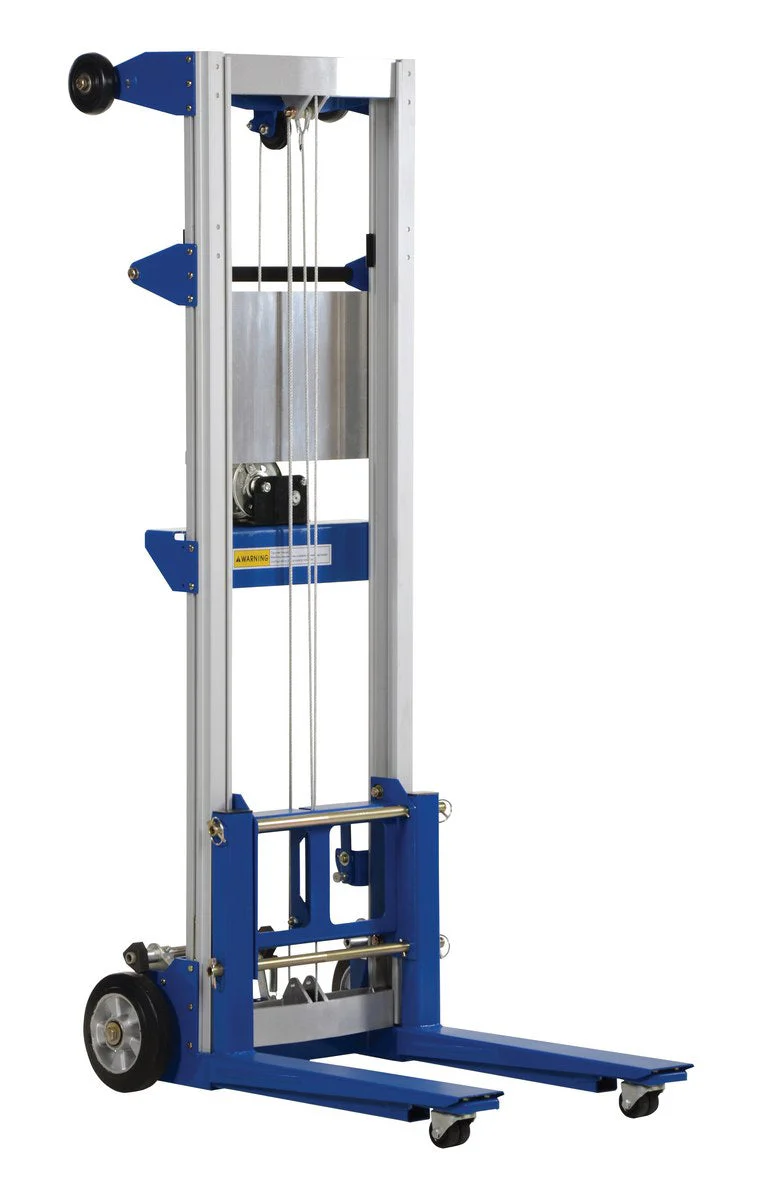

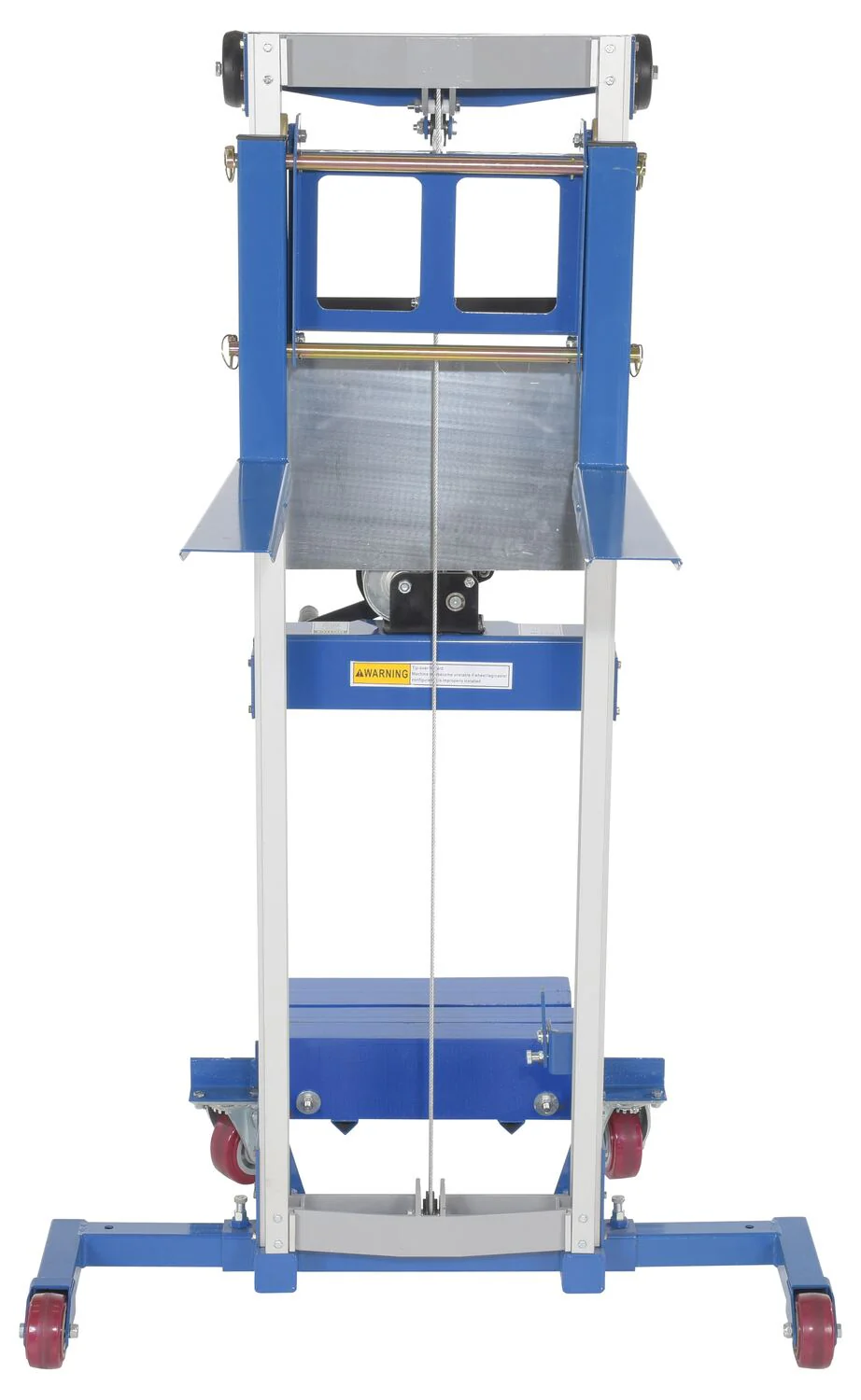

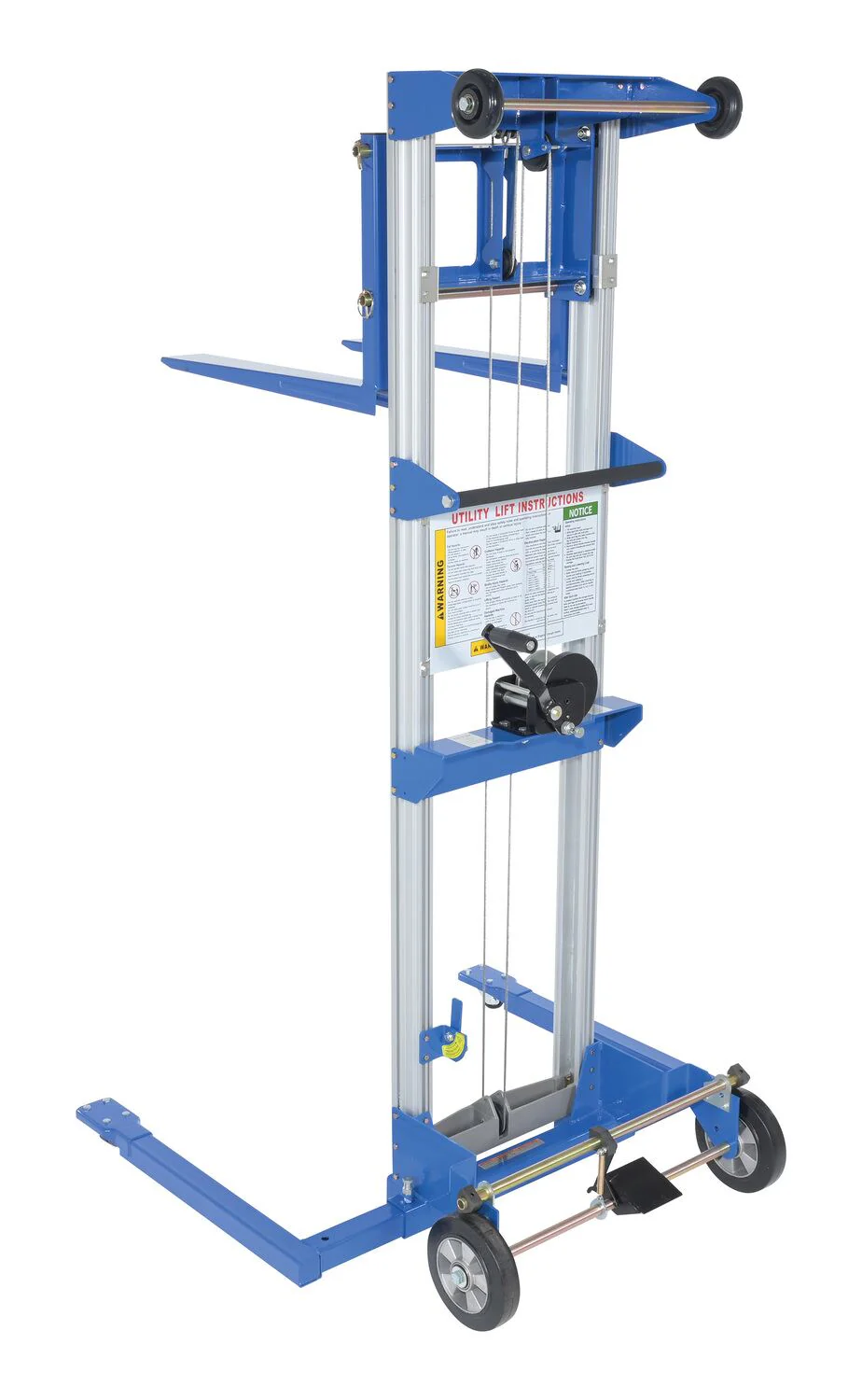

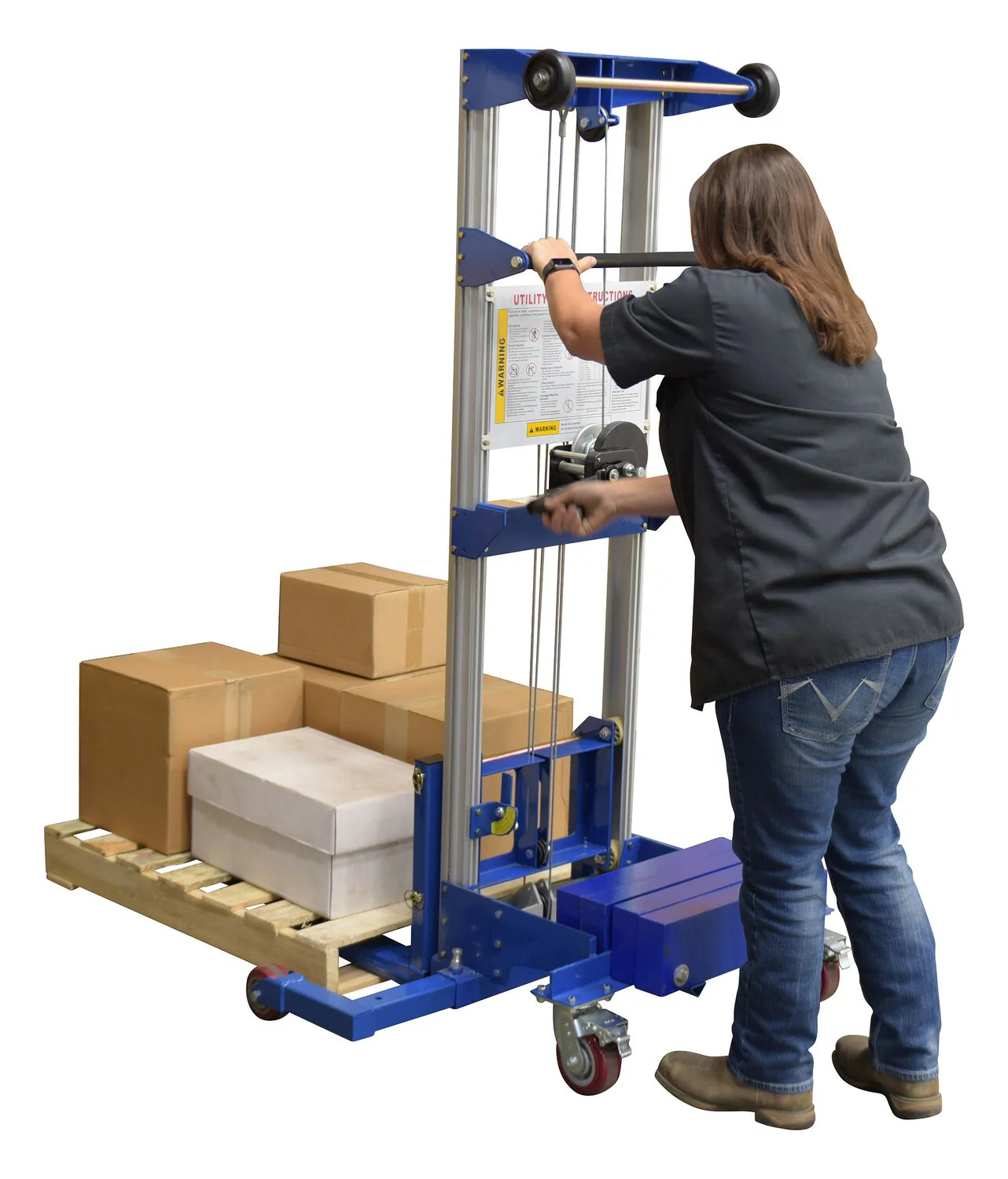

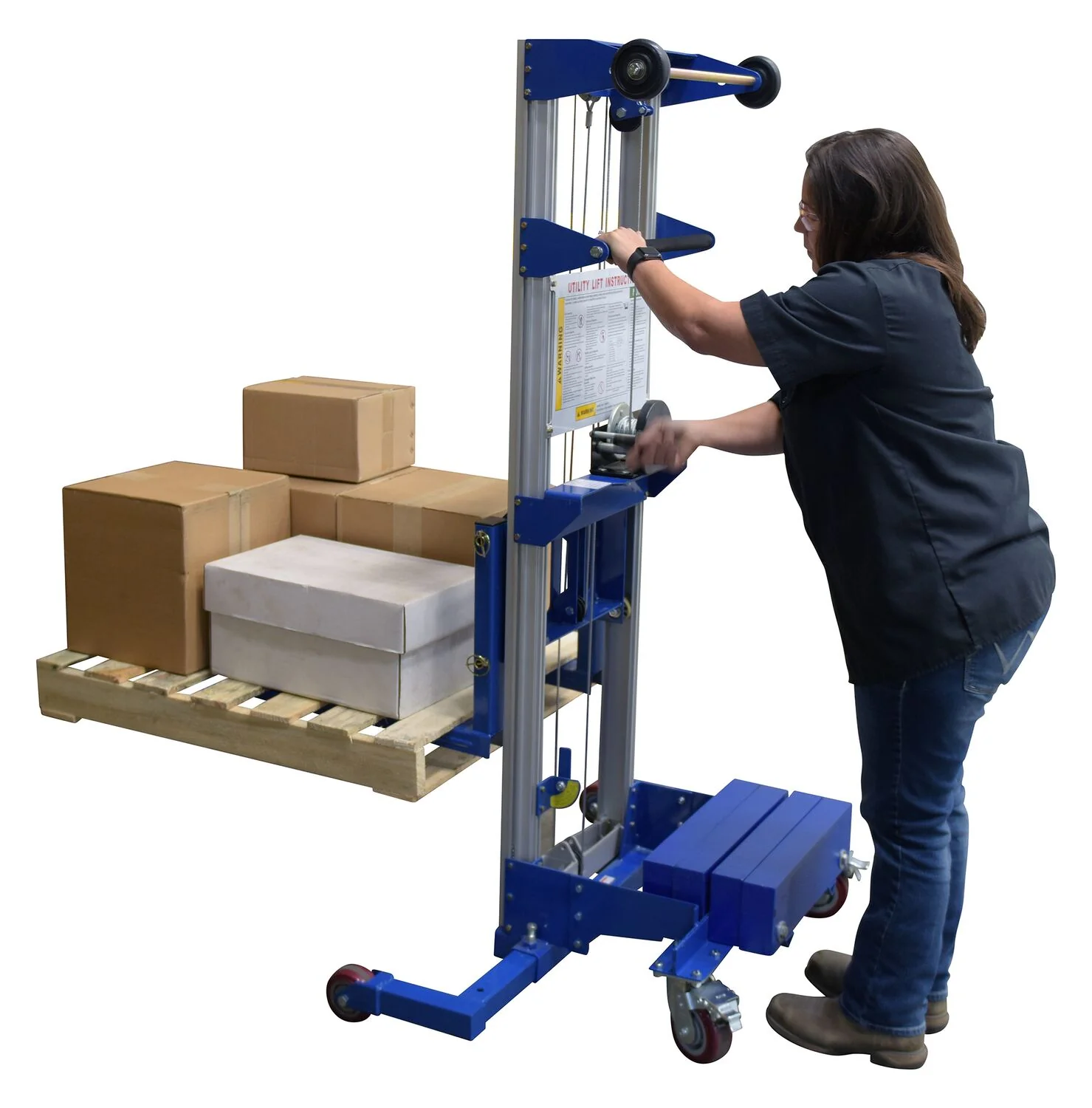

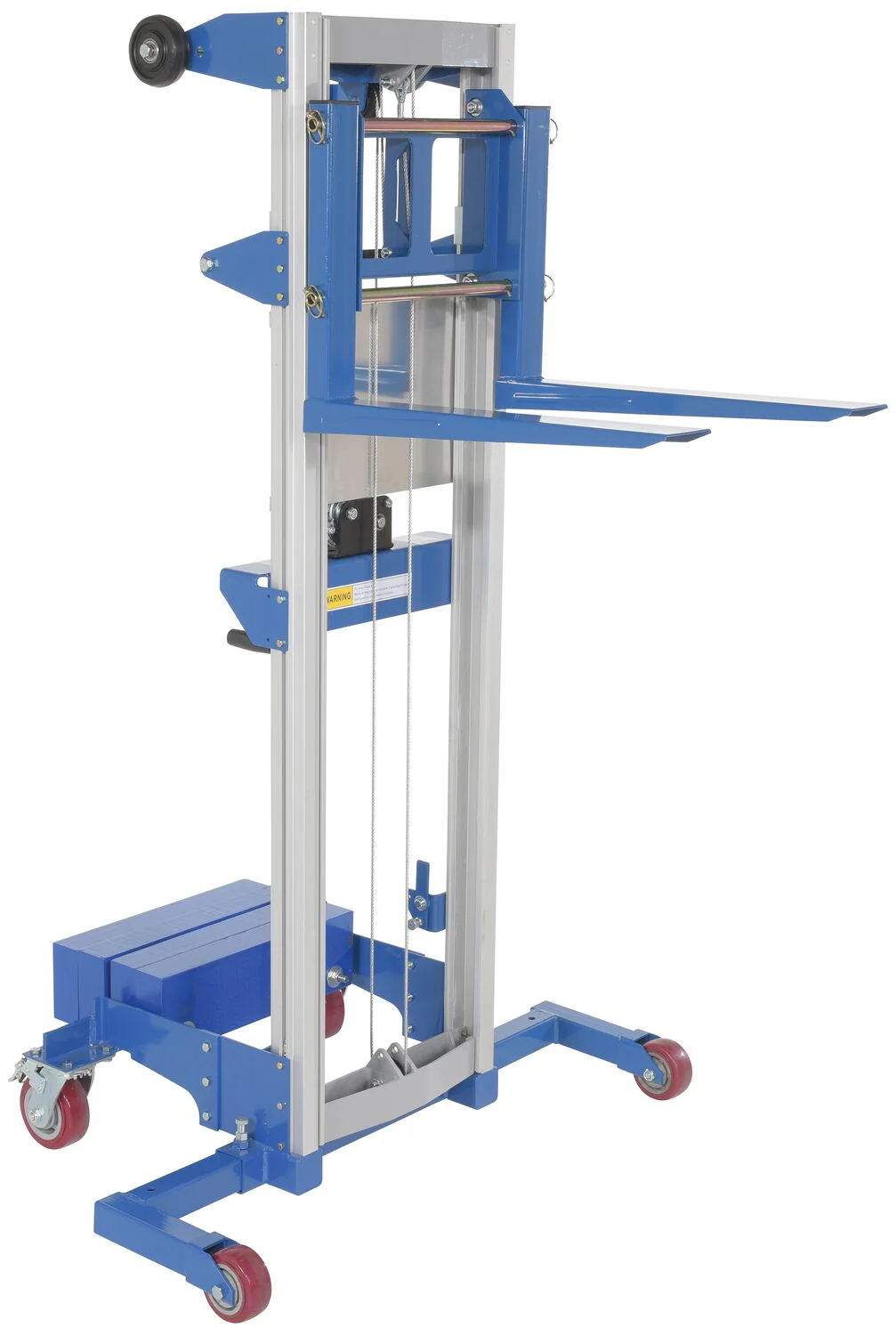

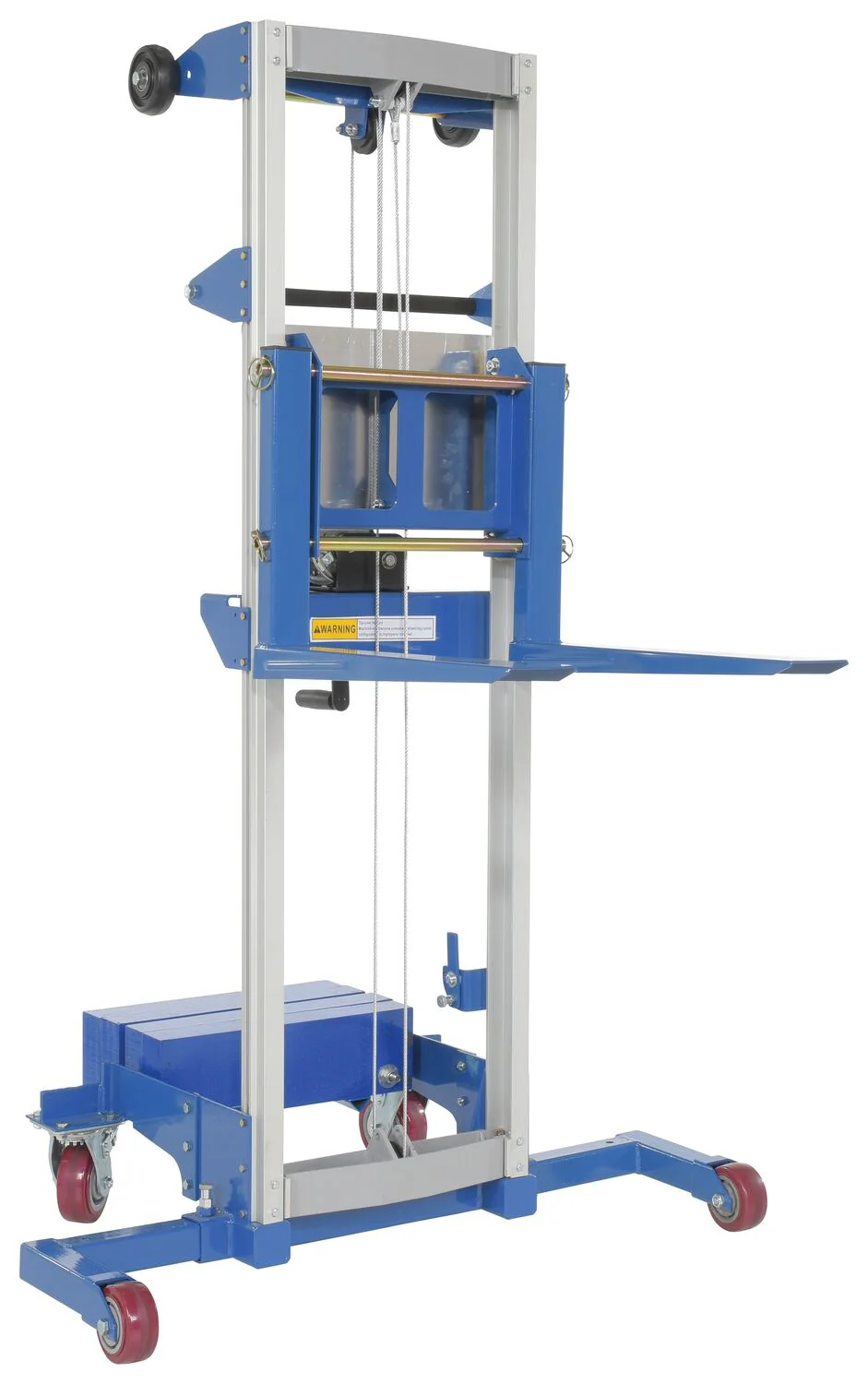

The Vestil Lightweight Winch Stacker Truck is designed to make lifting heavy items easier and safer. It features a winch that provides controlled lifting and lowering, thanks to an integrated brake system, a lightweight frame for maneuverability, and a 500-lb. maximum capacity (depending on the model). This stacker truck is suitable for a variety of lifting and transporting applications for palletized items.

Hand Winch Lift Trucks
Model	Image	Capacity (lbs)	Lowered Height	Raised Height Forks Down/Up	Overall Size (WxLxH)	Wt. (lbs)
Standard Design (Fixed Straddle Width: 12-3/4" (I.D.) and 21" (O.D.))
A-LIFT-R		500	3-1/2"/23-1/2"	47"/67"	24"x35"x 68-3/4"	191
A-LIFT-R-HP		400	3-1/2"/23-1/2"	97"/117"	25"x35"x 67-5/16"	203
Straddle Design (Adjustable Straddle Width: 21-3/4" to 36-1/4" (I.D.) and 29"to43-7/8" (O.D.))
A-LIFT-S		500	1-1/4"/21-1/4"	47-1/4"/68-7/8"	43-7/8"x 42-1/2"x 67-5/16"	200
A-LIFT-S-HP		400	1-1/4"/21-1/4"	98-7/16"/120"	43-7/8"x42-1/2"x67-5/16"	219
A-LIFT-S-EHP		350	1-1/4"/21-1/4"	122"/143-11/16"	43-7/8"x42-1/2"x79-1/8"	226
Counter-Balance Design (Adjustable Straddle Width:21-1/2"to 36-1/2 (I.D.) and 28-1/4 to 43-1/4 (O.D.))
A-LIFT-CB		500	2"/21-1/4"	47-1/4"/68-7/8"	43-1/4"x 45-7/8"x 67-5/16"	437
A-LIFT-CB-HP		400	2"/21-1/4"	98-7/16"/ 120"	43-1/4"x 45-7/8"x 67-5/16"	445
A-LIFT-CB-EHP		350	2"/21-1/4"	122"/143-11/16"	43-1/4"x 46"x 79-1/8"	454
