Vestil Heavy-Duty Cantilever Racking

Heavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3-1/2" for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3-1/8" lip. Heavy-duty and extra heavy-duty have a 3-1/4" lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.

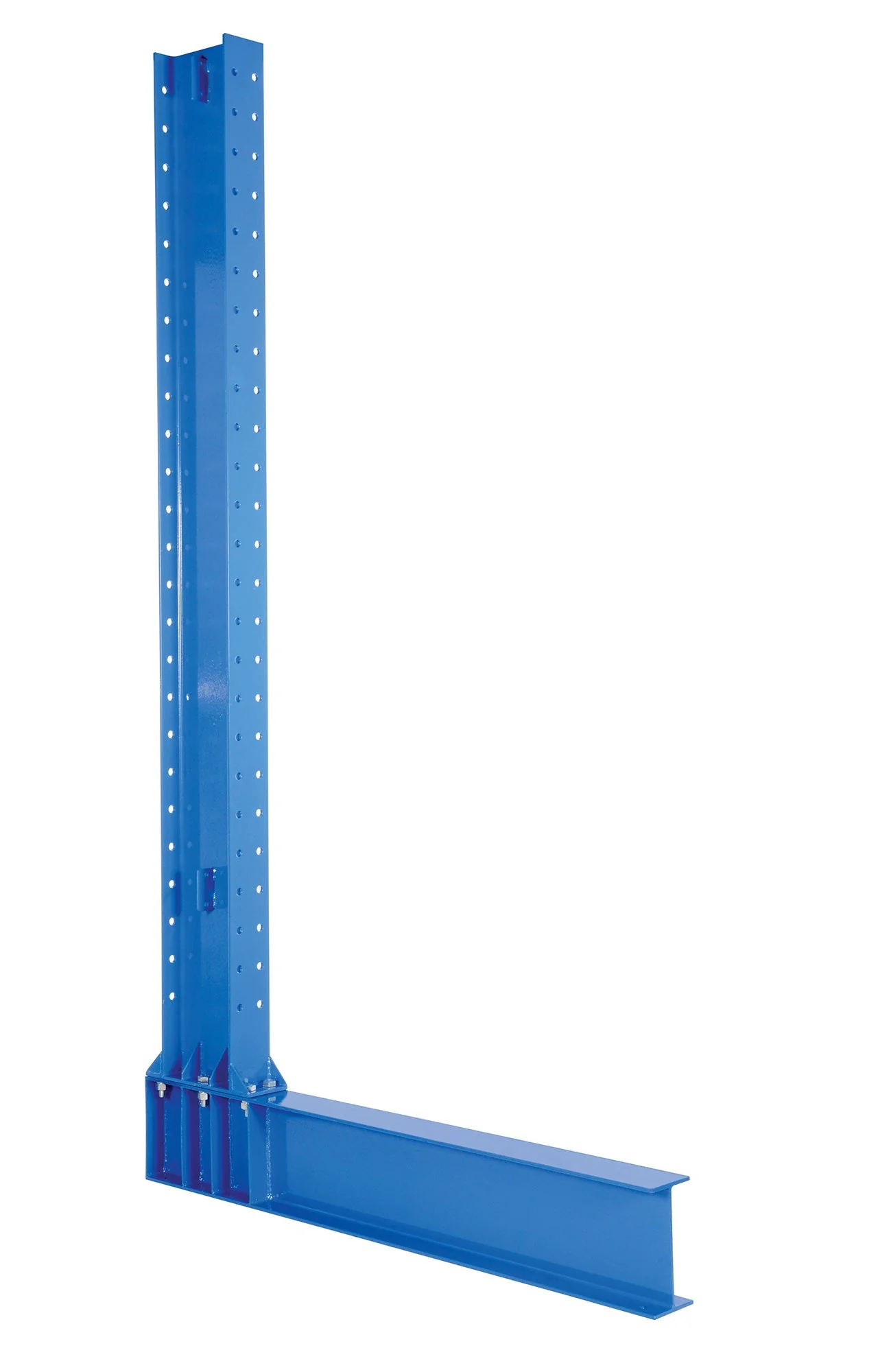

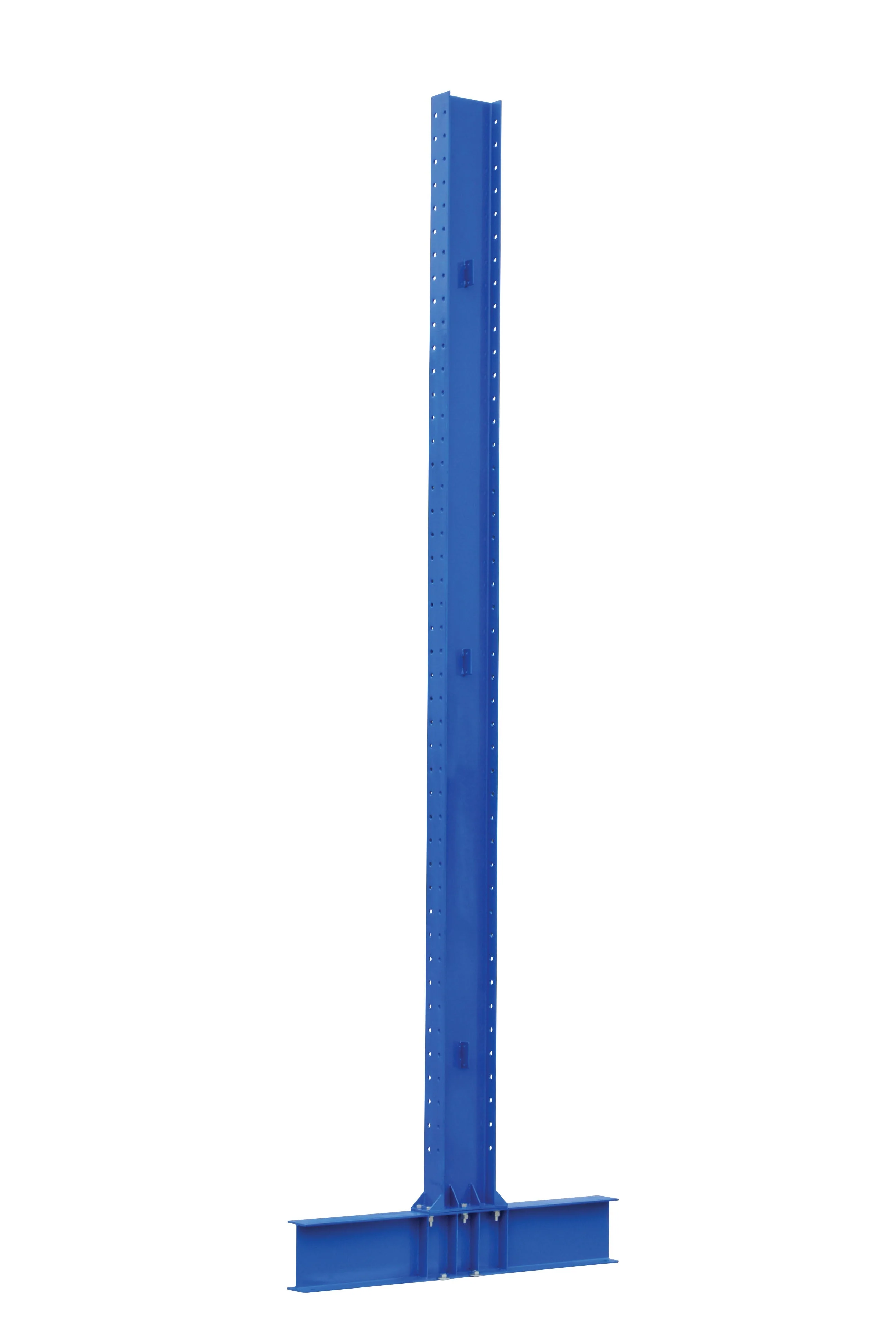

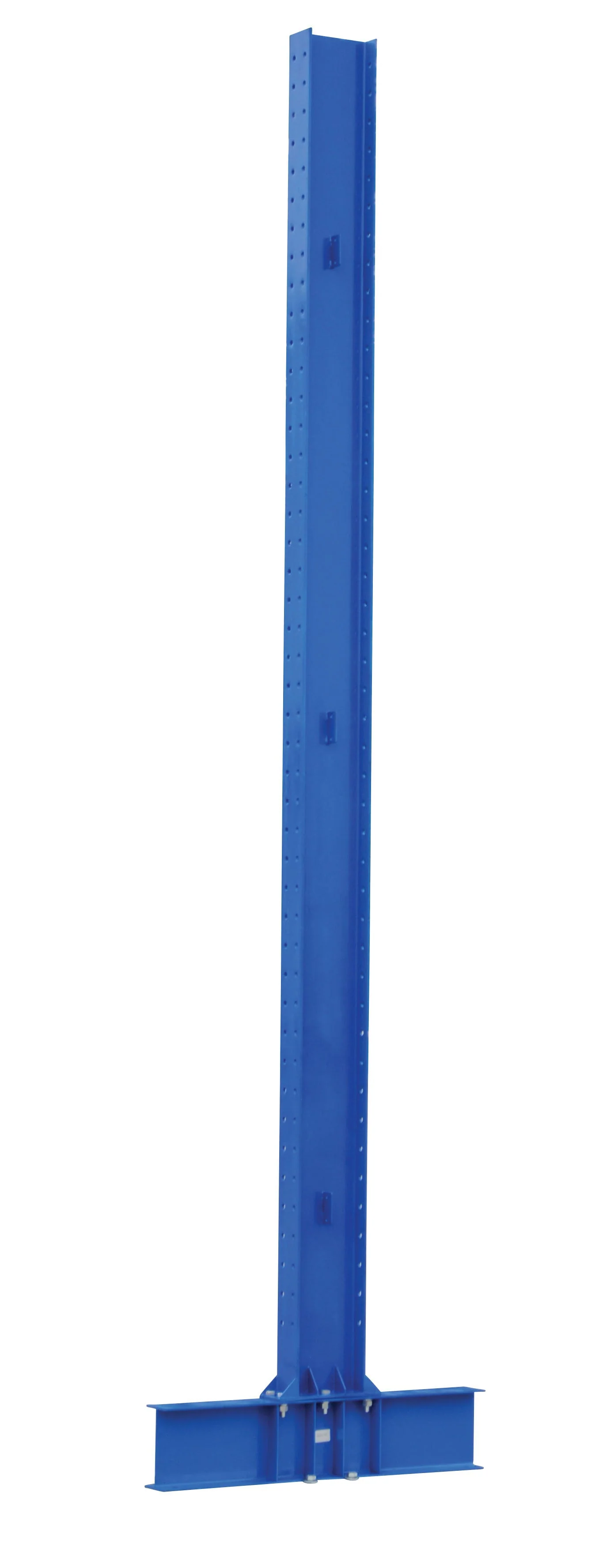

Single-Sided Cantilever Uprights (Heavy-Duty)
Model	Height	Base	Arms to Use	Capacity (lbs)	Wt. (lbs)
HU-C-8-18	96"	28-1/4"	18"	24,700	265
HU-C-8-24	96"	36-1/2"	24"	21,500	275
HU-C-8-36	96"	48-1/2"	30"/36"	18,300/16,000	292
HU-C-8-48	96"	60-1/2"	42"/48"	14,200/12,800	310
HU-C-10-18	120"	28-1/4"	18"	24,700	313
HU-C-10-24	120"	36-1/2"	24"	21,500	323
HU-C-10-36	120"	48-1/2"	30"/36"	18,300/16,000	340
HU-C-10-48	120"	60-1/2"	42"/48"	14,200/12,800	357
HU-C-12-18	144"	28-1/4"	18"	24,400	351
HU-C-12-24	144"	36-1/2"	24"	20,900	362
HU-C-12-36	144"	48-1/2"	30"/36"	17,800/15,600	378
HU-C-12-48	144"	60-1/2"	42"/48"	13,900/12,500	396
HU-C-14-18	168"	28-1/4"	18"	23,400	390
HU-C-14-24	168"	36-1/2"	24"	20,200	401
HU-C-14-36	168"	48-1/2"	30"/36"	17,600/15,400	417
HU-C-14-48	168"	60-1/2"	42"/48"	13,700/12,400	435

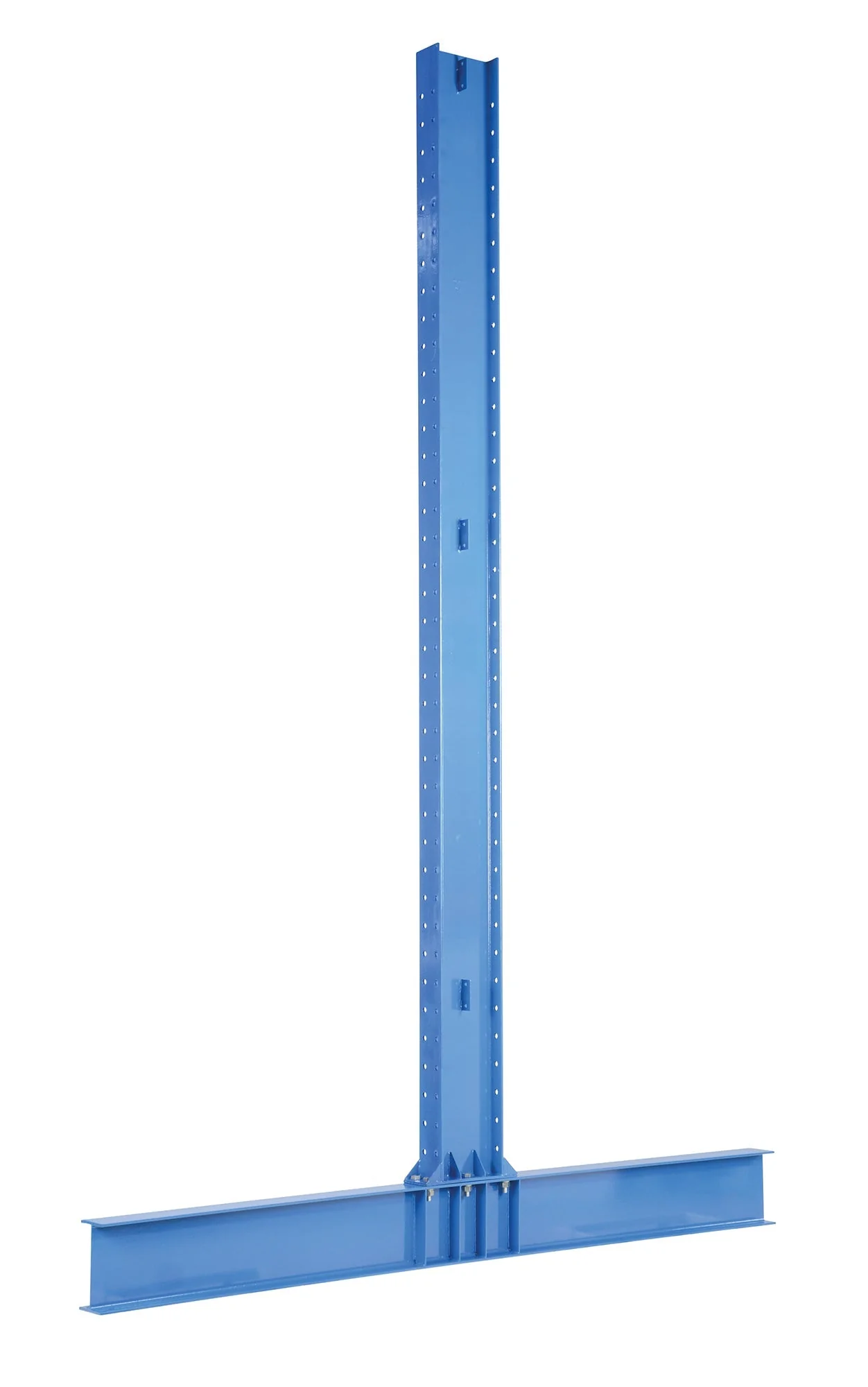

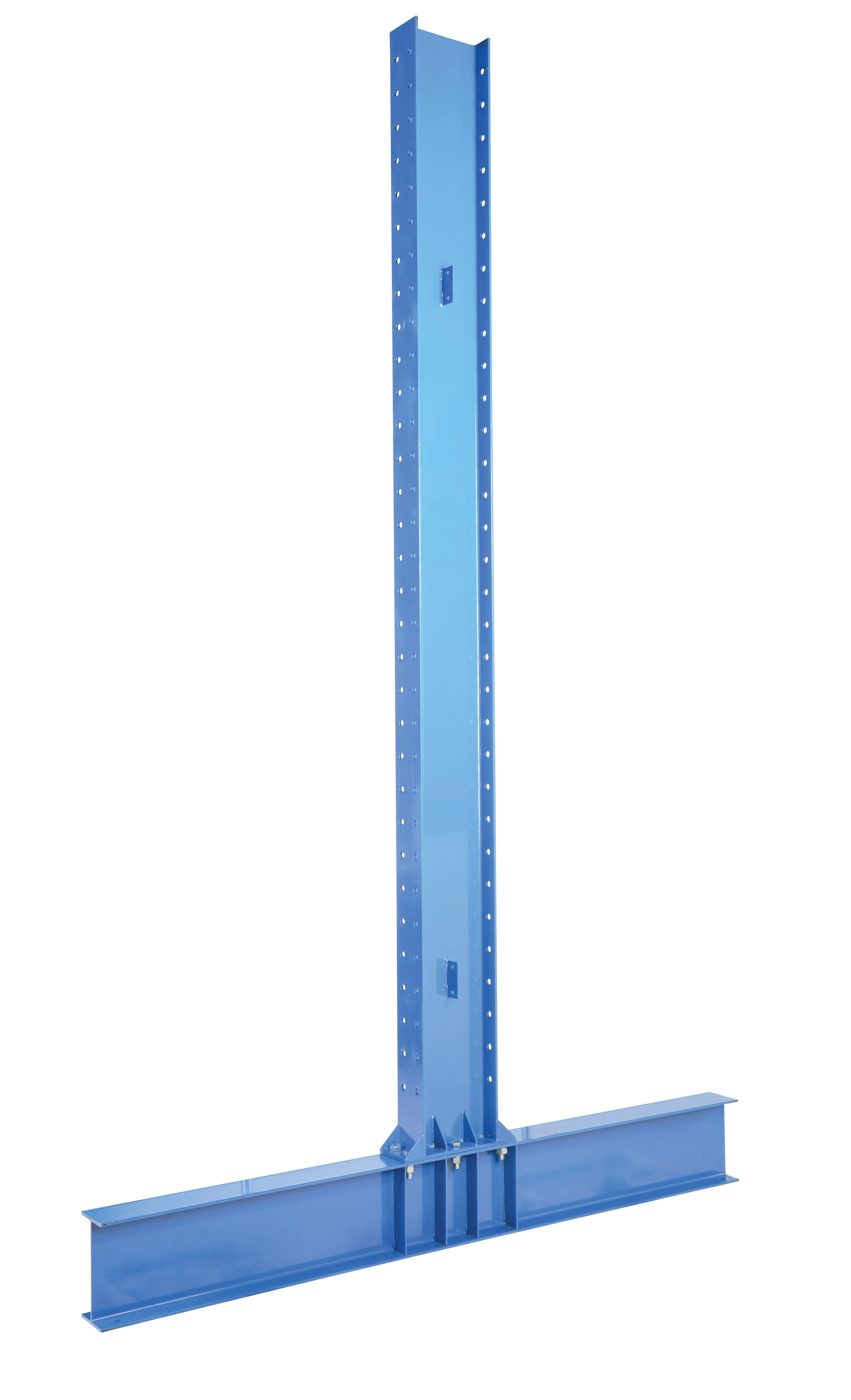

Double-Sided Cantilever Uprights
Model	Height	Base	Arms to Use	Capacity (lbs)	Wt. (lbs)
HDU-C-8-18	96"	46"	18"	49,400	288
HDU-C-8-24	96"	58"	24"	43,000	307
HDU-C-8-36	96"	82"	30"/36"	36,600 /32,000	342
HDU-C-8-48	96"	106"	42"/48"	28,400/25,600	378
HDU-C-10-18	120"	46"	18"	49,200	336
HDU-C-10-24	120"	58"	24"	42,600	355
HDU-C-10-36	120"	82"	30"/36"	36,400/31,600	391
HDU-C-10-48	120"	106"	42"/48"	28,200/25,200	427
HDU-C-12-18	144"	46"	18"	48,800	374
HDU-C-12-24	144"	58"	24"	41,800	393
HDU-C-12-36	144"	82"	30"/36"	35,600/31,200	429
HDU-C-12-48	144"	106"	42"/48"	27,800/25,000	465
HDU-C-14-18	168"	46"	18"	46,800	413
HDU-C-14-24	168"	58"	24"	40,400	432
HDU-C-14-36	168"	82"	30"/36"	35,200/30,800	467
HDU-C-14-48	168"	106"	42"/48"	27,400/24,800	507

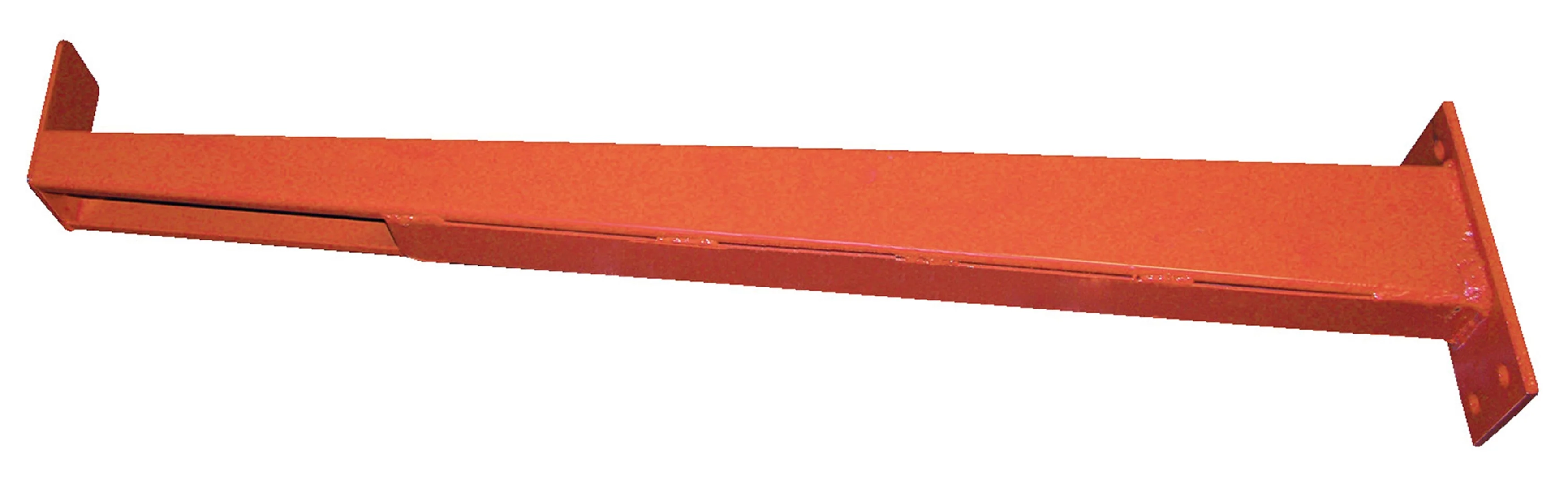

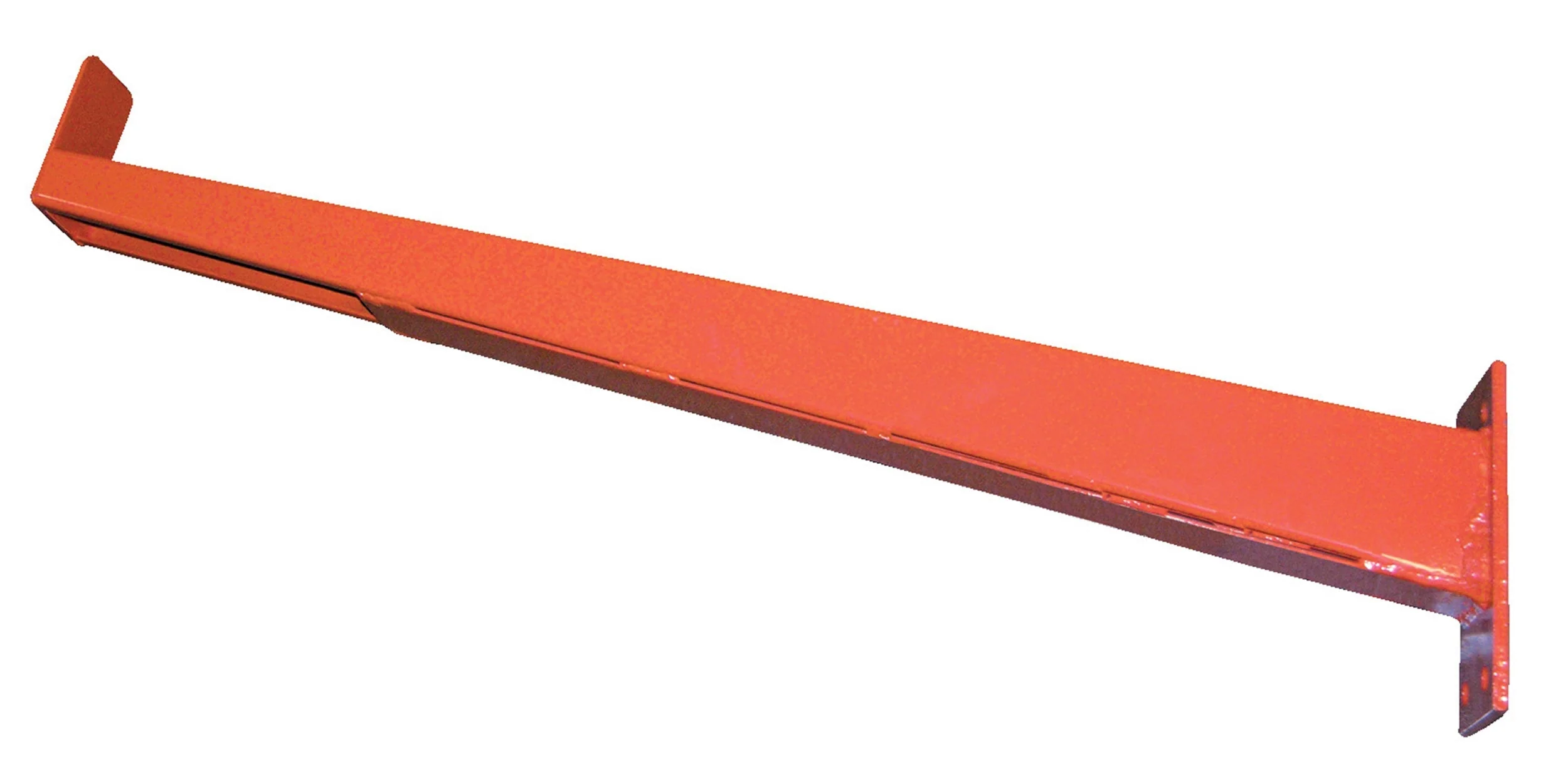

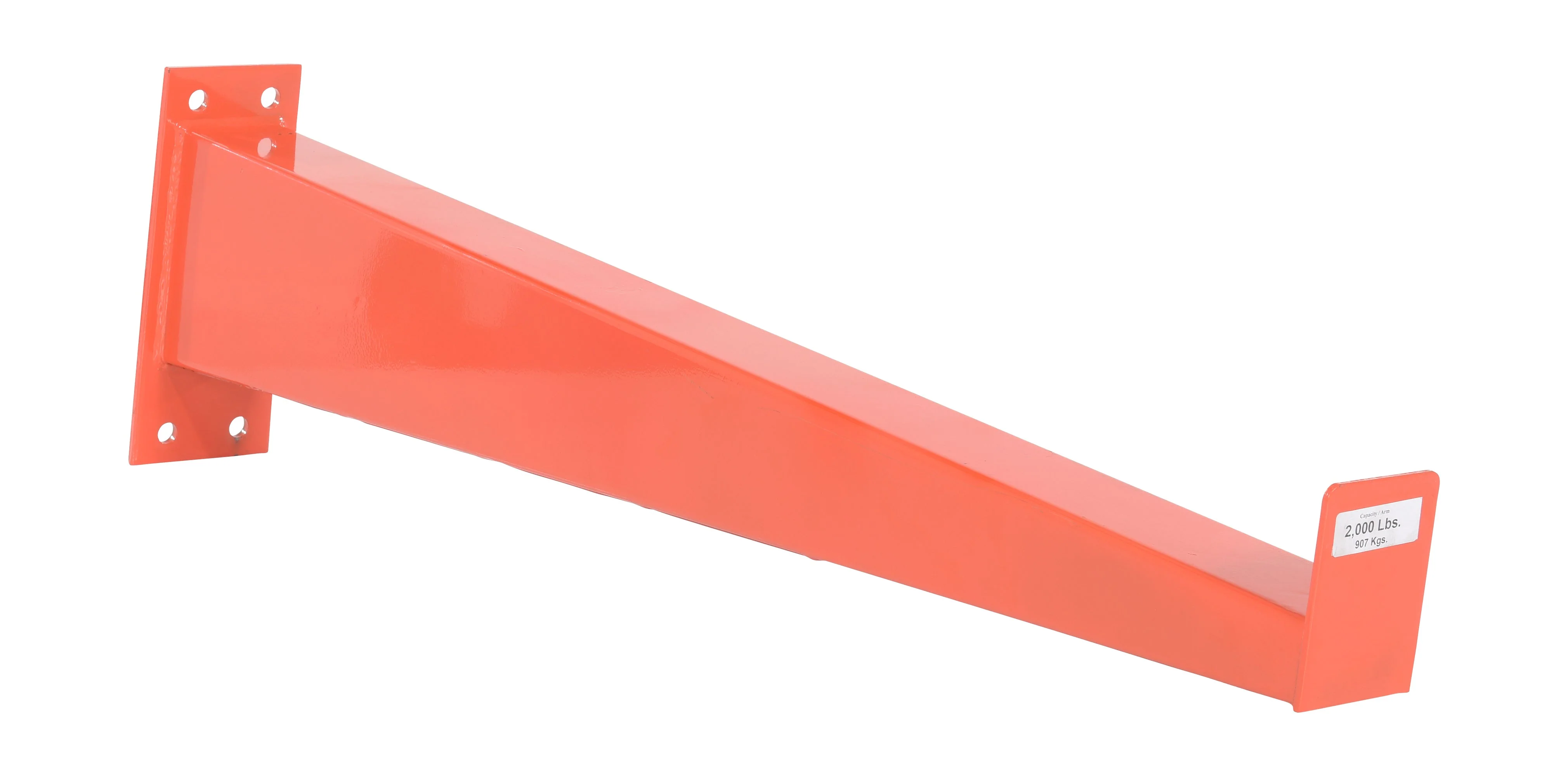

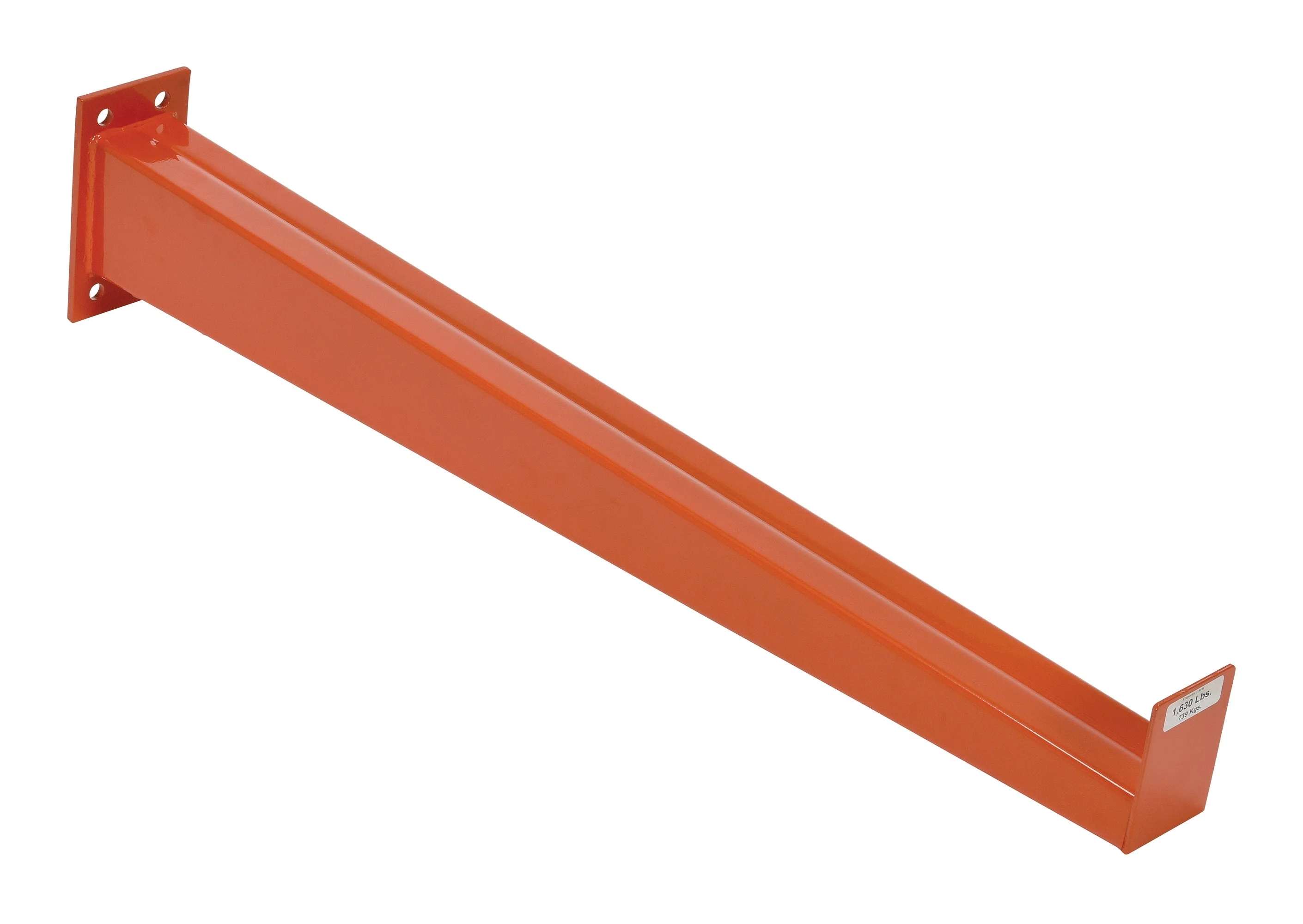

Straight Arms
Model	Arm Length			Uniform Capacity Per Arm (lbs)	Wt. (lbs)
HSA-C-18	18"			2,500	16
HSA-C-24	24"			2,000	21
HSA-C-30	30"			1,500	22
HSA-C-36	36"			1,200	26
HSA-C-42	42"			1,100	29
HSA-C-48	48"			1,000	32

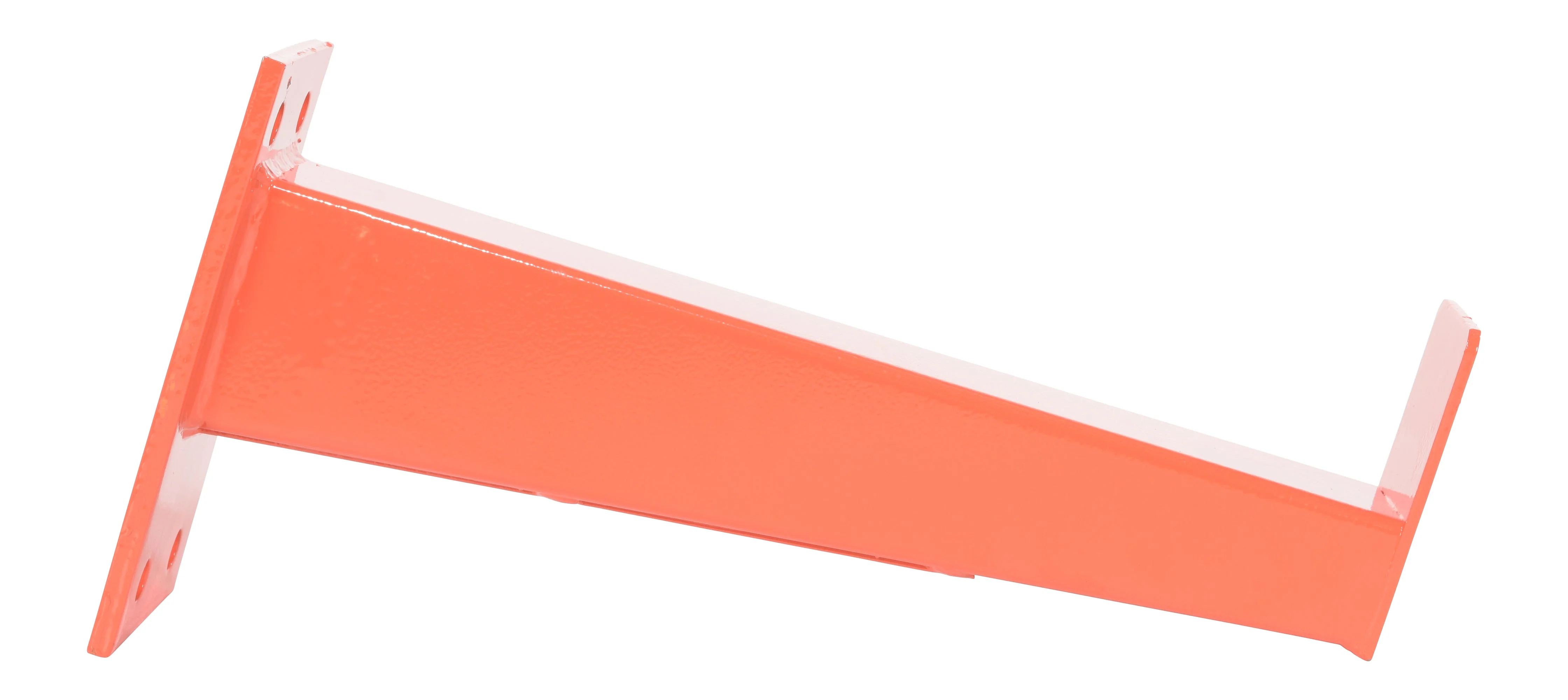

Inclined Arms
Model	Arm Length			Uniform Capacity Per Arm (lbs)	Wt. (lbs)
HIA-C-18	18"			2,500	16
HIA-C-24	24"			2,000	21
HIA-C-30	30"			1,500	22
HIA-C-36	36"			1,200	26
HIA-C-42	42"			1,100	29
HIA-C-48	48"			1,000	32

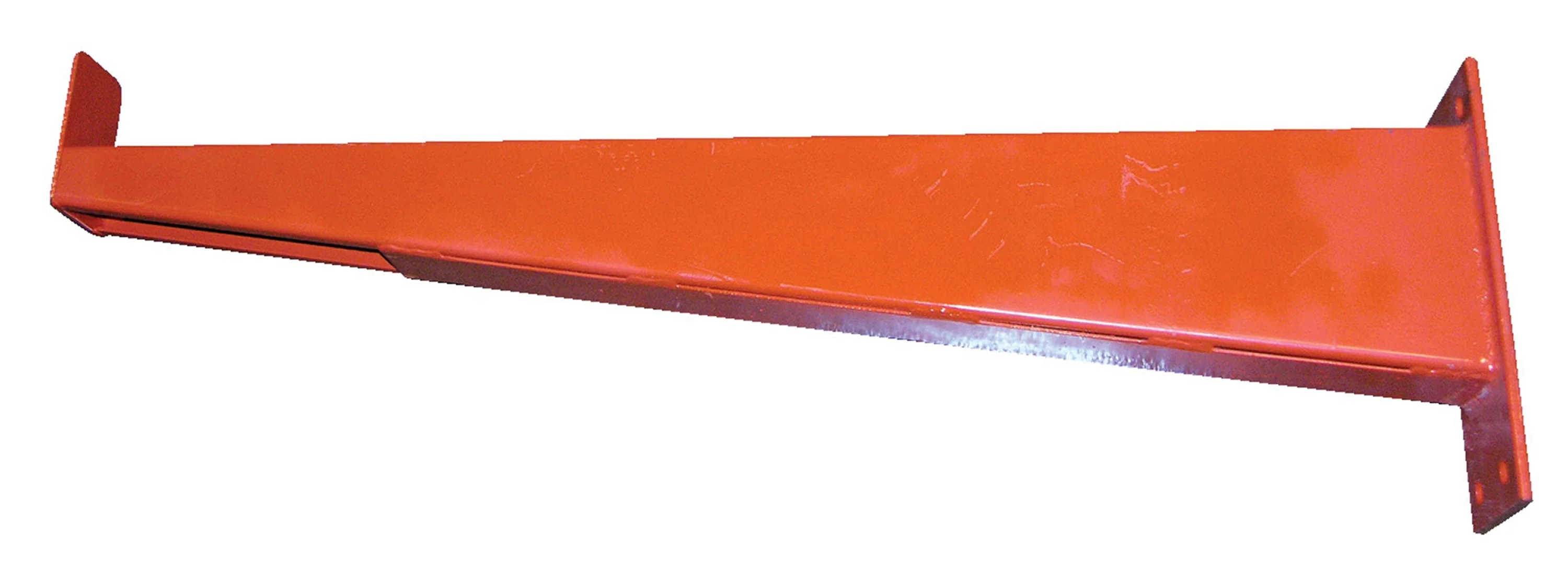

Heavy-Duty & Extra Heavy-Duty Arms
Model	Arm Length			Uniform Capacity Per Arm (lbs)	Wt. (lbs)
HDSA-C-36	36"			2,175	26
XHDSA-C-36	36"			3,400	30
HDSA-C-42	42"			1,865	29
XHDSA-C-42	42"			2,900	33
HDSA-C-48	48"			1,630	31
HDSA-C-48M	48"			2,000	33
XHDSA-C-48	48"			2,500	36

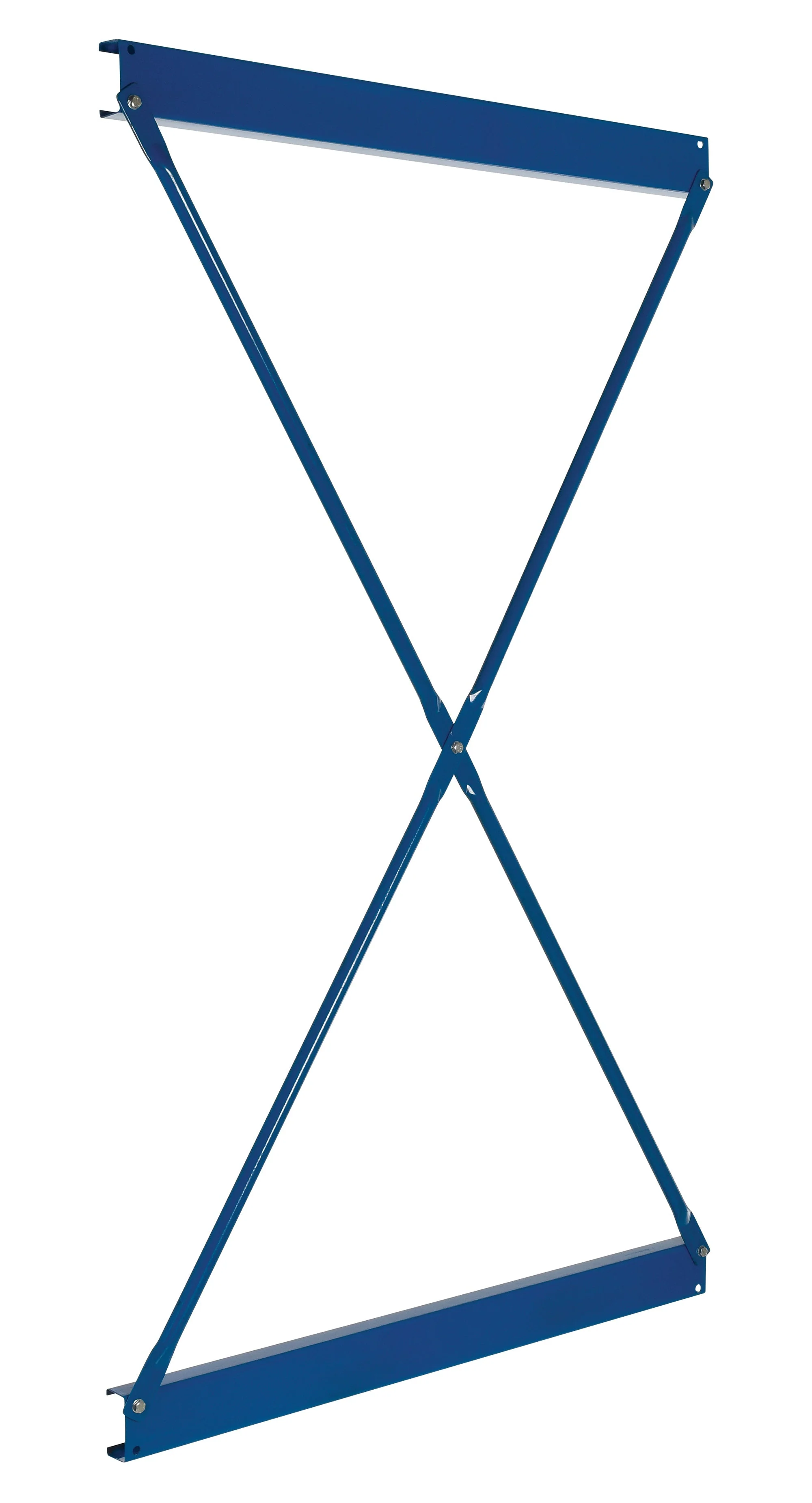

Brace Sets (includes 2)
Model	Upright Height		Length		Wt. (lbs)
HB-C-8-3	96"-120"		35-1/2"		28
HB-C-8-4	96"-120"		47-1/2"		31
HB-C-8-5	96"-120"		59-1/2"		38
HB-C-8-6	96"-120"		71-1/2"		43
HB-C-8-7	96"-120"		83-1/2"		98
HB-C-8-8	96"-120"		95-1/2"		107

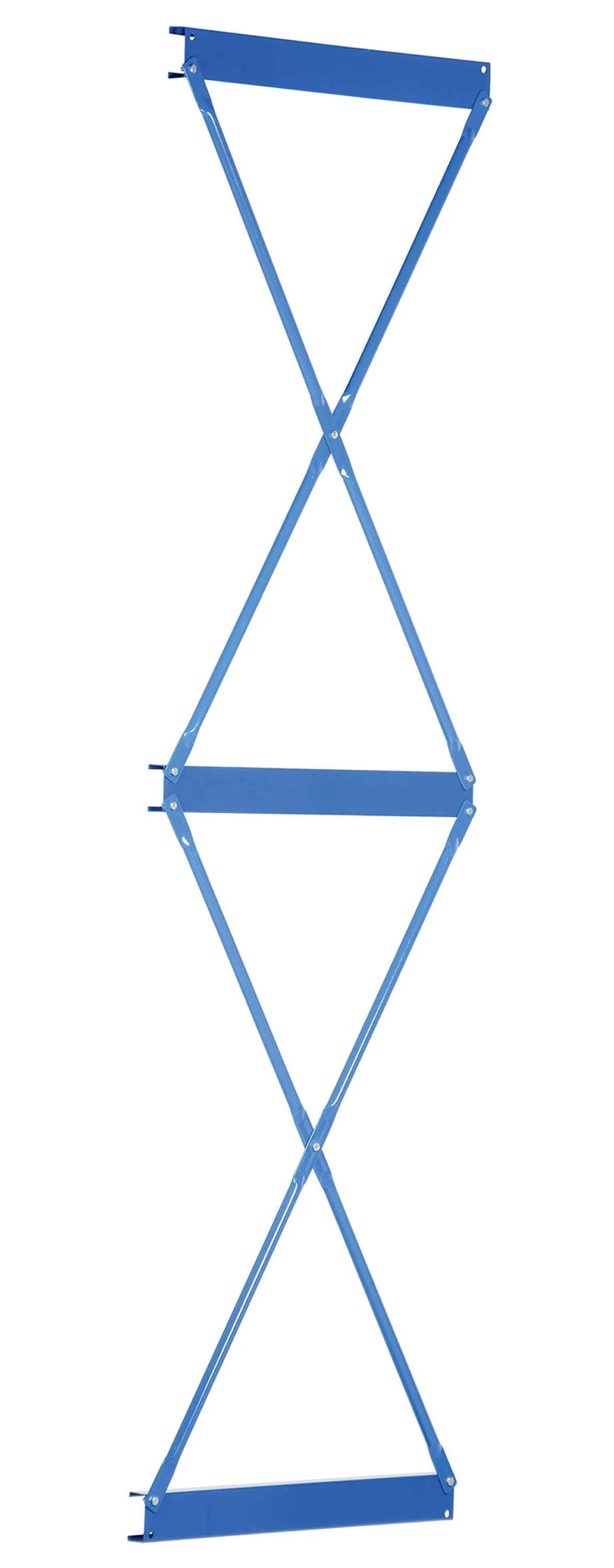

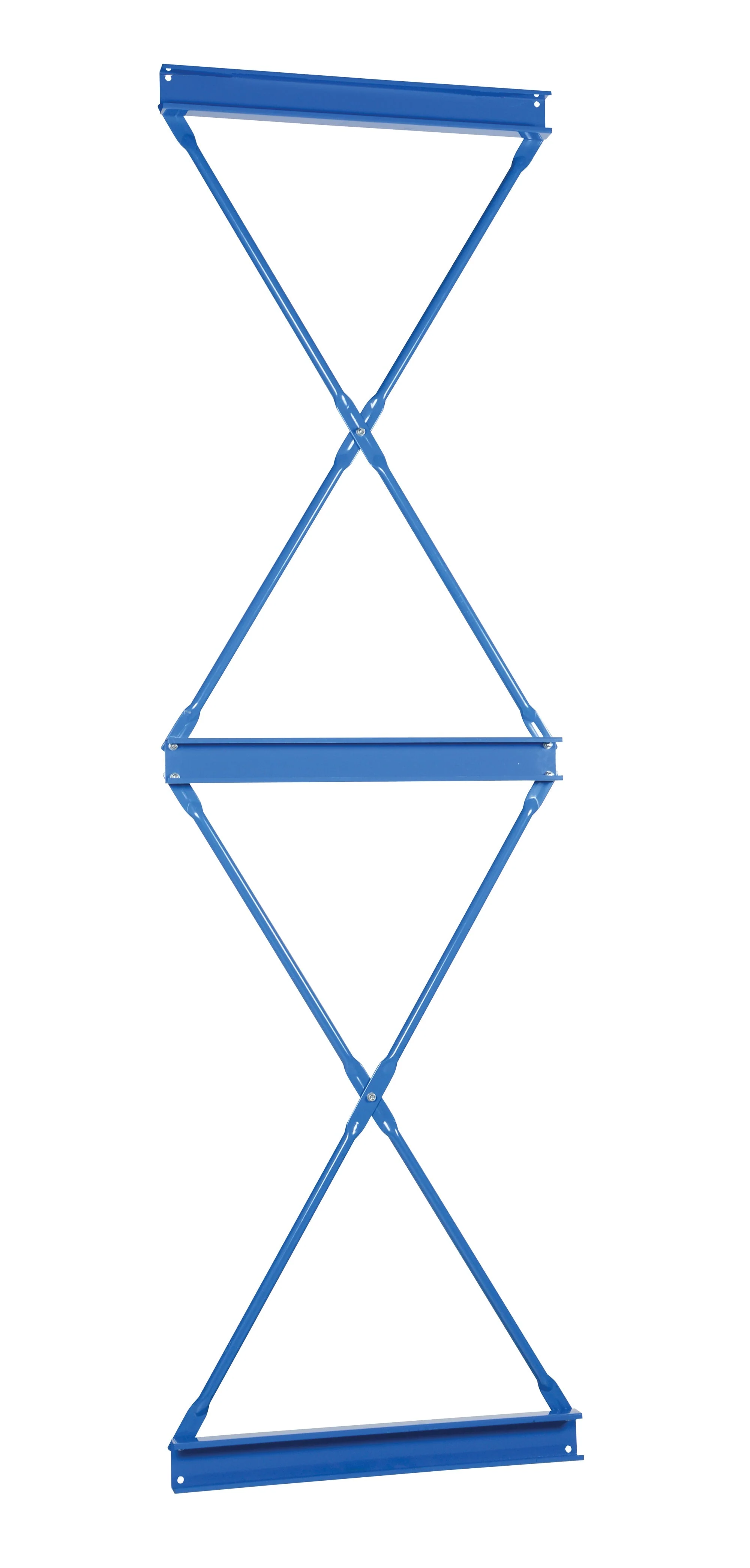

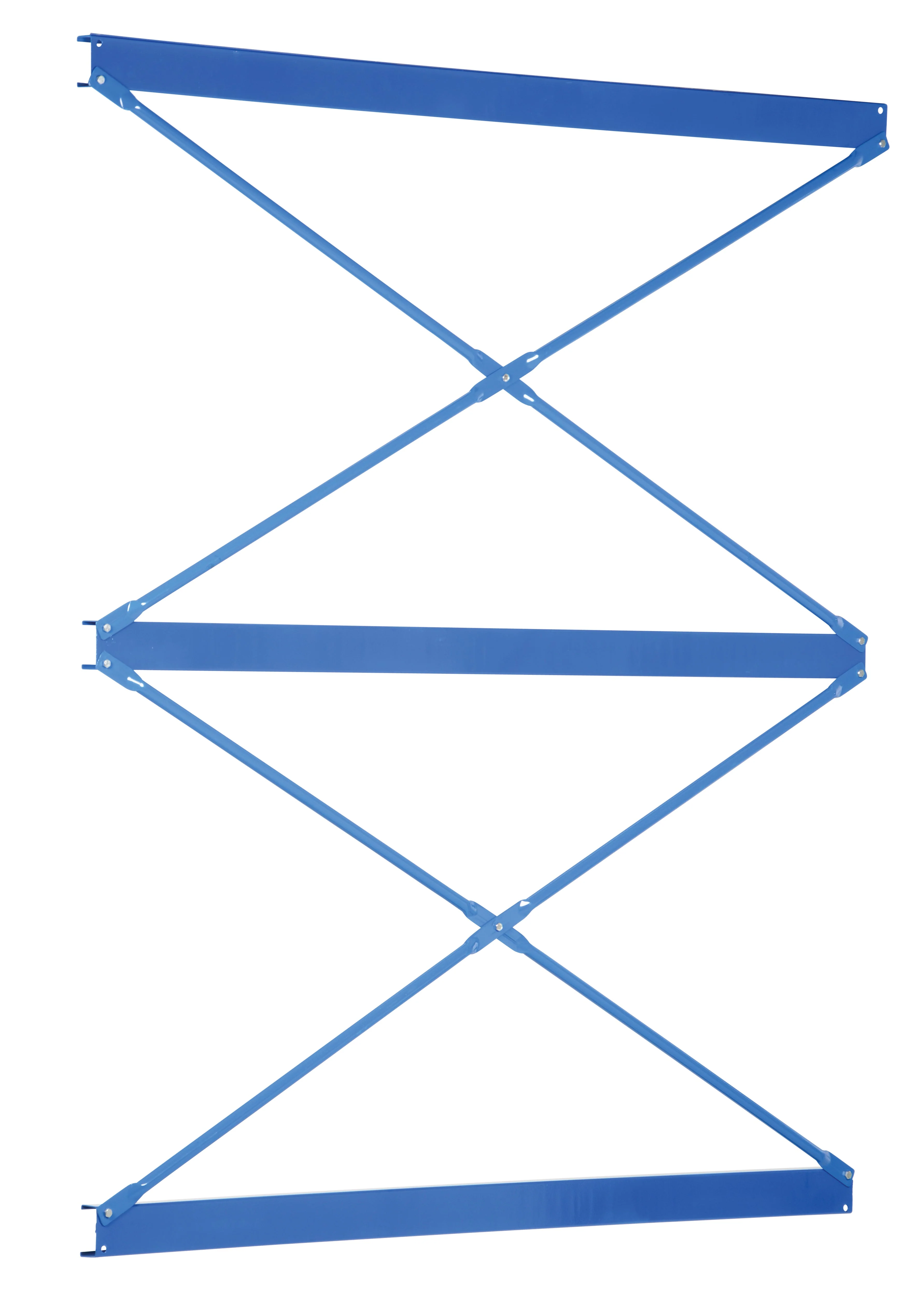

Brace Sets: Includes Four (4) diagonal and Three (3) Cross
Model	Upright Height		Length		Wt. (lbs)
HB-C-14-3	144"- 168"		35-1/2"		44
HB-C-14-4	144"- 168"		47-1/2"		54
HB-C-14-5	144"- 168"		59-1/2"		56
HB-C-14-6	144"- 168"		71-1/2"		66
HB-C-14-7	144"- 168"		83-1/2"		78
HB-C-14-8	144"- 168"		95-1/2"		123
