Select Span | Product Code:
From $582.56
Original: $1,664.47

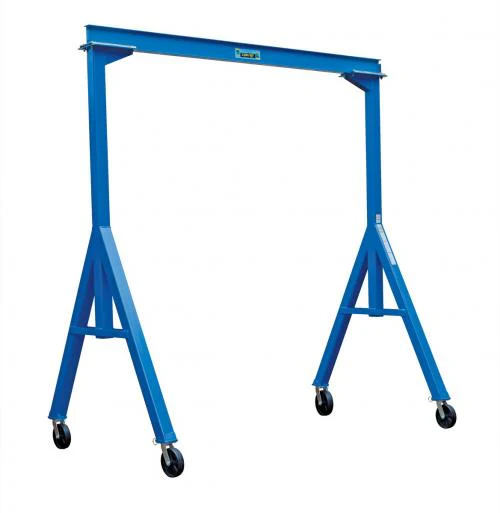

-65%Vestil Gantry Crane 10ft Height, 2000lbs—
$1,664.47
$582.56The Story
This Vestil Gantry Crane offers a 10ft Height, 2000lb capacity (other sizes available) and span options available up to 20ft to give you the maximum distance available between each upright leg. Pair your portable gantry crane with an electric or manual chain hoist and trolley from our Related Products section below.
- 1 Year limited warranty
- 2000lbs Capacity
- Choose Span
- 10ft Height
- Swivel casters with brakes (4)
- Fixed height (choose from dropdown menu)
| Fixed Height Steel Gantry Cranes | |||||||
| Model | Overall I-Beam Length | Overall I-Beam Height | Under I-Beam To Ground | Base Width | I-Beam Flange Width | Capacity (lbs) | Weight (lbs) |
| FHS-2-10 | 10' | 6" | 10' | 64-1/2" | 4" | 2,000 | 780 |
| FHS-2-15 | 15' | 6" | 10' | 64-1/2" | 4" | 2,000 | 862 |
| FHS-2-20 | 20' | 10-1/8" | 10' | 64-1/2" | 4" | 2,000 | 1047 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This Vestil Gantry Crane offers a 10ft Height, 2000lb capacity (other sizes available) and span options available up to 20ft to give you the maximum distance available between each upright leg. Pair your portable gantry crane with an electric or manual chain hoist and trolley from our Related Products section below.
- 1 Year limited warranty
- 2000lbs Capacity
- Choose Span
- 10ft Height
- Swivel casters with brakes (4)
- Fixed height (choose from dropdown menu)
| Fixed Height Steel Gantry Cranes | |||||||
| Model | Overall I-Beam Length | Overall I-Beam Height | Under I-Beam To Ground | Base Width | I-Beam Flange Width | Capacity (lbs) | Weight (lbs) |
| FHS-2-10 | 10' | 6" | 10' | 64-1/2" | 4" | 2,000 | 780 |
| FHS-2-15 | 15' | 6" | 10' | 64-1/2" | 4" | 2,000 | 862 |
| FHS-2-20 | 20' | 10-1/8" | 10' | 64-1/2" | 4" | 2,000 | 1047 |
