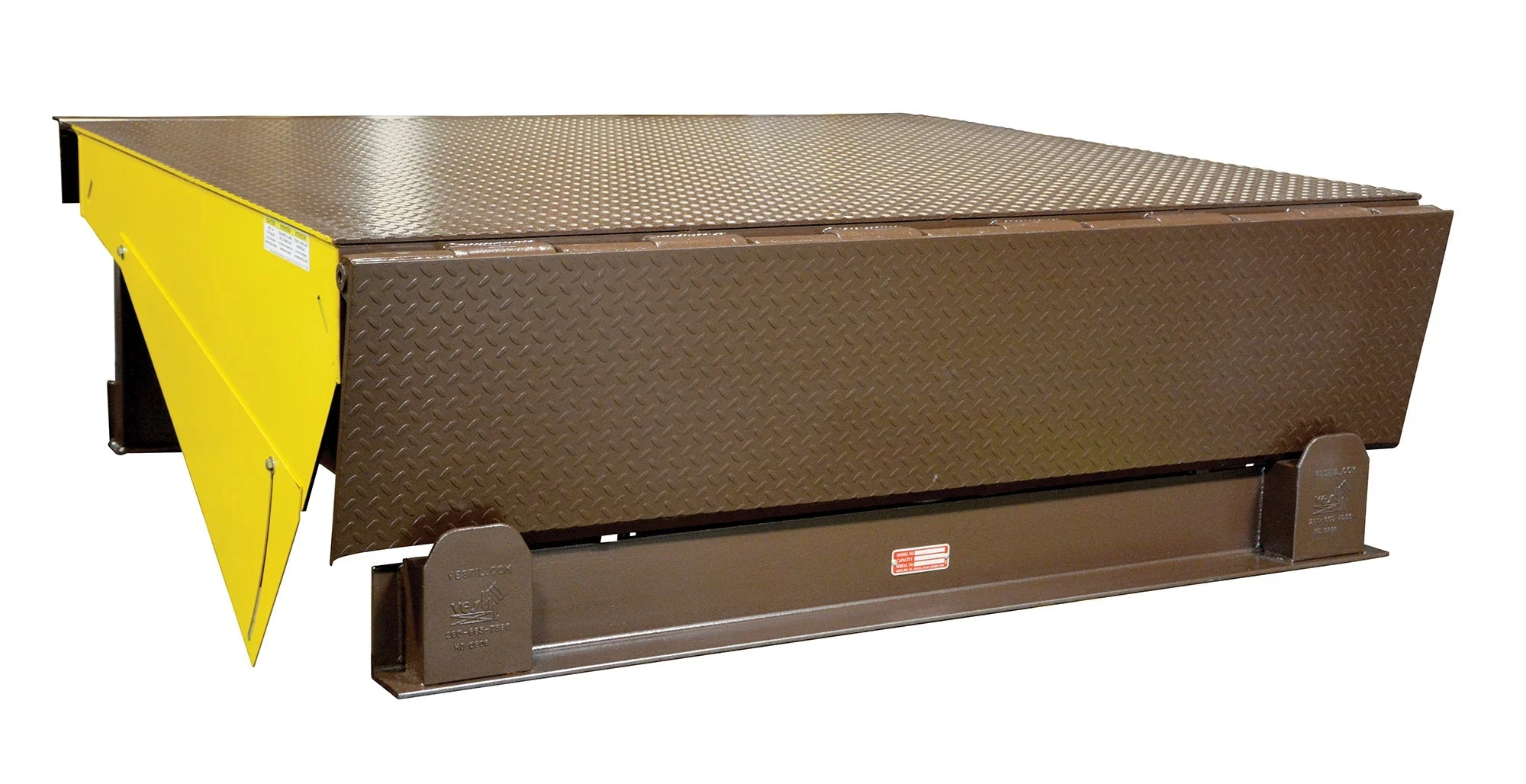

Vestil Electric Hydraulic Dock Levelers

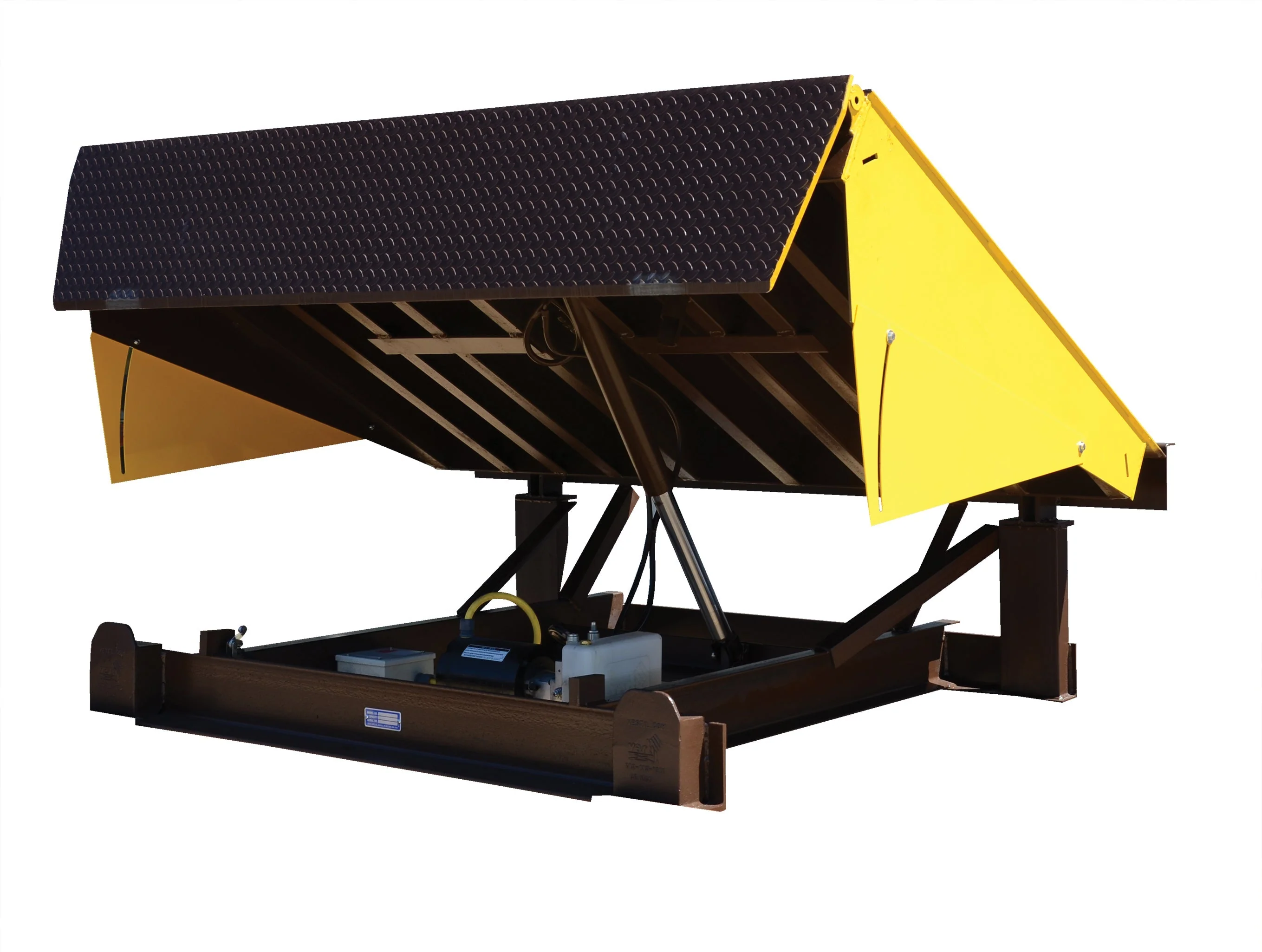

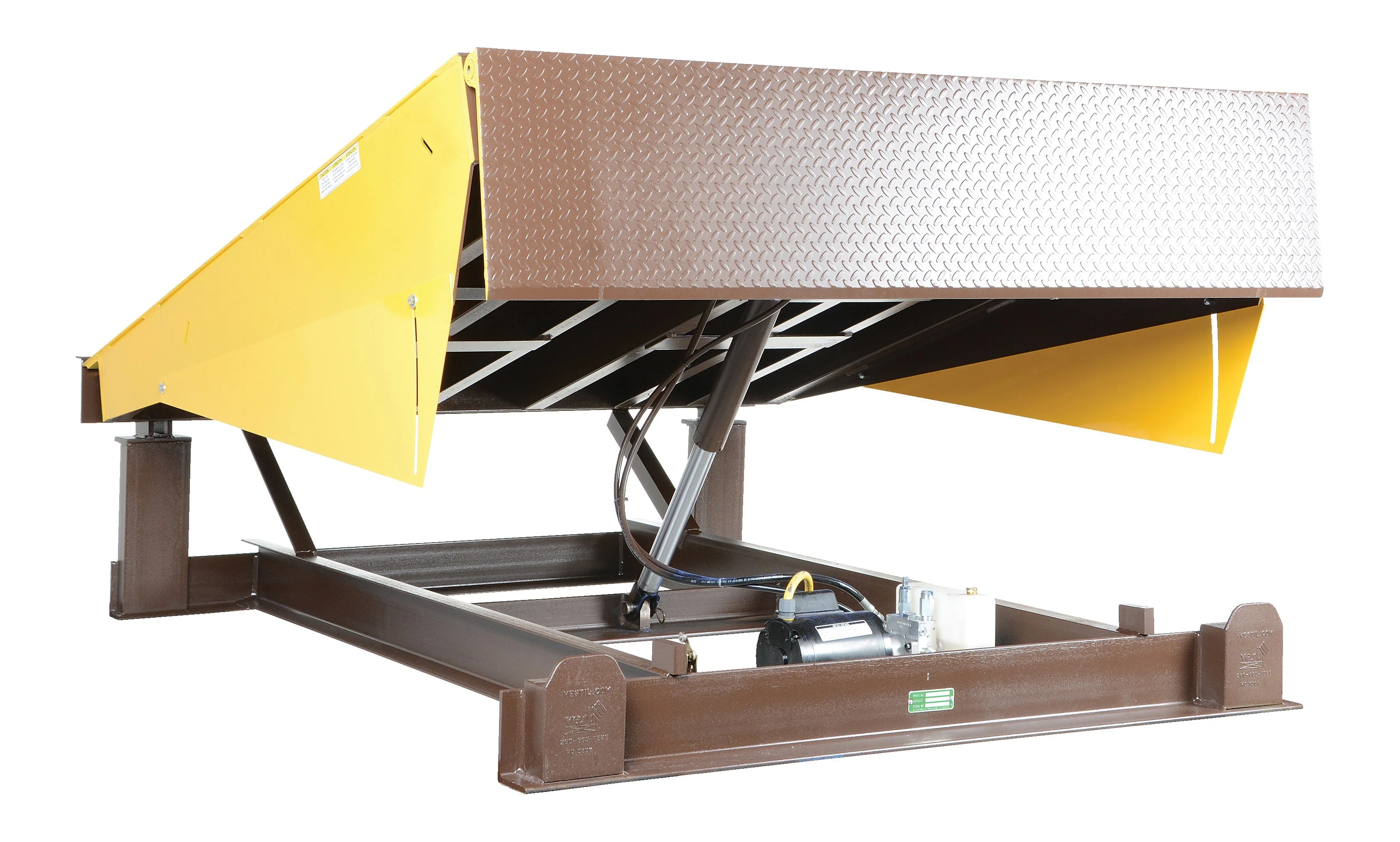

The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a simple push of the button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge, service range of +/- 12" and two (2) laminated bumpers. 460V 3-Phase standard. Uniform capacities available up to 80,000 pounds, contact factory.

Electric Hydraulic Dockleveler
Model	Operation	Capacity	Size	Wt. (lbs)
EH-65-20	Electric Hydraulic	20,000	6'W x 5'4"L	1530
EH-66-20	Electric Hydraulic	20,000	6'W x 6'4"L	1637
EH-68-20	Electric Hydraulic	20,000	6'W x 8'4"L	2019
EH-610-20	Electric Hydraulic	20,000	6'Wx10'4"L	2373
EH-610-25	Electric Hydraulic	25,000	6'Wx10'4"L	2373
EH-610-30	Electric Hydraulic	30,000	6'Wx10'4"L	2587
EH-610-35	Electric Hydraulic	35,000	6'Wx10'4"L	2737
EH-610-40	Electric Hydraulic	40,000	6'Wx10'4"L	2887
EH-610-45	Electric Hydraulic	45,000	6'Wx10'4"L	3037
EH-610-50	Electric Hydraulic	50,000	6'Wx10'4"L	3187
EH-75-20	Electric Hydraulic	20,000	7'W x 5'4"L	1708
EH-76-20	Electric Hydraulic	20,000	7'W x 6'4"L	1849
EH-78-20	Electric Hydraulic	20,000	7'W x 8'4"L	1900
EH-710-20	Electric Hydraulic	20,000	7'Wx10'4"L	2762
EH-710-25	Electric Hydraulic	25,000	7'Wx10'4"L	2630
EH-710-30	Electric Hydraulic	30,000	7'Wx10'4"L	3162
EH-710-35	Electric Hydraulic	35,000	7'Wx10'4"L	3312
EH-710-40	Electric Hydraulic	40,000	7'Wx10'4"L	3517
EH-710-45	Electric Hydraulic	45,000	7'Wx10'4"L	3667
EH-710-50	Electric Hydraulic	50,000	7'Wx10'4"L	3817
