$50.48The Story
Protect personnel and equipment both visually and physically with our Guard Rail Systems. These economical systems can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Tubular posts are machined for continuous or perpendicular rail mounting. GR series has rail slotted mounting holes 3/4" x 2-1/2" provided. Rail mounting hardware is included with posts. Floor mounting hardware is sold separately. Deduct 5" when overlapping on a shared post. Units are rated for 4,000 lbs. at 4 mph.
| Galvanized Bolt-On Straight Guard Rails | |||||
| Model | Mounting Posts Required |
Height | Length | Radius | Wt. (lbs) |
| GR-H2R-BO-3-HDG | 2 | 12" | 36" | - | 20 |
| GR-H2R-BO-4-HDG | 2 | 12" | 48" | - | 30 |
| GR-H2R-BO-5-HDG | 2 | 12" | 60" | - | 41 |
| GR-H2R-BO-6-HDG | 2 | 12" | 72" | - | 48 |
| GR-H2R-BO-7-HDG | 2 | 12" | 84" | - | 76 |
| GR-H2R-BO-8-HDG | 2 | 12" | 96" | - | 78 |
| GR-H2R-BO-9-HDG | 3 | 12" | 108" | - | 86 |
| GR-H2R-BO-10-HDG | 3 | 12" | 120" | - | 104 |
| GR-H2R-BO-11-HDG | 3 | 12" | 132" | - | 112 |
| GR-H2R-BO-12-HDG | 3 | 12" | 144" | - | 120 |

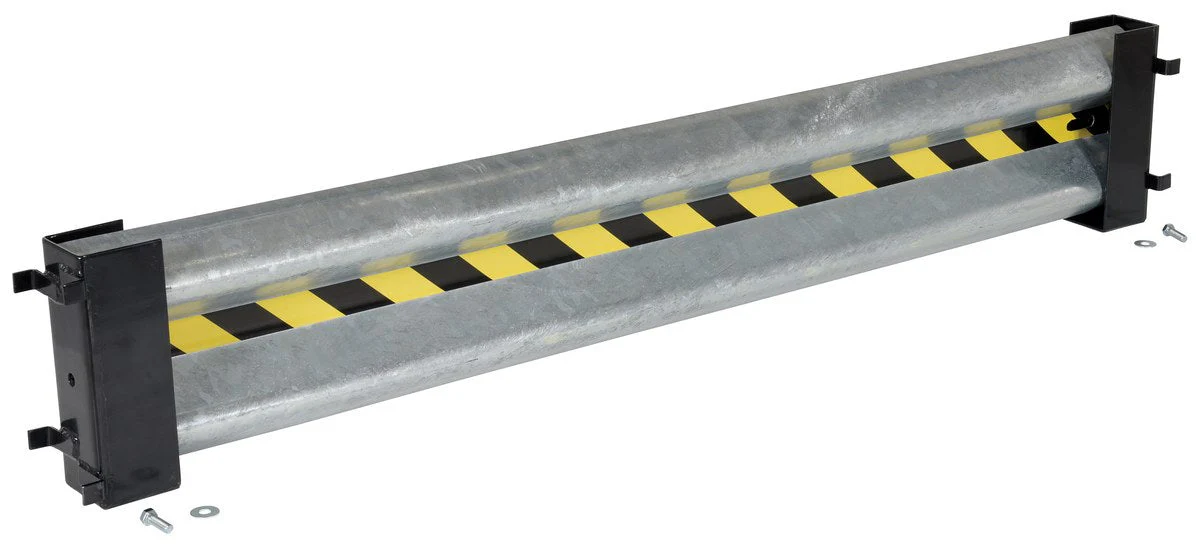

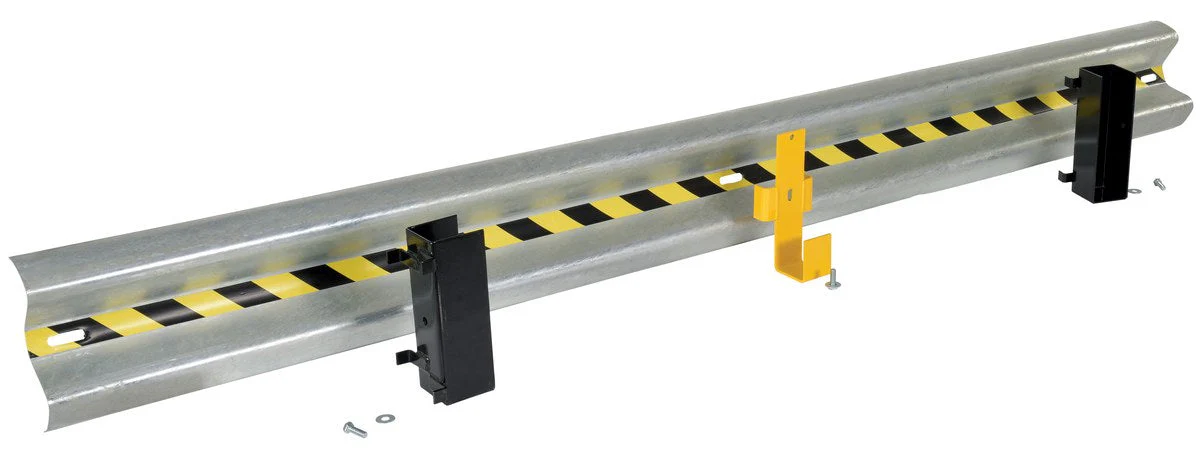

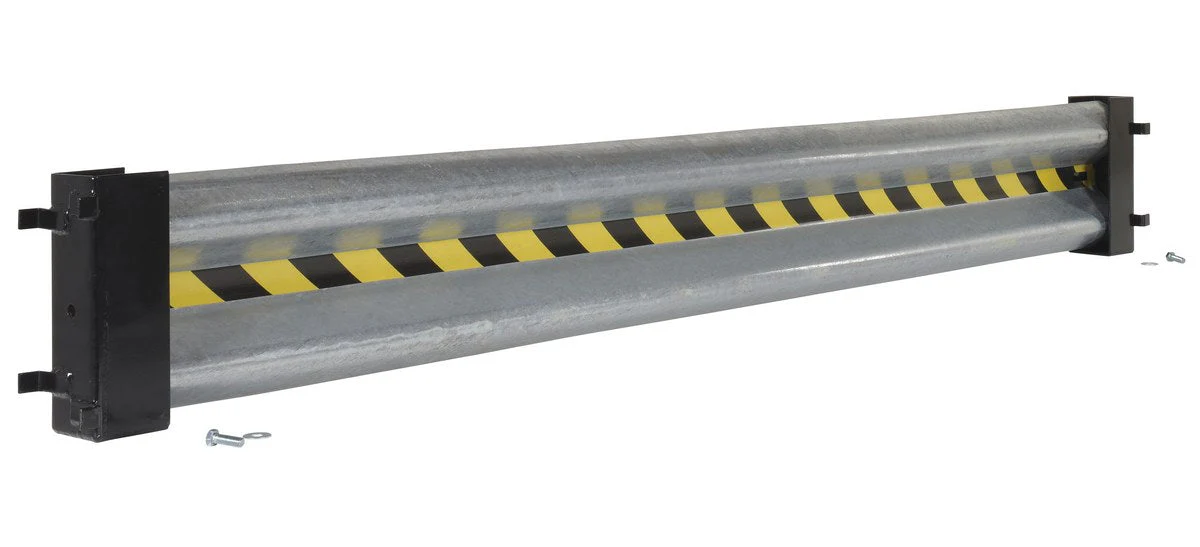

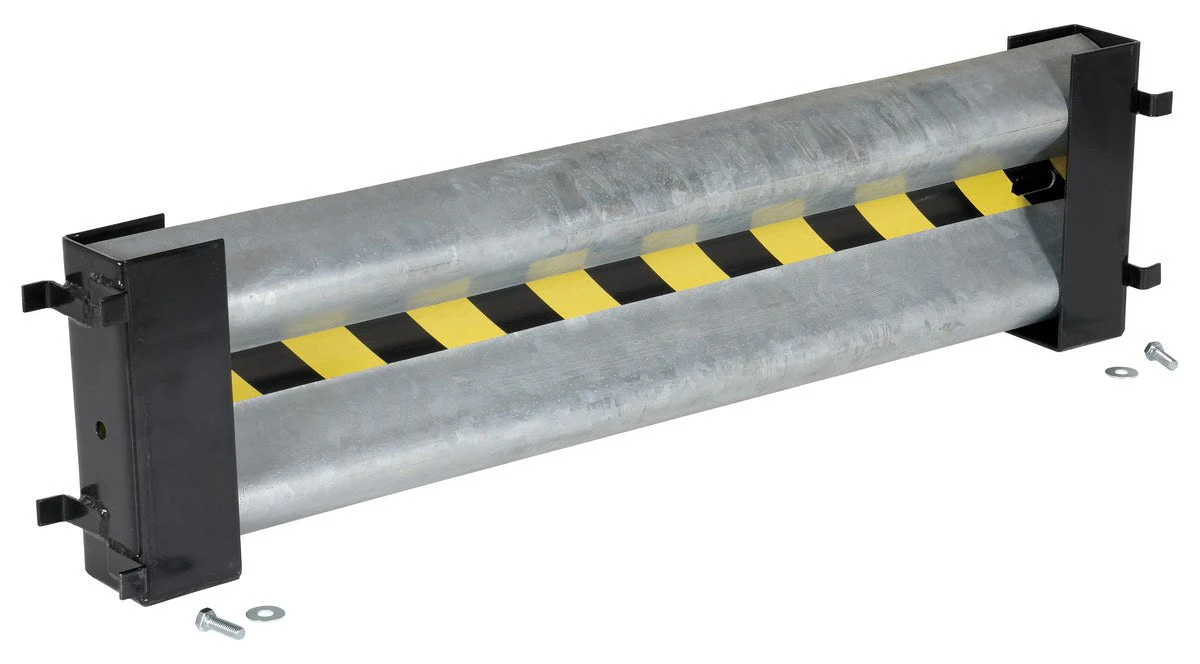

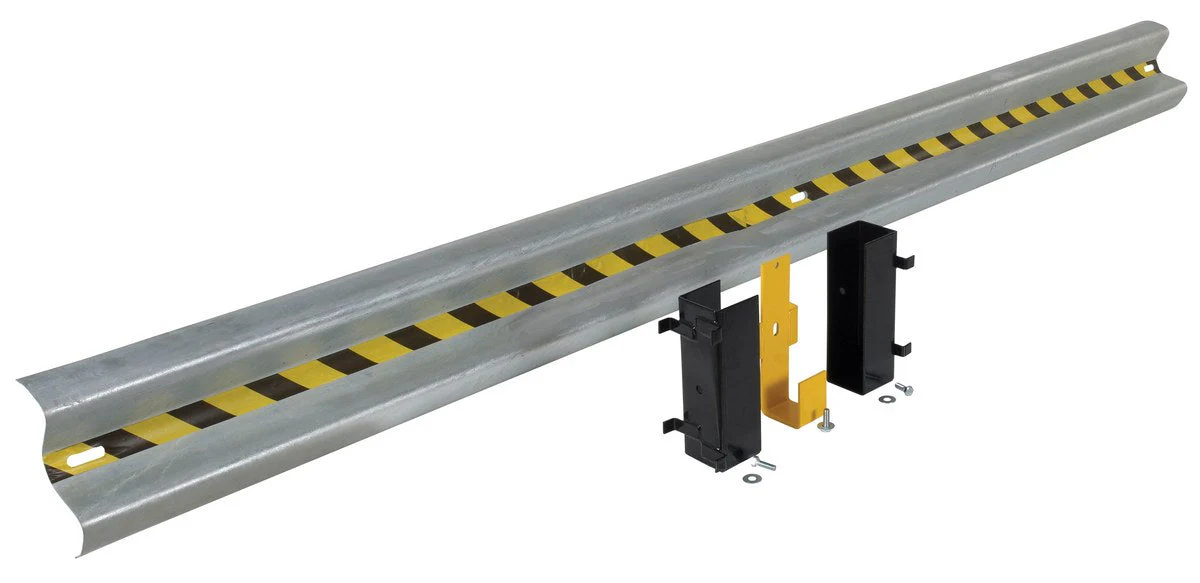

| Galvanized Drop-In Straight Guard Rails - Brackets and Hardware Included | |||||
| Model | Mounting Posts Required |
Height | Length | Radius | Wt. (lbs) |
| GR-H2R-DI-3-HDG | 2 | 12-13/16" | 38-3/4" | - | 49 |
| GR-H2R-DI-4-HDG | 2 | 12-13/16" | 50-3/4" | - | 54 |
| GR-H2R-DI-5-HDG | 2 | 12-13/16" | 62-3/4" | - | 70 |
| GR-H2R-DI-6-HDG | 2 | 12-13/16" | 74-3/4" | - | 72 |
| GR-H2R-DI-7-HDG | 2 | 12-13/16" | 86-3/4" | - | 91 |
| GR-H2R-DI-8-HDG | 2 | 12-13/16" | 98-3/4" | - | 90 |
| GR-H2R-DI-9-HDG | 3 | 12-13/16" | 110-3/4" | - | 116 |
| GR-H2R-DI-10-HDG | 3 | 12-13/16" | 122-3/4" | - | 123 |
| GR-H2R-DI-11-HDG | 3 | 12-13/16" | 134-3/4" | - | 137 |
| GR-H2R-DI-12-HDG | 3 | 12-13/16" | 146-3/4" | - | 131 |
| Powder Coated Bolt-On Straight Guard Rails | |||||
| Model | Mounting Posts Required |
Height | Length | Radius | Wt. (lbs) |
| GR-H2R-BO-3-YL | 2 | 12" | 36" | - | 20 |
| GR-H2R-BO-4-YL | 2 | 12" | 48" | - | 30 |
| GR-H2R-BO-5-YL | 2 | 12" | 60" | - | 41 |
| GR-H2R-BO-6-YL | 2 | 12" | 72" | - | 48 |
| GR-H2R-BO-7-YL | 2 | 12" | 84" | - | 76 |
| GR-H2R-BO-8-YL | 2 | 12" | 96" | - | 78 |
| GR-H2R-BO-9-YL | 3 | 12" | 108" | - | 86 |
| GR-H2R-BO-10-YL | 3 | 12" | 120" | - | 104 |
| GR-H2R-BO-11-YL | 3 | 12" | 132" | - | 112 |
| GR-H2R-BO-12-YL | 3 | 12" | 144" | - | 120 |

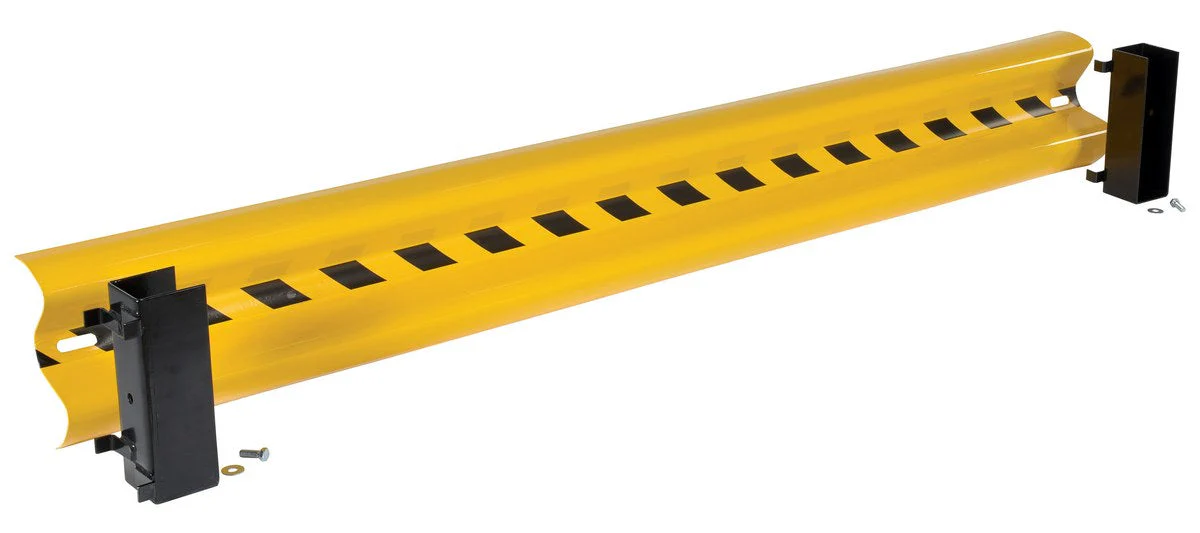

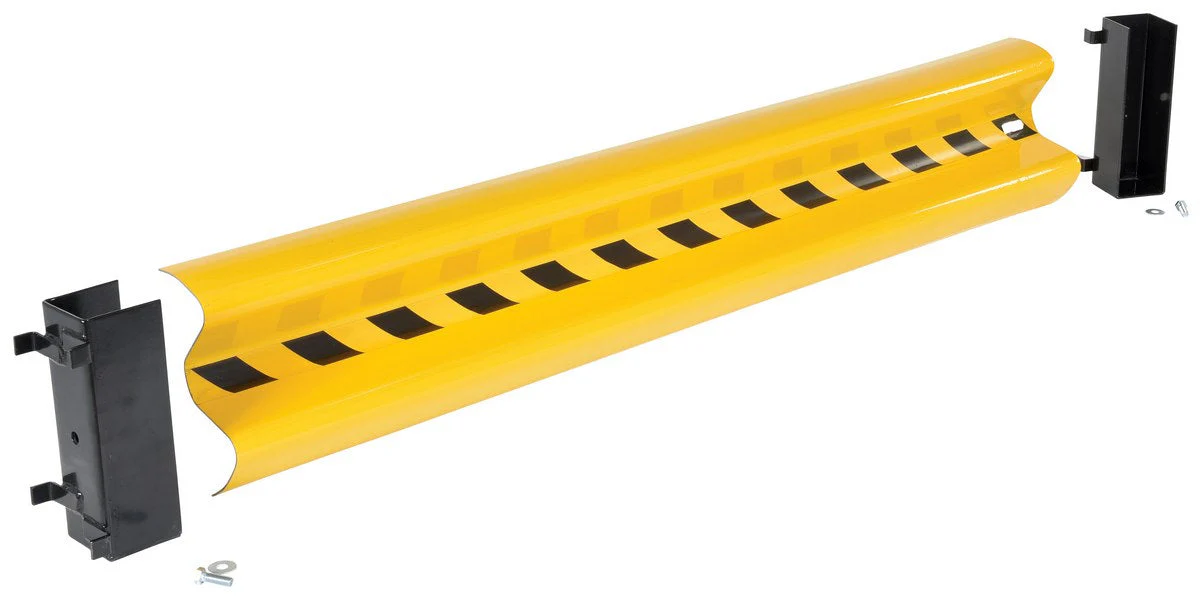

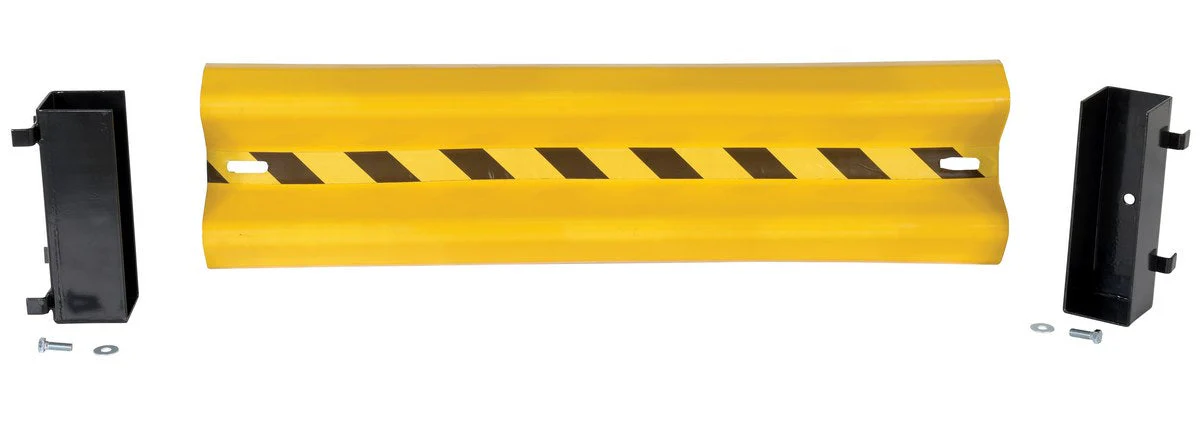

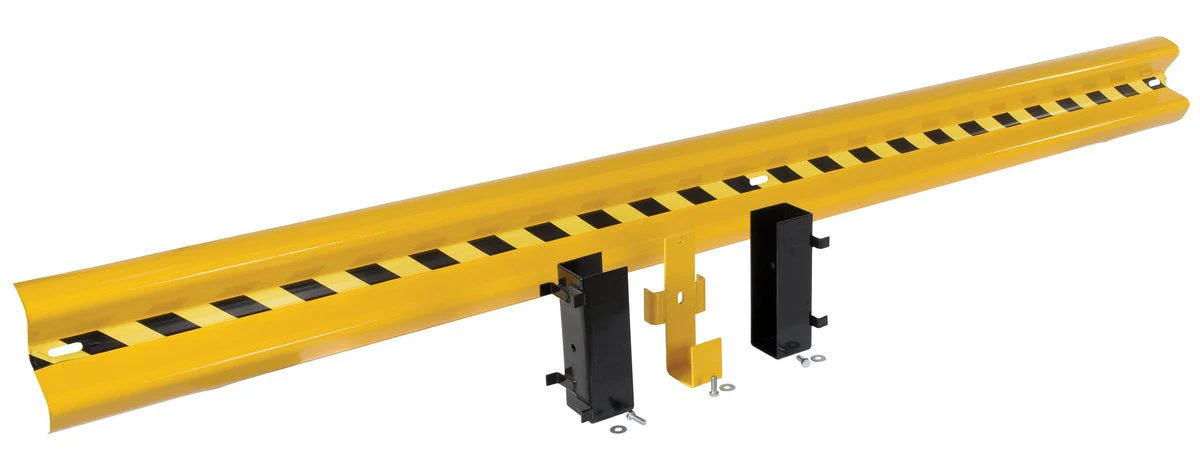

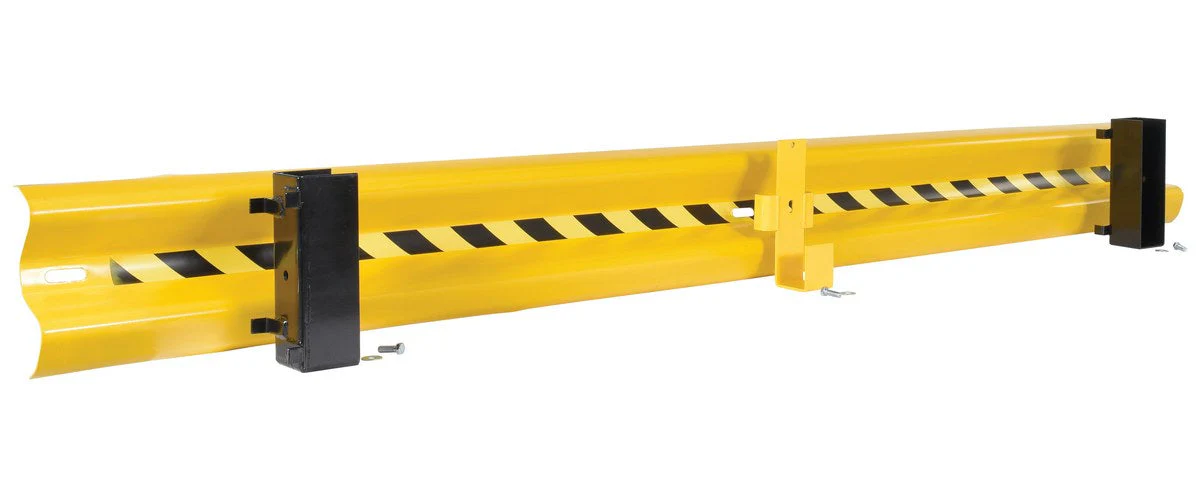

| Powder Coated Drop-In Straight Guard Rails - Brackets and Hardware Included | |||||
| Model | Mounting Posts Required |
Height | Length | Radius | Wt. (lbs) |
| GR-H2R-DI-3-YL | 2 | 12-13/16" | 38-3/4" | - | 49 |
| GR-H2R-DI-4-YL | 2 | 12-13/16" | 50-3/4" | - | 54 |
| GR-H2R-DI-5-YL | 2 | 12-13/16" | 62-3/4" | - | 70 |
| GR-H2R-DI-6-YL | 2 | 12-13/16" | 74-3/4" | - | 72 |
| GR-H2R-DI-7-YL | 2 | 12-13/16" | 86-3/4" | - | 91 |
| GR-H2R-DI-8-YL | 2 | 12-13/16" | 98-3/4" | - | 90 |
| GR-H2R-DI-9-YL | 3 | 12-13/16" | 110-3/4" | - | 116 |
| GR-H2R-DI-10-YL | 3 | 12-13/16" | 122-3/4" | - | 123 |
| GR-H2R-DI-11-YL | 3 | 12-13/16" | 134-3/4" | - | 137 |
| GR-H2R-DI-12-YL | 3 | 12-13/16" | 146-3/4" | - | 131 |
| Galvanized Bolt-On 90 Degree Curved Guard Rails | |||||
| Model | Mounting Posts Required |
Height | Length | Radius | Wt. (lbs) |
| GR-H2R-CRV-BO-4-HDG | 2 | 12" | 48" | 30-1/2" | 32 |
| GR-H2R-CRV-BO-6-HDG | 2 | 12" | 72" | 46" | 55 |
| GR-H2R-CRV-BO-8-HDG | 2 | 12" | 96" | 61" | 69 |
| GR-H2R-CRV-BO-10-HDG | 3 | 12" | 120" | 75-1/2" | 85 |
| GR-H2R-CRV-BO-12-HDG | 3 | 12" | 144" | 91-1/2" | 135 |
