Vestil Bench Top Tilters

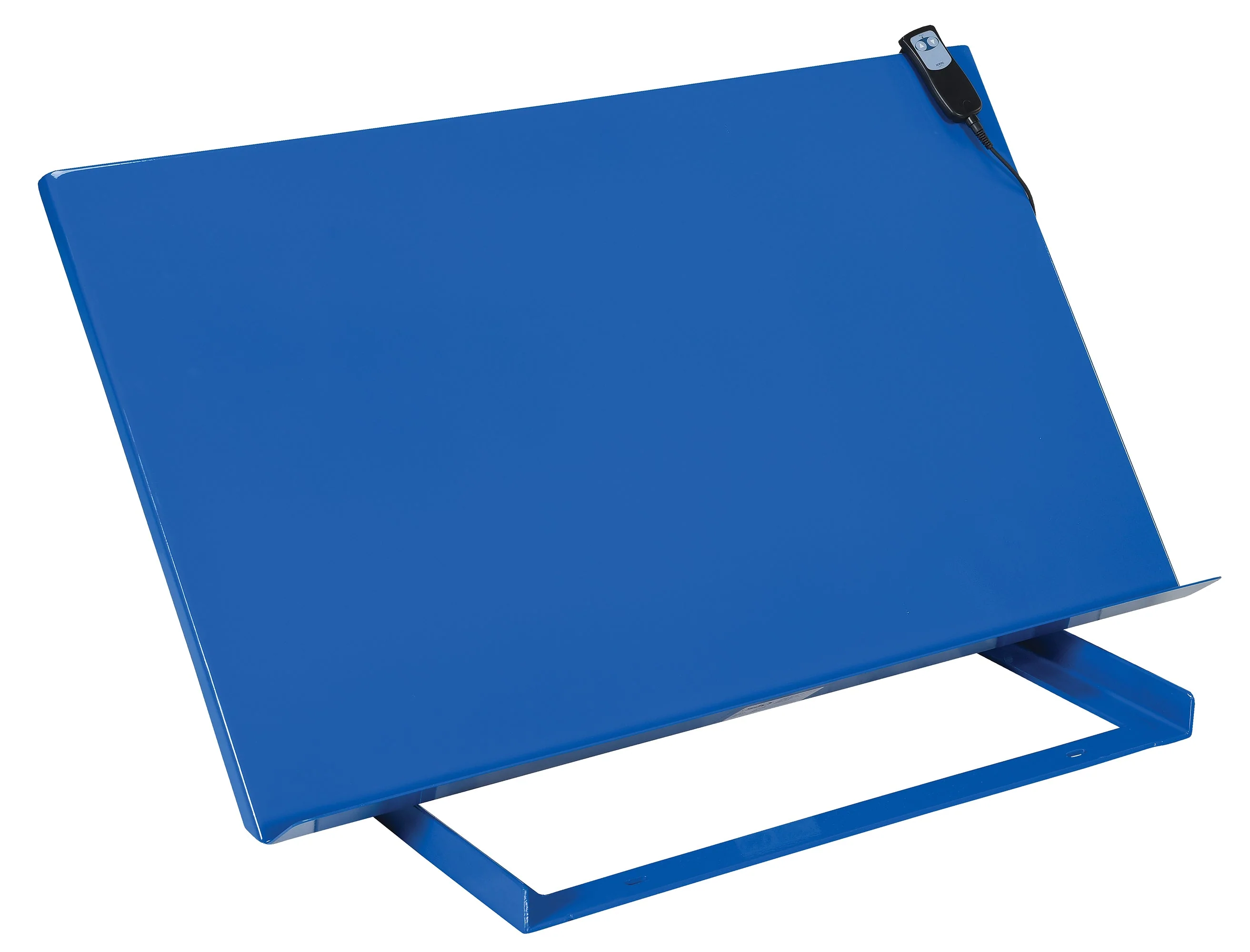

Bench Top Tilters increase efficiency and help reduce fatigue and potential injury by placing work at a better ergonomic angle. Loads up to 1,000 pounds may be tilted from 0 degrees to 45 degrees. Heavy-duty steel Bench Top Tilters can be attached to most industrial table tops, work benches and mobile lift tables of sufficient load capacity and surface size. Pendent hand control with UP and DOWN push buttons is located on an 8 foot cord, maximizing operator convenience. Flat base plate with slotted holes for installation.

Bench Top Tilters
Model	Platform (WxLxH)	Capacity (lbs)	Degree of Tilt	Operation	Wt. (lbs)
BTT-6-36	36"x28"x2"	600	15, 30 & 45	Manual	112
BTT-6-46	46"x28"x2"	600	15, 30 & 45	Manual	116
BTT-5-36	36"x28"x5"	500	0 to 45	Linear Actuated	127
BTT-5-46	46"x28"x5"	500	0 to 45	Linear Actuated	127
