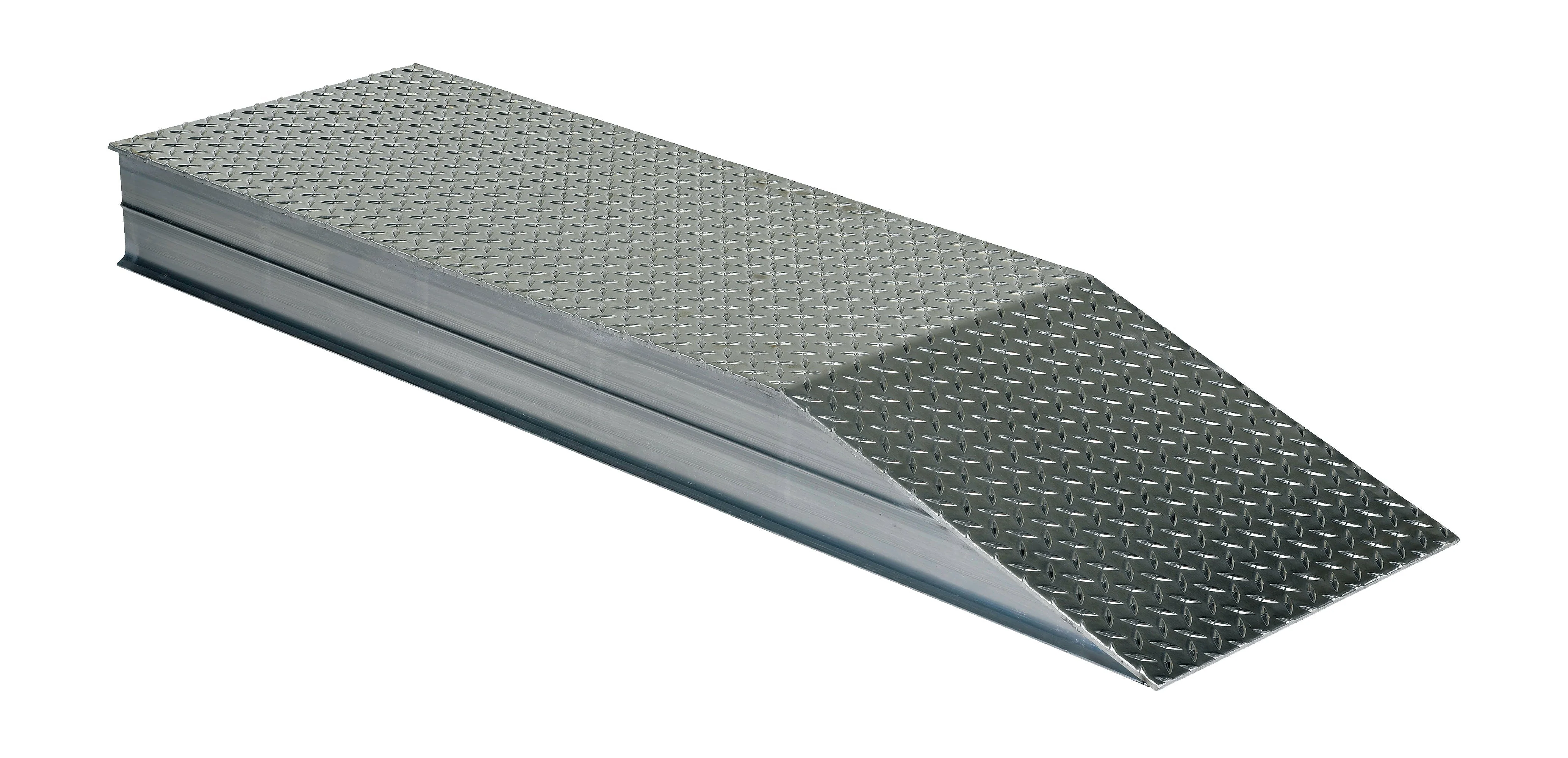

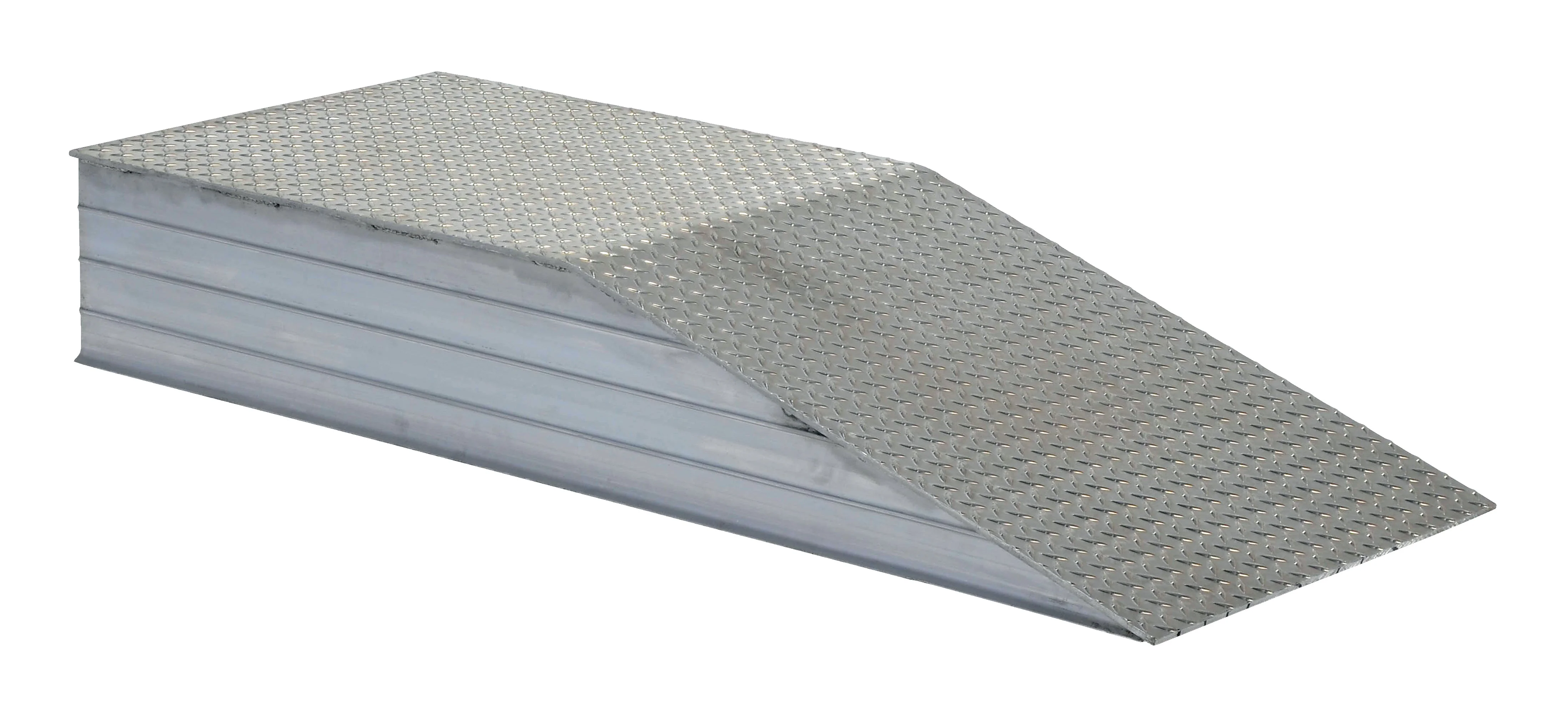

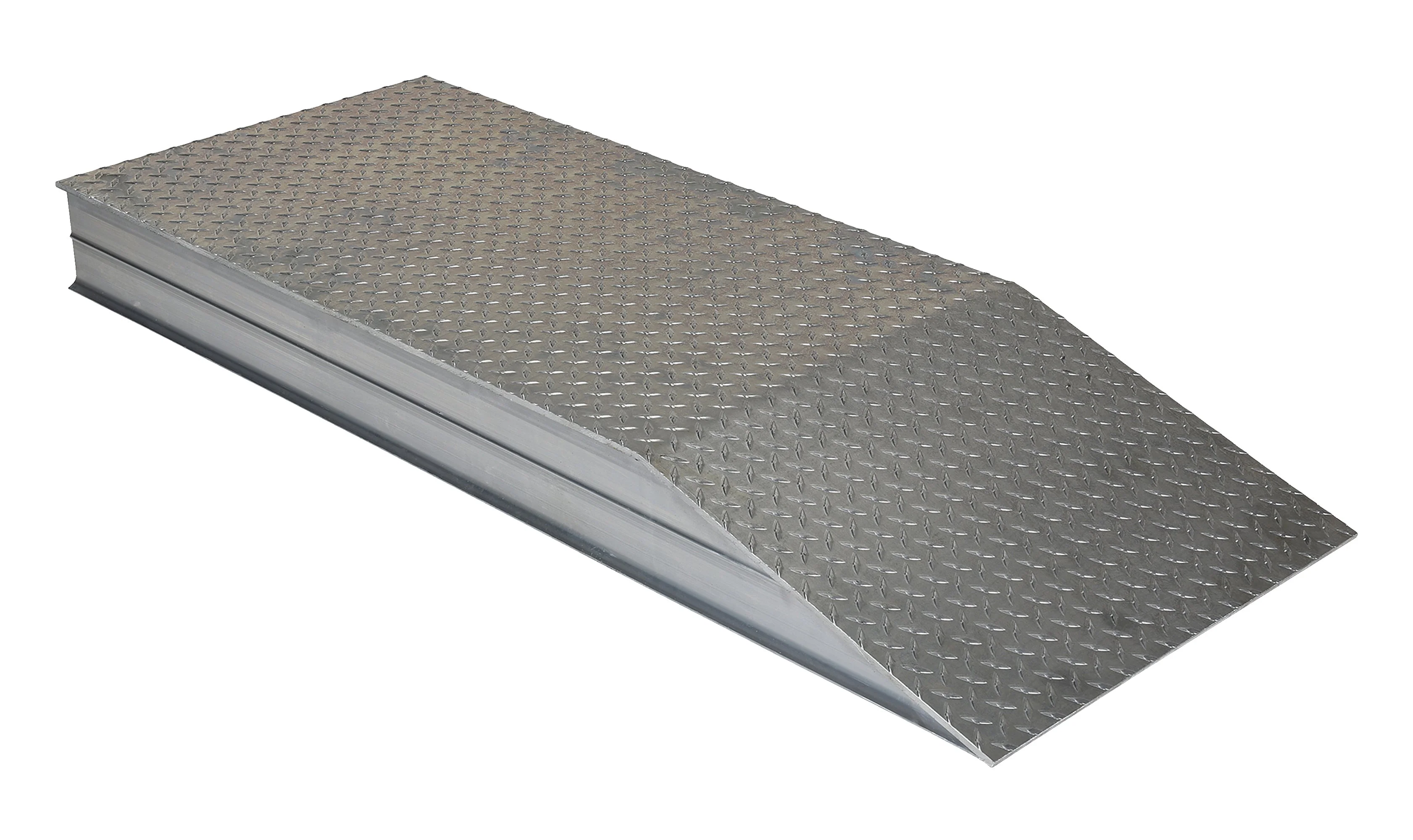

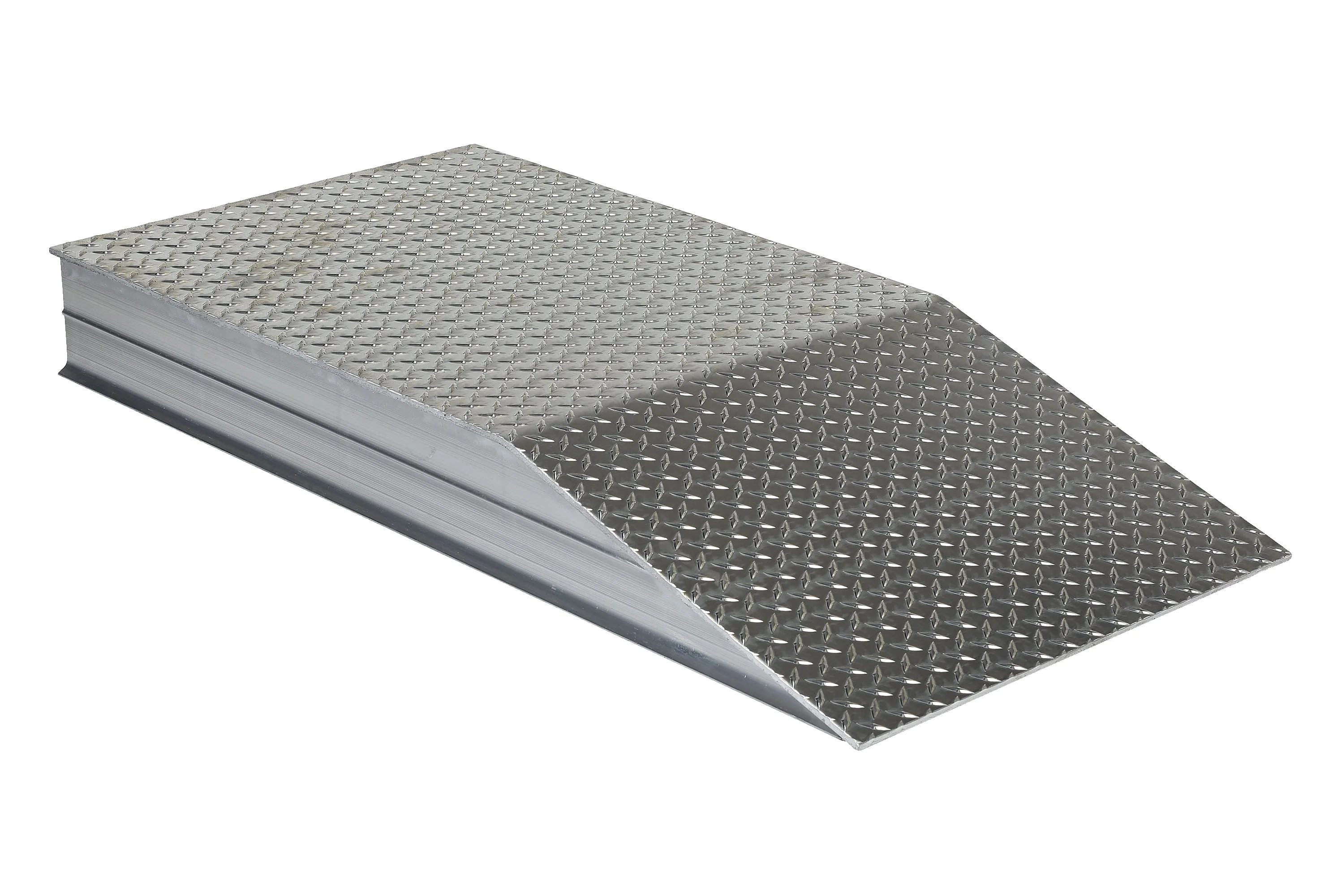

Vestil Aluminum Wheel Risers (ATWR)

Elevate semi-trailers to loading docks for maximum serviceability during loading and unloading operations. Manufactured from heavy-duty aluminum tread plate for positive traction. Welded all aluminum construction. 30,000 lbs. capacity per pair (Sold Each). Wheel Risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for a maximum grade of ascending or descending loaded fork trucks.

Aluminum Wheel Risers 18" Usable Width
Model	Height	Overall Length	Level Length	Wt. (lbs.)
ATWR-18-6-48*	6"	48"	30"	41
ATWR-18-6-54*	6"	54"	36"	46
ATWR-18-6-60*	6"	60"	42"	87
ATWR-18-6-102	6"	102"	84"	122
ATWR-18-8-54*	8"	54"	30"	56
ATWR-18-8-60*	8"	60"	36"	98
ATWR-18-8-66*	8"	66"	42"	109
ATWR-18-8-108	8"	108"	84"	148
ATWR-18-10-60*	10"	60"	30"	108
ATWR-18-10-66*	10"	66"	36"	111
ATWR-18-10-72*	10"	72"	42"	121
ATWR-18-10-114	10"	114"	84"	175
ATWR-18-12-66*	12"	66"	30"	125
ATWR-18-12-72*	12"	72"	36"	231
ATWR-18-12-78	12"	78"	42"	144
ATWR-18-12-120	12"	120"	84"	208
Aluminum Wheel Risers 24" Usable Width
Model	Height	Overall Length	Level Length	Wt. (lbs.)
ATWR-24-6-48*	6"	48"	30"	59
ATWR-24-6-54*	6"	54"	36"	60
ATWR-24-6-60*	6"	60"	42"	110
ATWR-24-6-102	6"	102"	84"	162
ATWR-24-8-54*	8"	54"	30"	112
ATWR-24-8-60*	8"	60"	36"	122
ATWR-24-8-66*	8"	66"	42"	135
ATWR-24-8-108	8"	108"	84"	194
ATWR-24-10-60*	10"	60"	30"	133
ATWR-24-10-66*	10"	66"	36"	142
ATWR-24-10-72*	10"	72"	42"	156
ATWR-24-10-114	10"	114"	84"	229
ATWR-24-12-66*	12"	66"	30"	160
ATWR-24-12-72*	12"	72"	36"	169
ATWR-24-12-78	12"	78"	42"	191
ATWR-24-12-120	12"	120"	84"	270

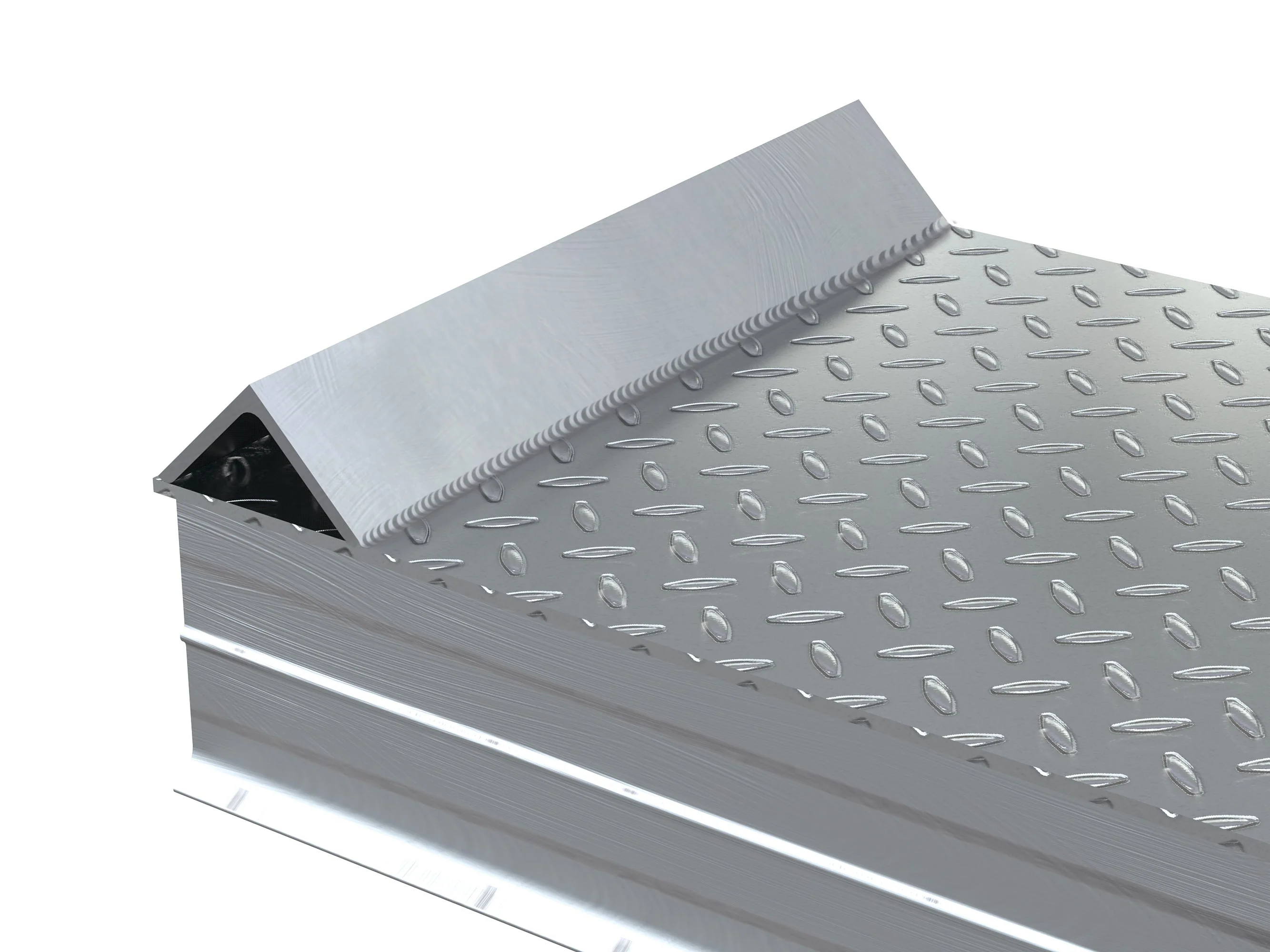

Aluminum Tread Plate Wheel Riser with Roll Off Guard
Model	Height	Length	Width	Wt. (lbs.)
ATWR-ROG-18-6-48	6"	48"	18"	43
ATWR-ROG-18-6-54	6"	54"	18"	48
ATWR-ROG-18-6-60	6"	60"	18"	55
ATWR-ROG-18-6-102	6"	102"	18"	124
ATWR-ROG-18-8-54	8"	54"	18"	58
ATWR-ROG-18-8-60	8"	60"	18"	100
ATWR-ROG-18-8-66	8"	66"	18"	111
ATWR-ROG-18-8-108	8"	108"	18"	150
ATWR-ROG-18-10-60	10"	60"	18"	110
ATWR-ROG-18-10-66	10"	66"	18"	113
ATWR-ROG-18-10-72	10"	72"	18"	123
ATWR-ROG-18-10-114	10"	114"	18"	177
ATWR-ROG-18-12-66	12"	66"	18"	127
ATWR-ROG-18-12-72	12"	72"	18"	133
ATWR-ROG-18-12-78	12"	78"	18"	146
ATWR-ROG-18-12-120	12"	120"	18"	210
ATWR-ROG-24-6-48	6"	48"	24"	61
ATWR-ROG-24-6-54	6"	54"	24"	69
ATWR-ROG-24-6-60	6"	60"	24"	112
ATWR-ROG-24-6-102	6"	102"	24"	164
ATWR-ROG-24-8-54	8"	54"	24"	114
ATWR-ROG-24-8-60	8"	60"	24"	124
ATWR-ROG-24-8-66	8"	66"	24"	137
ATWR-ROG-24-8-108	8"	108"	24"	196
ATWR-ROG-24-10-60	10"	60"	24"	135
ATWR-ROG-24-10-66	10"	66"	24"	144
ATWR-ROG-24-10-72	10"	72"	24"	158
ATWR-ROG-24-10-114	10"	114"	24"	231
ATWR-ROG-24-12-66	12"	66"	24"	162
ATWR-ROG-24-12-72	12"	72"	24"	171
ATWR-ROG-24-12-78	12"	78"	24"	193
ATWR-ROG-24-12-120	12"	120"	24"	272
