Original: $1,002.15
-65%$1,002.15
$350.75The Story

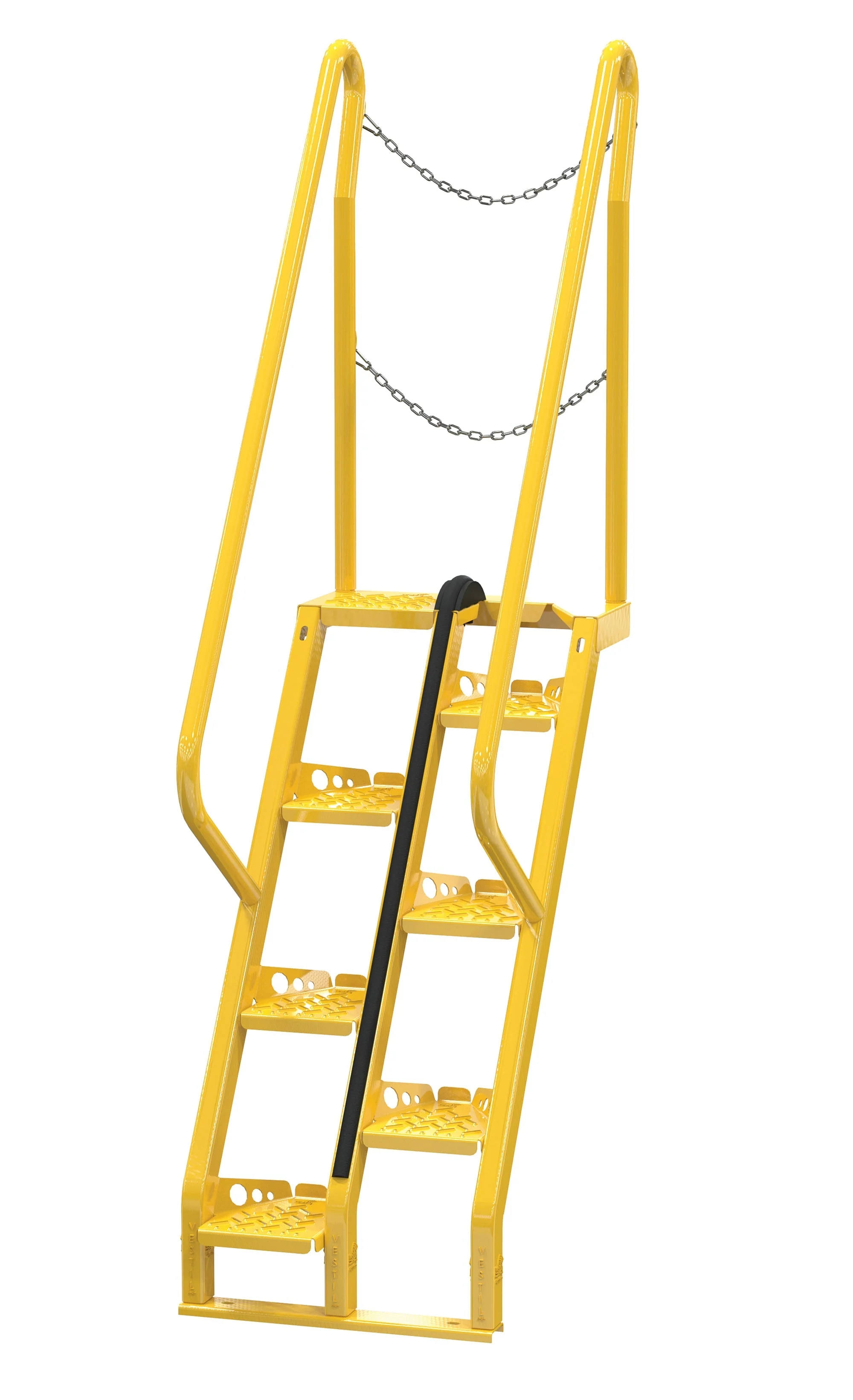

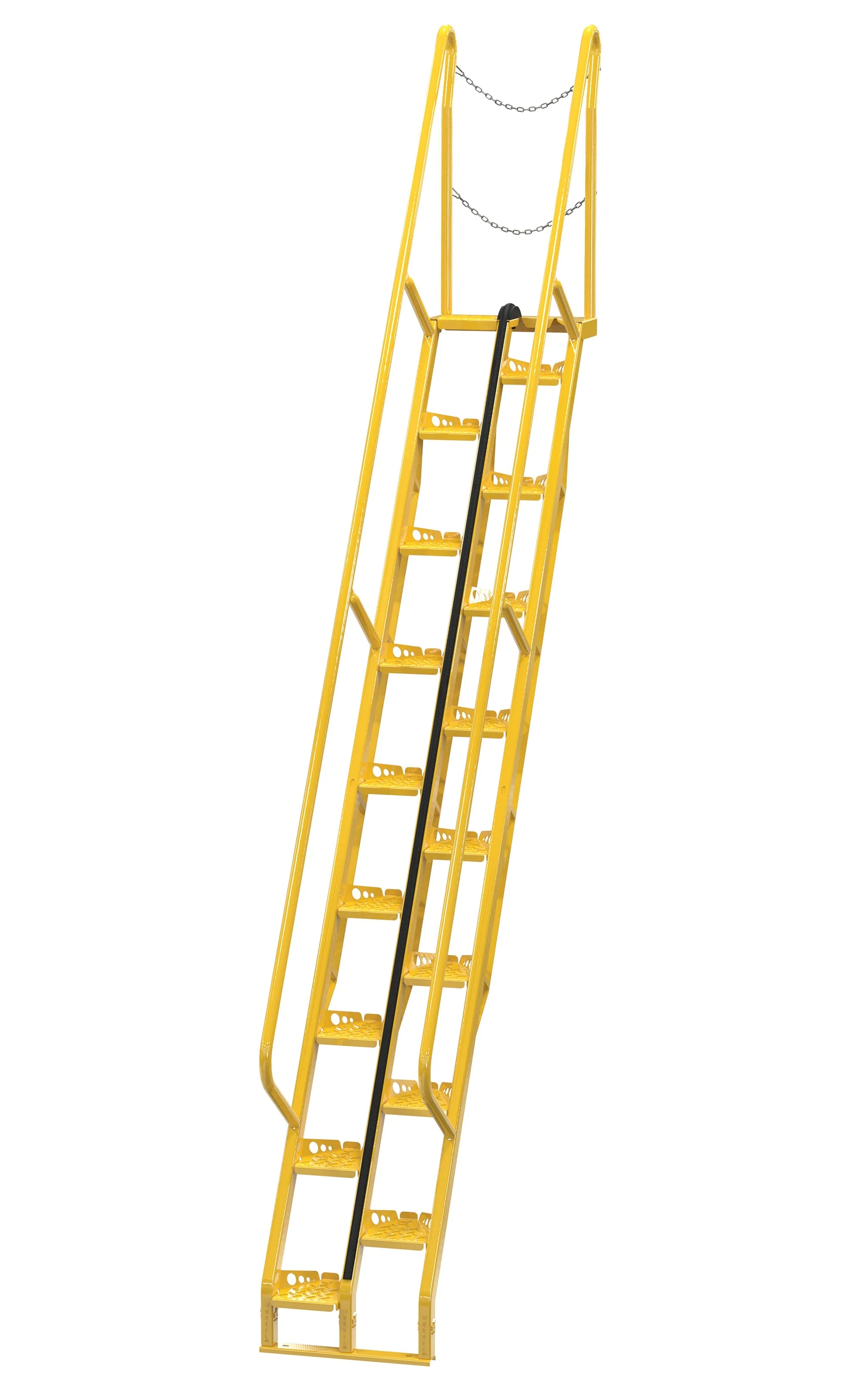

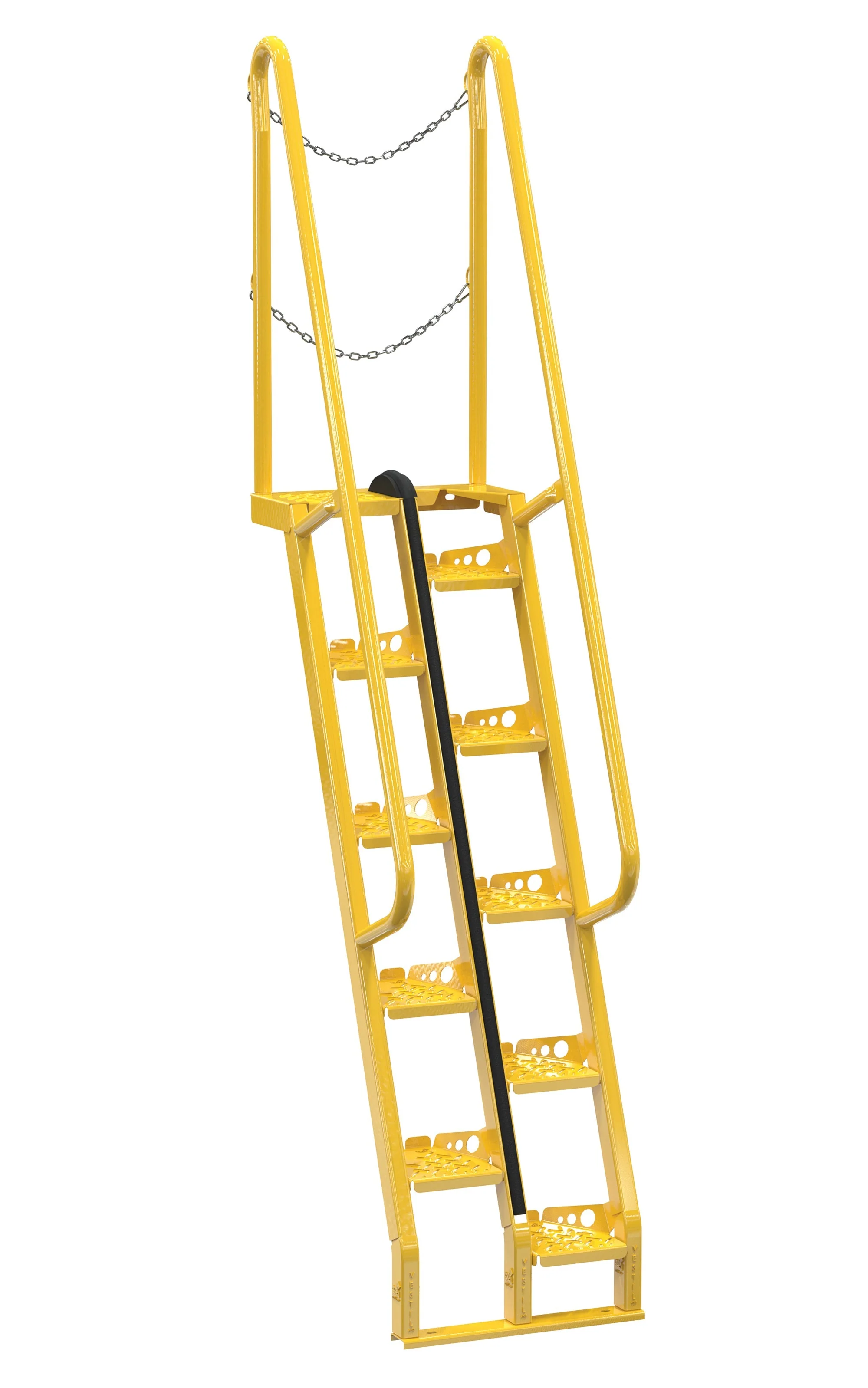

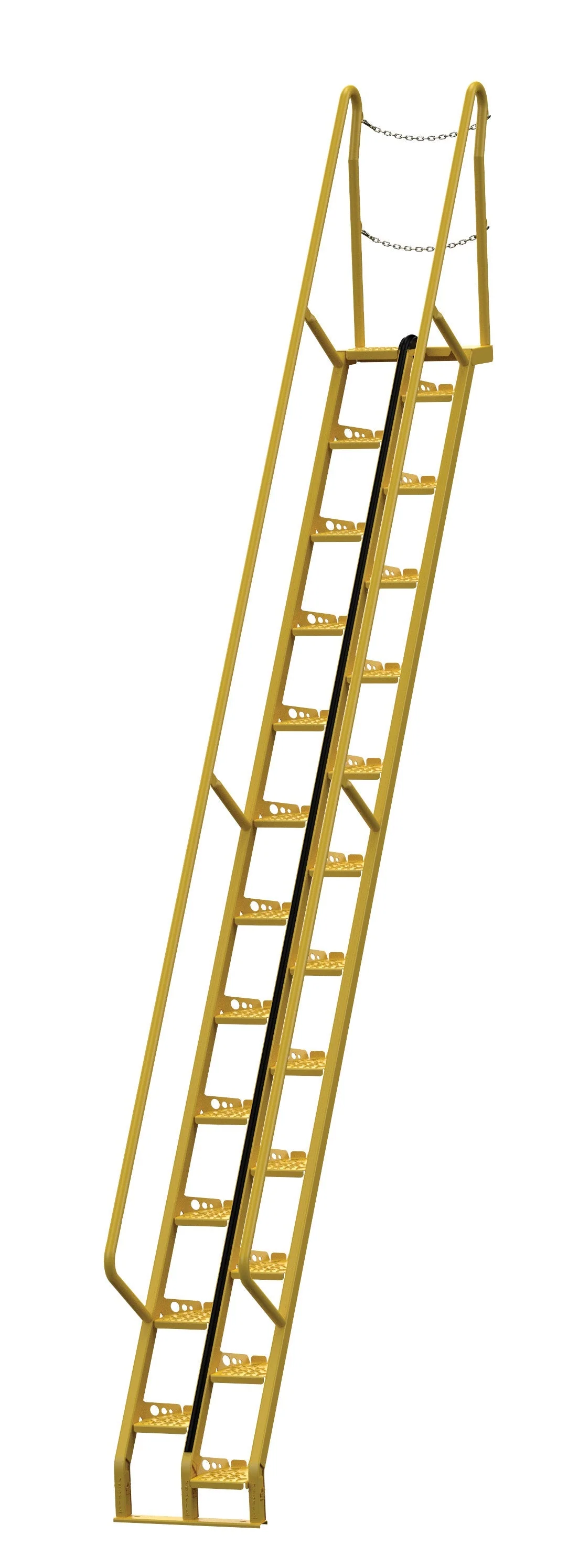

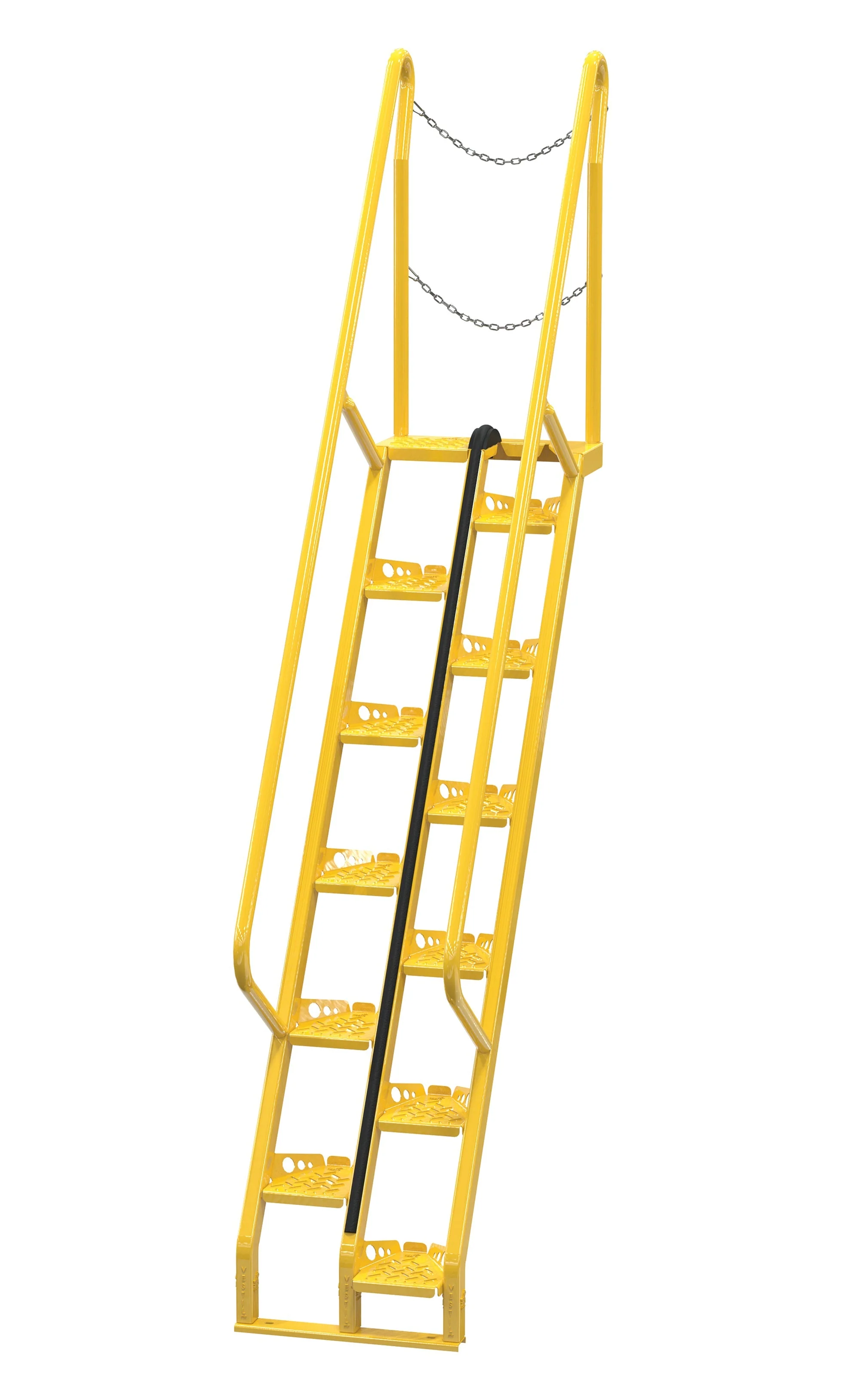

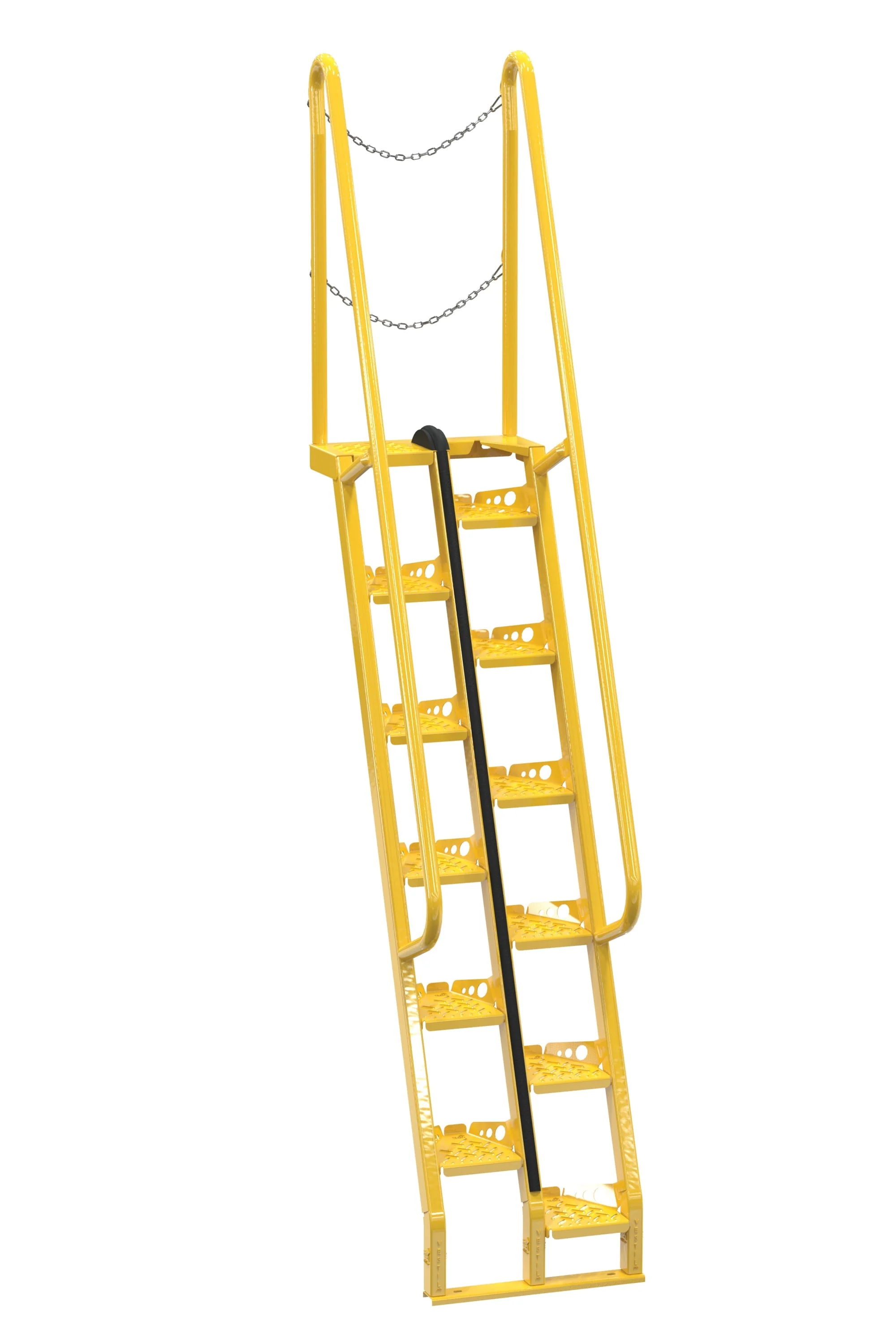

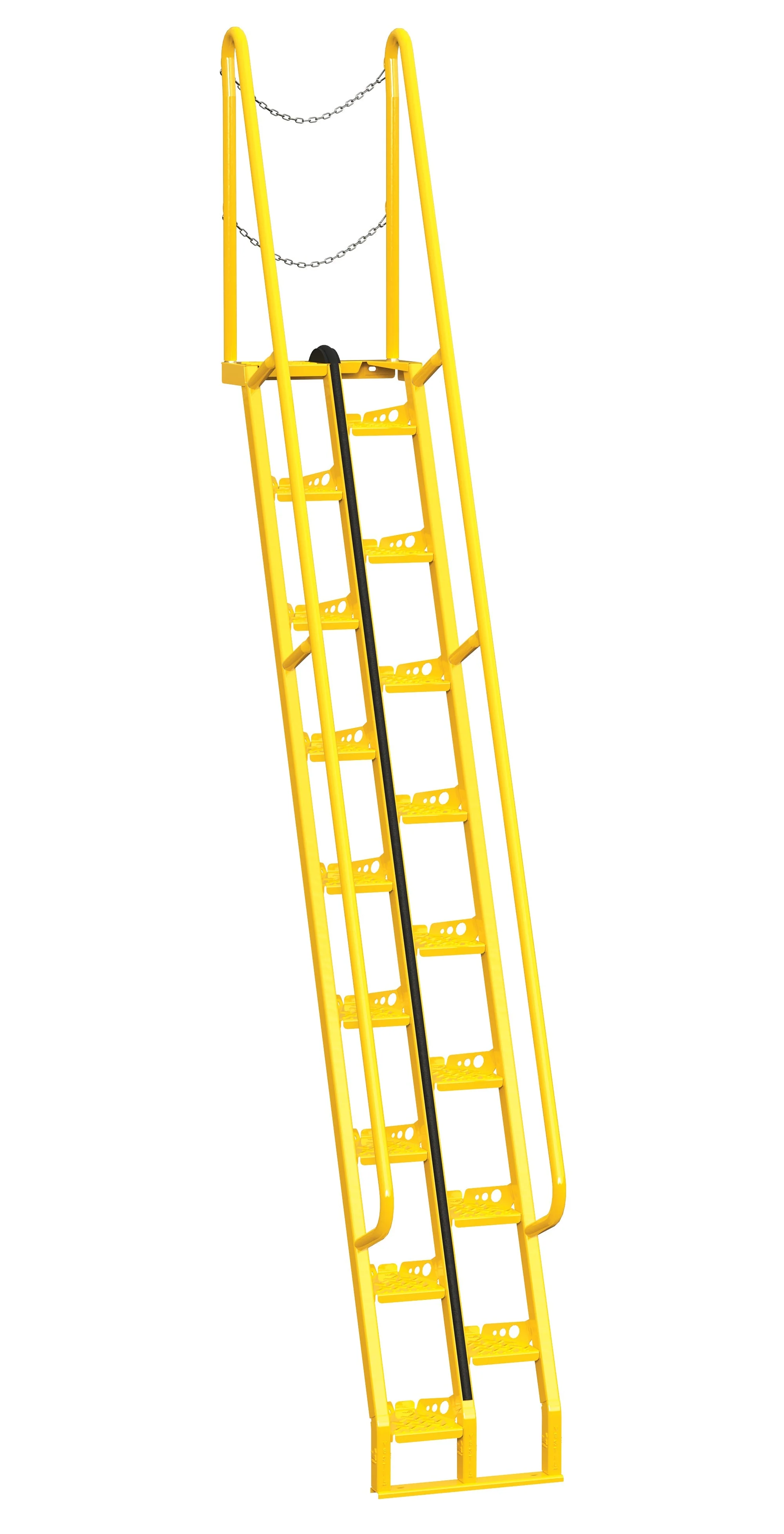

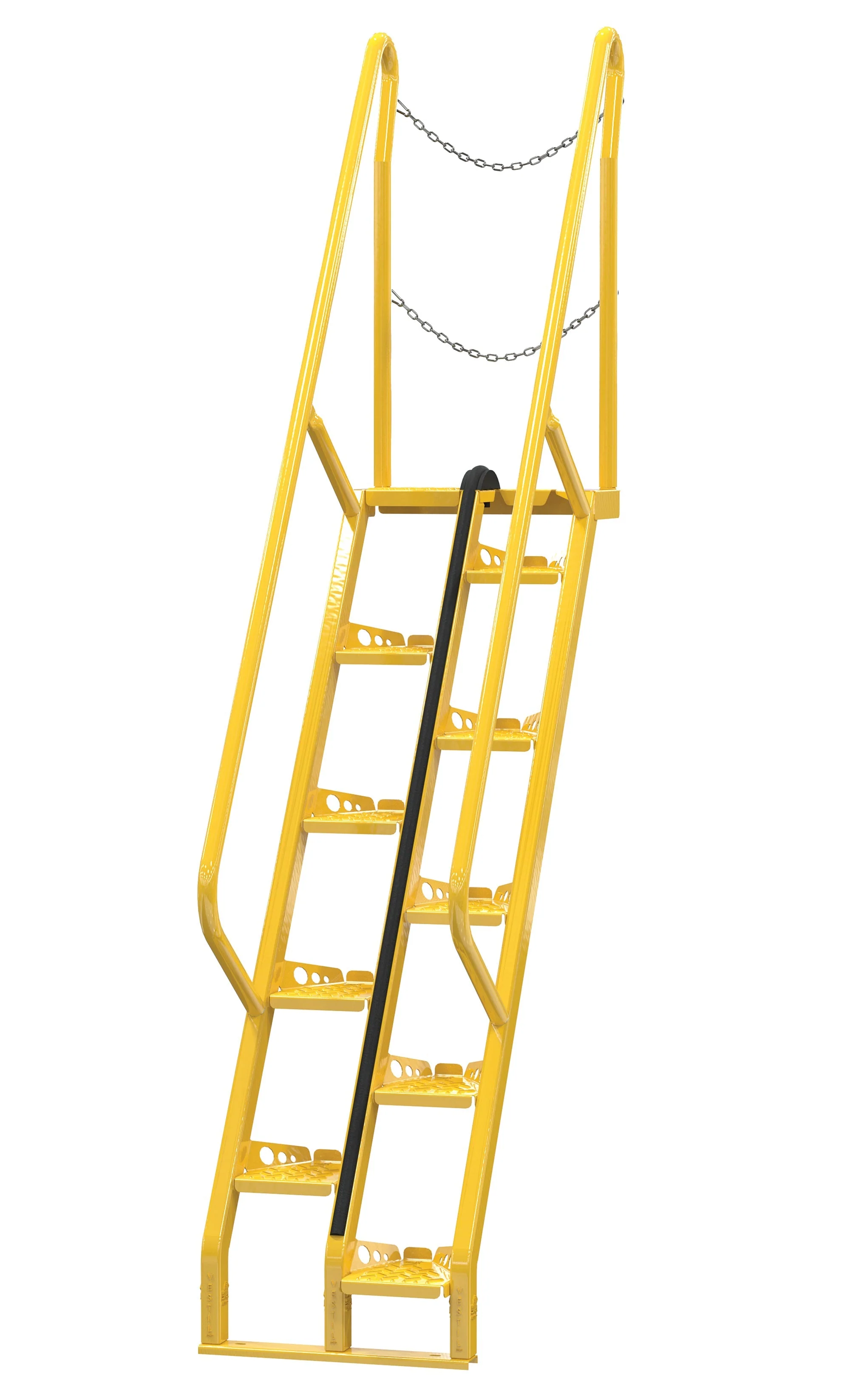

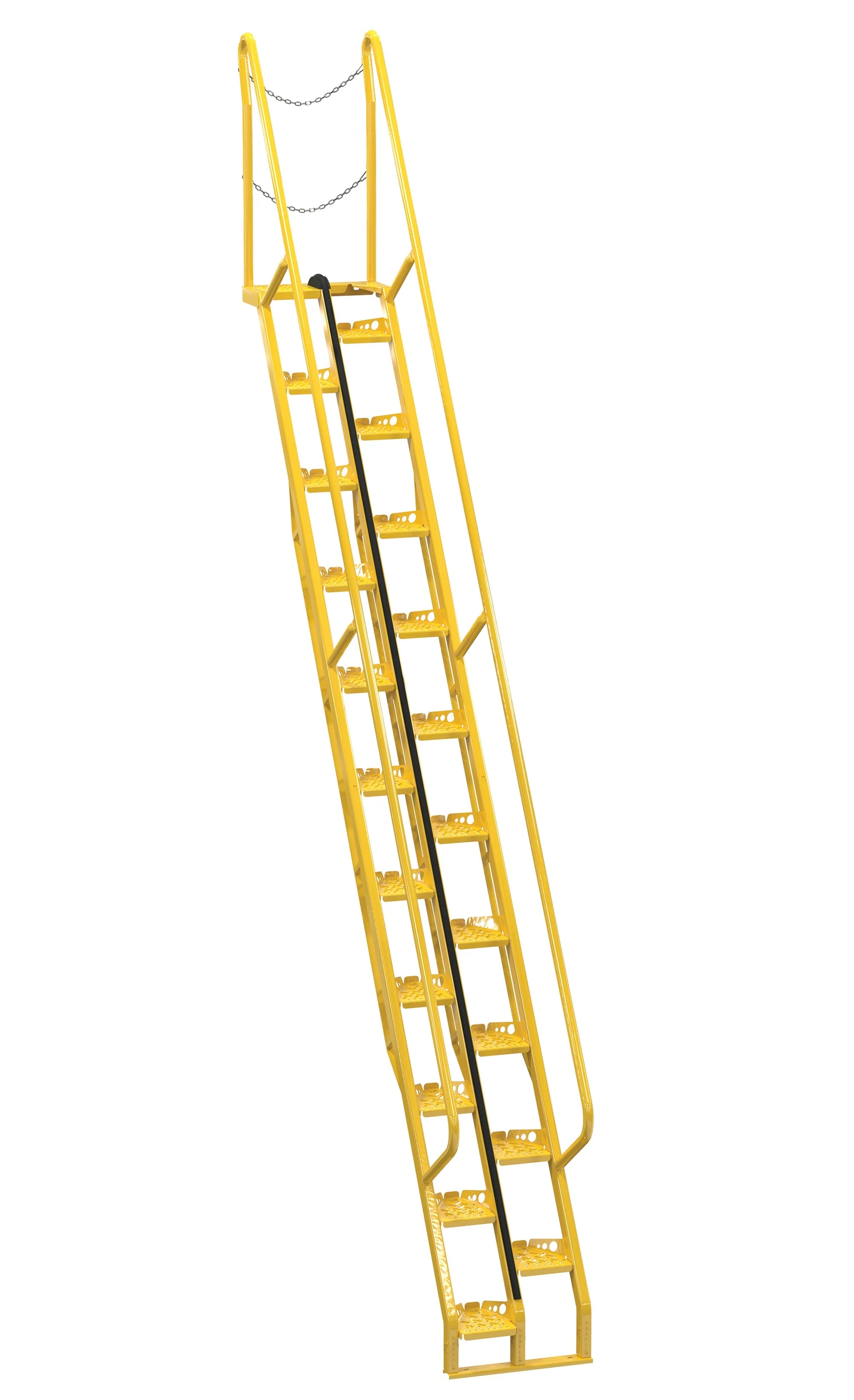

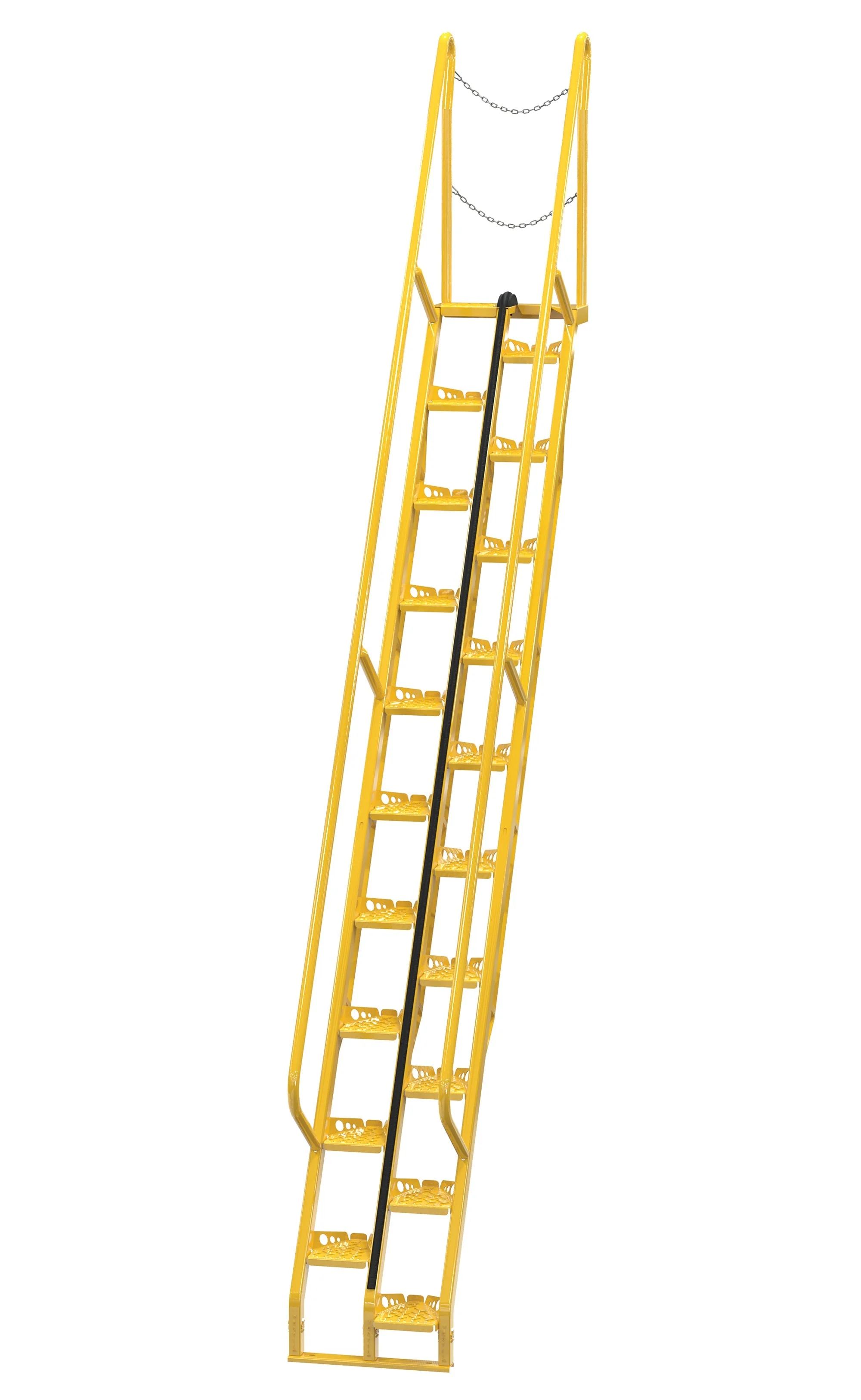

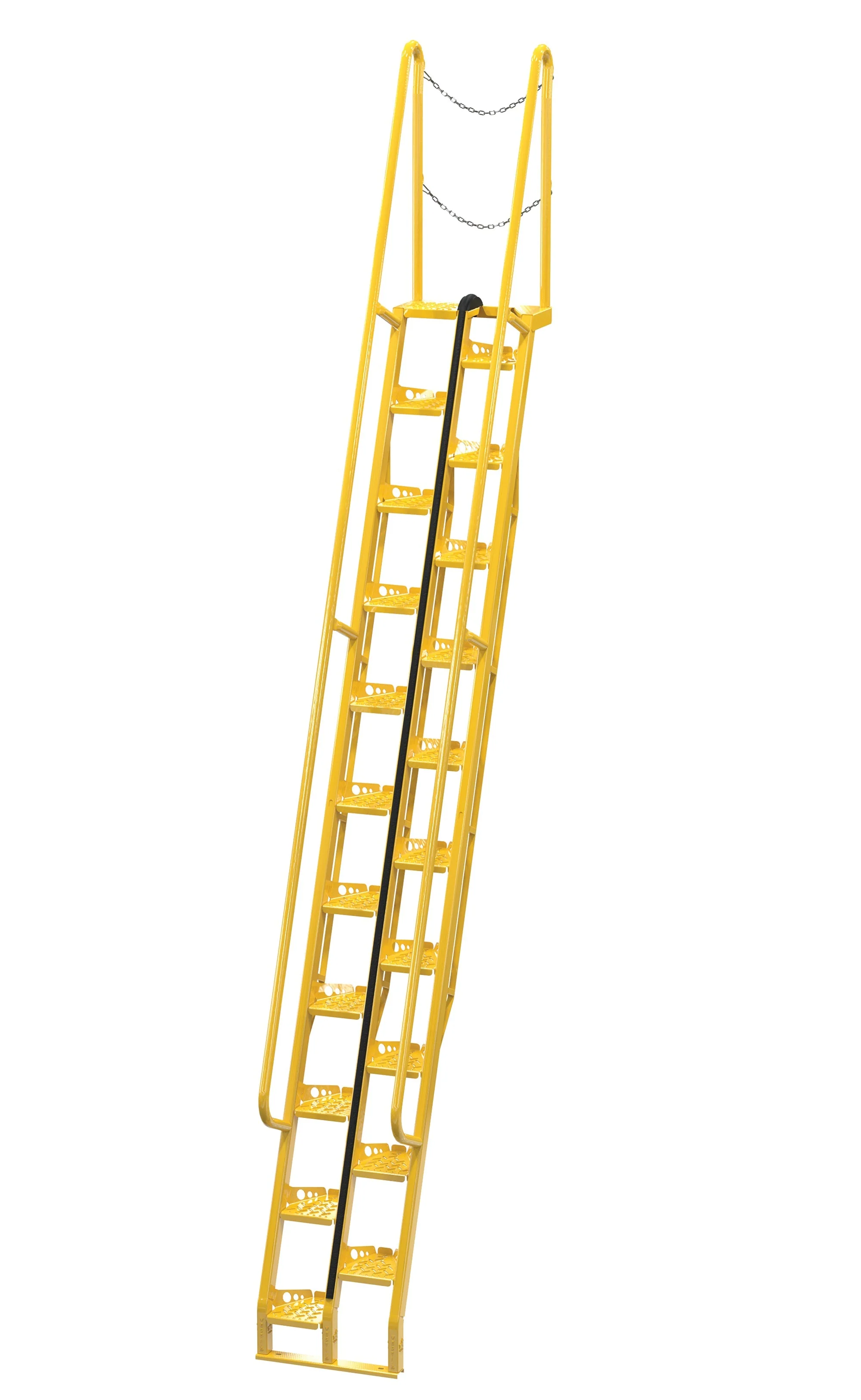

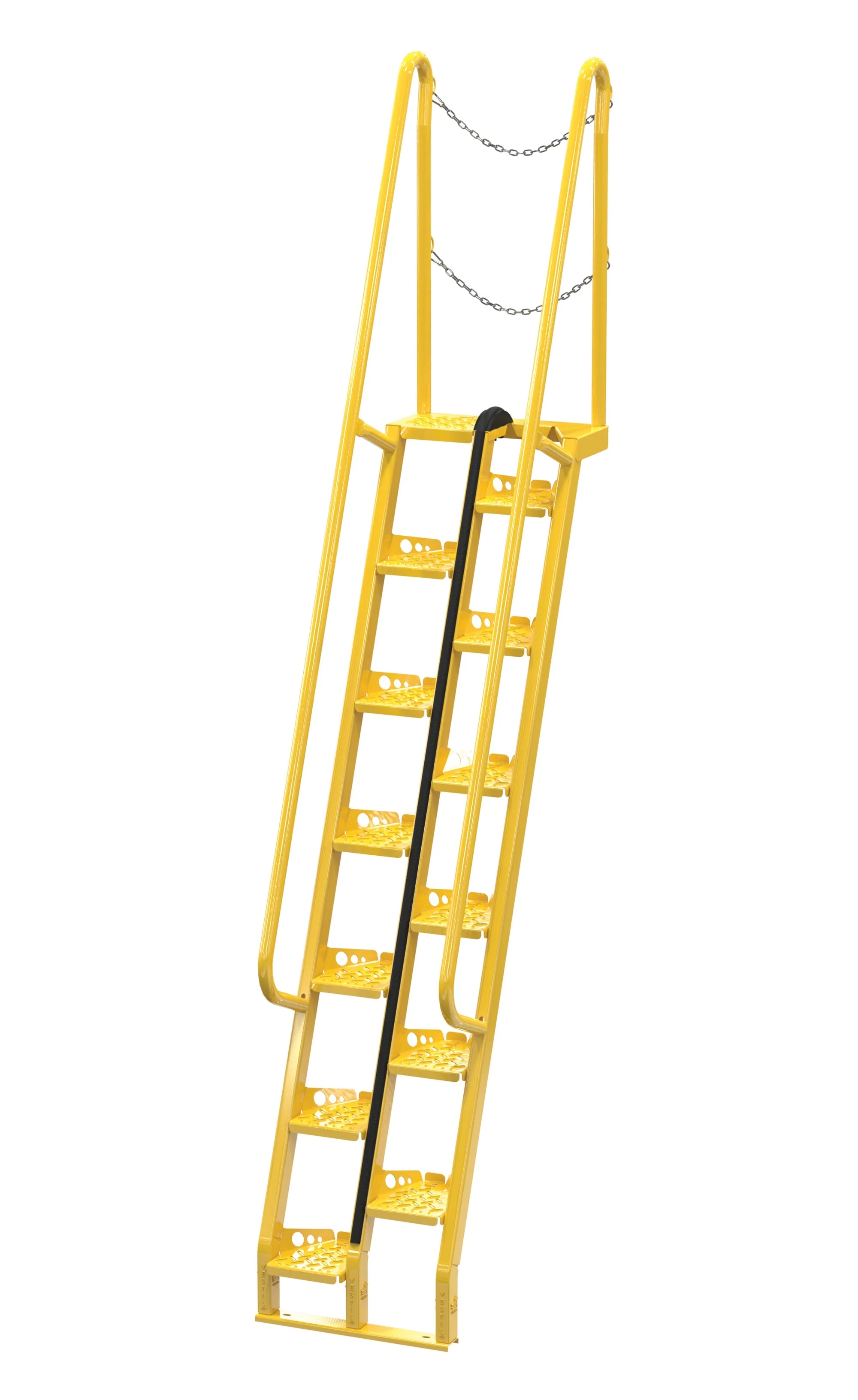

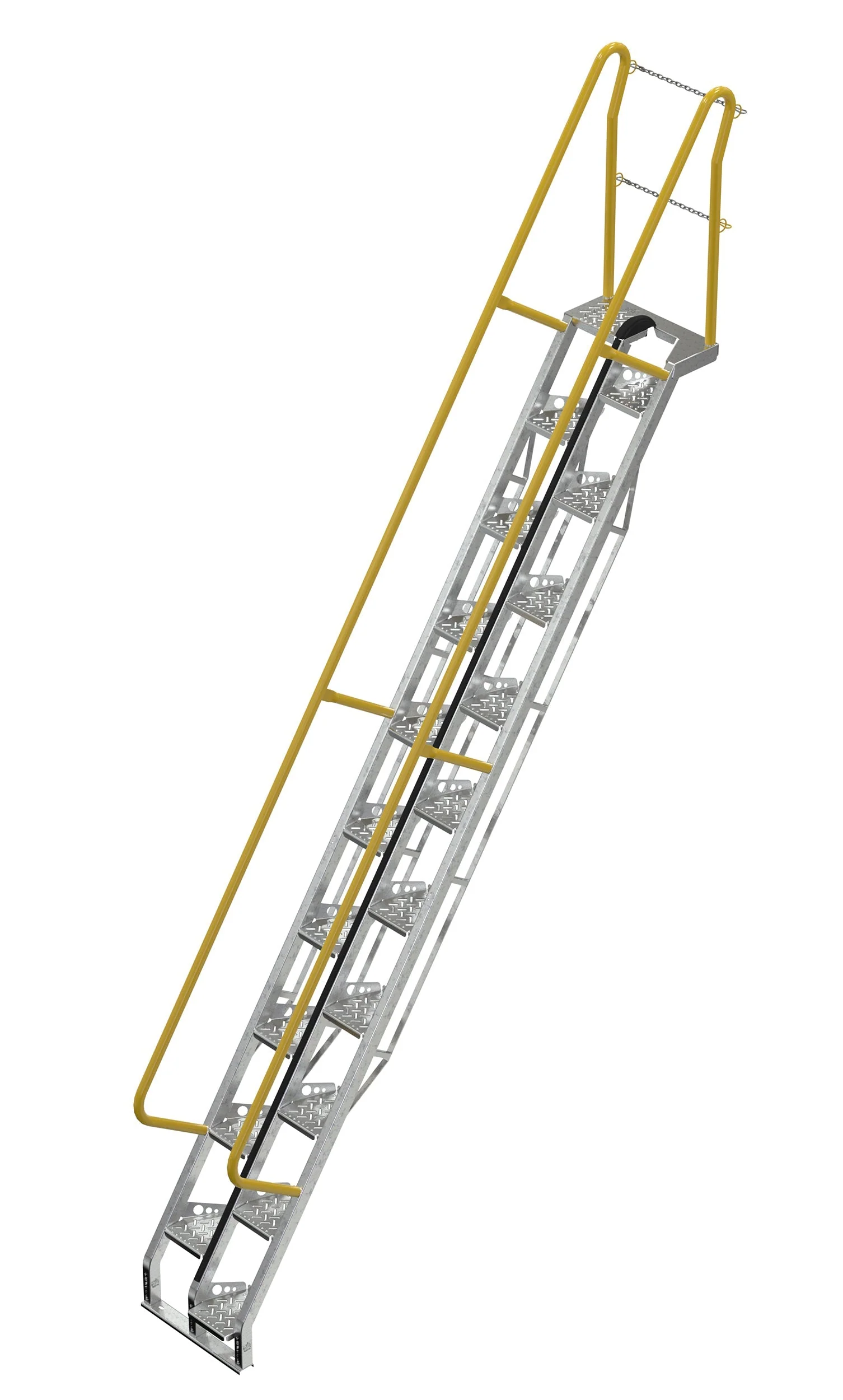

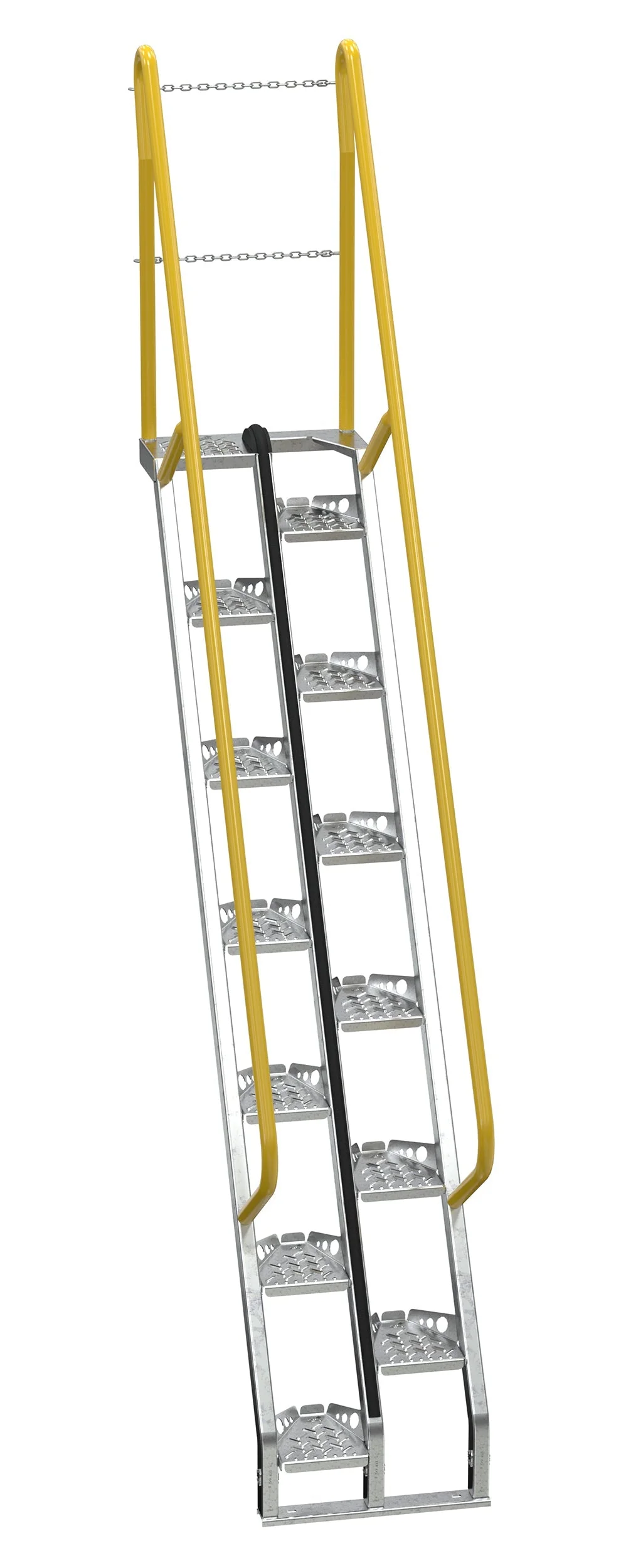

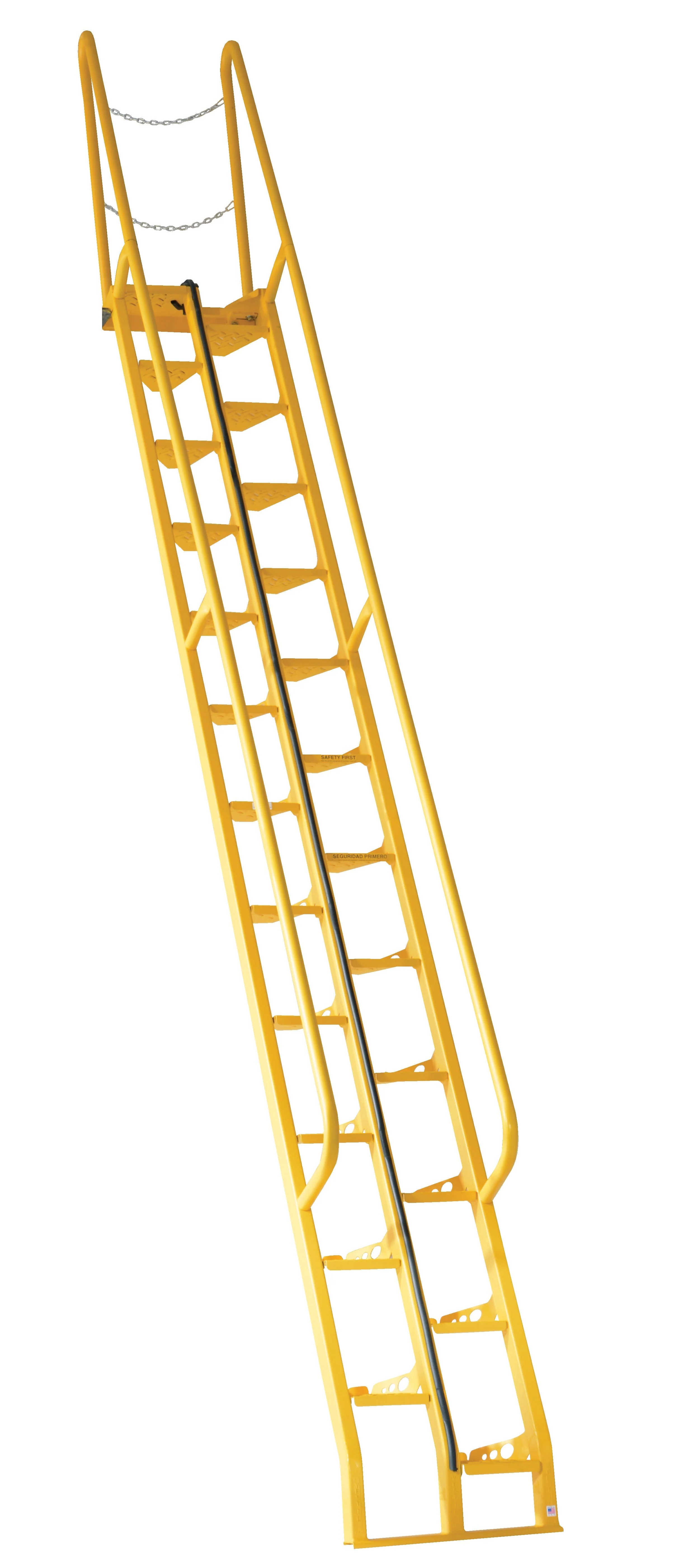

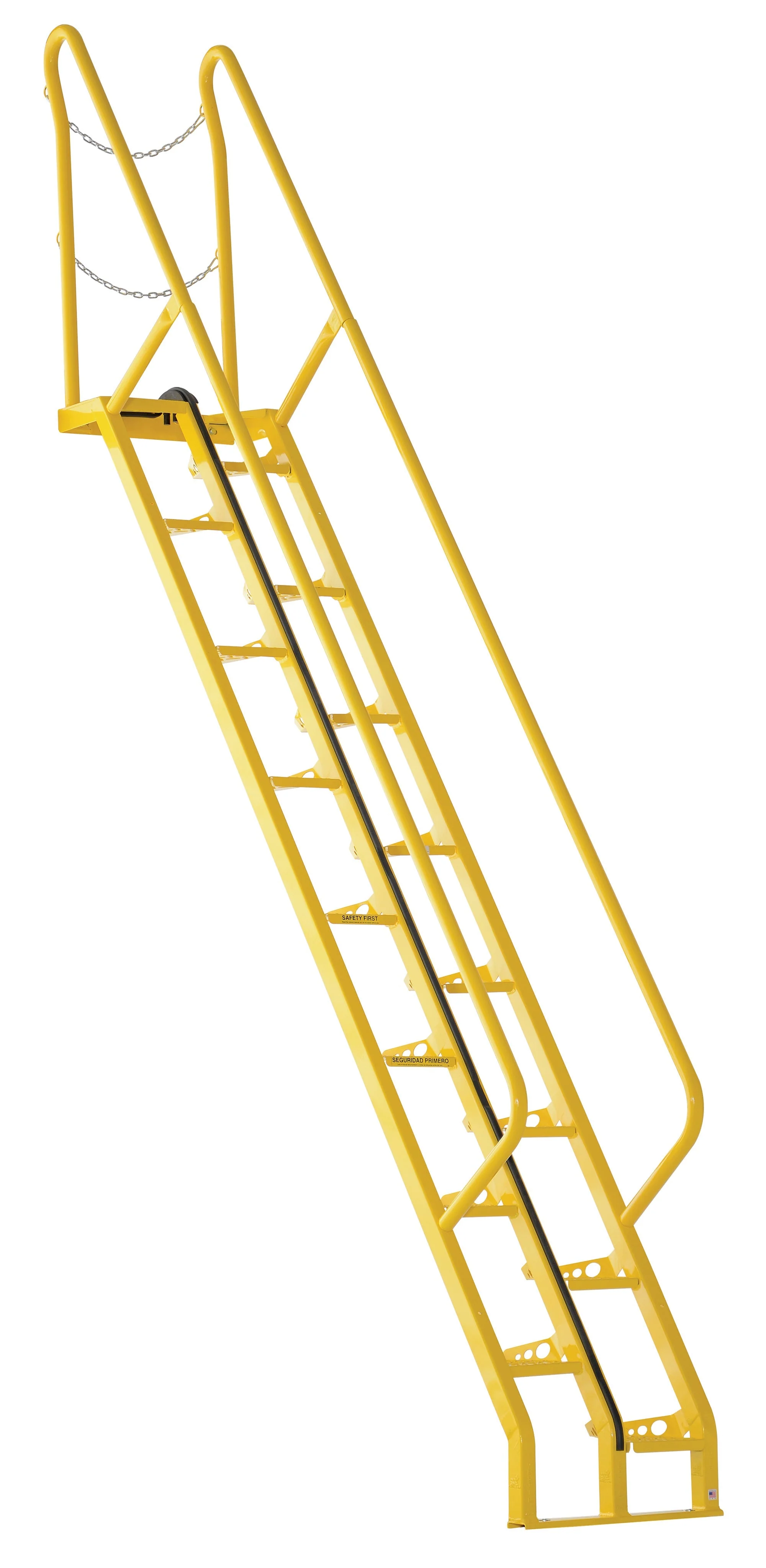

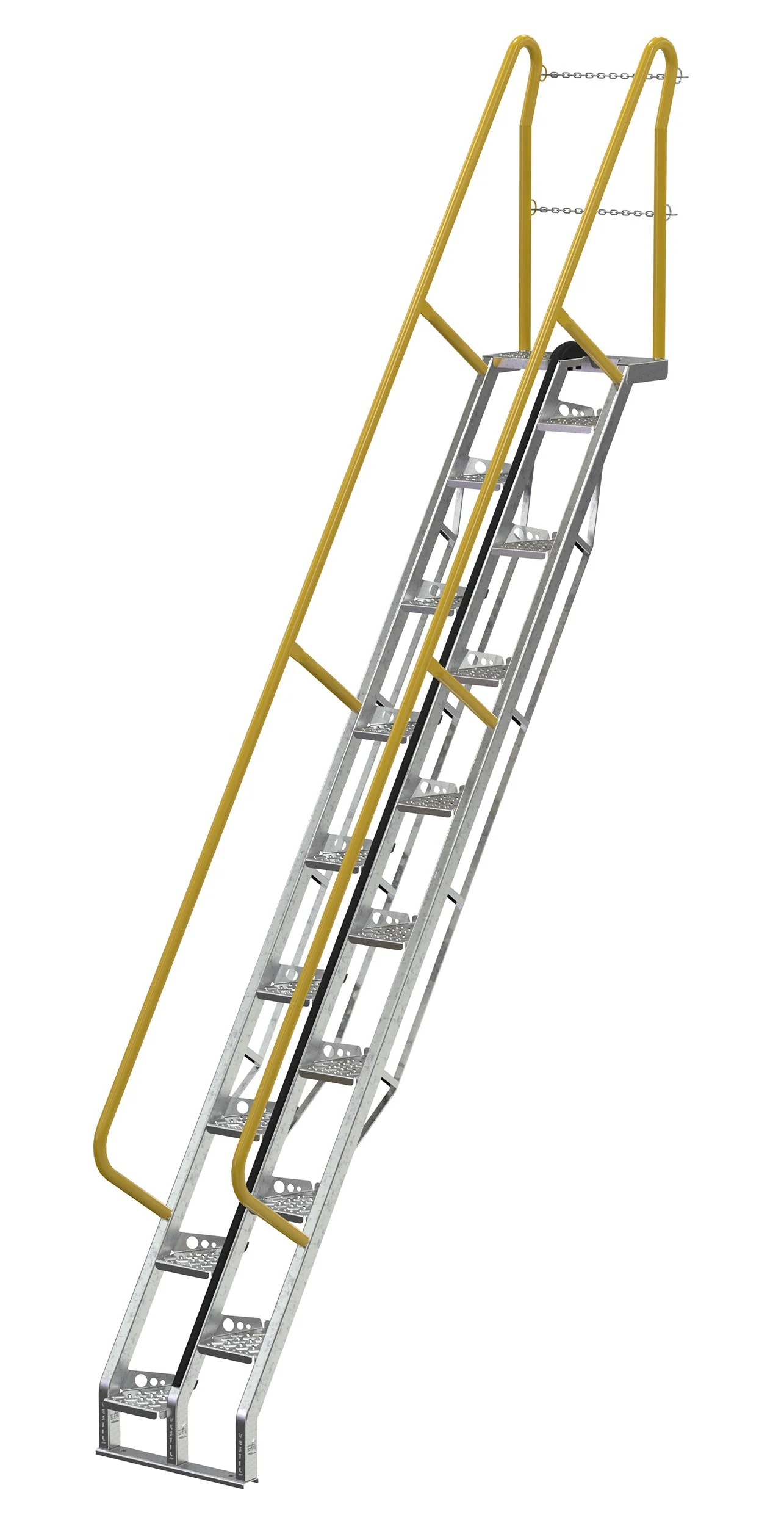

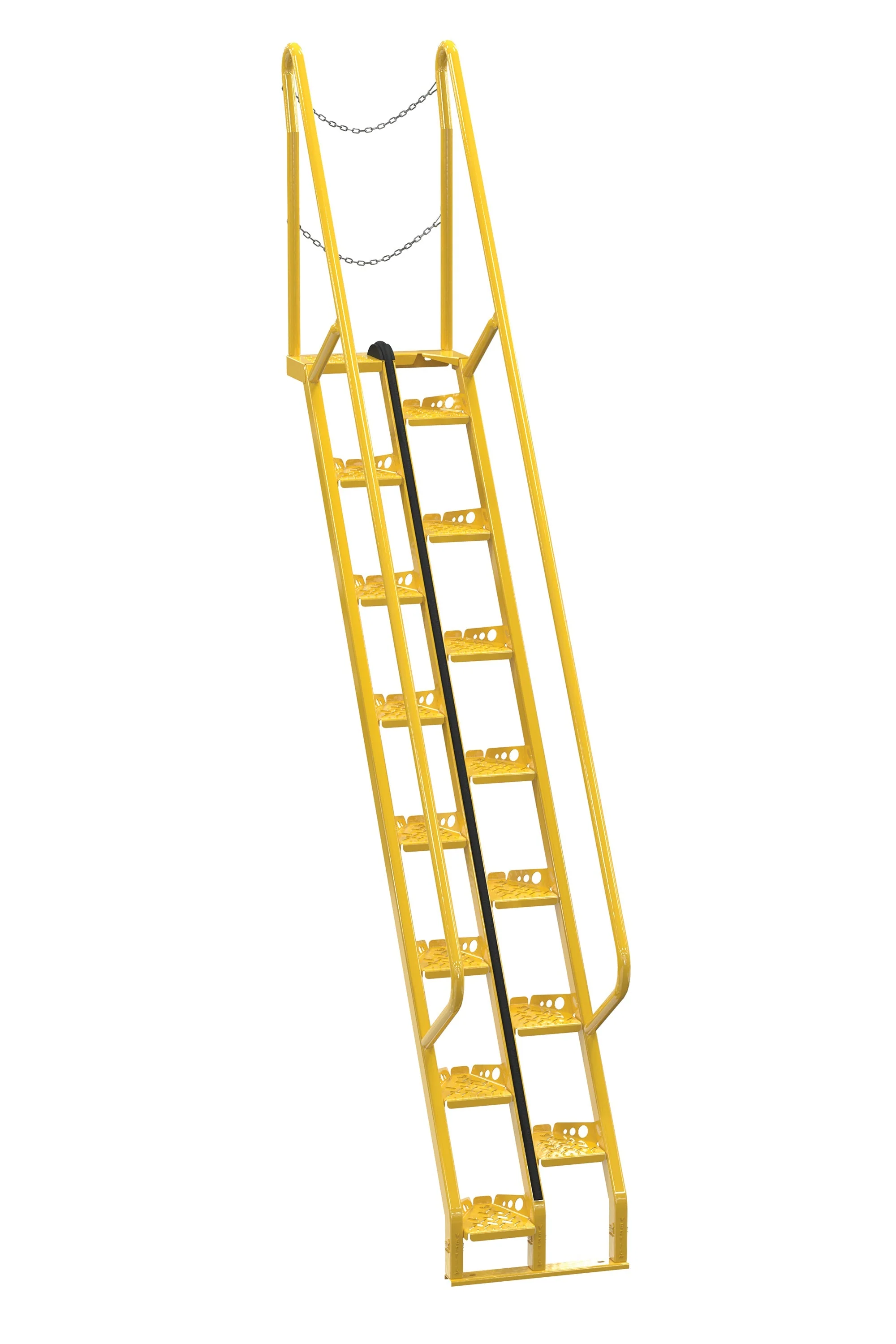

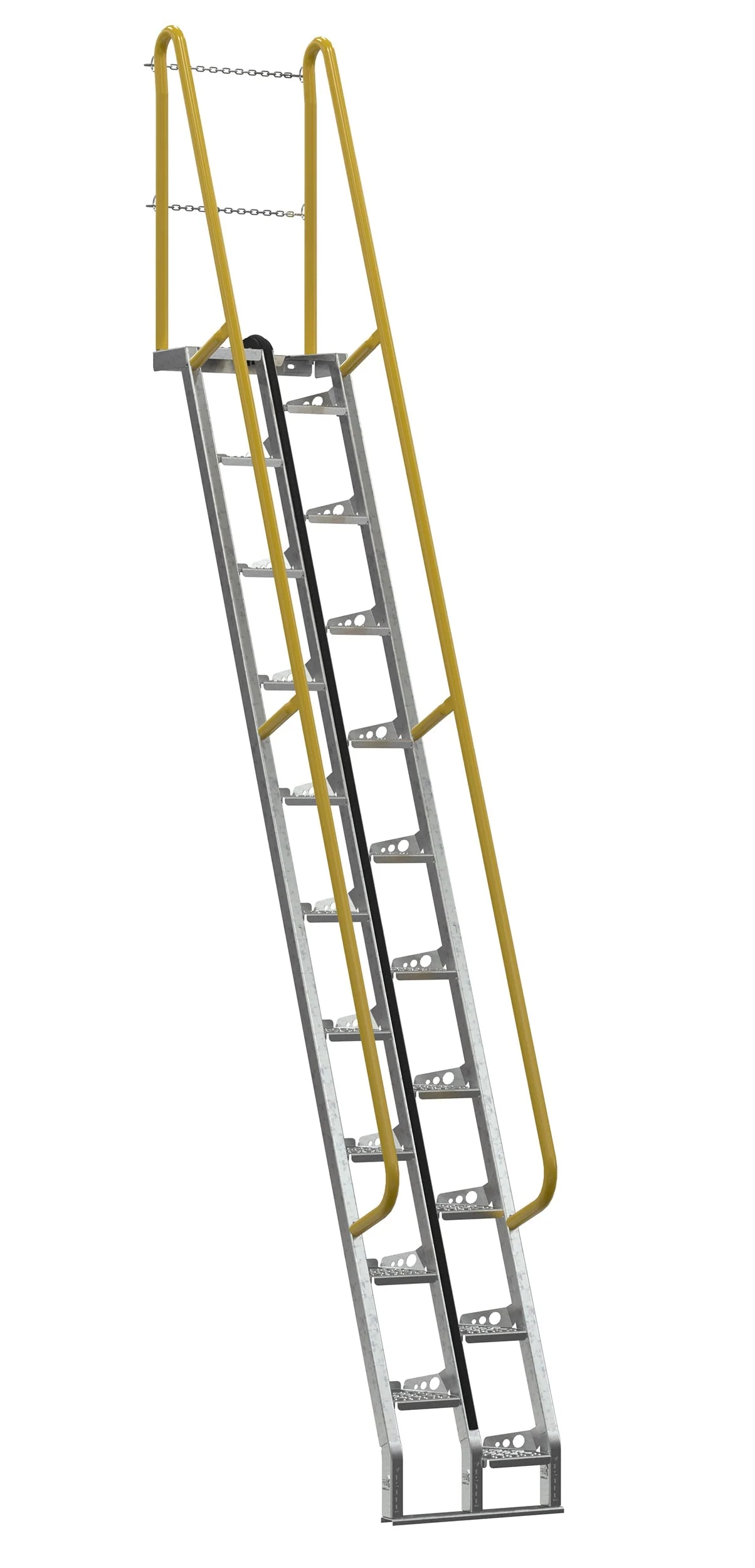

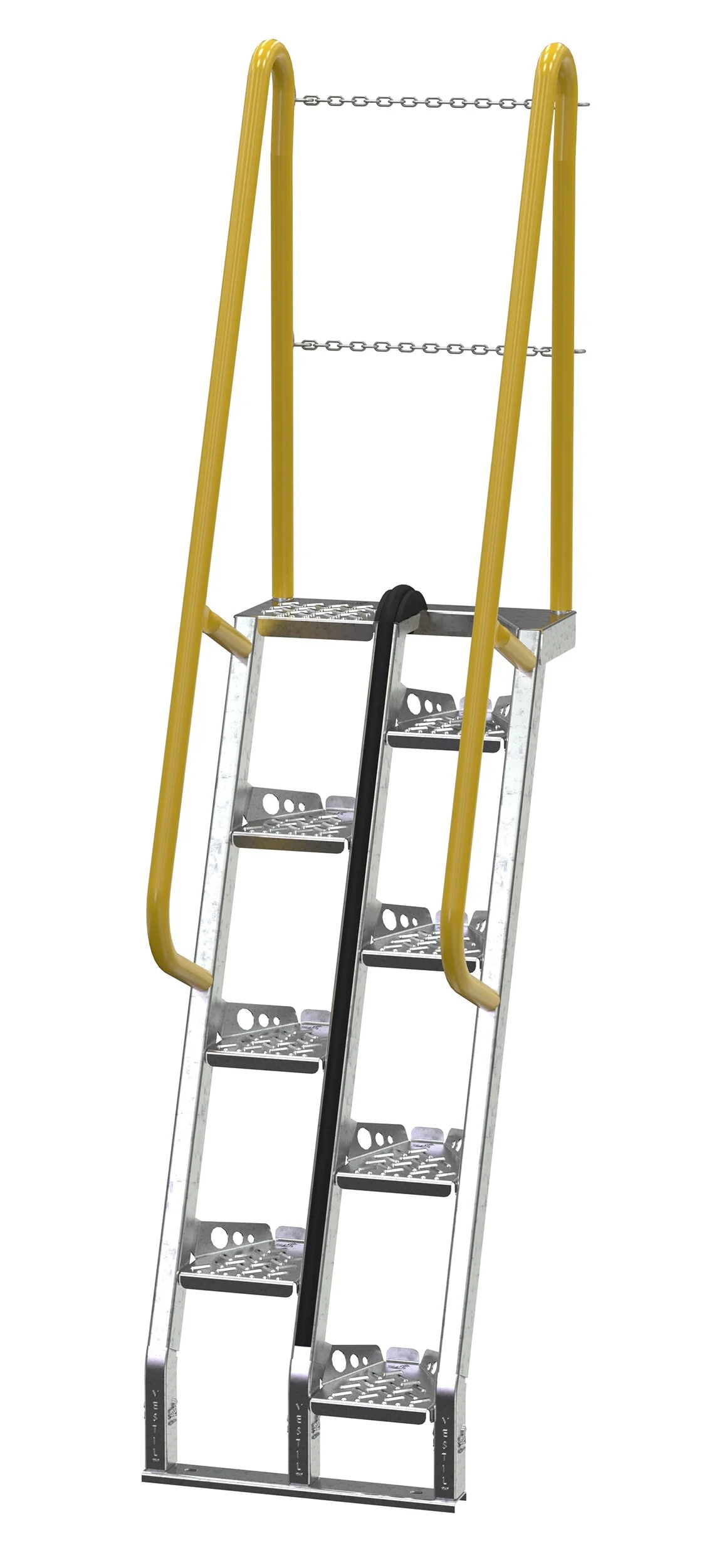

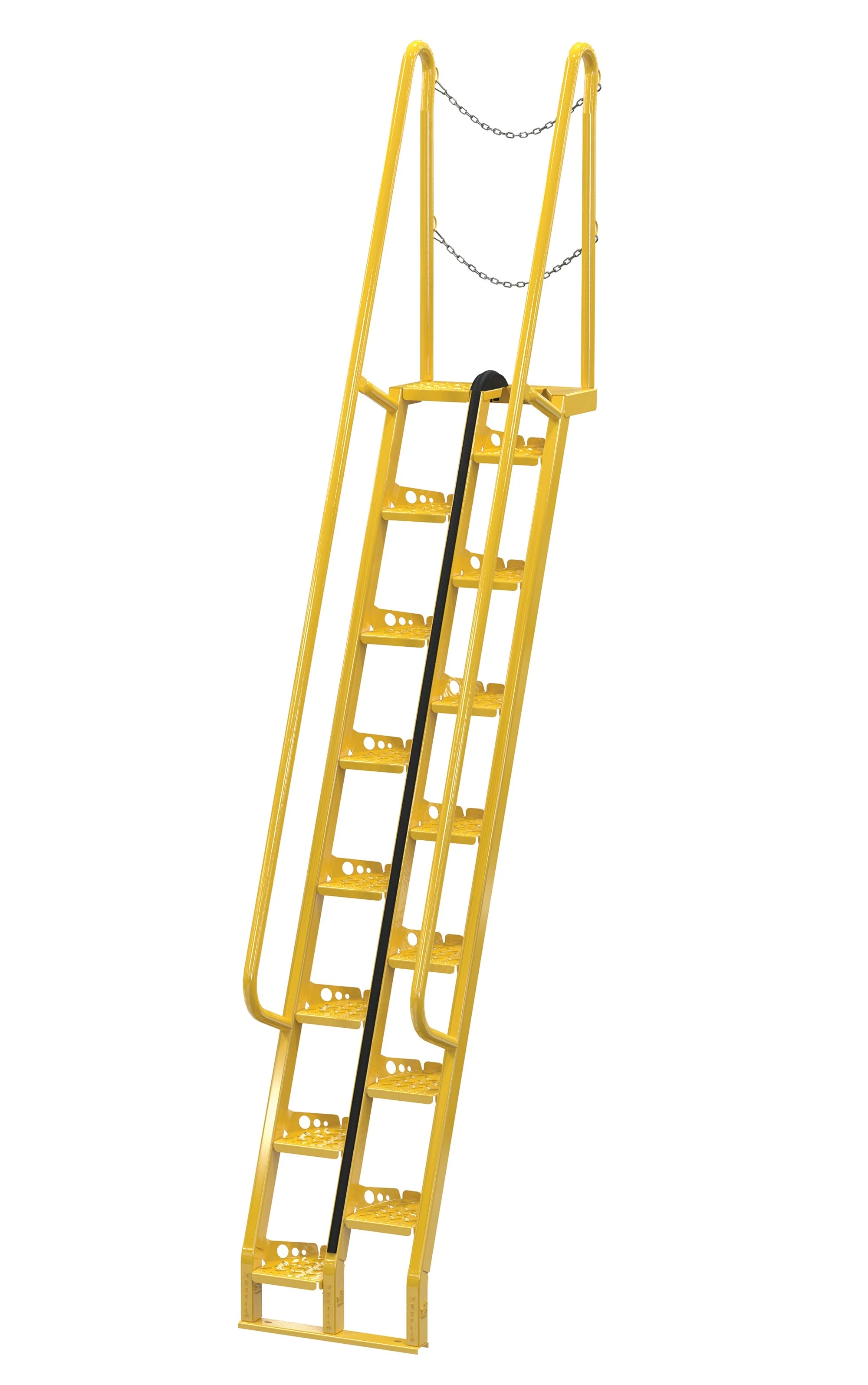

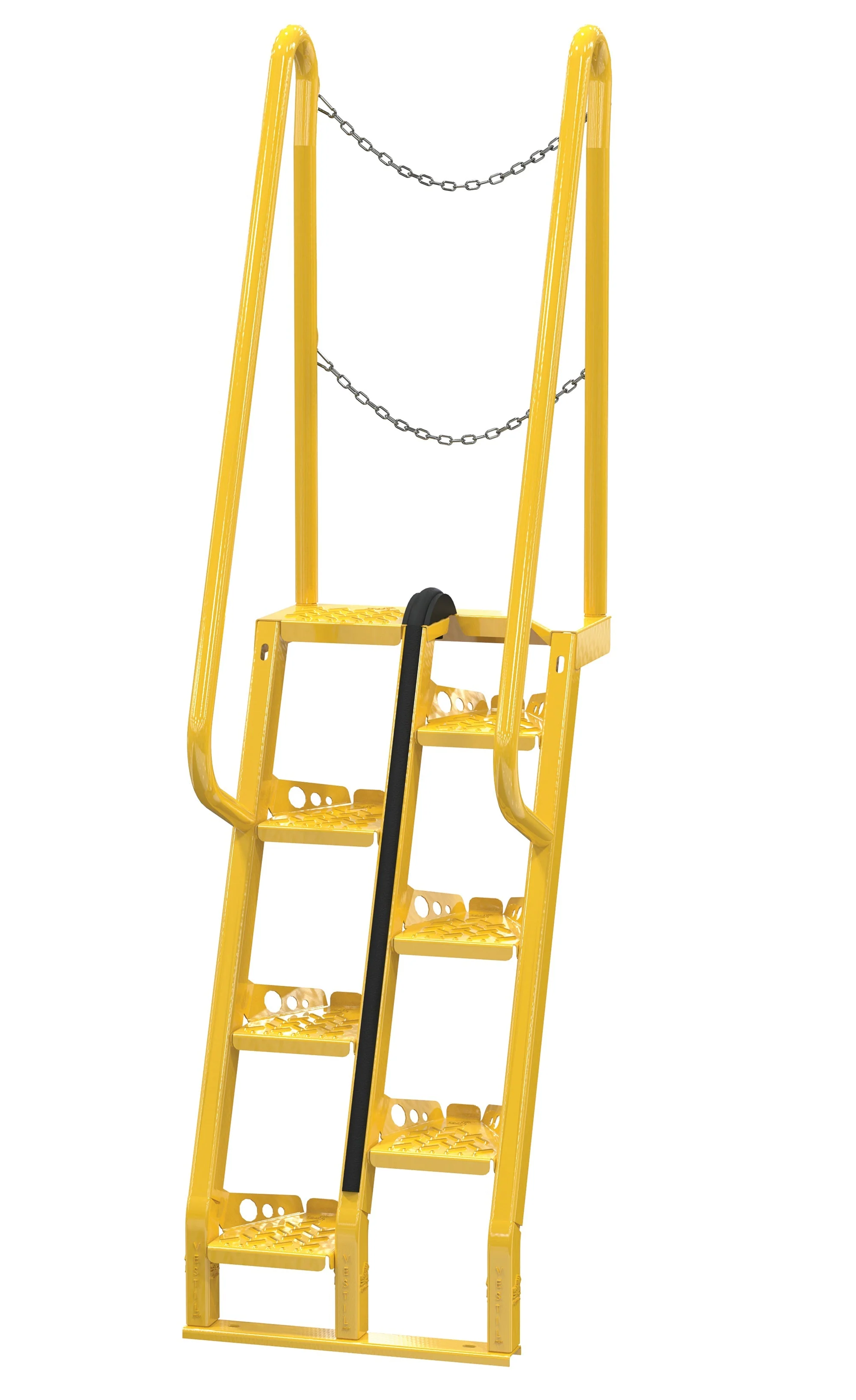

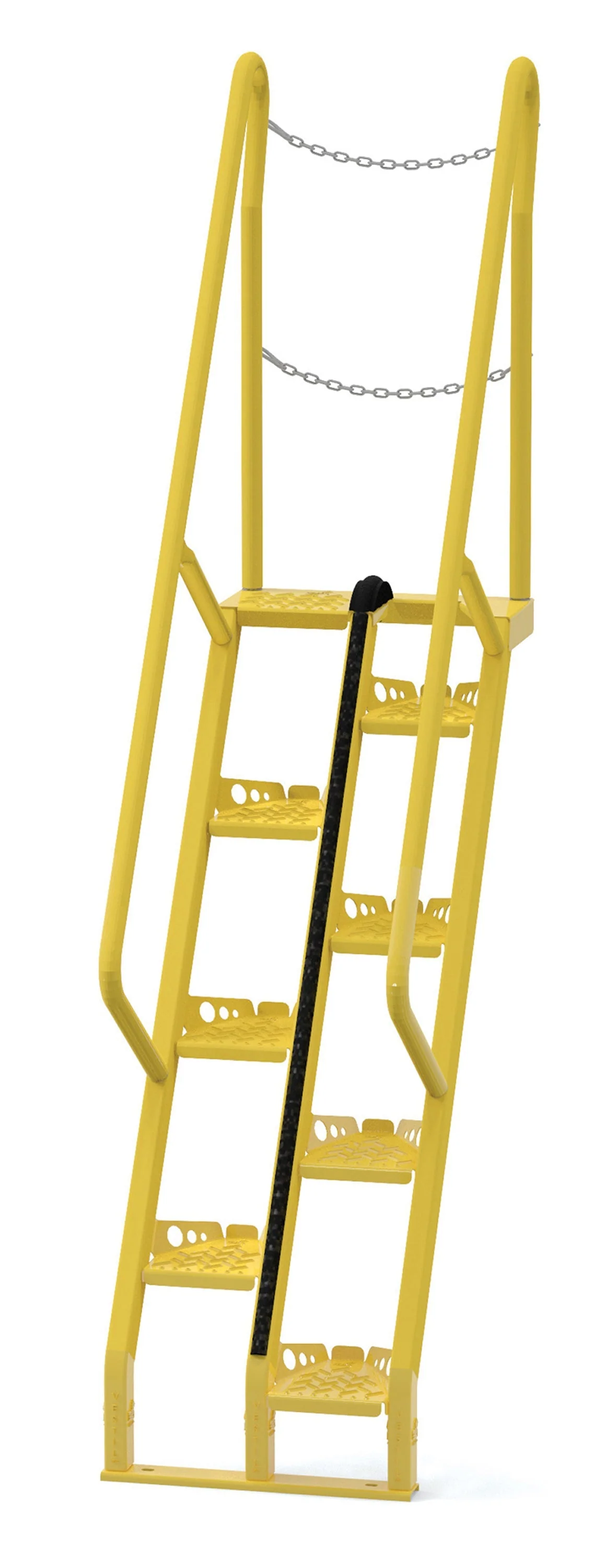

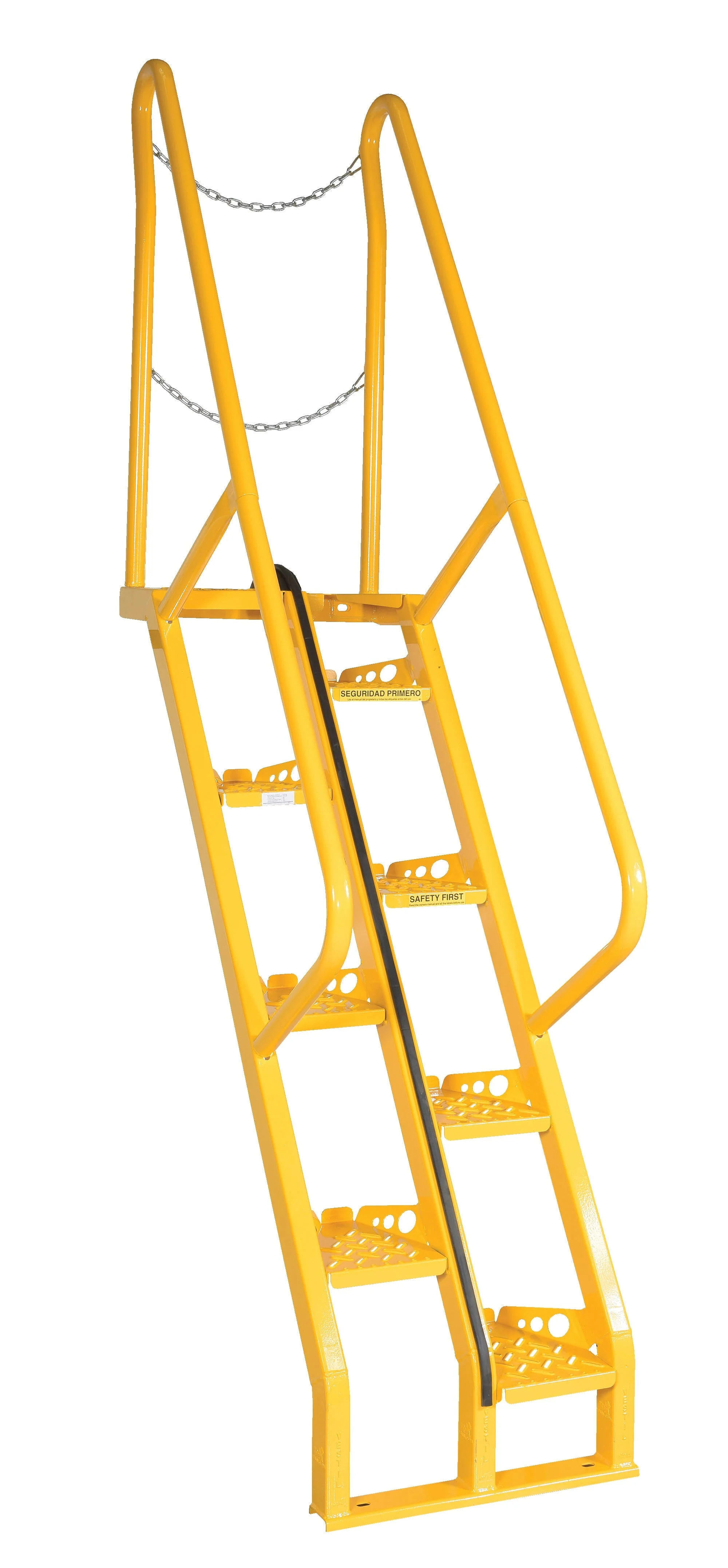

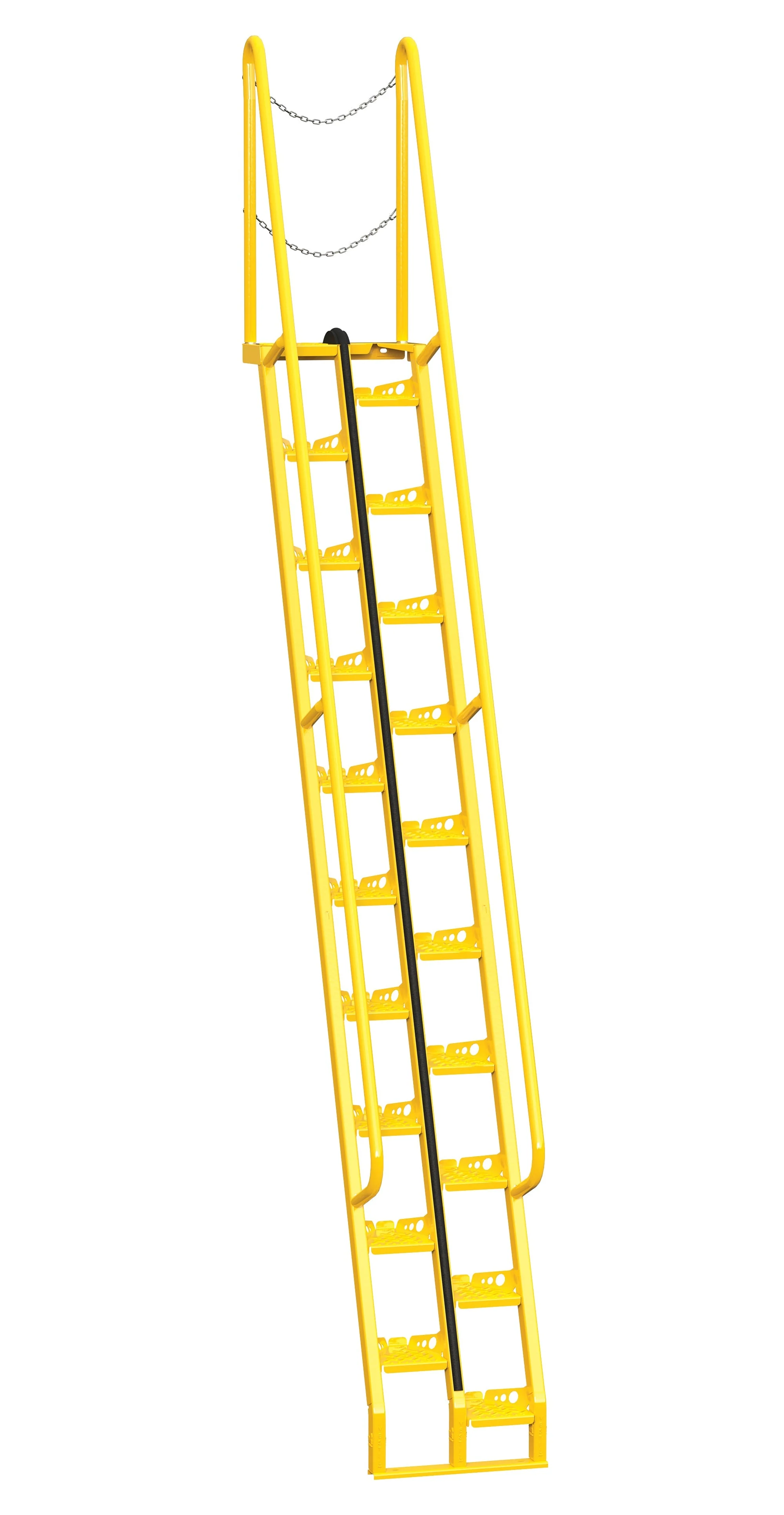

Alternating-Tread Step design offers a shorter span than traditional steps. Features a handrail on each side of unit and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt-on handrails. Standard models are powder coate yellow. Models ending in -HDG have hot dip galvanized steel steps. As well as hot dip galvanized handrails with a yellow powder coat finish. Meets OSHA specification 29 CFR 1910.25(f). Ships knockdown for lower freight costs.
| Alternating Tread Stairs | ||||||
|
Model Number |
Number |
Top Step Height |
Overall Length |
Step Angle |
Capacity (lbs) |
Wt. (lbs.) |
| ATS-4-56 | 7 | 48-1/8" | 42" | 56 degrees | 350 | 156 |
| ATS-5-56 | 8 | 60" | 49-1/4" | 56 degrees | 350 | 192 |
| ATS-6-56 | 10 | 71-7/8" | 57-1/2" | 56 degrees | 350 | 214 |
| ATS-7-56 | 12 | 84" | 65-3/4" | 56 degrees | 350 | 224 |
| ATS-8-56 | 13 | 95-7/8" | 73-1/2" | 56 degrees | 350 | 254 |
| ATS-9-56 | 15 | 107-3/4" | 81-5/8" | 56 degrees | 350 | 284 |
| ATS-10-56 | 16 | 120" | 89-3/4" | 56 degrees | 350 | 312 |
| ATS-11-56 | 17 | 131-3/4" | 97-1/2" | 56 degrees | 350 | 374 |
| ATS-12-56 | 20 | 143-3/4" | 106" | 56 degrees | 350 | 400 |
| ATS-13-56 | 21 | 156-1/4" | 114-1/8" | 56 degrees | 350 | 608 |
| ATS-14-56 | 24 | 168" | 122-3/8" | 56 degrees | 350 | 638 |
| ATS-4-68 | 7 | 48-1/8" | 30" | 68 degrees | 350 | 150 |
| ATS-5-68 | 8 | 60" | 34-5/8" | 68 degrees | 350 | 180 |
| ATS-6-68 | 10 | 71-7/8" | 39-1/2" | 68 degrees | 350 | 188 |
| ATS-7-68 | 12 | 84" | 44-1/2" | 68 degrees | 350 | 238 |
| ATS-8-68 | 13 | 95-7/8" | 49-3/4" | 68 degrees | 350 | 248 |
| ATS-9-68 | 15 | 107-3/4" | 54-1/8" | 68 degrees | 350 | 256 |
| ATS-10-68 | 16 | 120" | 58-7/8" | 68 degrees | 350 | 274 |
| ATS-11-68 | 17 | 131-3/4" | 63-1/2" | 68 degrees | 350 | 298 |
| ATS-12-68 | 20 | 143-3/4" | 68-1/2" | 68 degrees | 350 | 338 |
| ATS-13-68 | 21 | 156-1/8" | 73-1/2" | 68 degrees | 350 | 600 |
| ATS-14-68 | 24 | 168" | 78 -3/8" | 68 degrees | 350 | 610 |

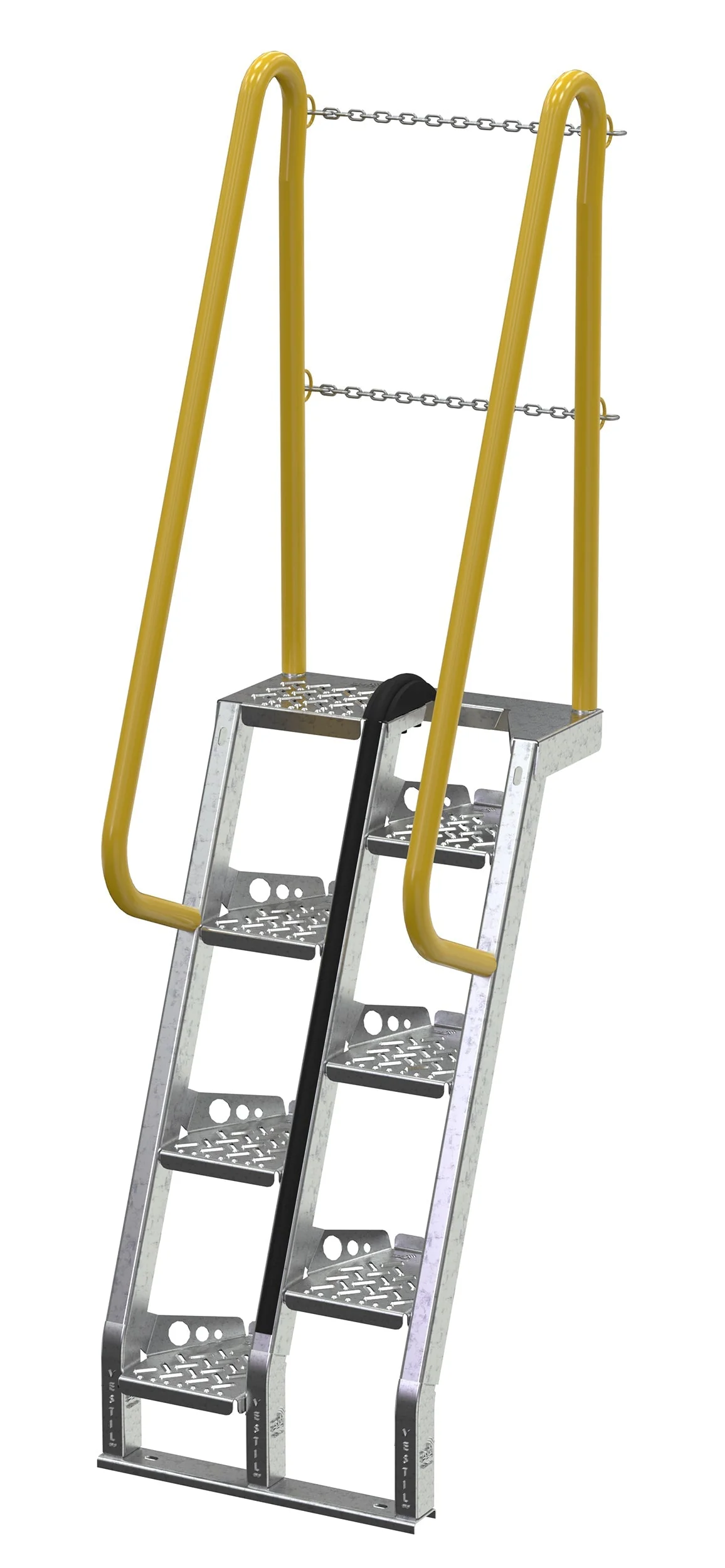

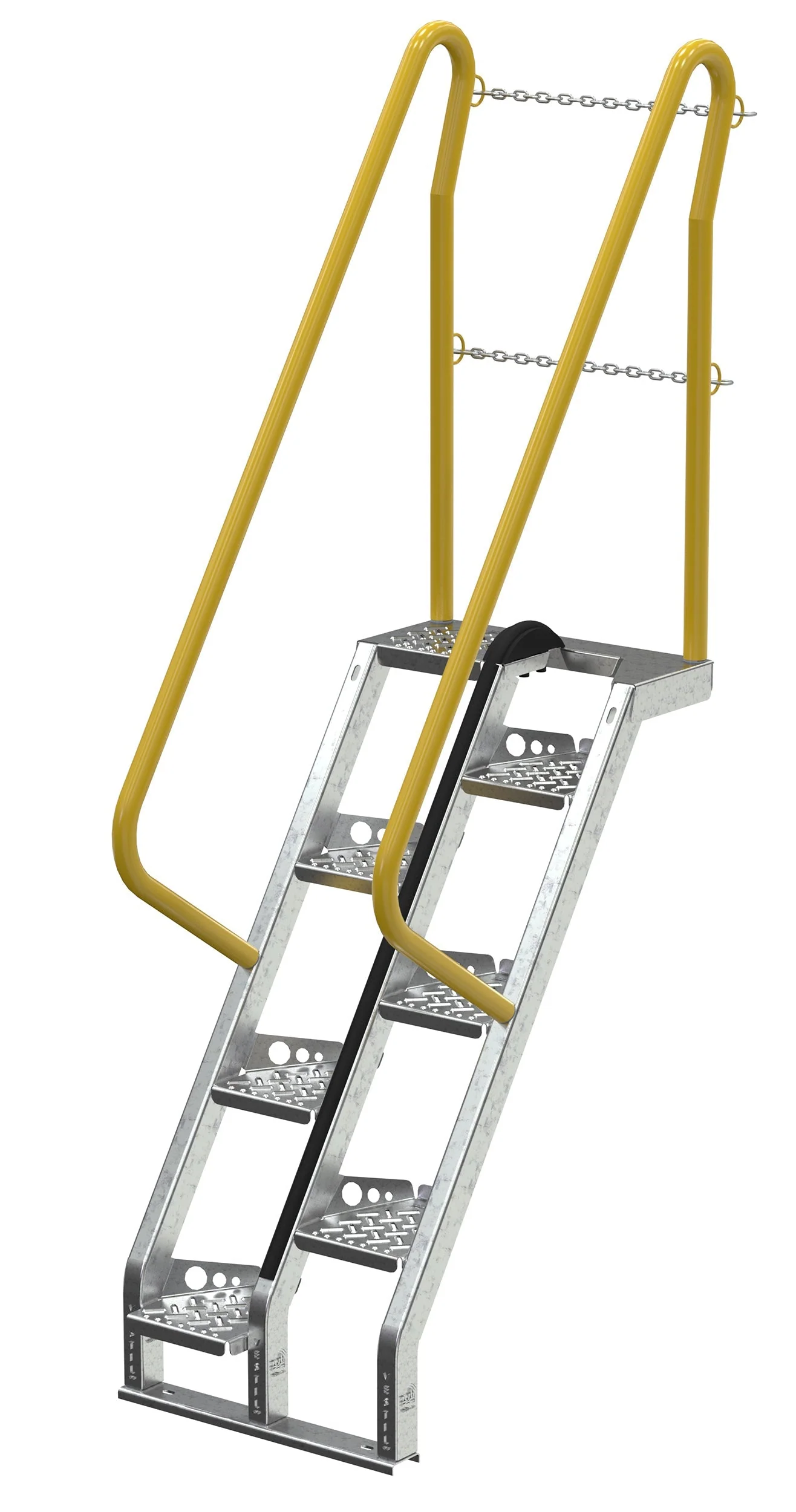

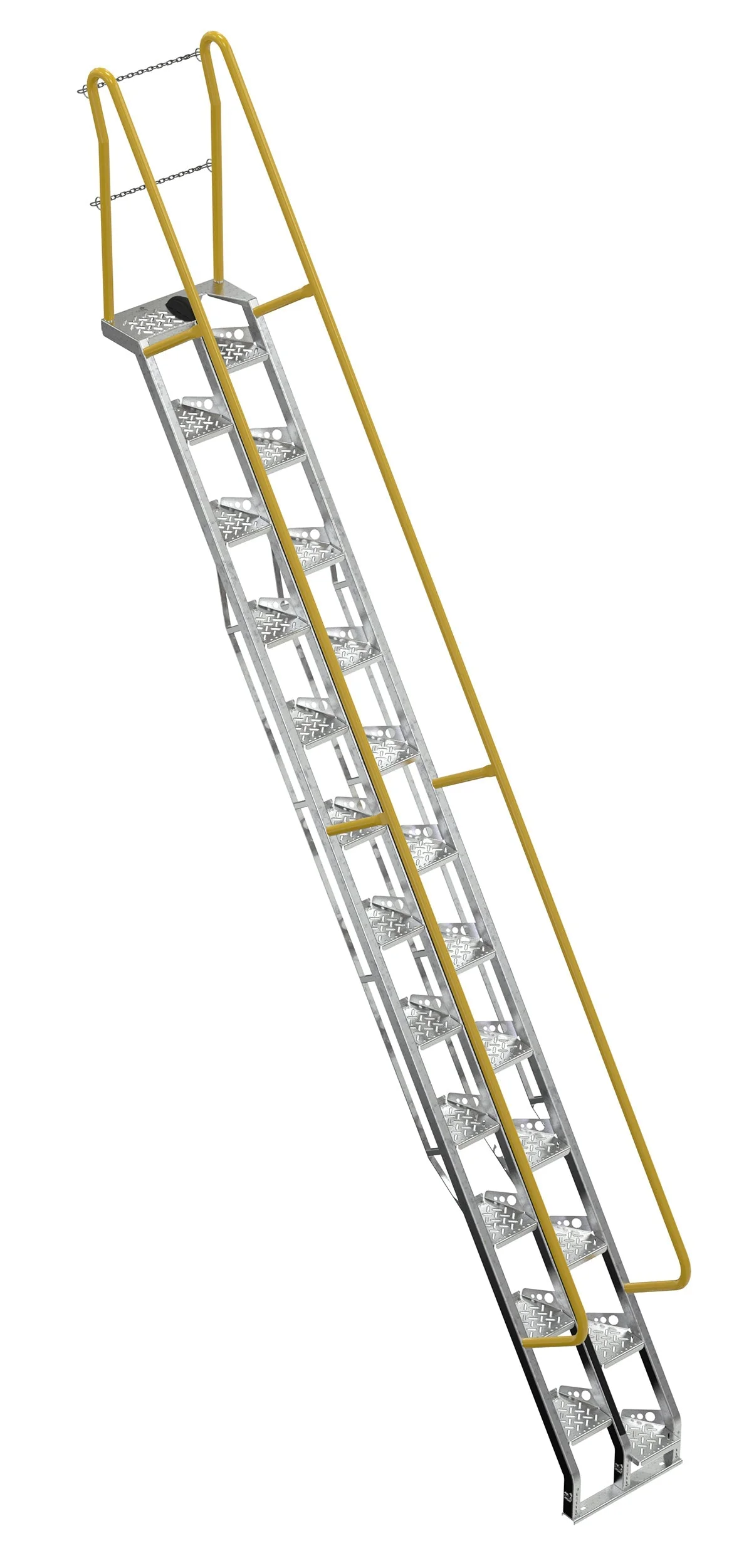

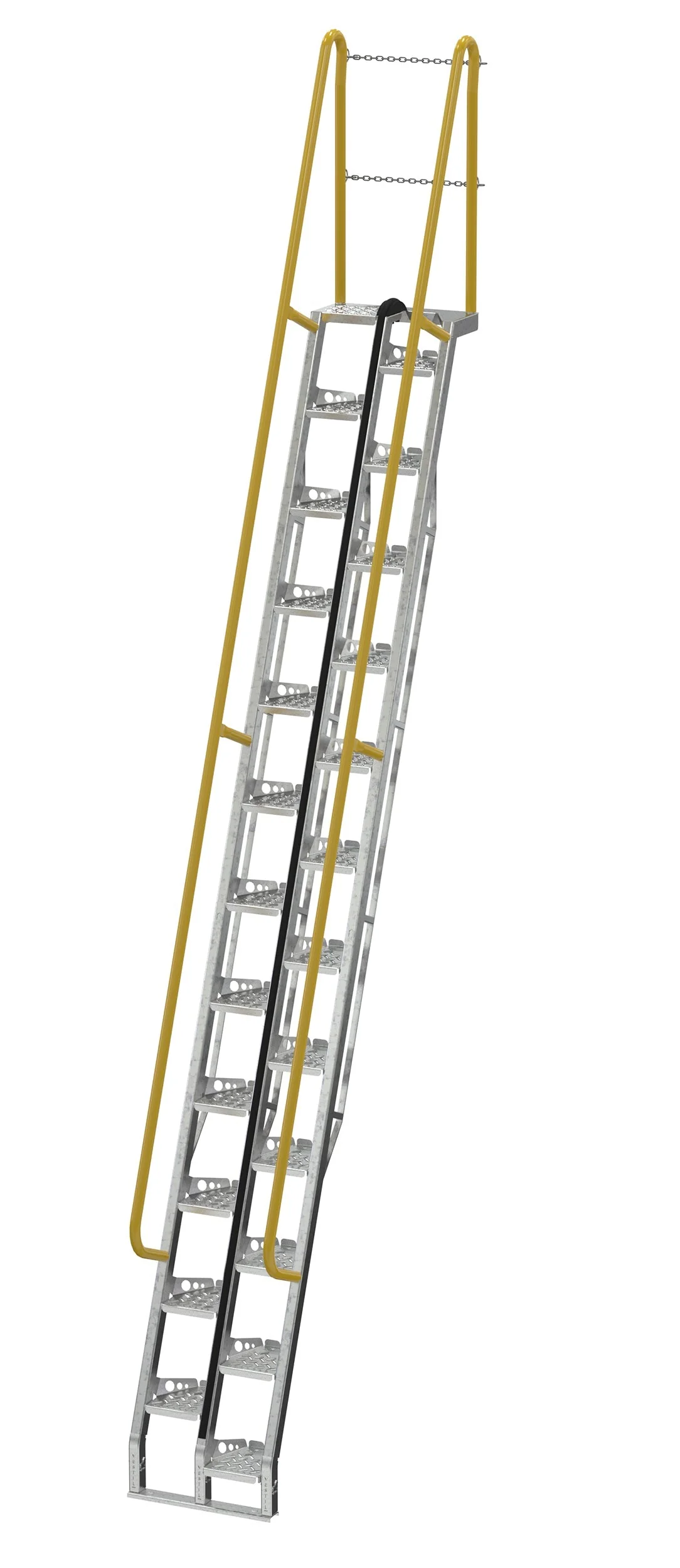

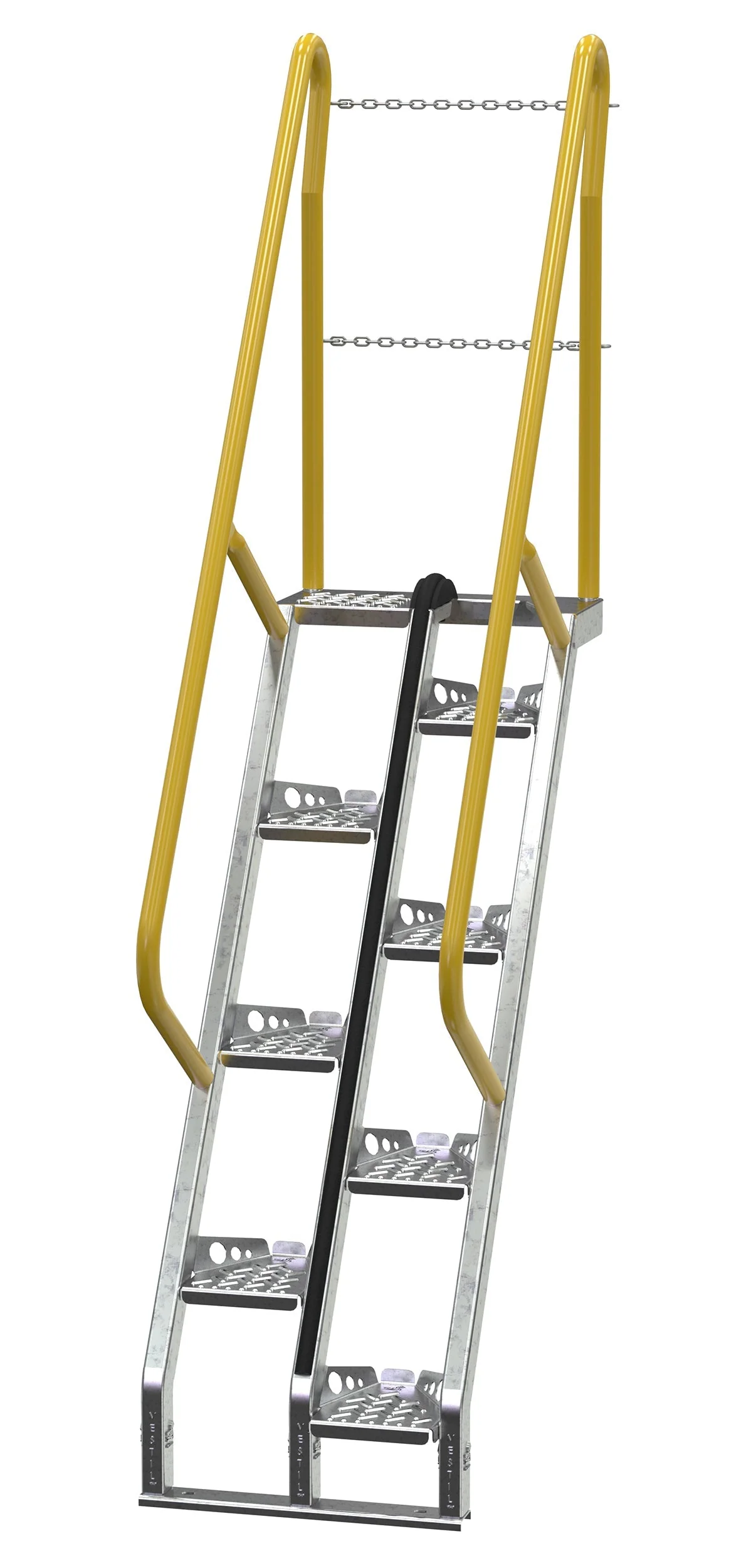

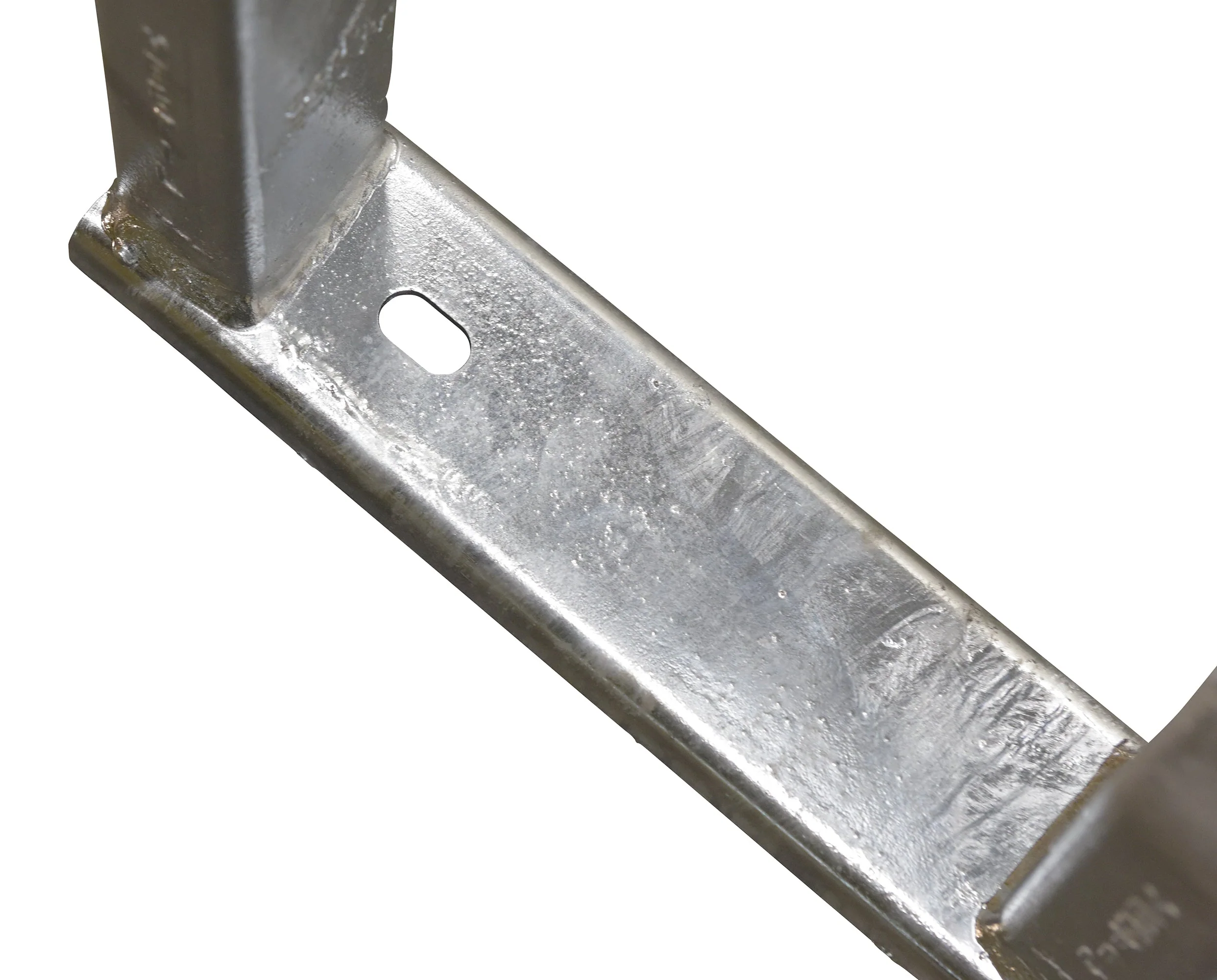

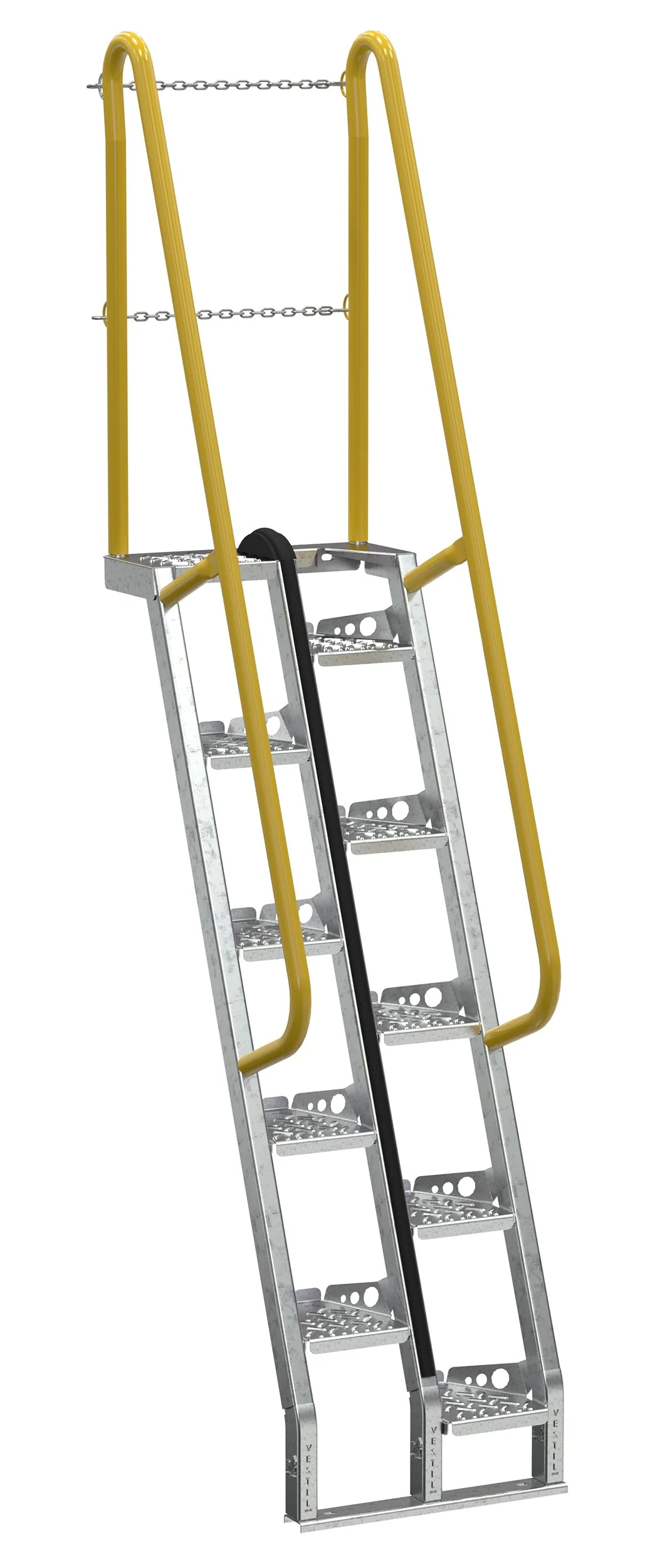

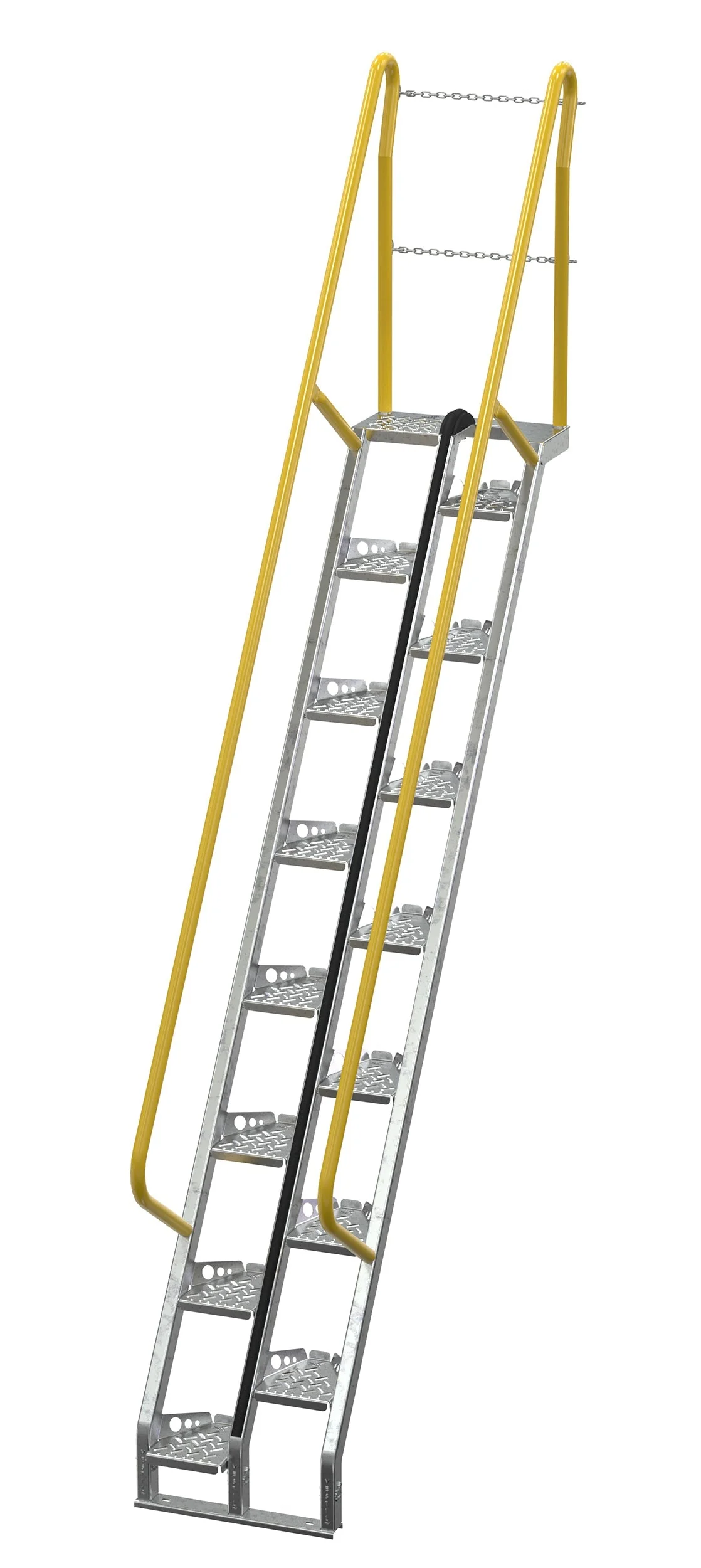

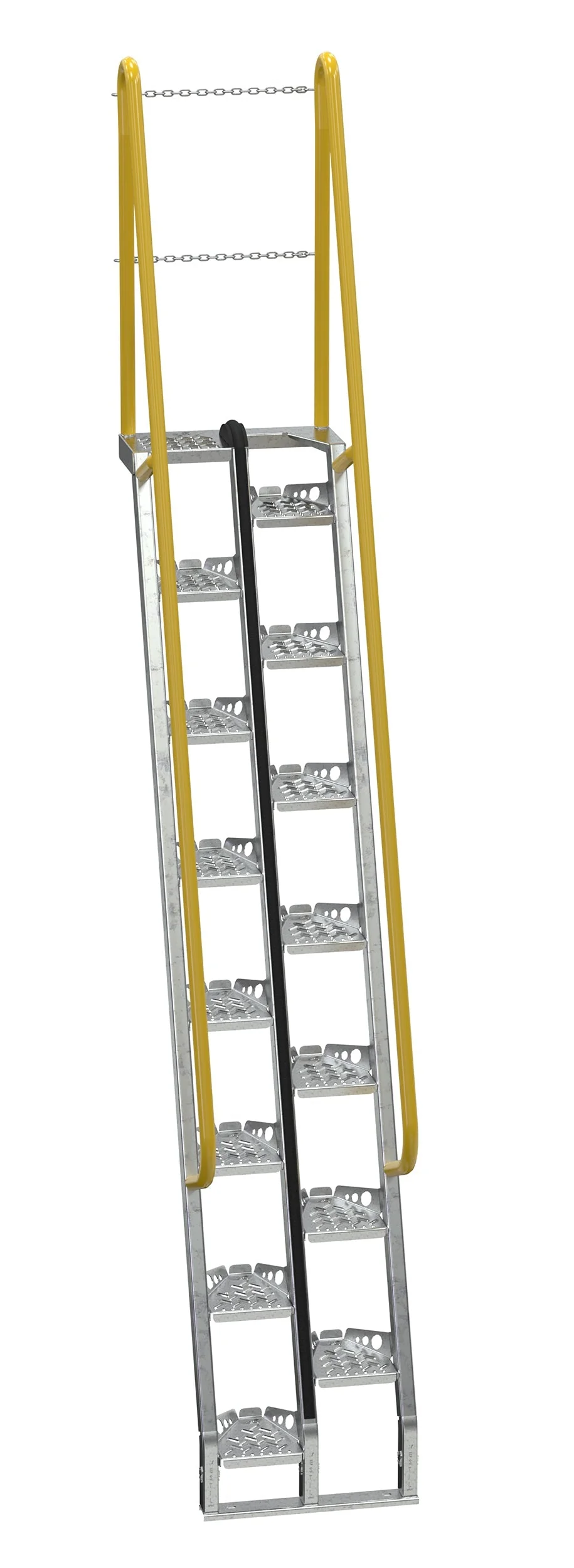

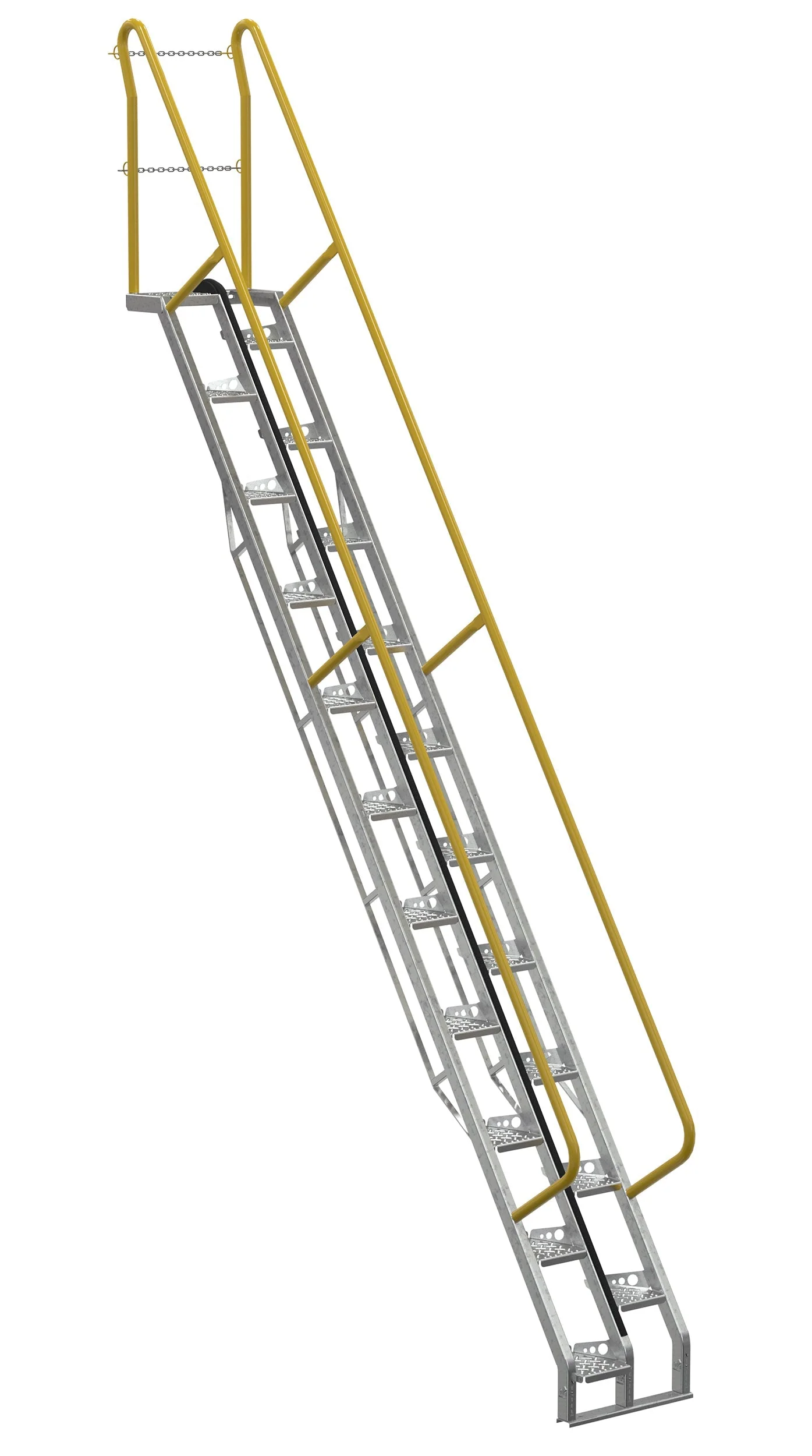

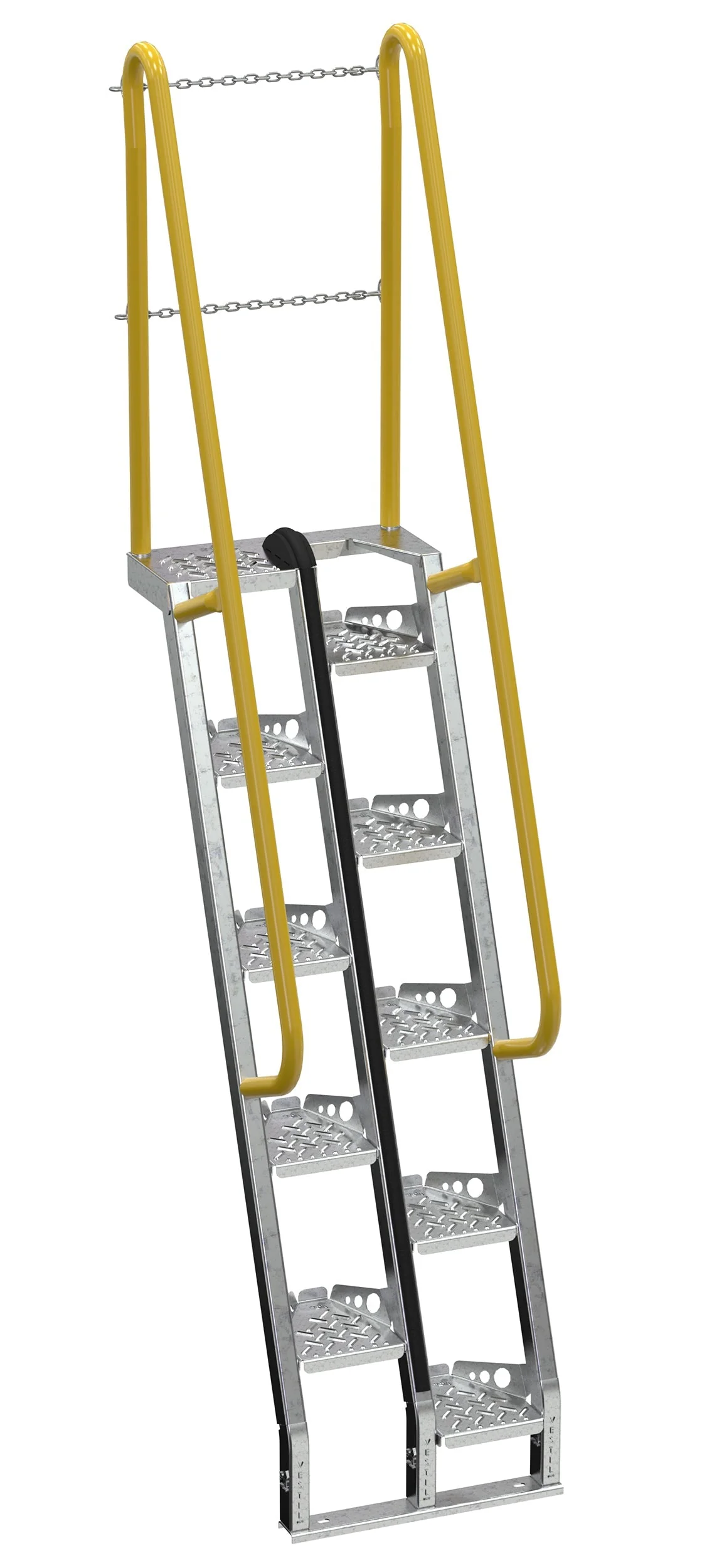

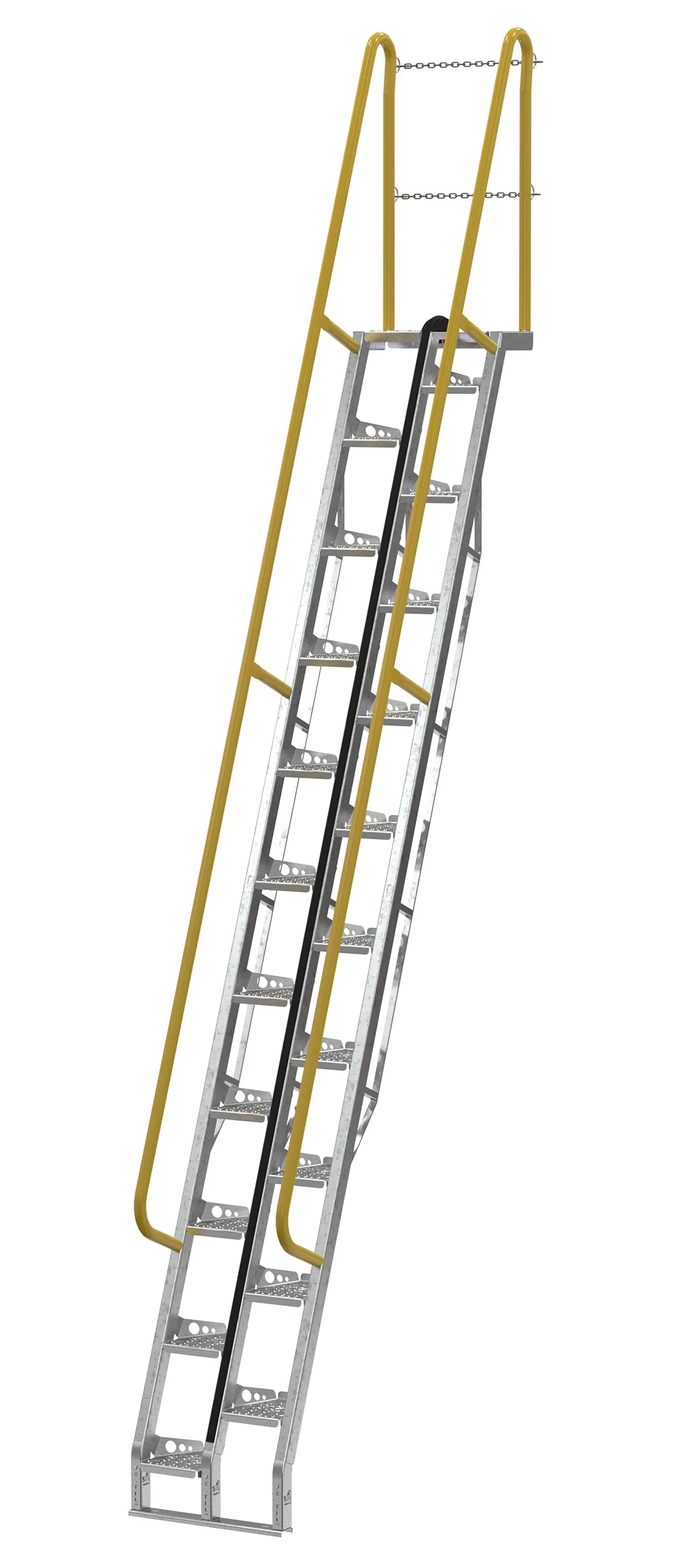

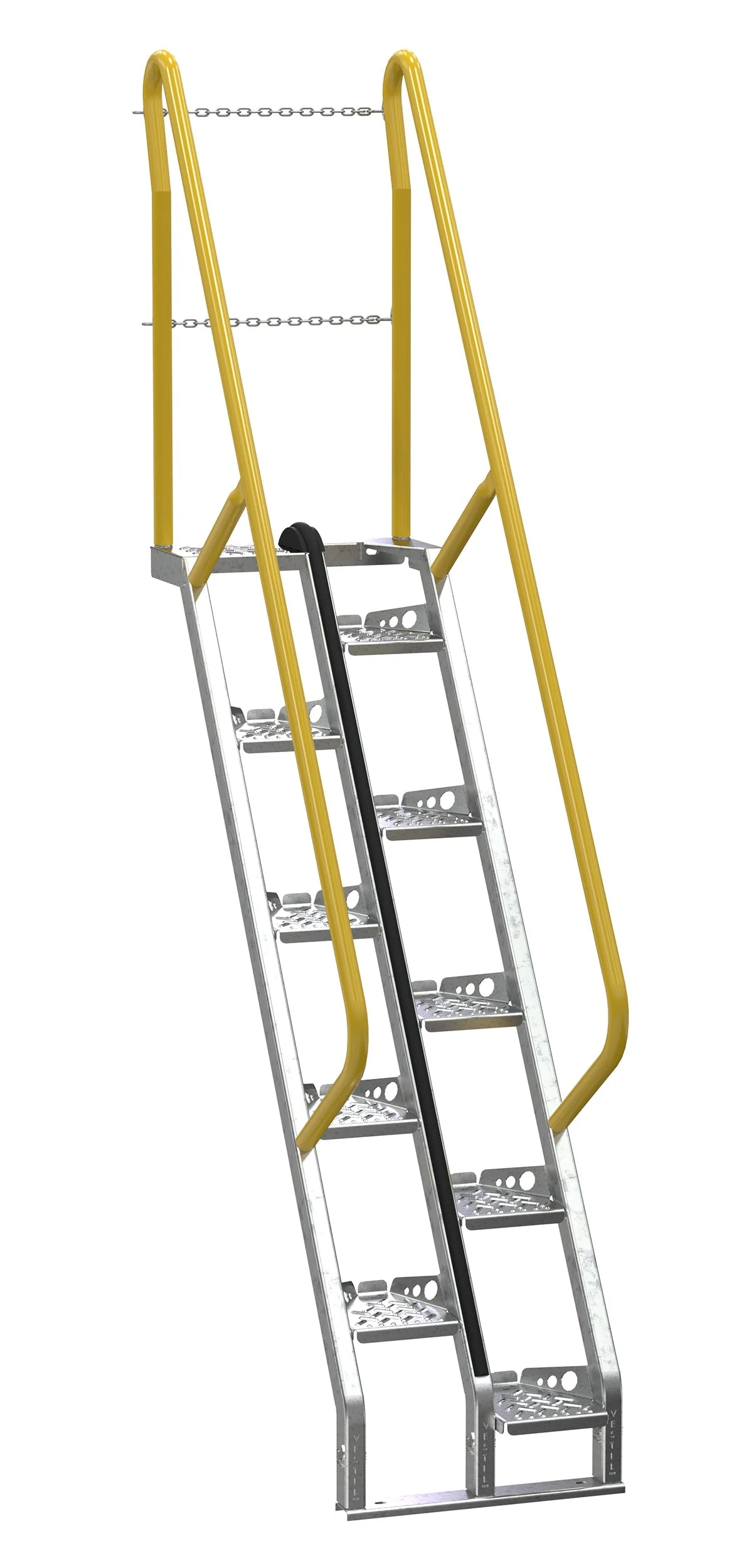

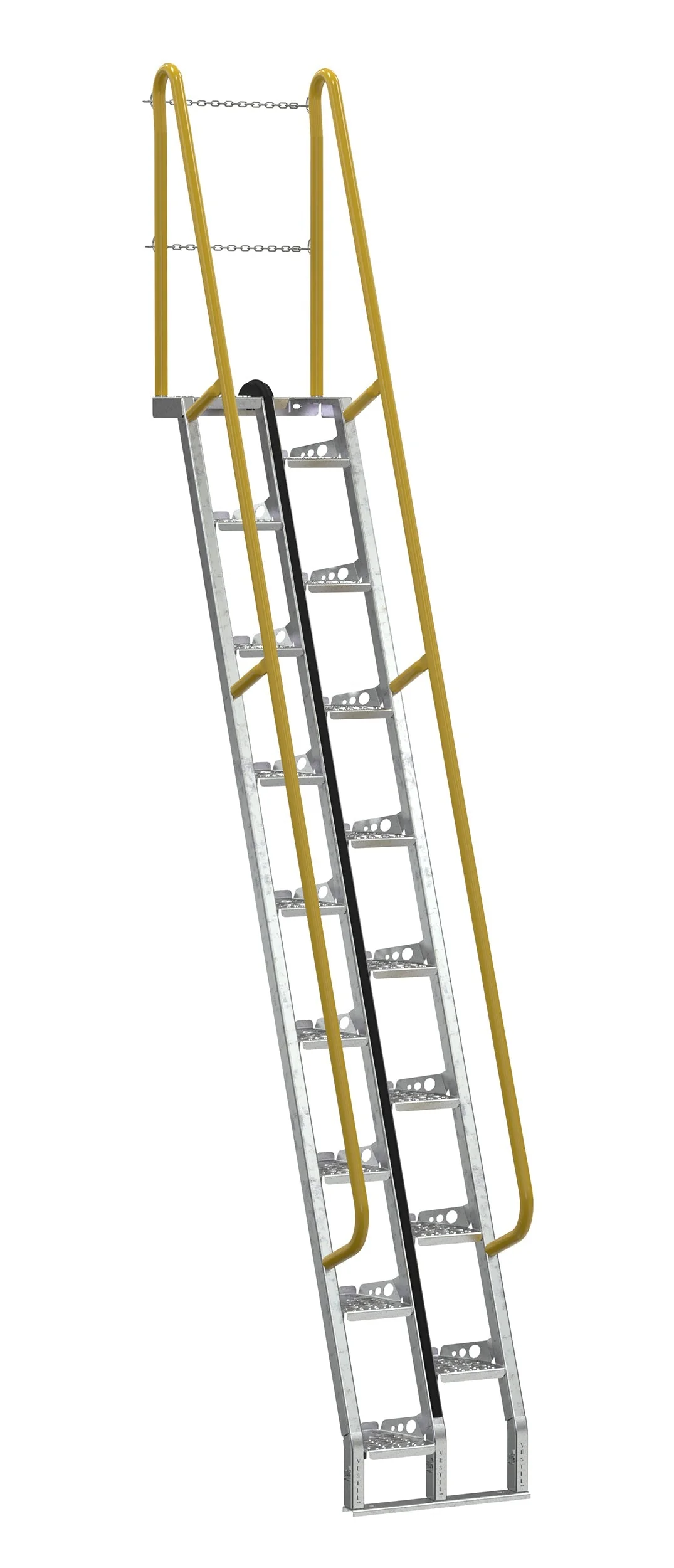

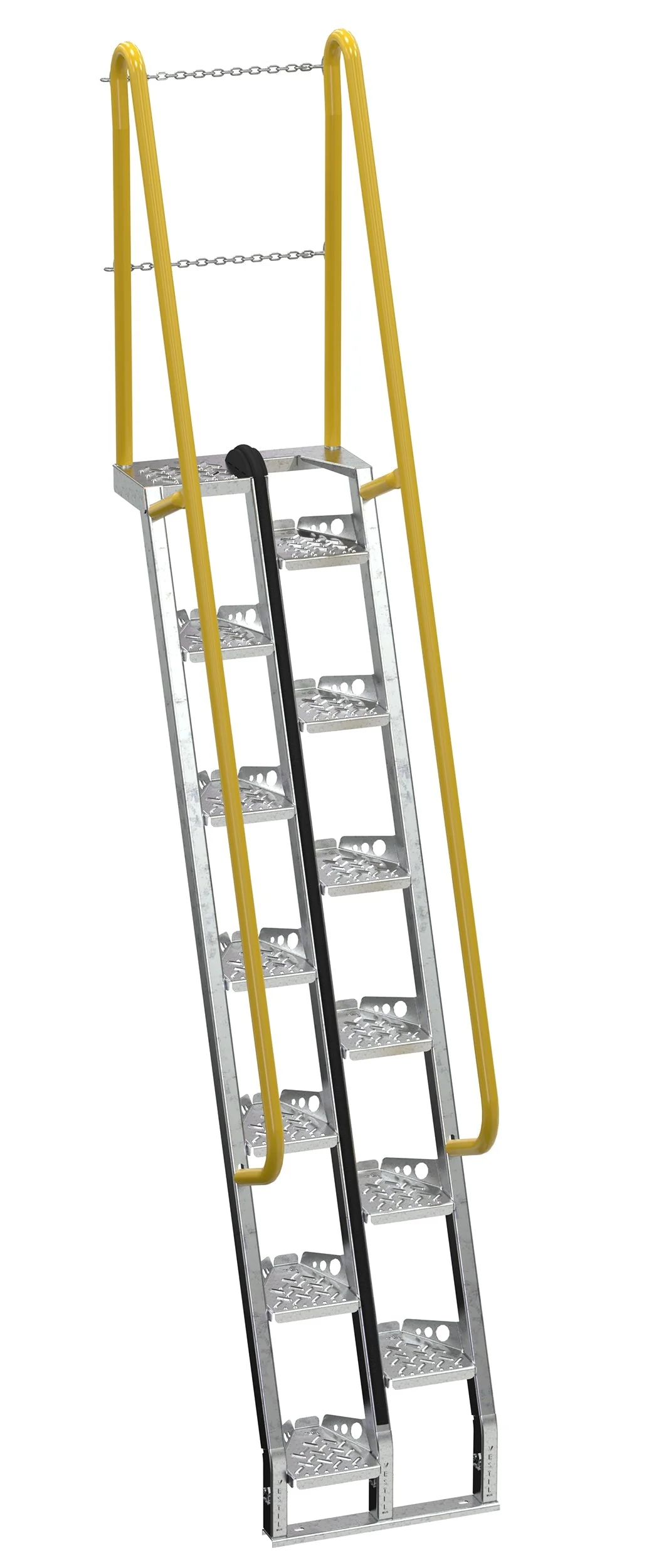

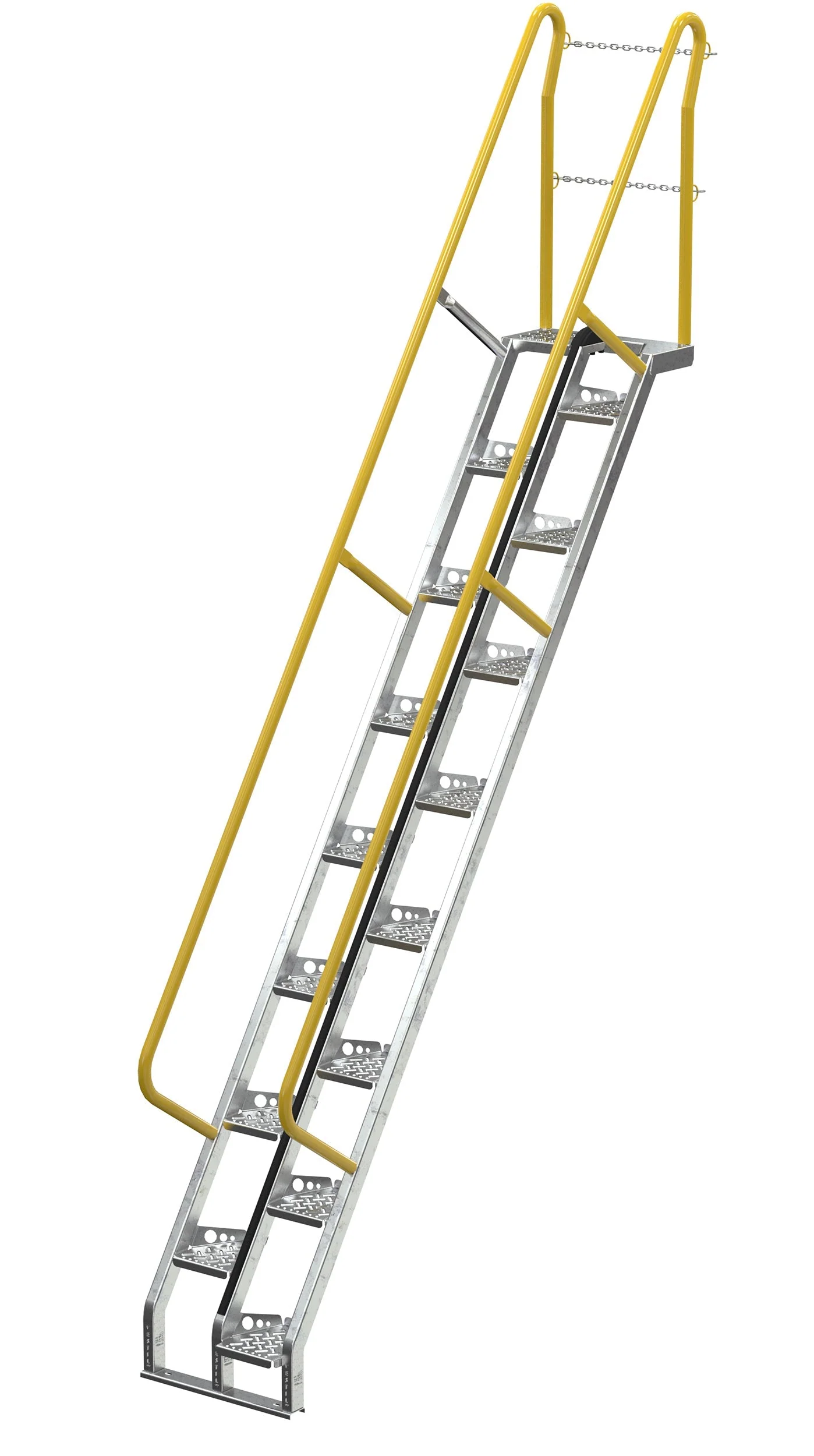

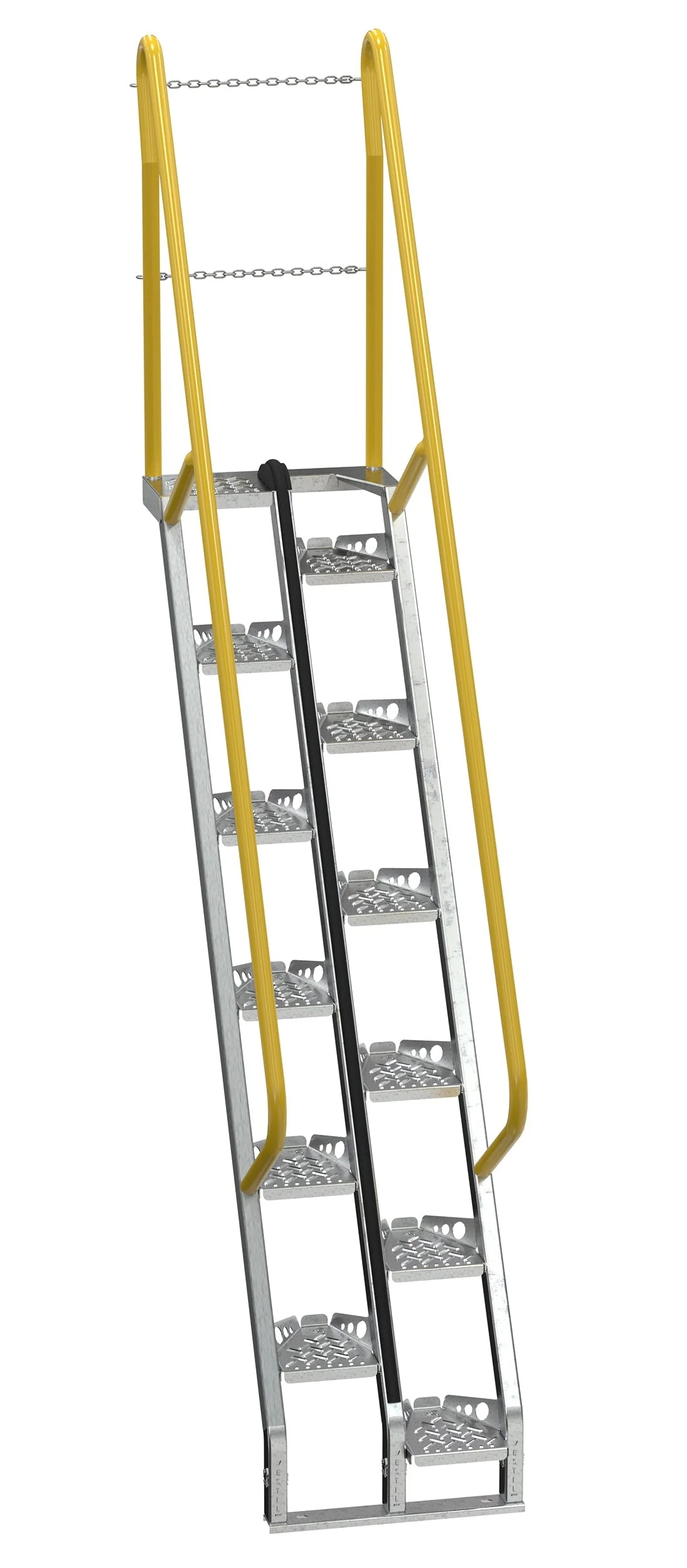

| Hot Dip Galvanized Finish | ||||||
|
Model Number |
Number |
Top Step Height |
Overall Length |
Step Angle |
Capacity (lbs) |
Wt. (lbs.) |
| ATS-4-56-HDG | 7 | 48-1/8" | 42" | 56 degrees | 350 | 156 |
| ATS-5-56-HDG | 8 | 60" | 49-1/4" | 56 degrees | 350 | 192 |
| ATS-6-56-HDG | 10 | 71-7/8" | 57-1/2" | 56 degrees | 350 | 214 |
| ATS-7-56-HDG | 12 | 84" | 65-3/4" | 56 degrees | 350 | 224 |
| ATS-8-56-HDG | 13 | 95-7/8" | 73-1/2" | 56 degrees | 350 | 254 |
| ATS-9-56-HDG | 15 | 107-3/4" | 81-5/8" | 56 degrees | 350 | 284 |
| ATS-10-56-HDG | 16 | 120" | 89-3/4" | 56 degrees | 350 | 312 |
| ATS-11-56-HDG | 17 | 131-3/4" | 97-1/2" | 56 degrees | 350 | 374 |
| ATS-12-56-HDG | 20 | 143-3/4" | 106" | 56 degrees | 350 | 400 |
| ATS-13-56-HDG | 21 | 156-1/4" | 114-1/8" | 56 degrees | 350 | 608 |
| ATS-14-56-HDG | 24 | 168" | 122-3/8" | 56 degrees | 350 | 638 |
| ATS-4-68-HDG | 7 | 48-1/8" | 30" | 68 degrees | 350 | 150 |
| ATS-5-68-HDG | 8 | 60" | 34-5/8" | 68 degrees | 350 | 180 |
| ATS-6-68-HDG | 10 | 71-7/8" | 39-1/2" | 68 degrees | 350 | 188 |
| ATS-7-68-HDG | 12 | 84" | 44-1/2" | 68 degrees | 350 | 238 |
| ATS-8-68-HDG | 13 | 95-7/8" | 49-3/4" | 68 degrees | 350 | 248 |
| ATS-9-68-HDG | 15 | 107-3/4" | 54-1/8" | 68 degrees | 350 | 256 |
| ATS-10-68-HDG | 16 | 120" | 58-7/8" | 68 degrees | 350 | 274 |
| ATS-11-68-HDG | 17 | 131-3/4" | 63-1/2" | 68 degrees | 350 | 298 |
| ATS-12-68-HDG | 20 | 143-3/4" | 68-1/2" | 68 degrees | 350 | 338 |
| ATS-13-68-HDG | 21 | 156-1/8" | 73-1/2" | 68 degrees | 350 | 600 |
| ATS-14-68-HDG | 24 | 168" | 78 -3/8" | 68 degrees | 350 | 610 |
