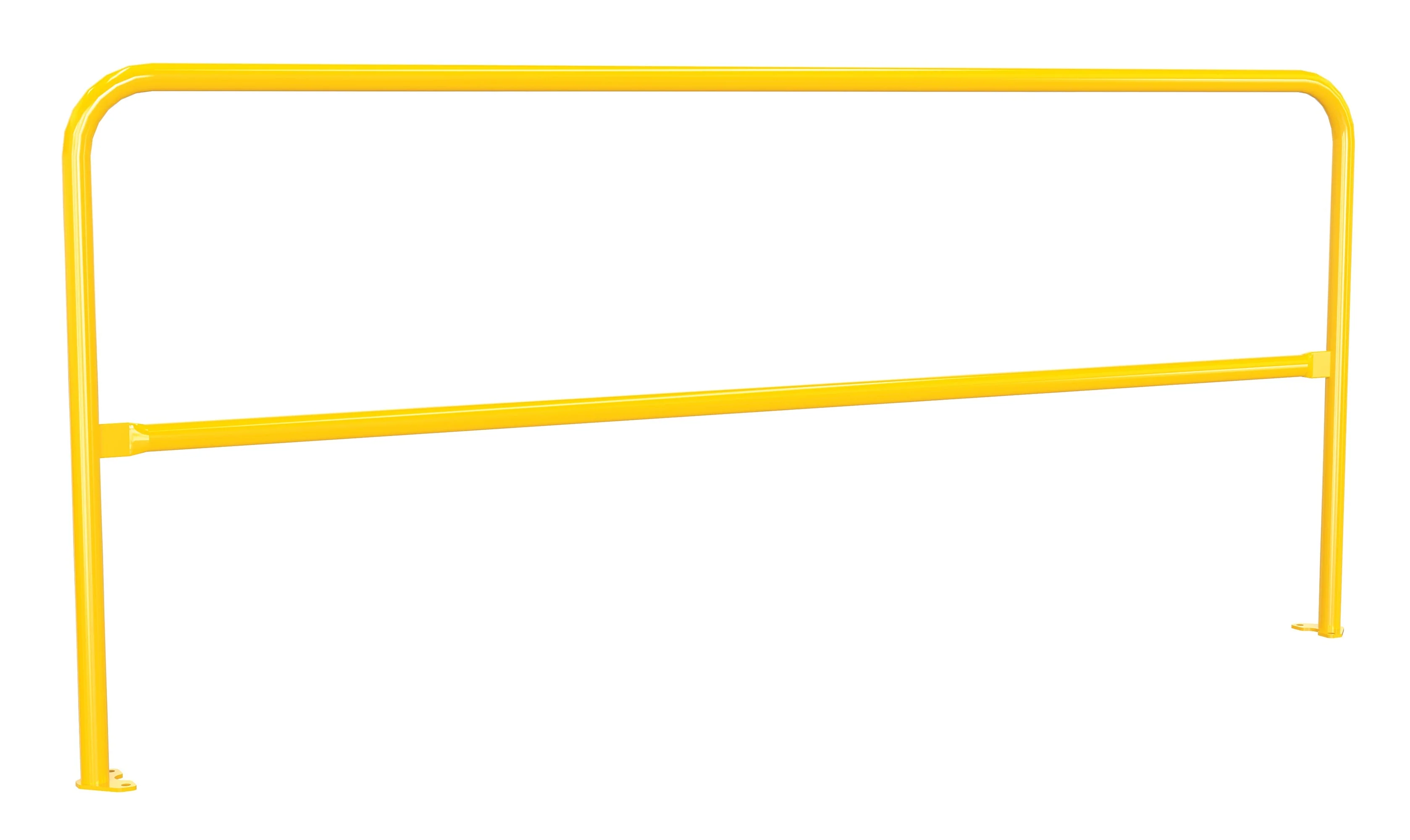

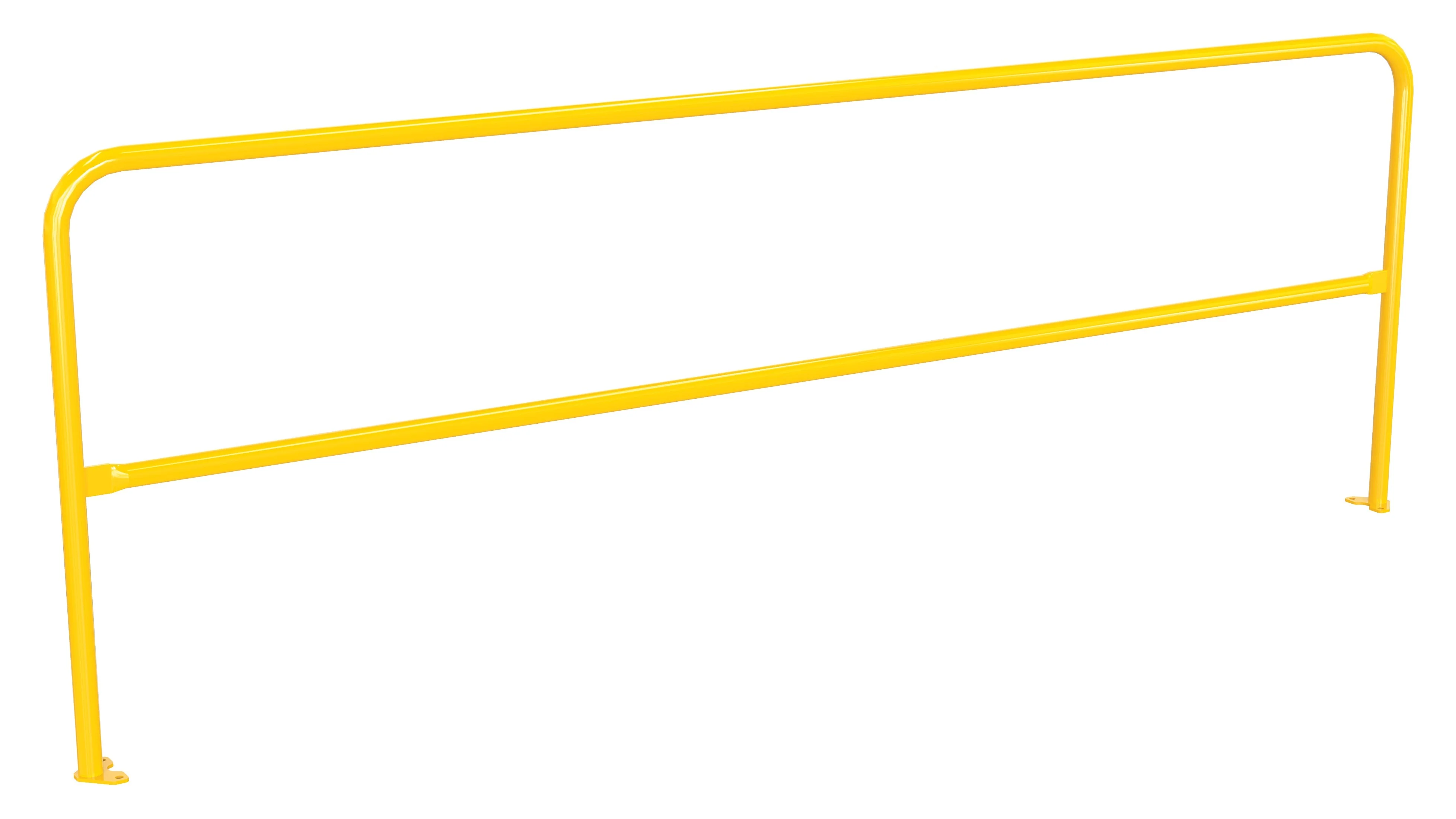

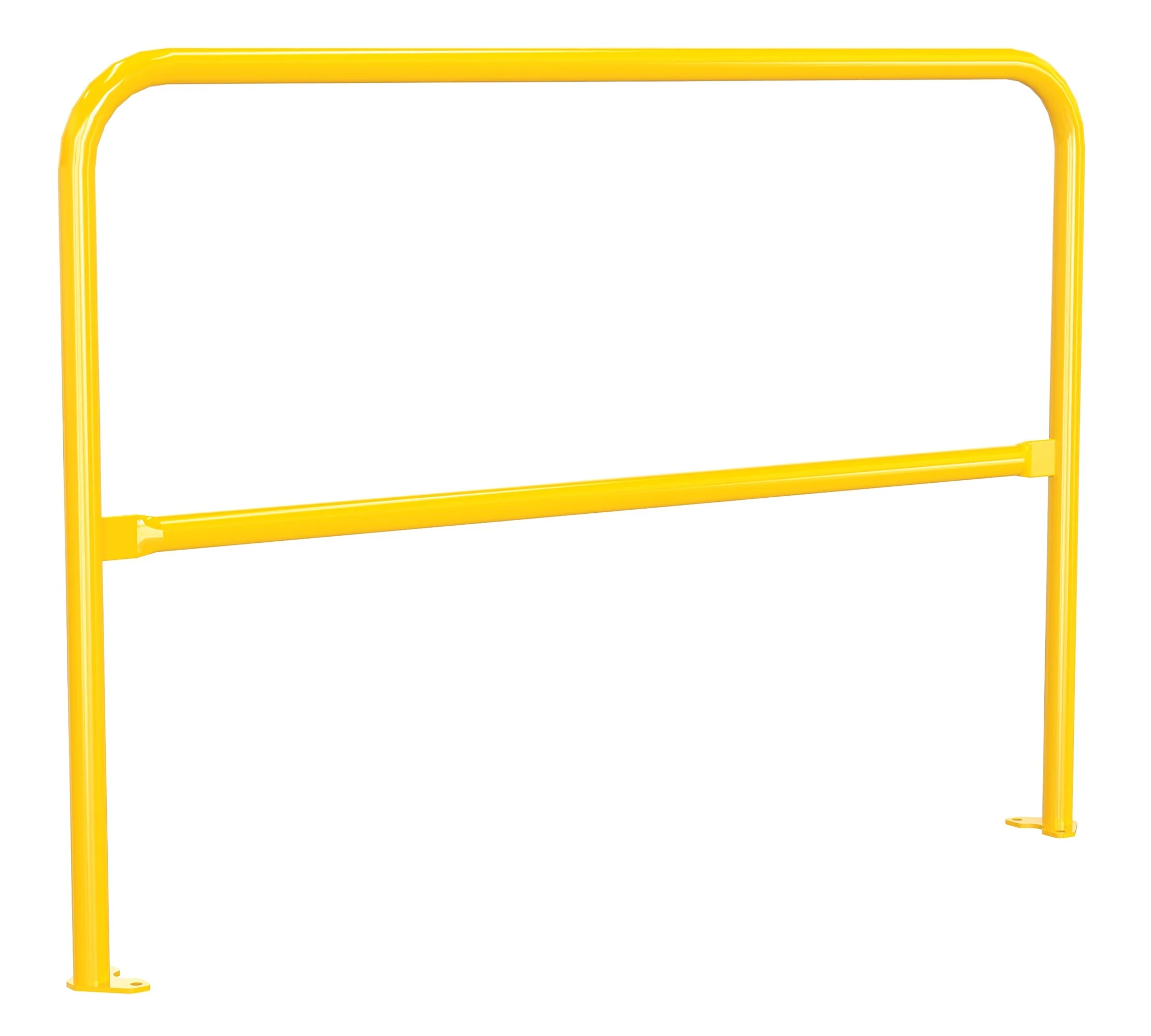

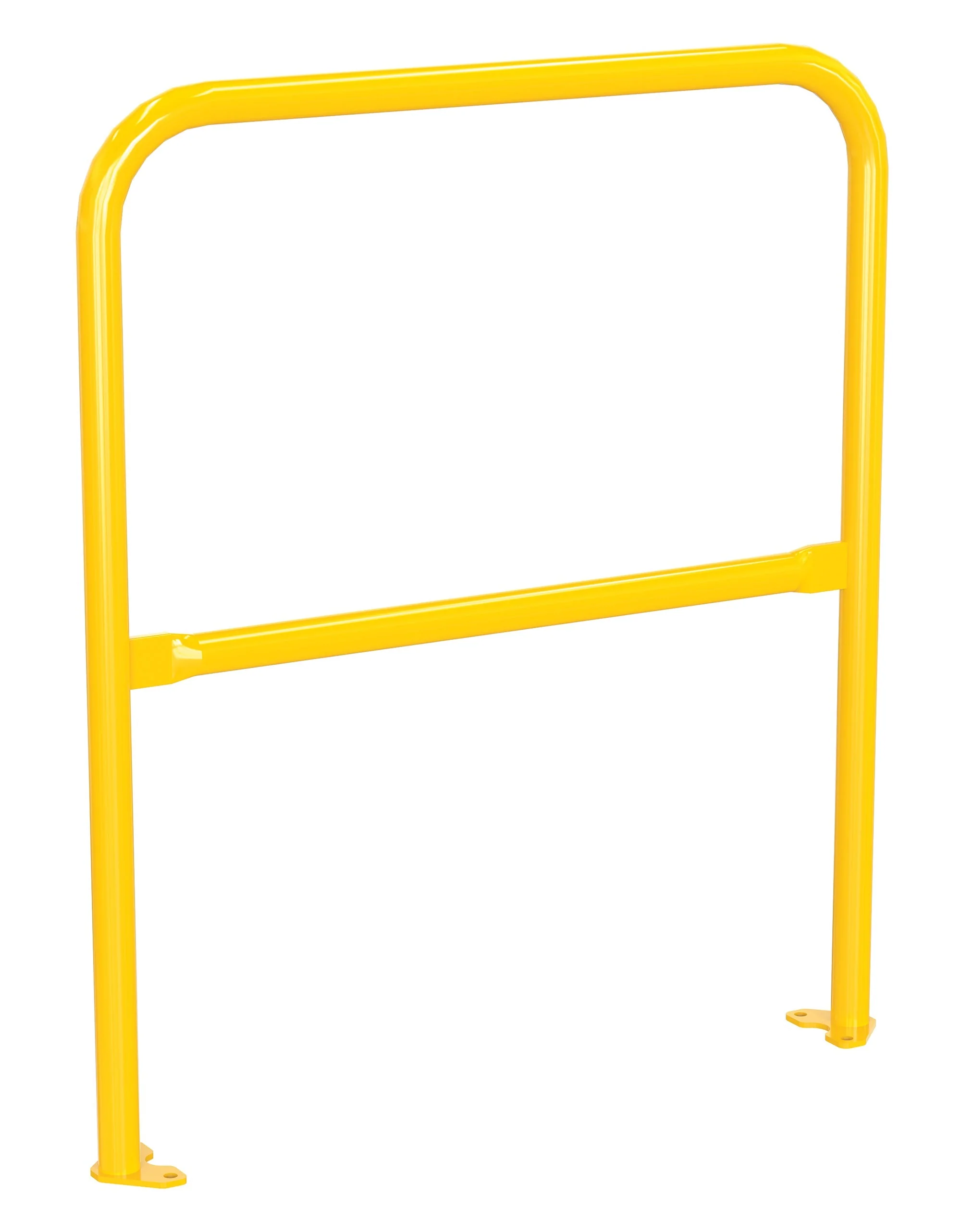

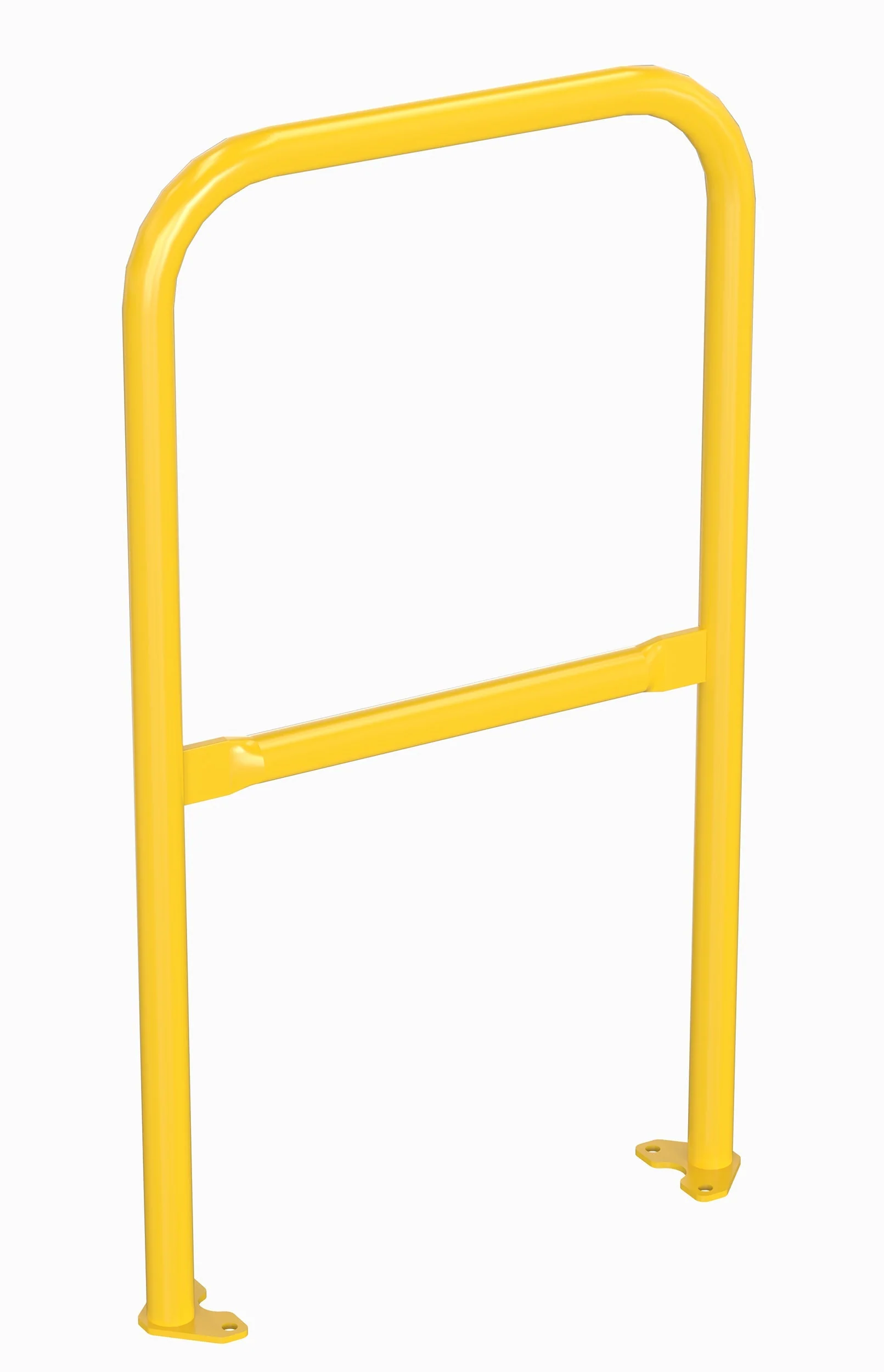

Vestil Steel Safety Railings With Welded Baseplate

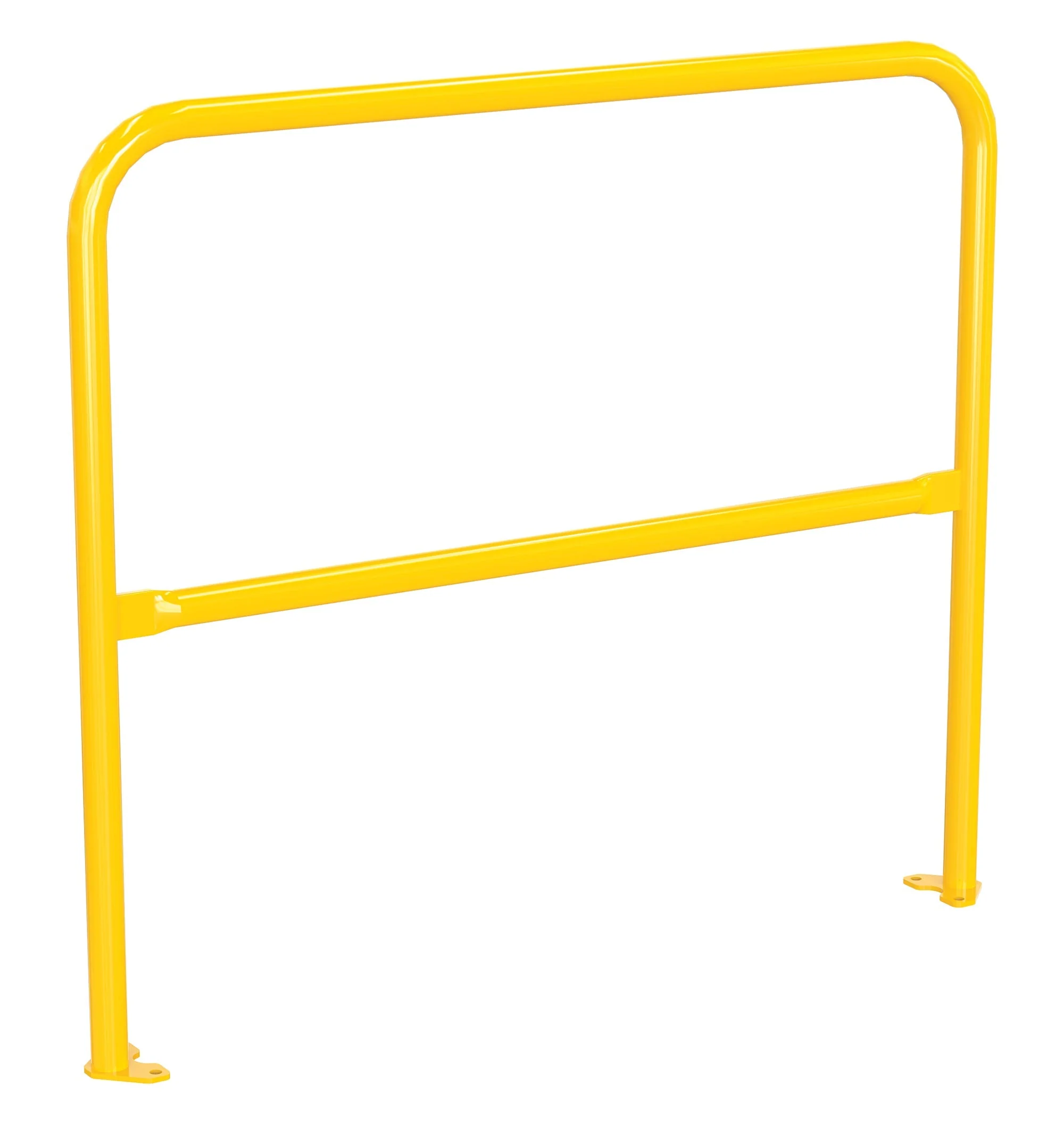

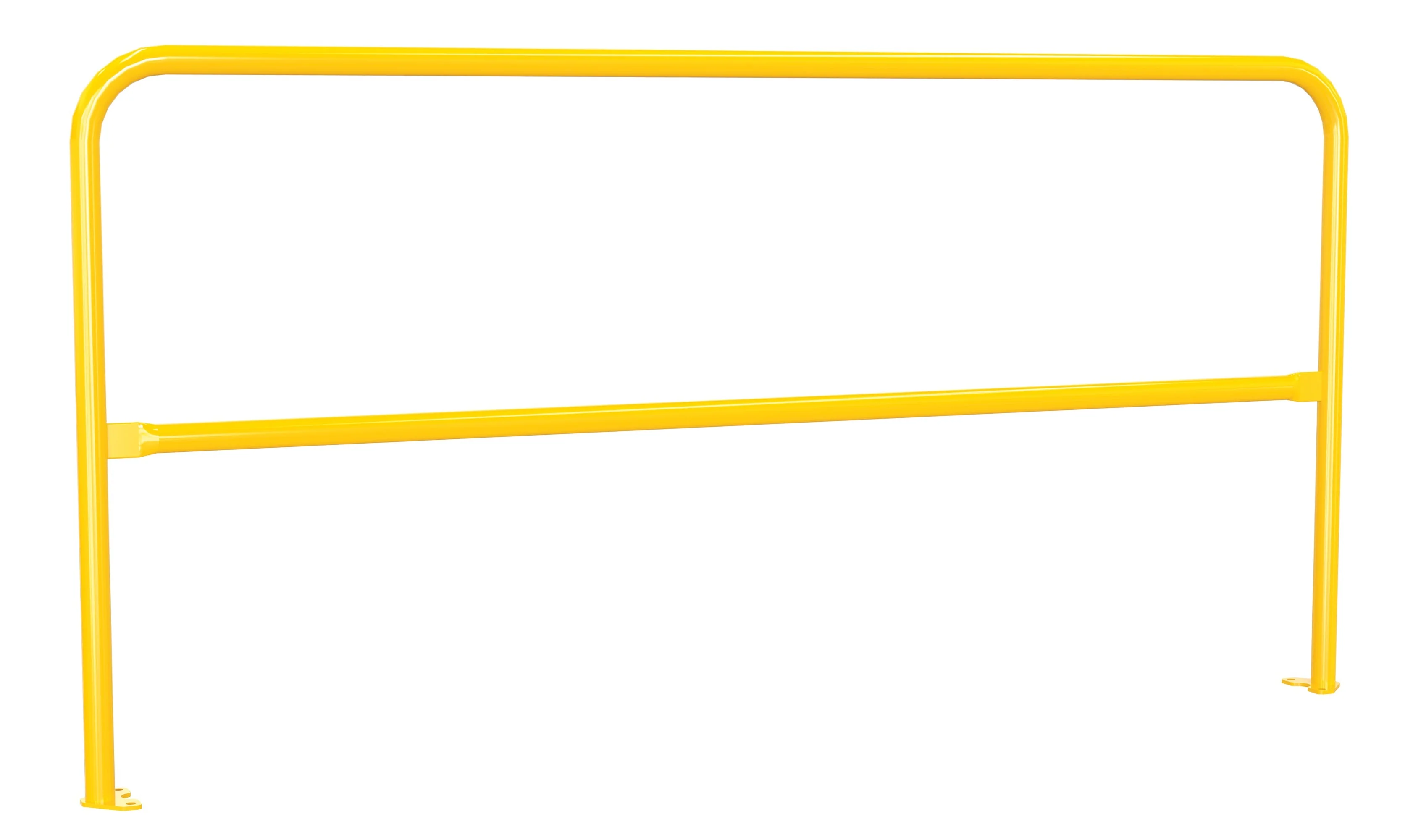

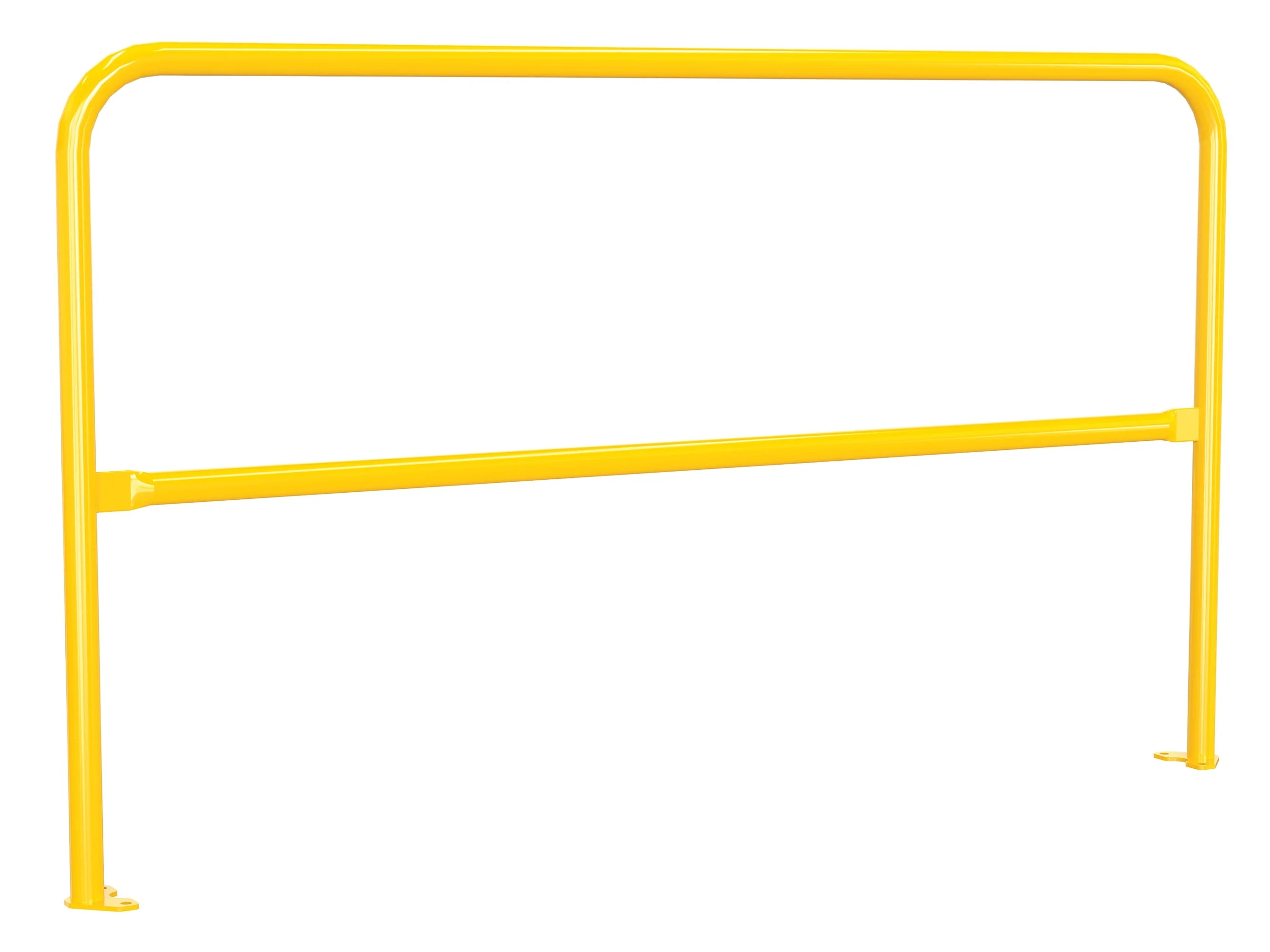

The pipe safety railing adds protection to pathways and dock areas. The base plate not only allows for a quick installation but also gives the steadiness and strength that is needed from a safety railing. With this mounting style the unit can be permanently installed or moved between locations. The upper and lower design gives the user stability and protection against potential falls. Powder-coated yellow finish. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.

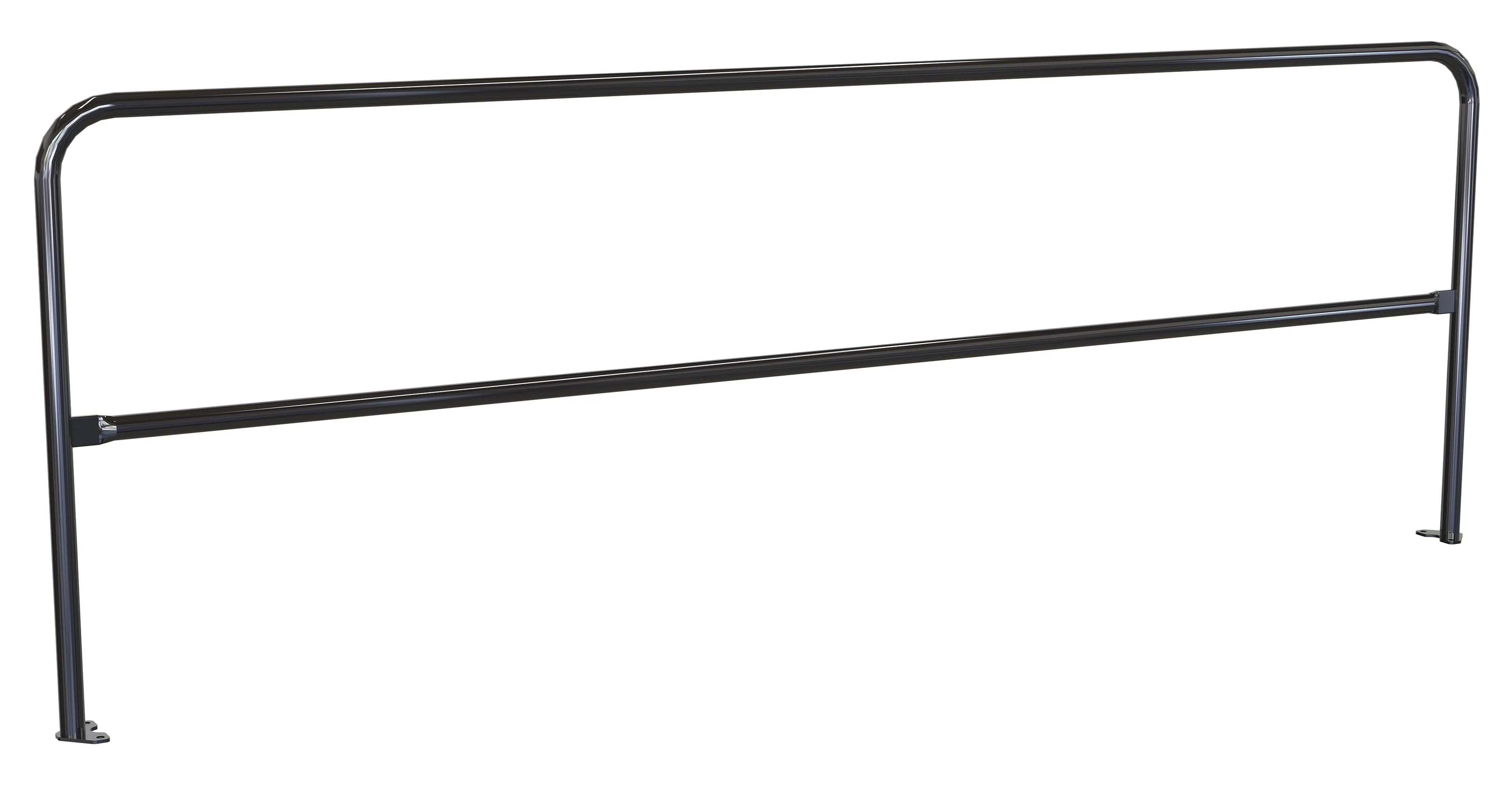

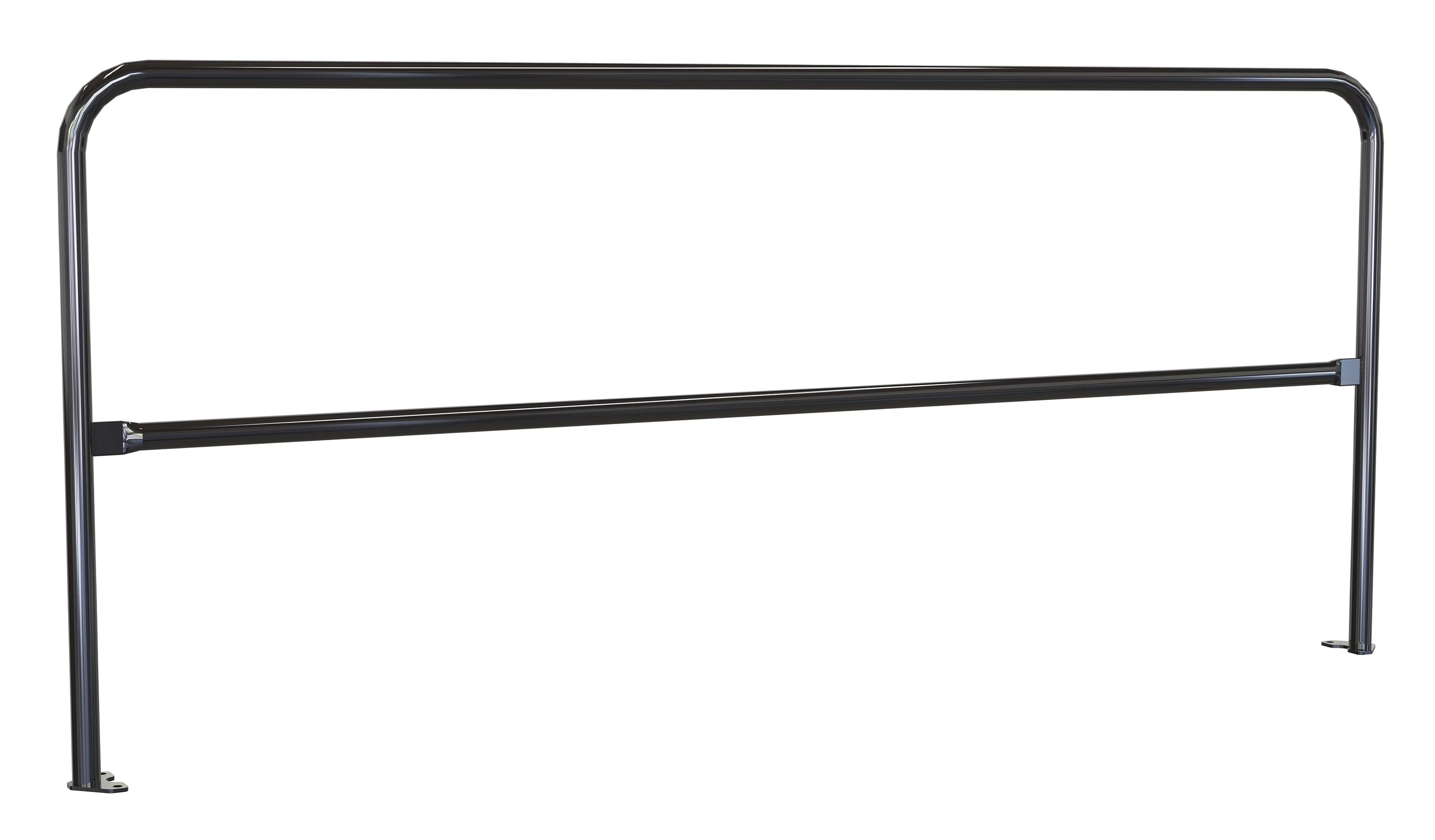

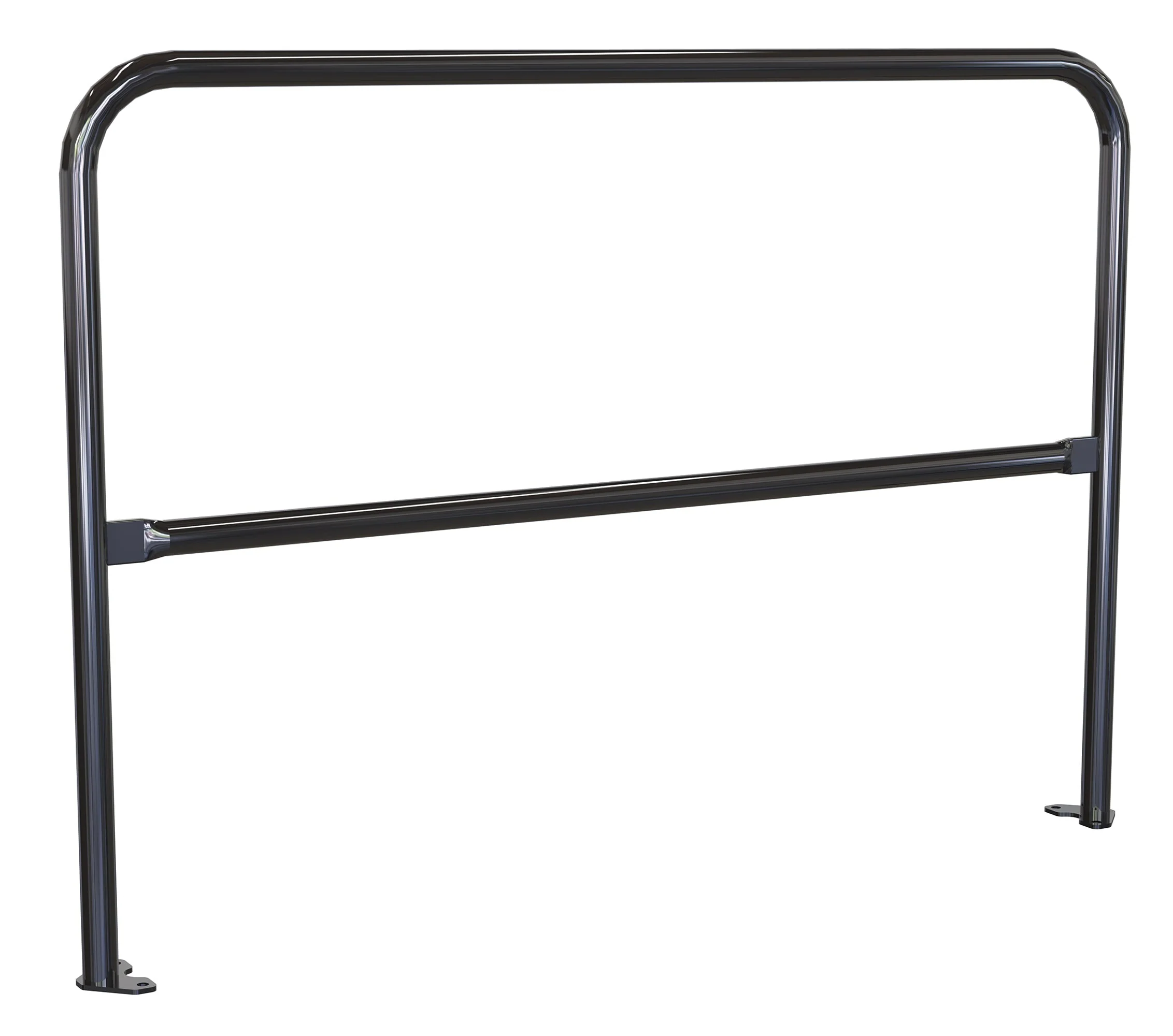

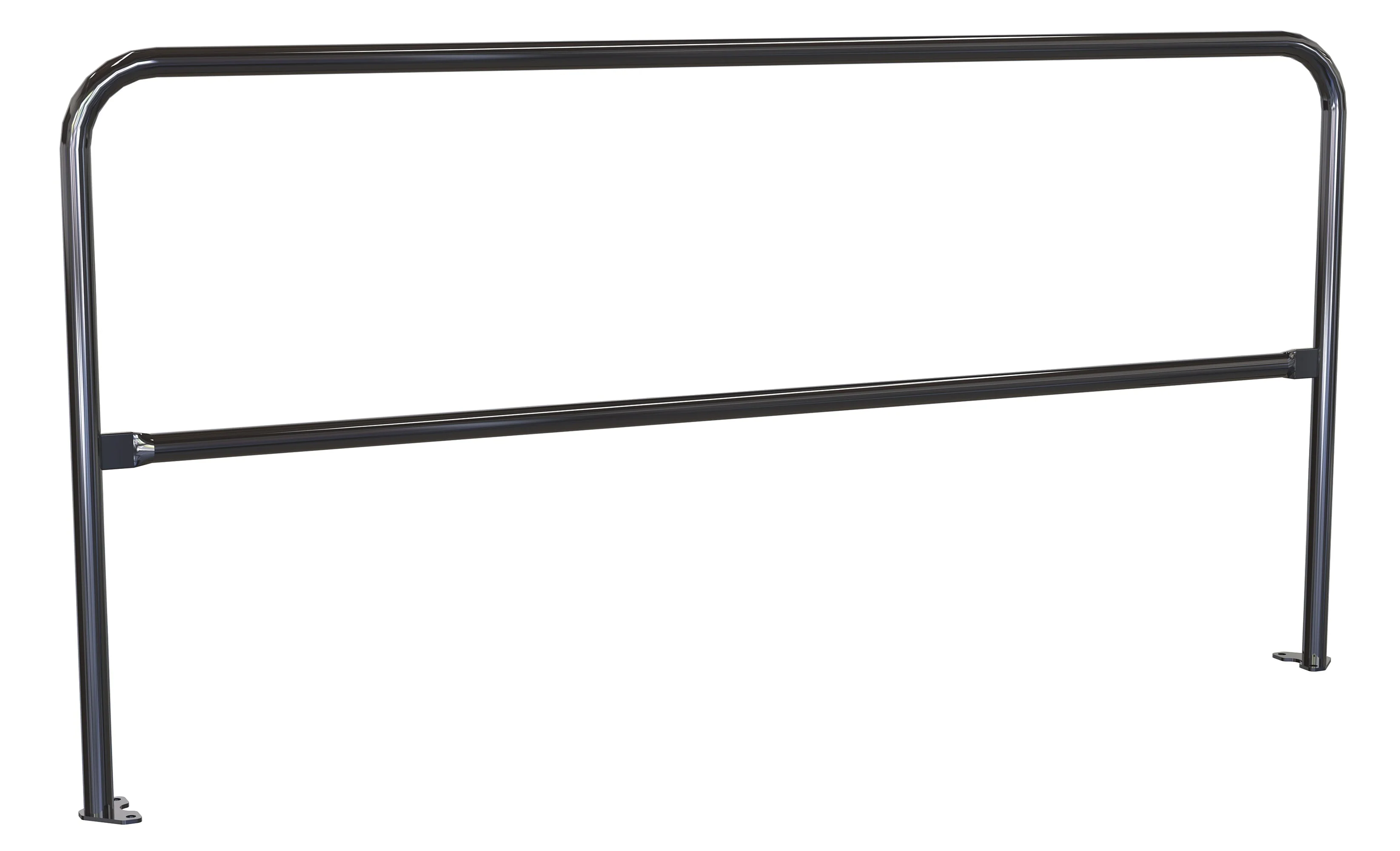

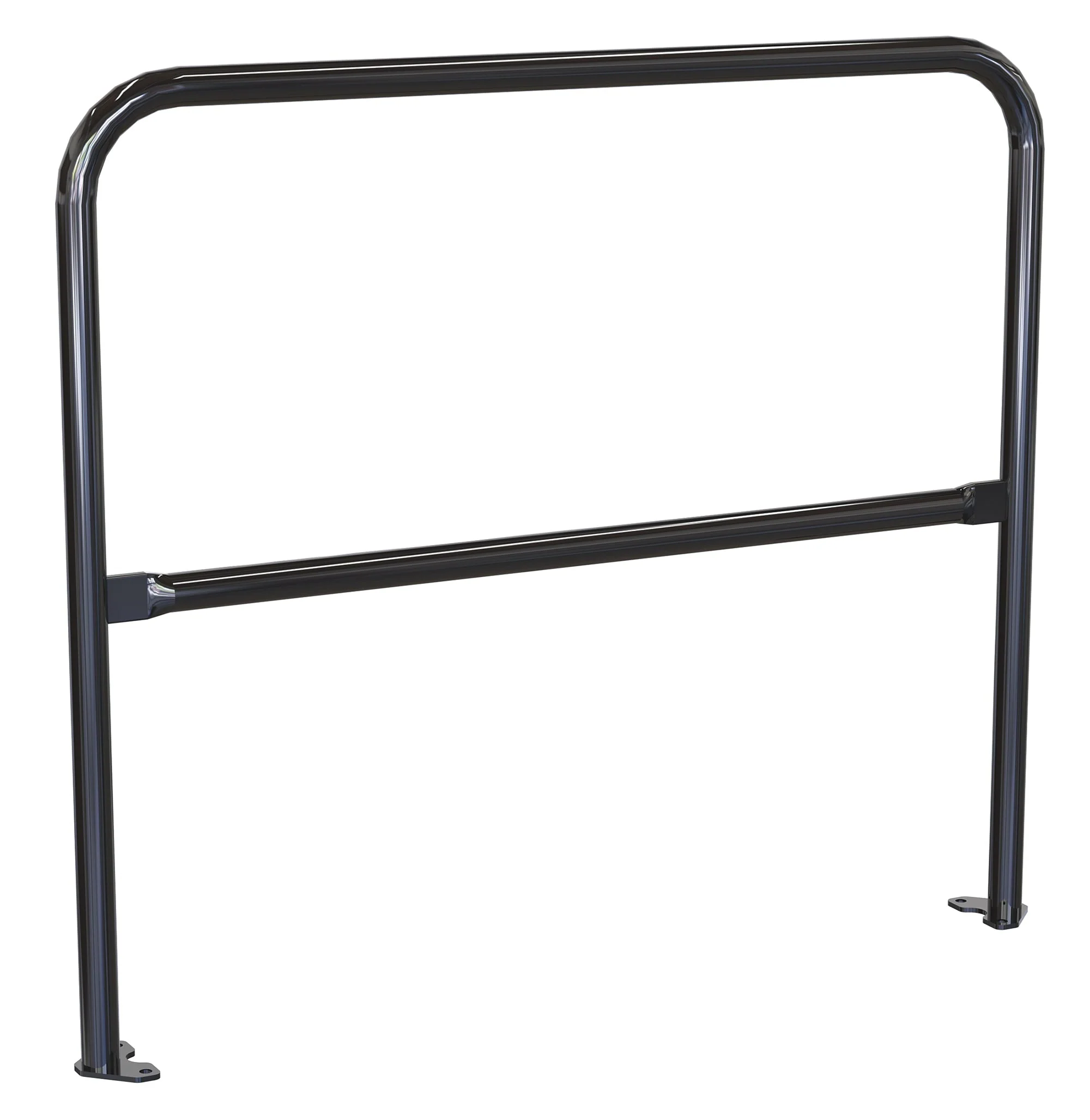

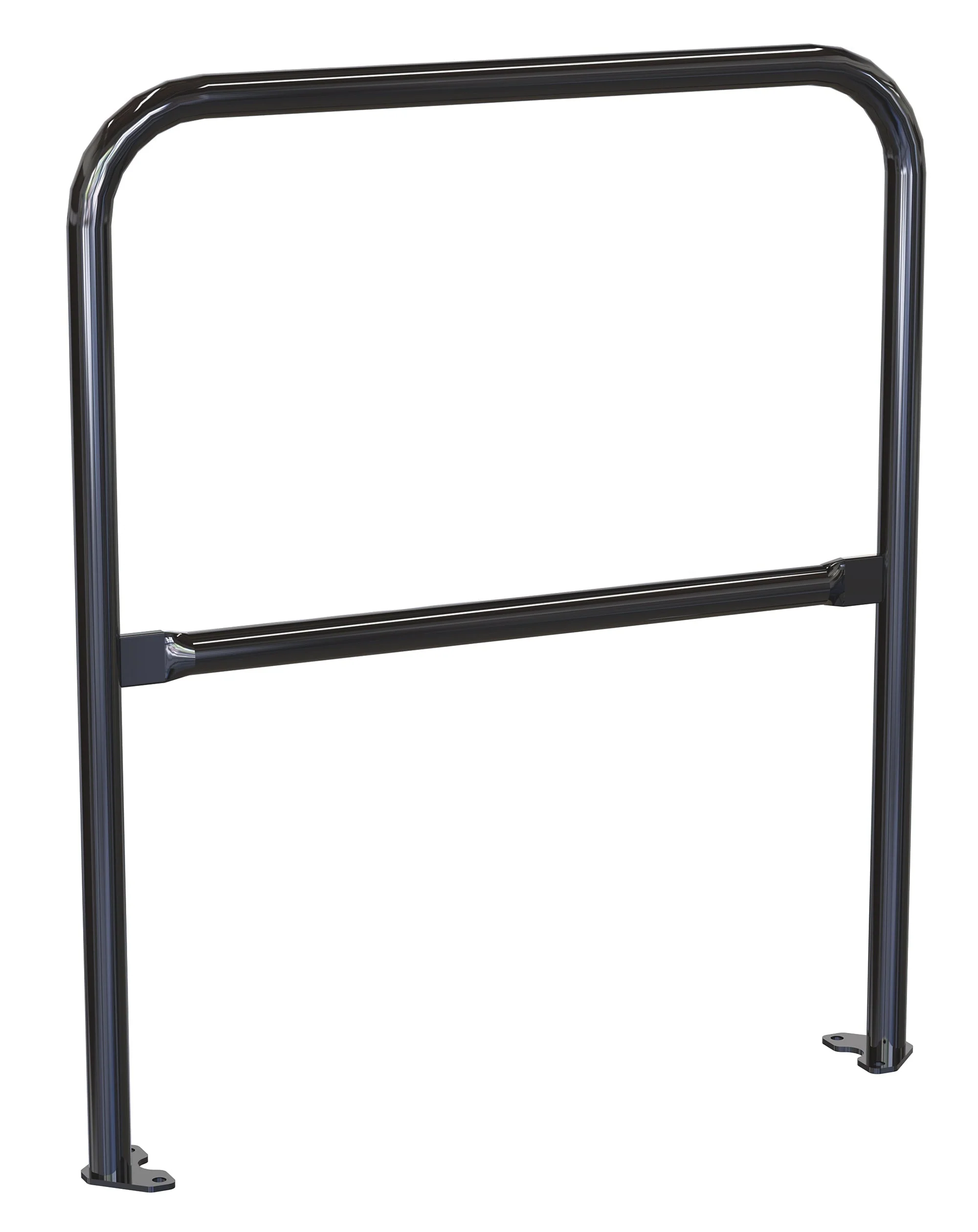

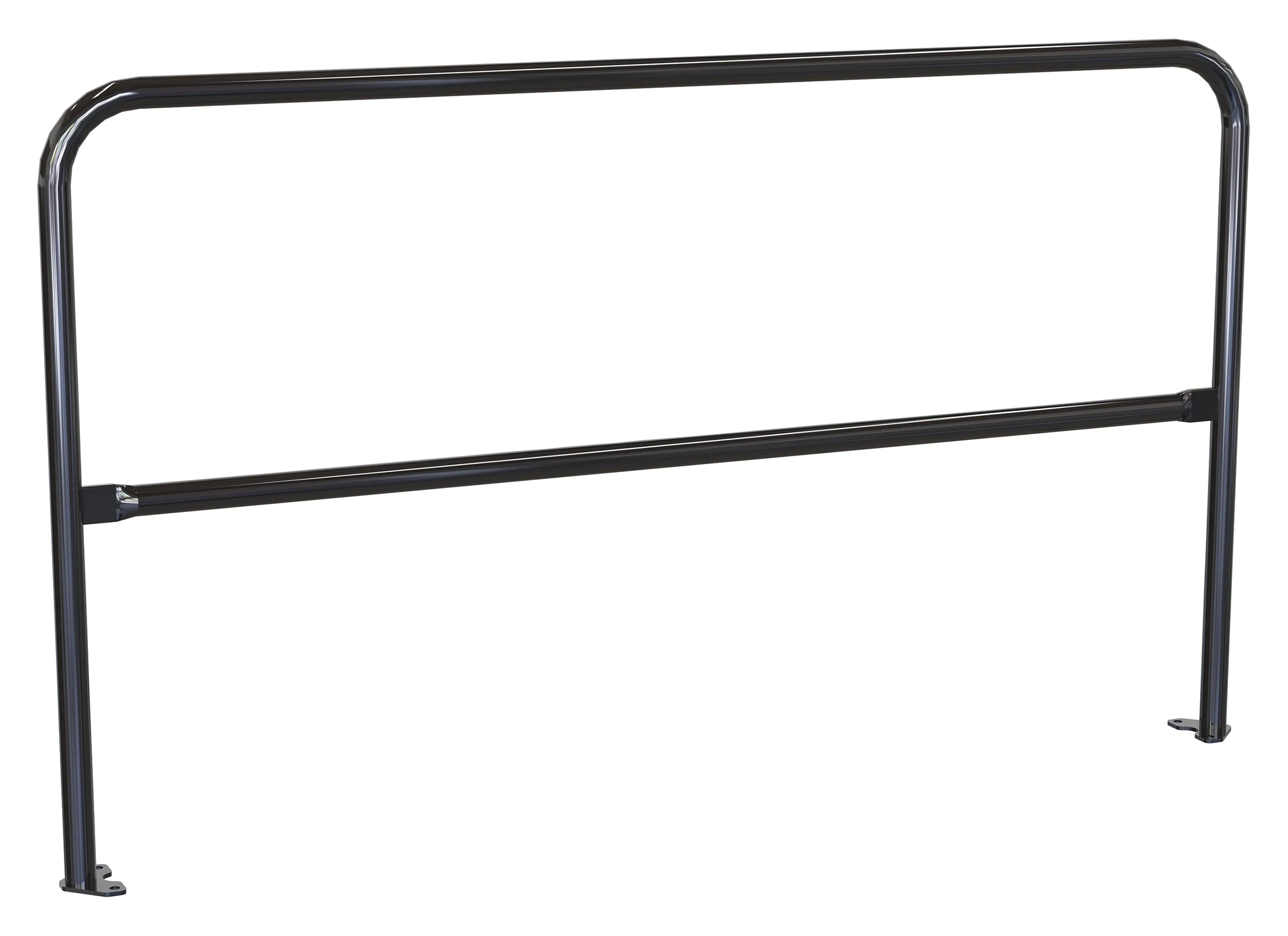

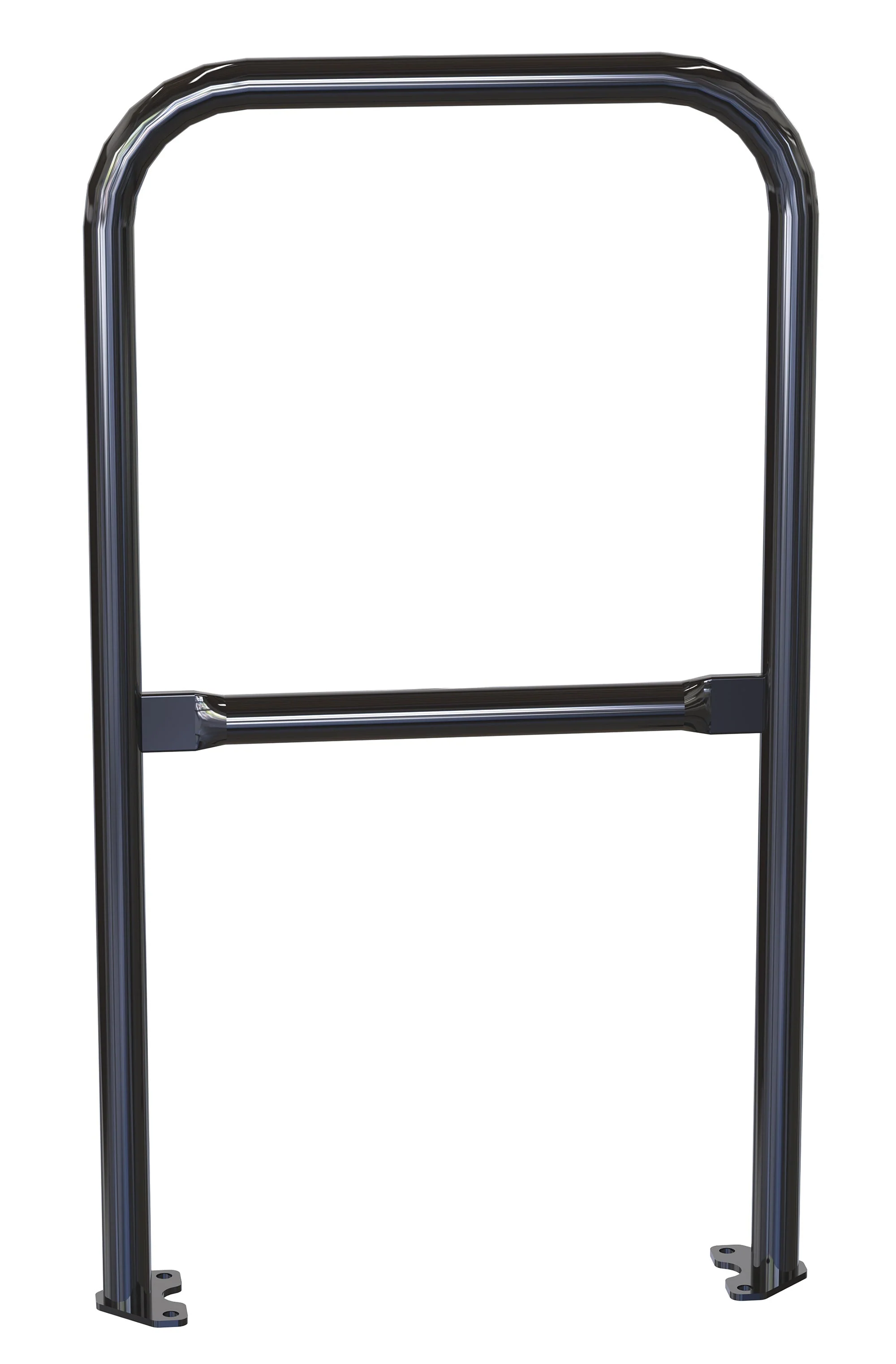

Steel Safety Railings w/ Welded Baseplate (All Models Also Available in Black)
Model	Top Rail Height	Mid Rail Height	Overall Width	Length	Color	Wt. (lbs)
VDKR-2-BP-YL	42"	21"	4-5/8"	24-1/2"	Yellow	22
VDKR-3-BP-YL	42"	21"	4-5/8"	36-1/2"	Yellow	27
VDKR-4-BP-YL	42"	21"	4-5/8"	48-1/2"	Yellow	54
VDKR-5-BP-YL	42"	21"	4-5/8"	60-1/2"	Yellow	36
VDKR-6-BP-YL	42"	21"	4-5/8"	72-1/2"	Yellow	110
VDKR-7-BP-YL	42"	21"	4-5/8"	84-1/2"	Yellow	88
VDKR-8-BP-YL	42"	21"	4-5/8"	96-1/2"	Yellow	96
VDKR-10-BP-YL	42"	21"	4-5/8"	120-1/2"	Yellow	99
