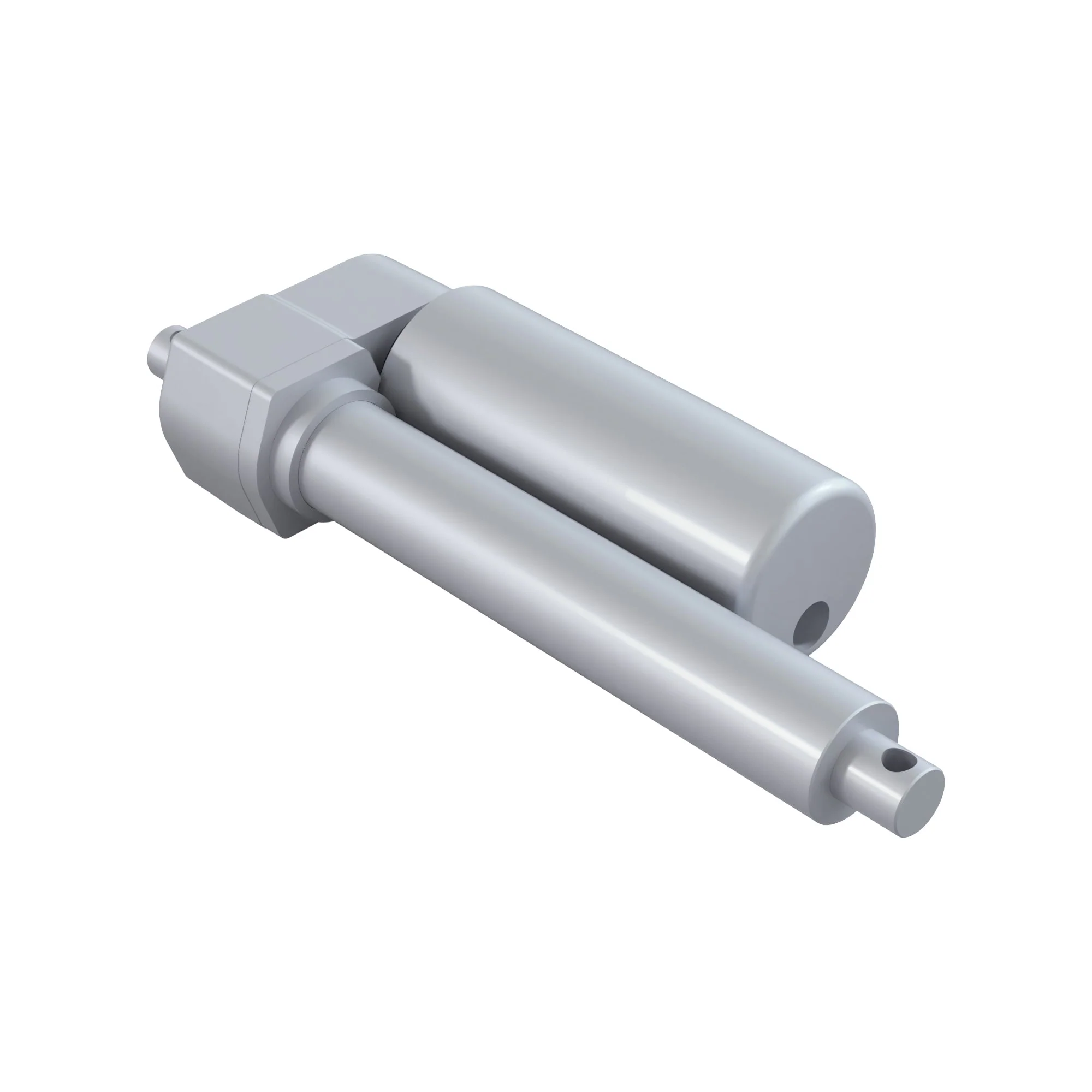

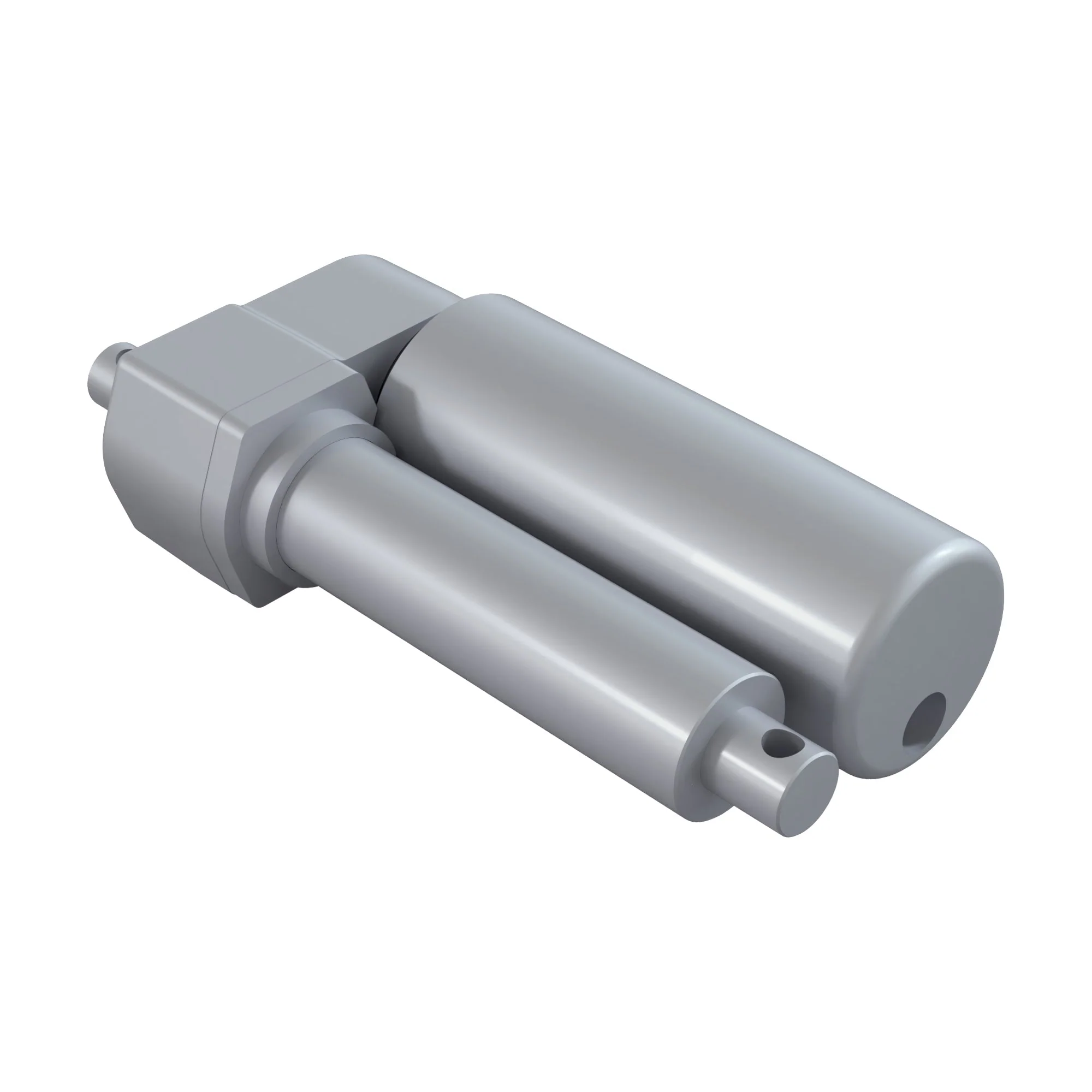

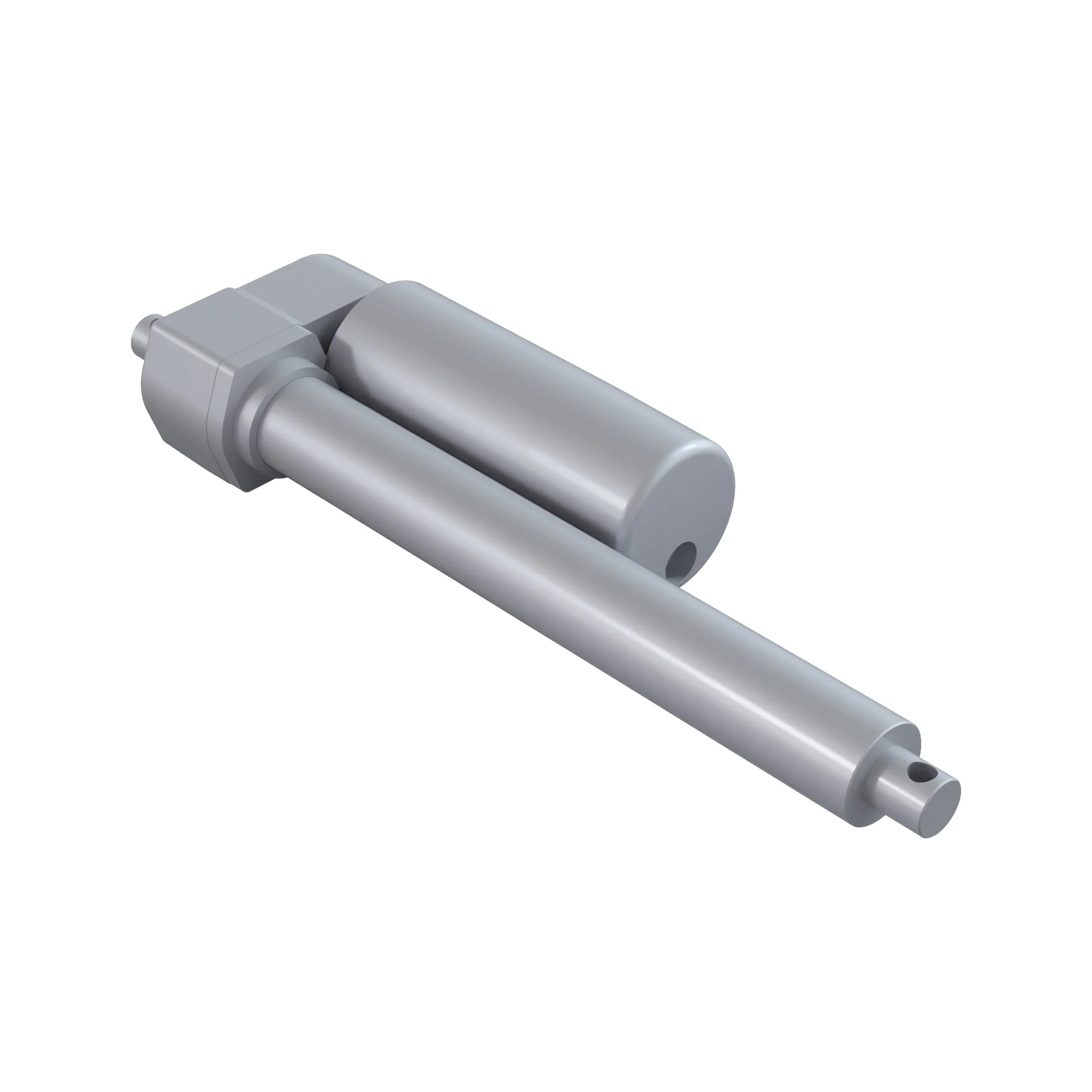

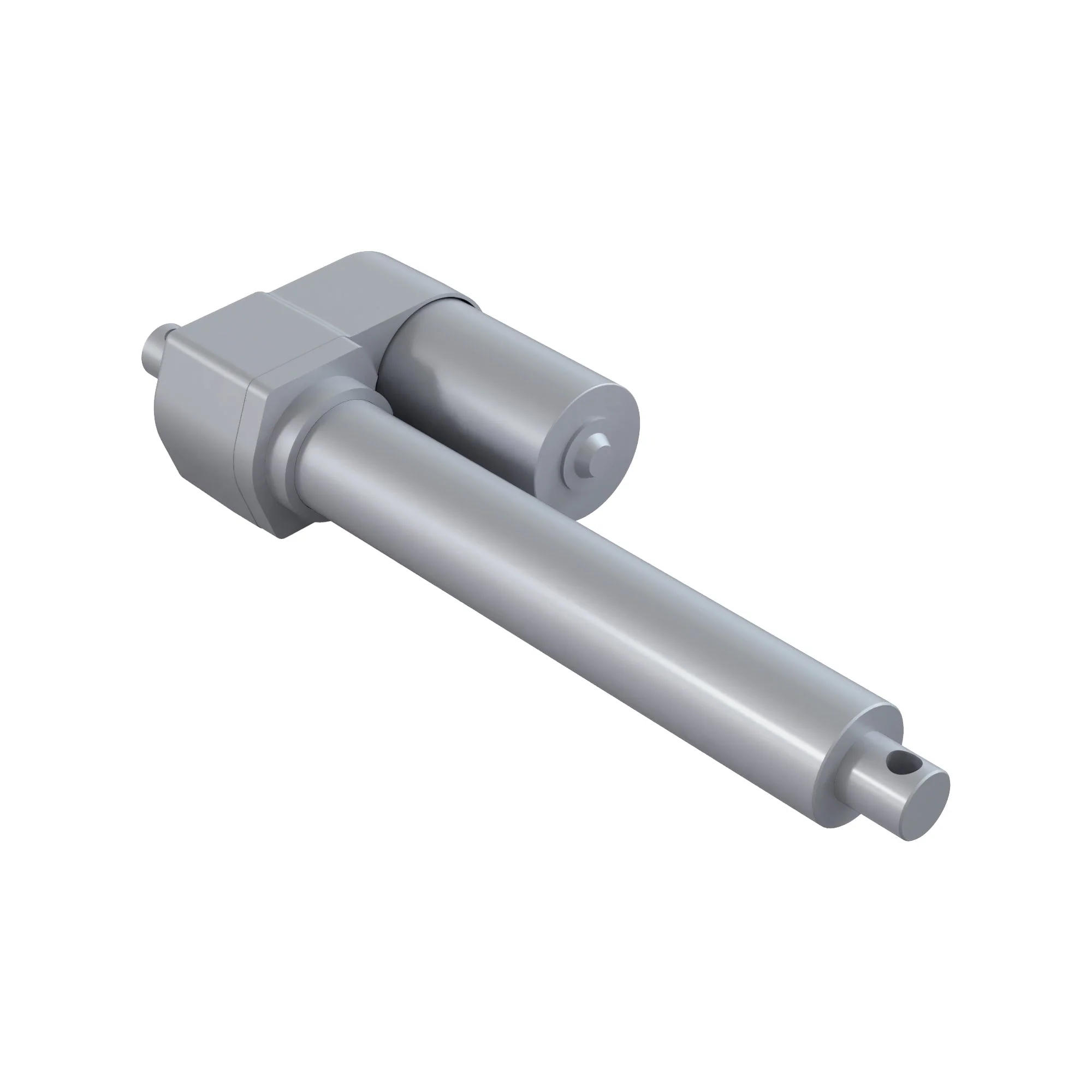

Duff Norton TA Series Linear Actuators

The TA Series of Linear Actuators from Duff Norton’s exceptional range boasts a heavy-duty design for long life cycles in the toughest environments.

Available in three options – with clutch (TAC), limit switch (TAL), or potentiometer (TAP) – the TA Series caters for capacities from 500lbs to 1000lbs, comes with 4”/8”/12” stroke options, and boasts power voltages ranging from 12 or 24VDC and 115 or 220VAC.

Fitted with a steel translating tube with zinc chromate plating, these linear actuators features a corrosion resistant aluminum housing, as well as IP50 rated. In addition, these units are protected from thermal overload with an automatic reset.

The TA Series is designed to maintain working efficiency in temperatures ranging from 25°F up to 120°F.

The TAC option comes with a load limiting ball detent clutch. TAP models come with a potentiometer for precise position feedback. And, finally, the TAL range is fitted with a limit switch for safe repeatable positioning. See dropdown menu or data table for complete specifications and configurations.

Capacity	500 - 1000lbs
Speed	0.37 - 0.9 in/s
Voltage	12, 24 VDC ; 115, 220/230 VAC
Temperature Range	25°F - 120°F
Environmental Protection	IP50
